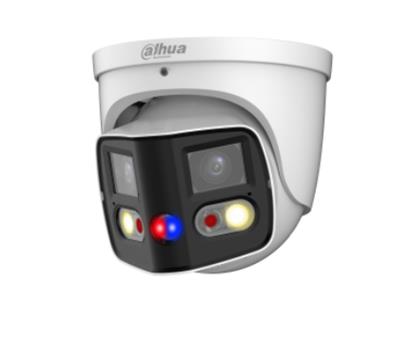

Description: 2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera
> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights)
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-PDW3849-A180-AS-PV
Model: PDW3849-A180E2ASPV-0280B
Camera design: Eyeball
Network Camera Type: Outdoor
Pixel Resolution: 8
Focal Length: 2.8mm
IR Illumination: Yes
Sensor size: Dual 1/2.7″ CMOS
Microphone: Built-in
Lens Mount: M12
Electronic Shutter Speed: 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Colour: White
Dimensions: 122 mm × 135.2 mm
Shipping box quantity: 1
Shipping Box Depth: 17
Shipping Box Height: 17
Shipping Box Weight: 1.19
Shipping Box Width: 17
Unit Brutto Volume: 0.004913
Unit Net Weight: 0.99
Unit Gross Weight: 1.19
CnCode: 85258900
Unit Box Width: 0.17
Unit Box Length: 0.17
Unit Box Height: 0.17
Full Description Line: Type Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size Dual 1/2.7″ CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 122 mm × 135.2 mm
Category Code: FNC
