Description: 1/2.8” CMOS, 3840 × 2160 @ 30FPS max
Minimum illumination: 0.0008 lux @F1.6 (Color, 30 IRE); 0.0004 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
True Day/Night with ICR Filter, BLC / HLC / True WDR (120dB), 3D DNR, Defog
Fixed lens 2.8 mm (110°)
Up to 80 smart IR Illumination
H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O, Built-in microphone
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
Bullet design, metal shell, IP67, IK10, -40°C~+60°C
Power ePoE / PoE / 12VDC power, 9.8W max
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/8MP/IPC-HFW5842T-ASE=S3
Model: IPC-HFW5842T-ASE-0280B-S3

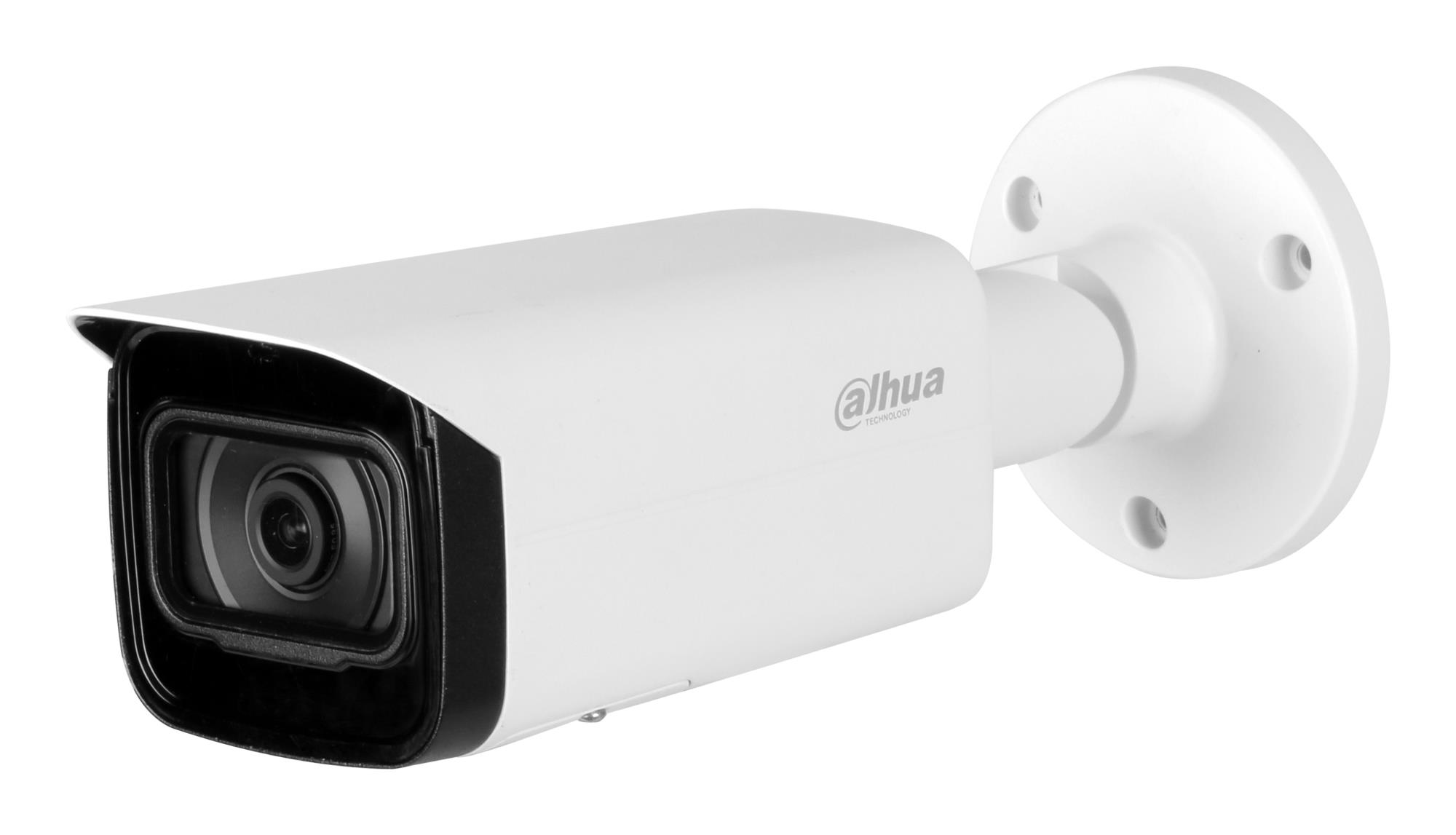

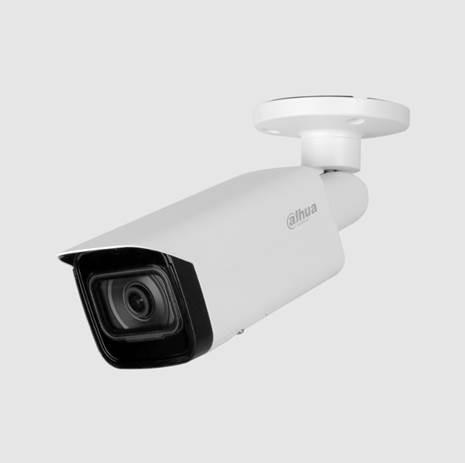

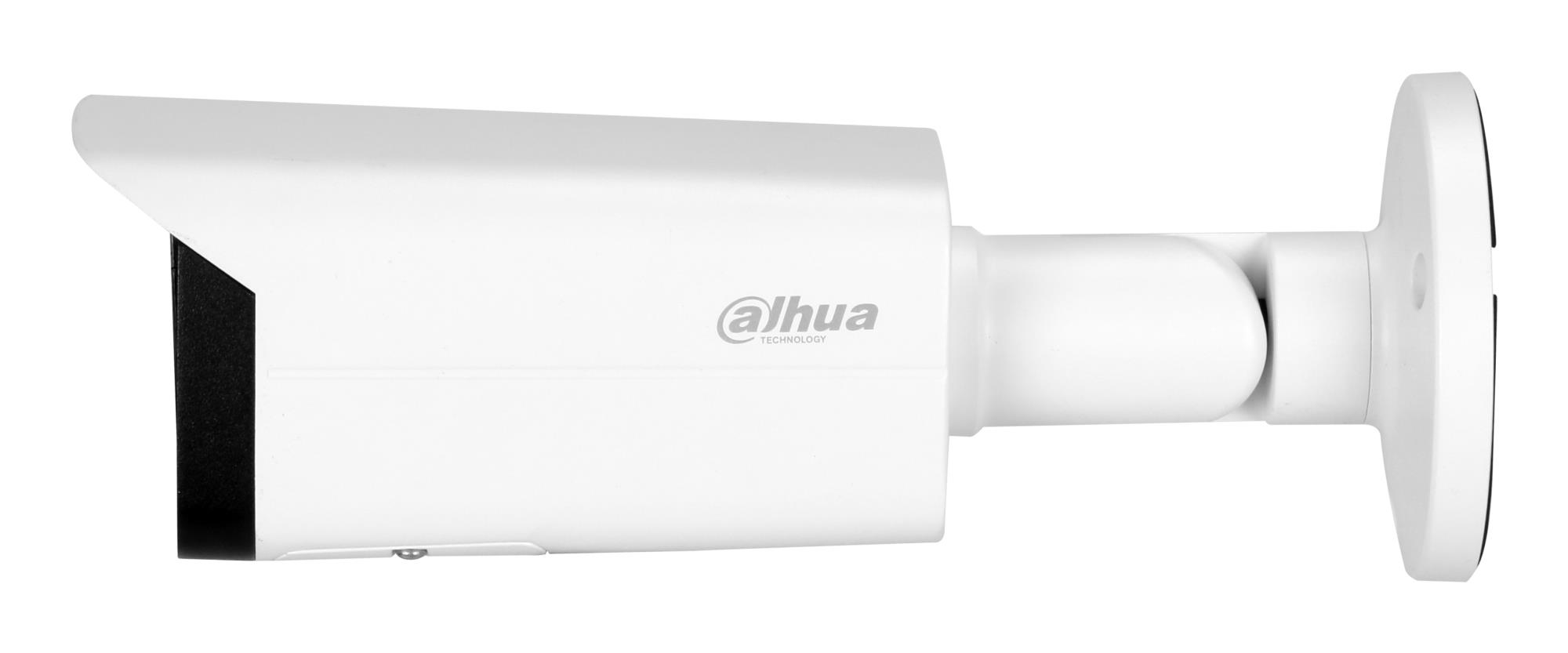

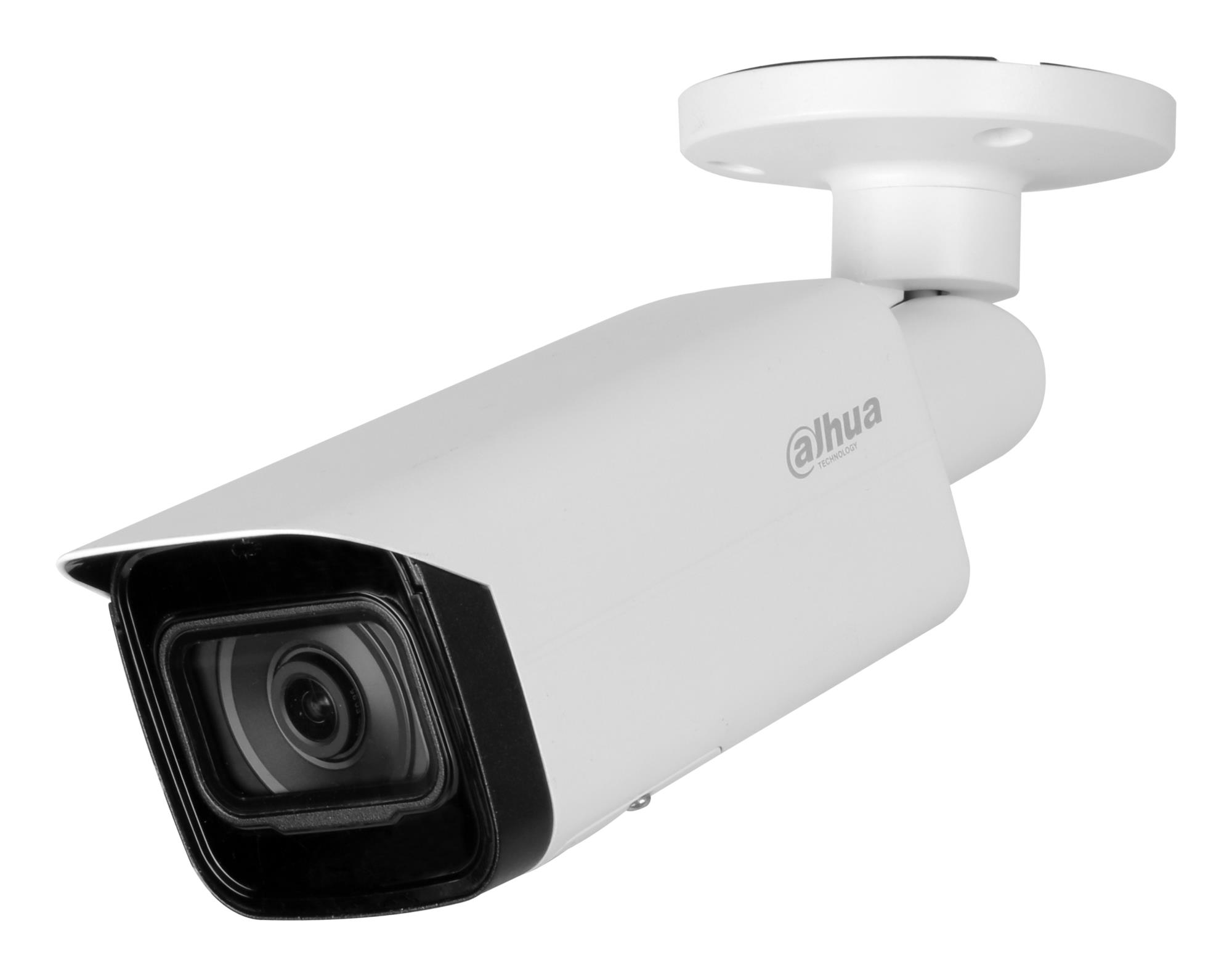

Camera design: Bullet
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 8
Focal Length: 2.8mm
IR Illumination: Yes
Sensor size: 1/1.8″
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0004
Effective pixels: 3840 (H) × 2160 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 256GB
Power supply requirements: 12 VDC/PoE (802.3af)/ePoE
Power consumption: 5.2
Environment: Outdoor
Operating temperature range: -40 °C to +60 °C
Colour: Black
Dimensions: 244.1 × 79.0 × 75.9 mm
Shipping box quantity: 1
Unit Brutto Volume: 0.00744
Unit Net Weight: 0.82
Unit Gross Weight: 1.08
CnCode: 85258900
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/1.8″|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0004 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range -40 °C to +60 °C|Colour Black|Dimensions 244.1 × 79.0 × 75.9 mm
Category Code: FNC
