Description:
- 8-MP 1/2.8″ CMOS image sensor, excellent low luminance performance and high definition of images
- Outputs max. 8MP (3840 × 2160) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 30 m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Max. 256 G Micro SD card. built-in Mic
- 12 VDC/PoE power supply facilitates installation
- IP67 protection
- SMD 4.0, AI SSA

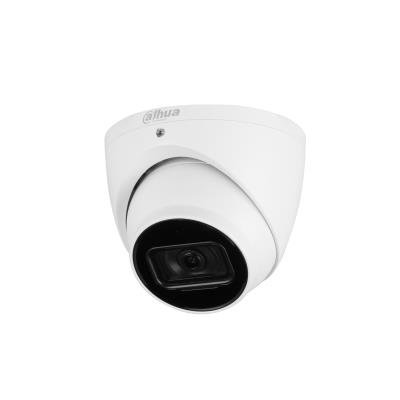

Summary: Dahua Technology WizSense IPC-HDW3841EM-S-0280B-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 107°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Detect distance: 87.7 m, Observe distance: 35.1 m, Recognize distance: 17.5 m
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/8MP/IPC-HDW3841EM-S-S2=S2
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.155
Unit Box Length: 0.16
Unit Box Width: 0.14
Form factor: Turret
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 120
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 360
Camera shutter speed: 1/3 – 1/100000
Camera shutter type: Electronic
Lens viewing angle, diagonal: 127
Lens viewing angle, horizontal: 107
Lens viewing angle, vertical: 56
Minimum illumination: 0
Number of Privacy masking areas: 4
Pan range: 0 – 360
Tilt angle range: 0 – 78
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optical sensor size: 1/2.8
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.5
Detect distance: 87.7
Fixed focal length: 2.8
Identify distance: 8.8
Minimum aperture number: 1.4
Observe distance: 35.1
Recognize distance: 17.5
LED type: IR
Night vision: Yes
Night vision distance: 30
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate: 3 kbps – 8192 kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30
Gain control type: Auto
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 x 2160
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 8
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Video streaming: Yes
Audio formats supported: G.711 µ-law/G.711 A-law/G.723/G.726
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20
Supported network protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 1024
Maximum memory card size: 256
ROM capacity: 128
Ethernet LAN (RJ-45) ports: 1
Mirror: Yes
Power consumption (max): 7.6
Power consumption (Power over Ethernet (PoE)): 4.9
Power consumption (typical): 4.3
Power source type: DC,PoE
Operating temperature (T-T): -40 – 60
Storage temperature (T-T): -40 – 60
Diameter: 106
Height: 93.6
Weight: 500
Package weight: 770
Number of cameras: 1
Model: IPC-HDW3841EM-S-0280B-S2
Units per Shipping Box: 1
Unit Calculated Volume: 0.003472
Unit Calculated Weight: 0.718
