Description: RB5009UG+S+IN

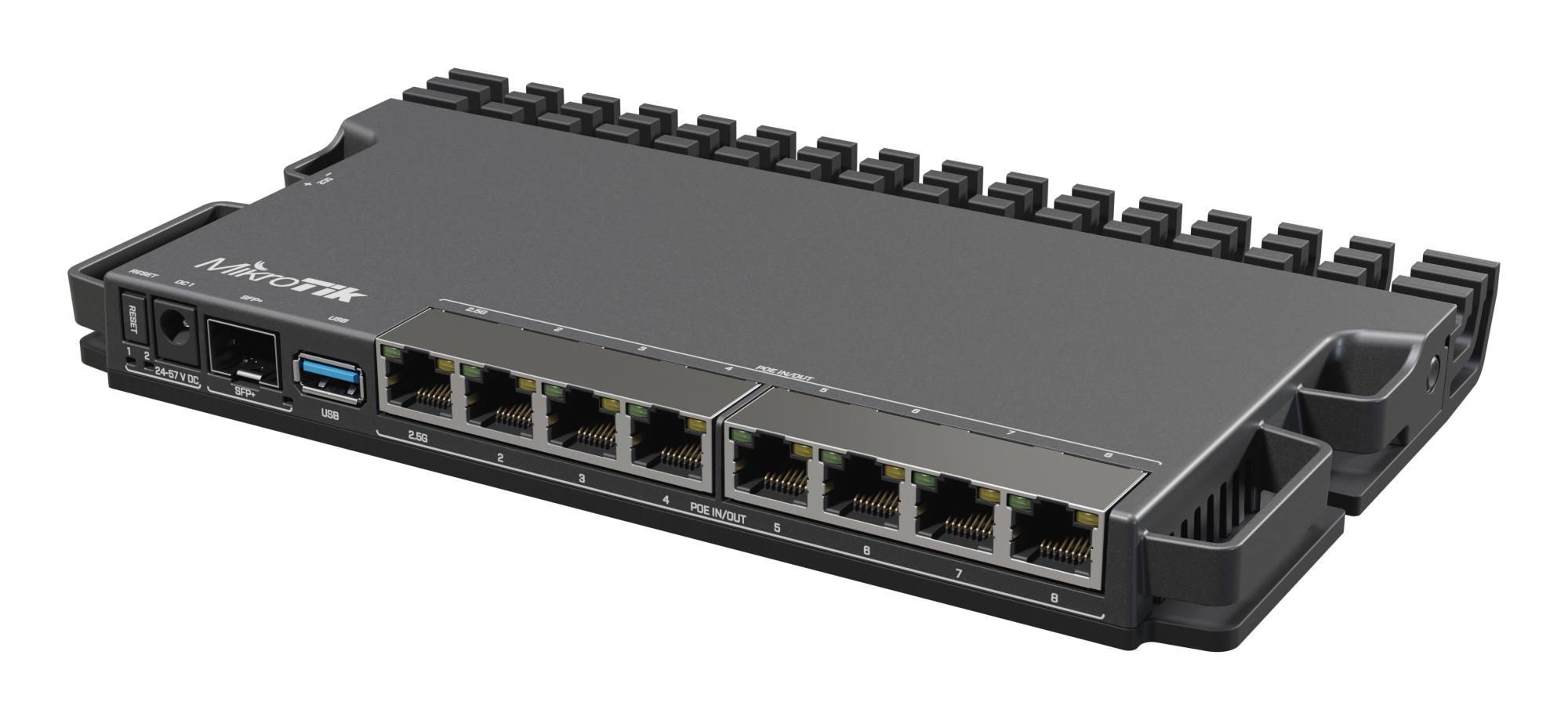

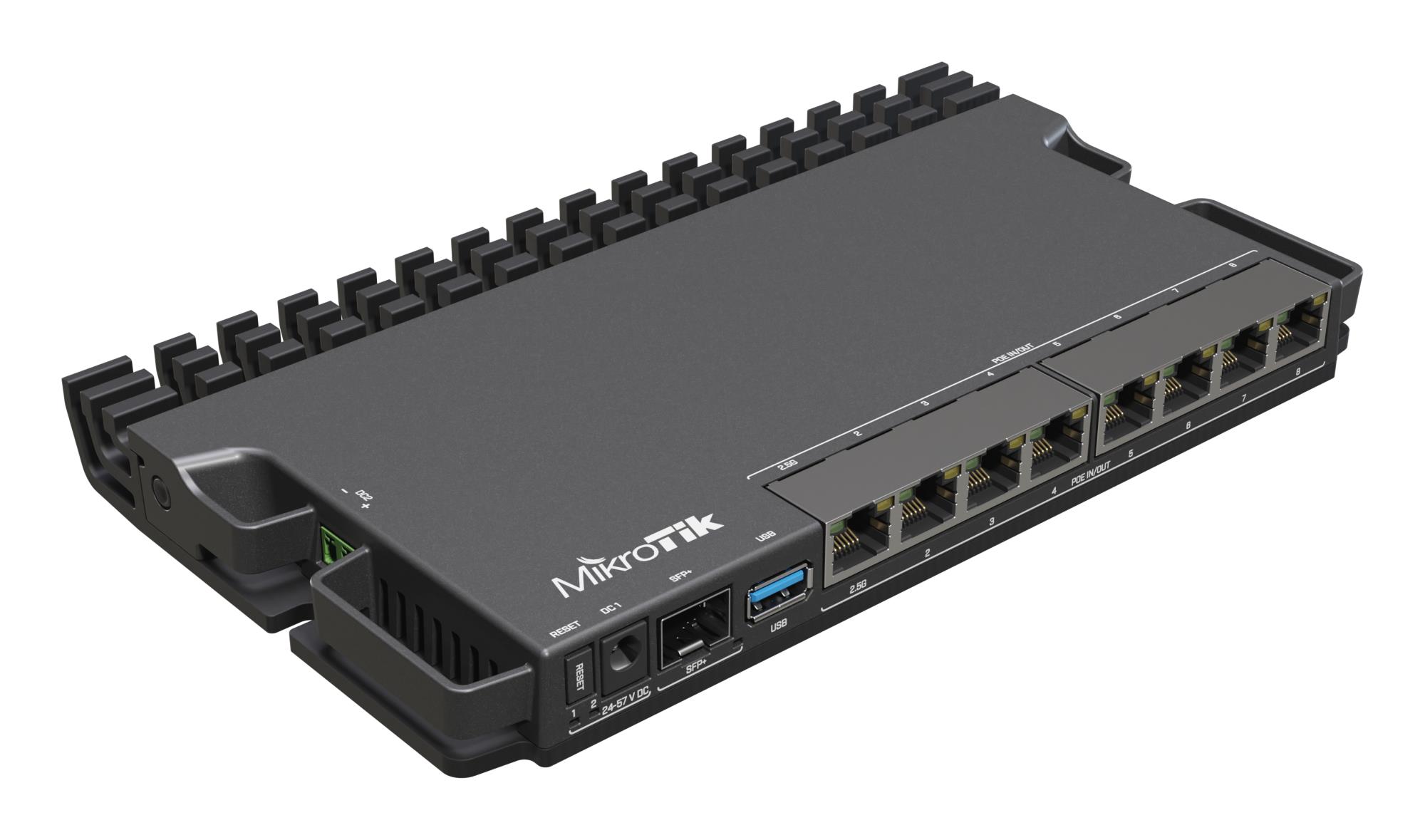

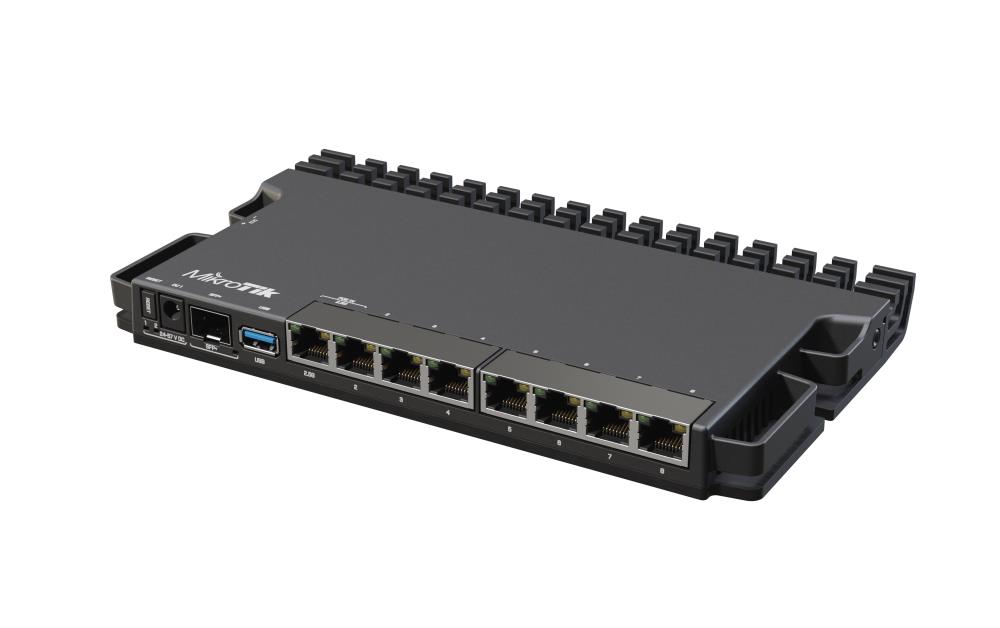

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

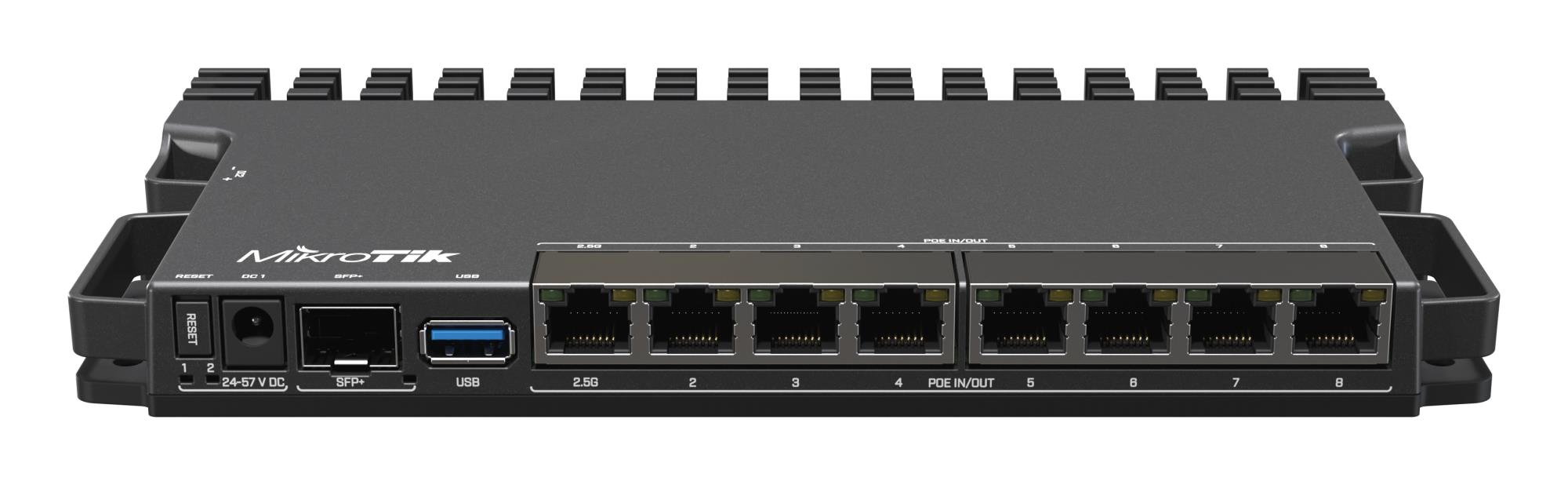

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
Vendor Homepage: mikrotik.com/product/rb5009ug_s_in
Product model code: RB5009UG+S+IN
Network Device Type: Router
1GbE: 7
2.5GbE: 1
SFP+: 1
USB 3.0: 1
Memory (RAM): 1GB
Flash memory capacity: 1GB
Power supply requirements: DC jack, PoE-IN, 2-pin terminal
Power consumption: 20
Operating temperature range: -40°C to +60°C
Dimensions: 220 x 21.5 x 125 mm
Shipping box quantity: 1
Shipping Box Depth: 31
Shipping Box Height: 5
Shipping Box Weight: 0.78
Shipping Box Width: 13
Unit Brutto Volume: 0.002015
Unit Net Weight: 0.6
Unit Gross Weight: 0.78
CnCode: 85176200
Unit Box Width: 0.13
Unit Box Length: 0.31
Unit Box Height: 0.05
Full Description Line: RB5009UG+S+IN|Network Device Type Router|1×2.5GbE|1xSFP+|7x1GbE|1xUSB 3.0|Memory (RAM) 1GB|Flash memory capacity 1GB|Power supply requirements DC jack, PoE-IN, 2-pin terminal|Power consumption 20 Watts|Operating temperature range -40°C to +60°C|Dimensions 220 x 21.5 x 125 mm
Category Code: ROU
