Description: Managed, industrial PoE++ switch

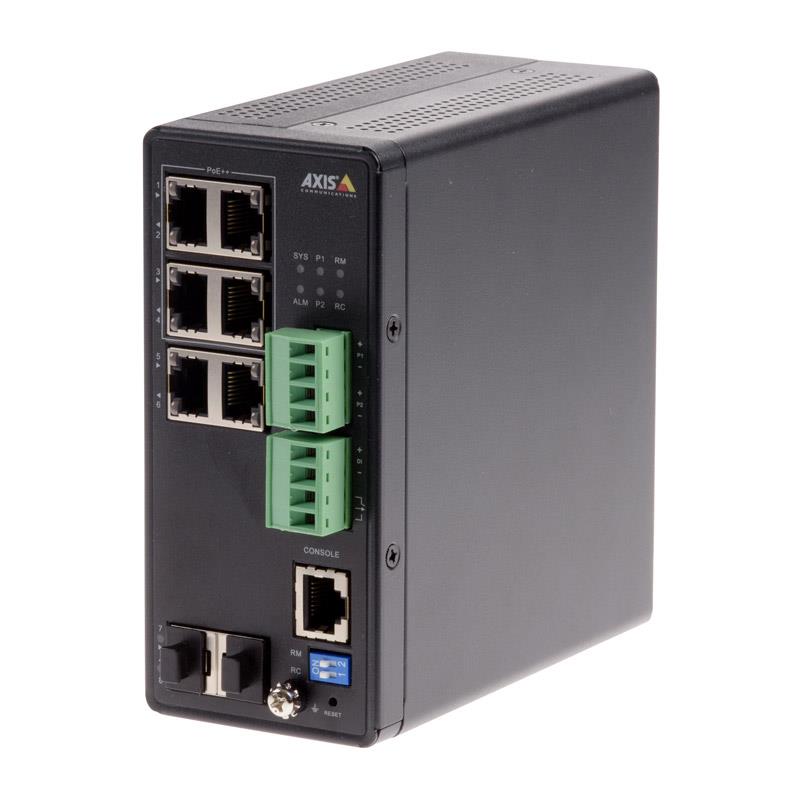

AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE++ Gigabit switch. In addition, the switch is
equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the
same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for
challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations
and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as
alongside highways and tunnels.
– 60 W per port, 240 W power budget
– Compliant with High PoE 60 W
– High availability with Rapid Ring
– Dual DC power redundancy
– NEMA TS-2 compliant
Vendor Homepage: www.axis.com/products/axis-t8504r-industrial-poe-switch/
Switching capacity: 16
Forwarding rate: 11.9
Dimensions: 135 × 130 × 62 mm
Units per Shipping Box: 1
Shipping Box Depth: 26
Shipping Box Height: 21
Shipping Box Weight: 1.06
Shipping Box Width: 8.5
Unit Calculated Volume: 0.004641
Product Net Weight: 0.6
Unit Calculated Weight: 1.06
CnCode: 85176200
Unit Box Width: 0.085
Unit Box Length: 0.26
Unit Box Height: 0.21
Full Description Line: Switching capacity 16 Gbps|Forwarding rate 11.9 Mpps|Dimensions 135 × 130 × 62 mm|Product Net Weight 0.6 kg
Category Code: SWI
