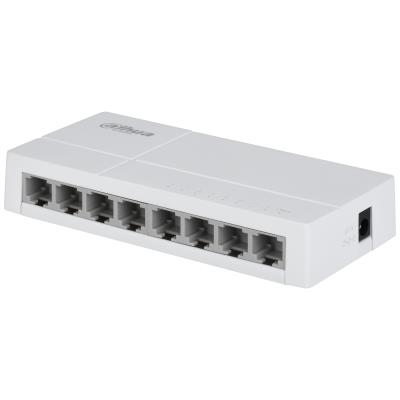

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
Specifikacijos
| Vendor Homepage | https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/PlasticSwitch/SF1008L |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.155 |
| Unit Box Width | 0.09 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Uplink ports quantity | 1 |
| 10G support | No |
| Cable types supported | Cat5e/Cat6 |
| Copper ethernet cabling technology | 10BASE-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Forwarding rate | 0.744 Mpps |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.768 MB |
| Switching capacity | 1.6 Gbit/s |
| Form factor | Desktop |
| LED indicators | Yes |
| Product colour | Light grey |
| Rack mounting | No |
| Mean time between failures (MTBF) | 952.5 h |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 0.5 W |
| Power consumption (typical) | 0.1 W |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 62.4 mm |
| Height | 24 mm |
| Weight | 160 g |
| Width | 132.9 mm |
| Package depth | 90 mm |
| Package height | 63.5 mm |
| Package weight | 290 g |
| Package width | 138 mm |
| Model | SF1008-EUR |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001046 cubm |
| Unit Calculated Weight | 0.312 kg |
