Description:

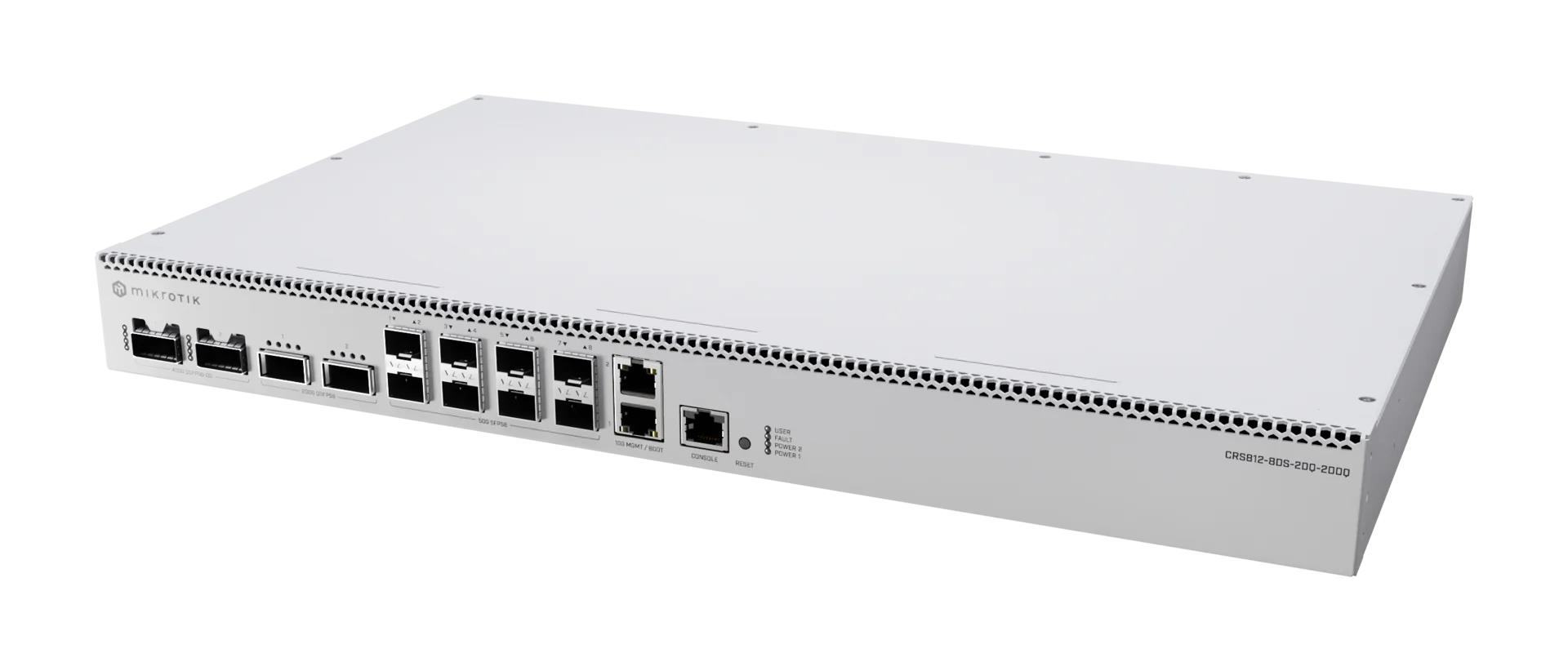

This switch is your next leap forward – a powerful, efficient, and cost-effective way to bring 50G, 200G, and 400G into your rack. Quad-core 2 GHz ARM CPU, dual-redundant power supplies and 4x hot-swap cooling fans, 2x 10G Ethernet, 8x 50G SFP56, 2x 200G QSFP56, and 2x 400G QSFP56-DD ports.
The CRS812 DDQ is your next leap forward –
a powerful, efficient, and cost-effective way to bring 50G, 200G, and 400G into your rack
400G used to mean expensive, complex, and out of reach.
The CRS812 DDQ changes that!
With a modern Marvell switch chip and powerful ARM CPU, it delivers advanced routing, switching, and traffic management features trusted in millions of RouterOS deployments – now with ports up to 400 Gbps!
- 4 GB of RAM
- Quad-core 2 GHz ARM CPU

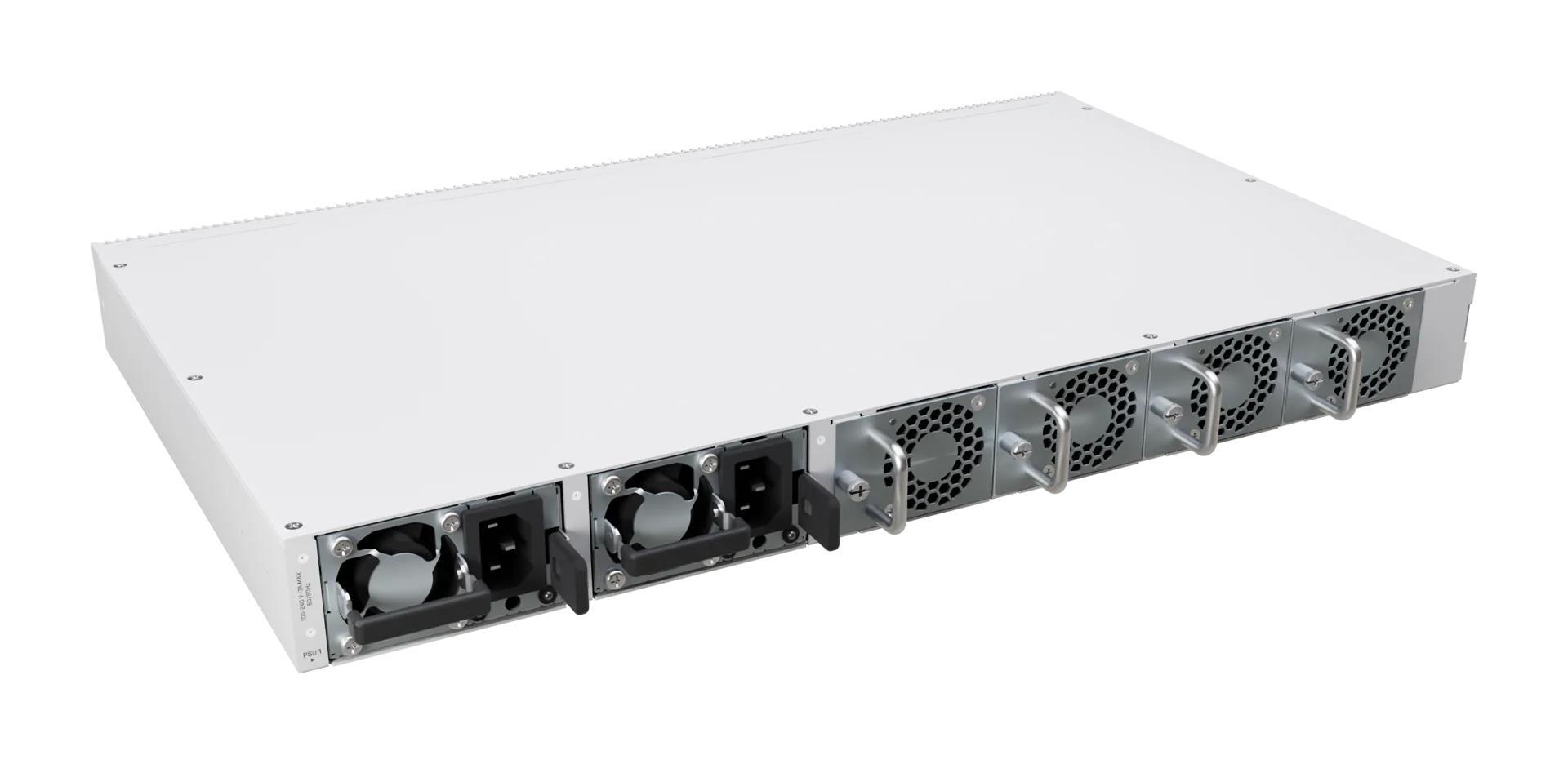

- Dual-redundanthot-swap power supplies
- 4x hot-swap cooling fans
- RouterOS v7
Summary: Mikrotik CRS812 DDQ. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 2, Console port: RJ-45. DC input voltage: 12 V. Rack mounting
Vendor Homepage: https://mikrotik.com/
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.075
Unit Box Length: 0.38
Unit Box Width: 0.5
10G Ethernet (copper) ports quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 2
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Console port: RJ-45
Fiber optic connector: QSFP56/SFP56
Fiber ports quantity: 12
QSFP56 ports quantity: 8
10G support: Yes
International Protection (IP) code: IP20
Number of fans: 4

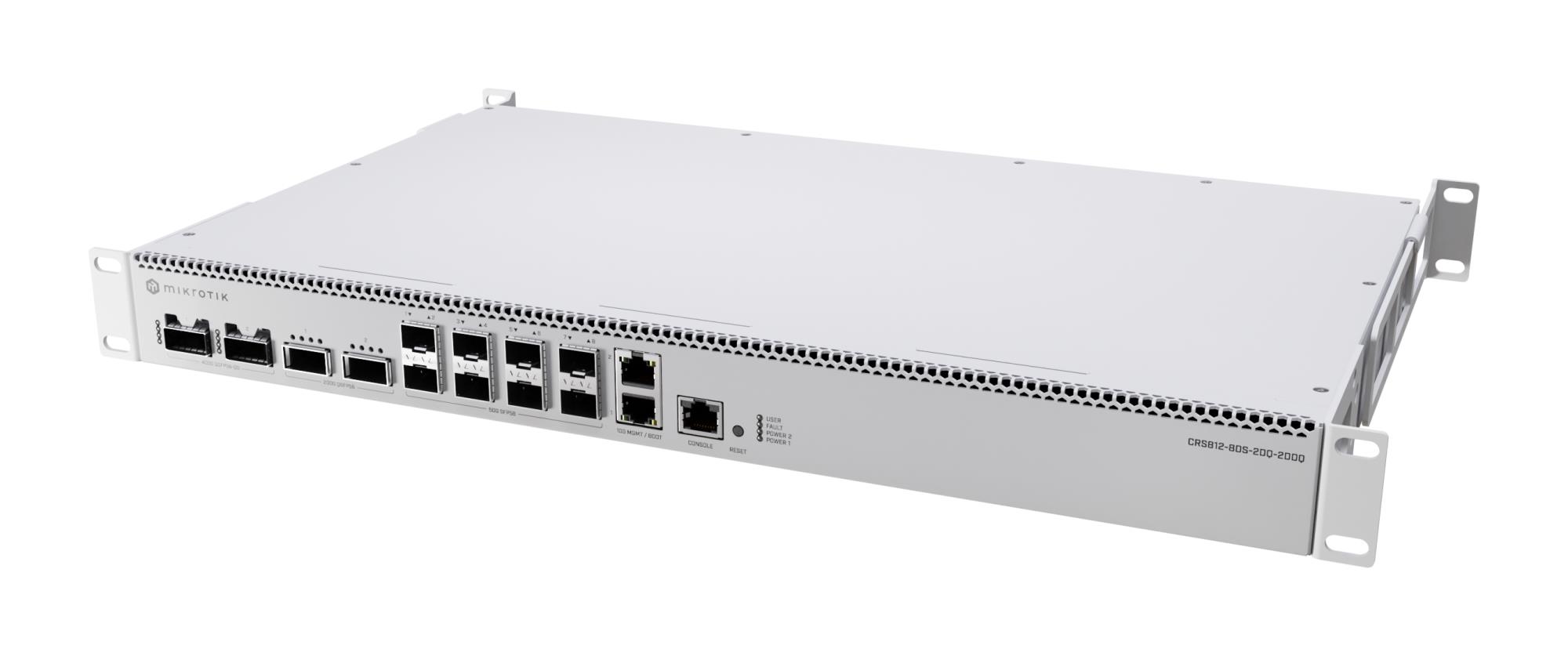

Rack mounting: Yes
Built-in processor: Yes
Flash memory: 512
Internal memory: 4000
Mean time between failures (MTBF): 200000
Memory type: DDR4-SDRAM
Operating system installed: RouterOS
Processor frequency: 2000
Processor manufacturer: ARM
AC input frequency: 50/60
AC input voltage: 100 – 240
DC input voltage: 12
Input current: 20.8
Number of power supply units: 2
Power consumption (max): 134
Power source: AC
Power supply included: Yes
Operating temperature (T-T): -10 – 50
Depth: 268
Height: 44
Width: 443
Cables included: AC
Rack mount kit: Yes
Compliance certificates: CE/EAC/RoHS
Model: CRS812-8DS-2DQ-2DDQ-RM
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.01425
Unit Calculated Weight: 4.75
