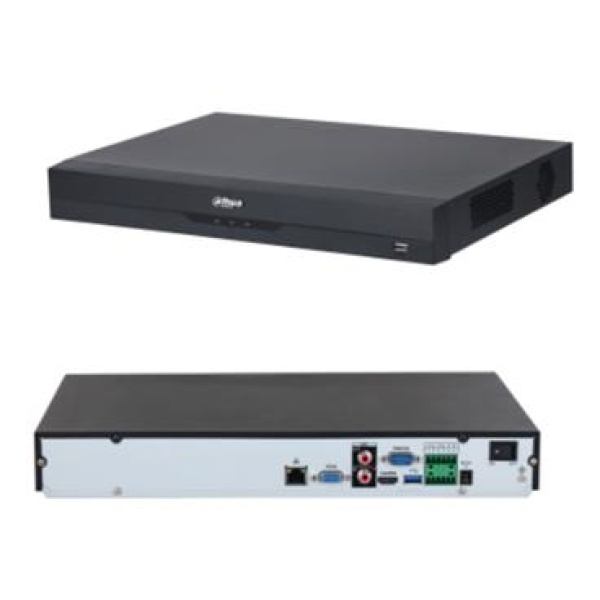

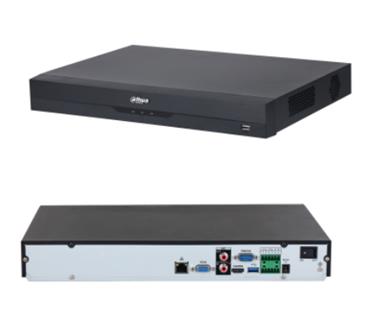

Description: “16 Channels 1U 2HDDs WizSense Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
> Max. decoding capability: 32 × 1080p@30 fps or 16 × 4MP@30 fps.
> Max. 384 Mbps incoming/recording/outgoing bandwidth.
> Support AcuPick with Max. 16-Channel.
> Support N+M cluster.
> AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
> AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
> Security baseline 2.3″
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5216-EI
Model: NVR5216-EI
Number of Channels: 16
Number of drives/bays: 2
Desktop/pedestal: Yes
Rack 1U: Yes
Integrated LAN: Gigabit
15pin D-sub: 1
Alarm In: 4
Alarm Out: 2
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
RS232: 1
RS-485: 1
USB 2.0: 1
USB 3.0: 1
Power supply requirements: 12 VDC, 4 A
Power consumption: 10
Dimensions: 375.0 × 284.4 x 56.0mm
Operating temperature range: –10 °C to +55 °C
Shipping box quantity: 1
Shipping Box Depth: 42
Shipping Box Height: 36
Shipping Box Weight: 2.84
Shipping Box Width: 14
Unit Brutto Volume: 0.02117
Unit Net Weight: 1.57
Unit Gross Weight: 2.84
CnCode: 85219000
Unit Box Width: 0.14
Unit Box Length: 0.42
Unit Box Height: 0.36
Full Description Line: Channels 16|Drives/bays 2|Desktop/pedestal|Rack 1U|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|1xUSB 2.0|1xUSB 3.0|1xRJ45|1xRS-485|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375.0 × 284.4 x 56.0mm|Temp. range –10 °C to +55 °C
Category Code: NVR
