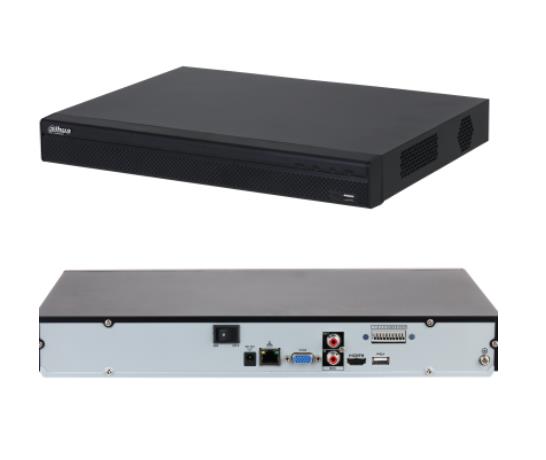

Description: 32CH 1U 2HDDs Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 2-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/2HDD/NVR4232-4KS3
Number of Channels: 32
Number of drives/bays: 2
Desktop/pedestal: Yes
Rack 1U: Yes
CPU: Industrial-grade
15pin D-sub: 1
Alarm In: 4
Alarm Out: 2
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
Power supply requirements: 12 VDC, 4 A
Power consumption: 10
Dimensions: 375.0 × 282.9 × 53.0 mm
Operating temperature range: –10 °C to +55 °C
Shipping box quantity: 1
Unit Brutto Volume: 0.02137
Unit Net Weight: 1.49
Unit Gross Weight: 2.77
CnCode: 85219000
Full Description Line: Channels 32|Drives/bays 2|Desktop/pedestal|Rack 1U|CPU Industrial-grade|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375.0 × 282.9 × 53.0 mm|Temp. range –10 °C to +55 °C
Category Code: NVR
