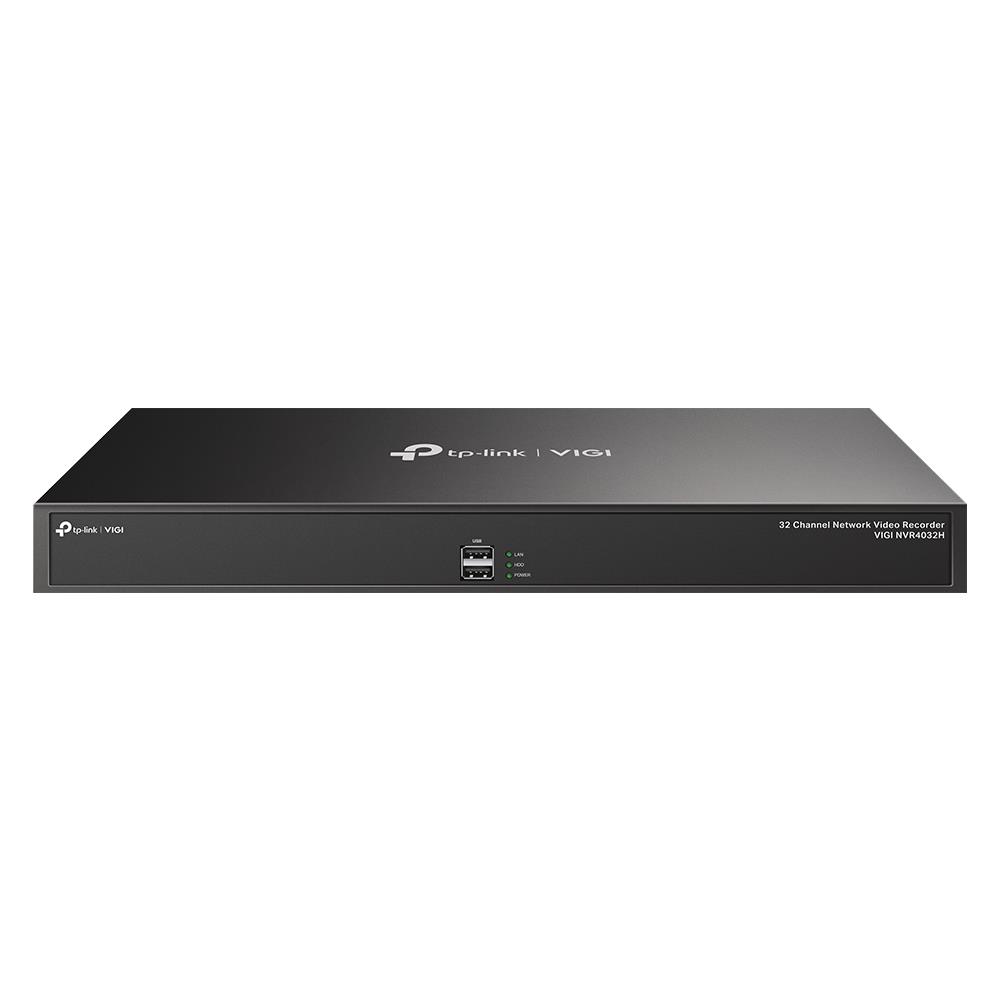

Description: VIGI 32 Channel Network Video Recorder
Face Recognition: Enhances access management and maximizes security.
Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
Mass Storage: Supports 4× SATA, up to 10 TB each
16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.
1 HDMI and 1 VGA Interface: Supports independent video output.
16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.r
Vendor Homepage: ww.tp-link.com/us/business-networking/vigi-network-video-recorder/vigi-nvr4032h/#specifications
Model: VIGI NVR4032H
Number of Channels: 32
Number of drives/bays: 4
Desktop/pedestal: Yes
Integrated LAN: Gigabit
15pin D-sub: 1
Alarm In: 16
Alarm Out: 4
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 2
RS232: 1
Power supply requirements: 100-240 VAC, 50 to 60HZ, 1.5A
Power consumption: 48
Dimensions: 440 × 330 × 44 mm
Operating temperature range: -10–55 °C
Shipping box quantity: 1
Shipping Box Depth: 53
Shipping Box Height: 10.2
Shipping Box Weight: 5.25
Shipping Box Width: 44
Unit Brutto Volume: 0.02379
Unit Net Weight: 4
Unit Gross Weight: 5.25
CnCode: 85219000
Unit Box Width: 0.44
Unit Box Length: 0.53
Unit Box Height: 0.102
Full Description Line: Channels 32|Drives/bays 4|Desktop/pedestal|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|2xRJ45|16xAlarm In|4xAlarm Out|Power supply requirements 100-240 VAC, 50 to 60HZ, 1.5A|Power consumption 48 Watts|Dim. 440 × 330 × 44 mm|Temp. range -10–55 °C
Category Code: NVR
