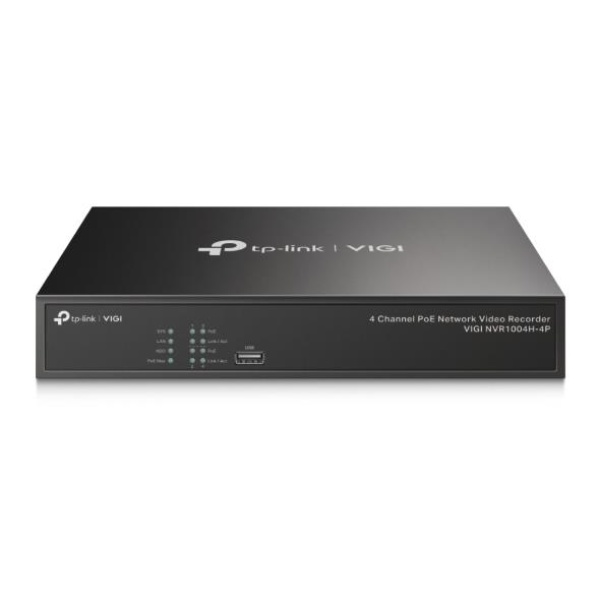

Description: VIGI 4 Channel PoE+ Network Video Recorder – 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†.

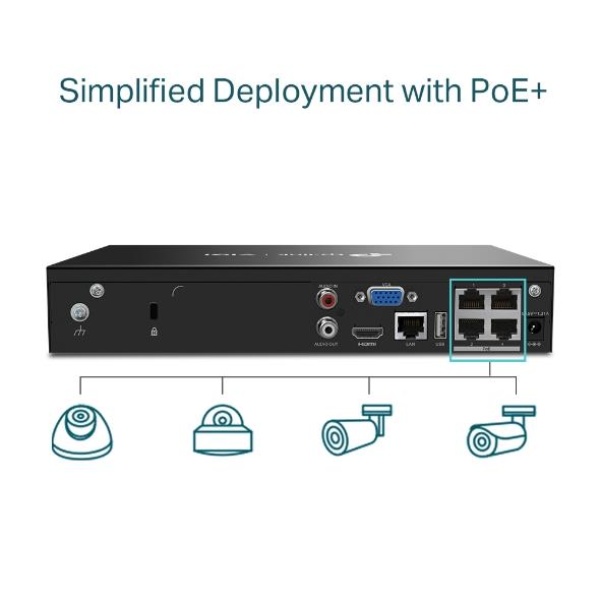

– Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
– 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
– H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

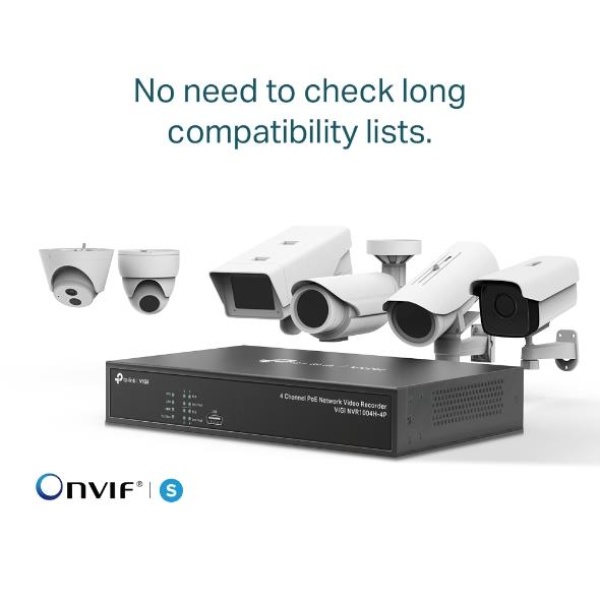

– ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
– Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
– 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
– Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
– Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
– 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
Vendor Homepage: www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr1004h-4p/
Model: VIGI NVR1004H-4P
Number of Channels: 4
SATA: Yes
15pin D-sub: 1
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
PoE+ ports: 4
Included Accessories: Power Adapter;
HDD Screws;
Mouse;
Quick Installation Guide
Power supply requirements: 53.5V DC/1.31A
Power consumption: 4.25
Dimensions: 246.2 × 148.2 × 45 mm
Operating temperature range: -10–55 °C
Shipping box quantity: 1
Shipping Box Depth: 37
Shipping Box Height: 6.5
Shipping Box Weight: 1.5
Shipping Box Width: 28.5
Unit Brutto Volume: 0.006854
Unit Net Weight: 1
Unit Gross Weight: 1.5
CnCode: 85219000
Unit Box Width: 0.285
Unit Box Length: 0.37
Unit Box Height: 0.065
Full Description Line: Channels 4|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Included Accessories Power Adapter;HDD Screws;Mouse;Quick Installation Guide|Power supply requirements 53.5V DC/1.31A|Power consumption 4.25 Watts|Dim. 246.2 × 148.2 × 45 mm|Temp. range -10–55 °C
Category Code: NVR
