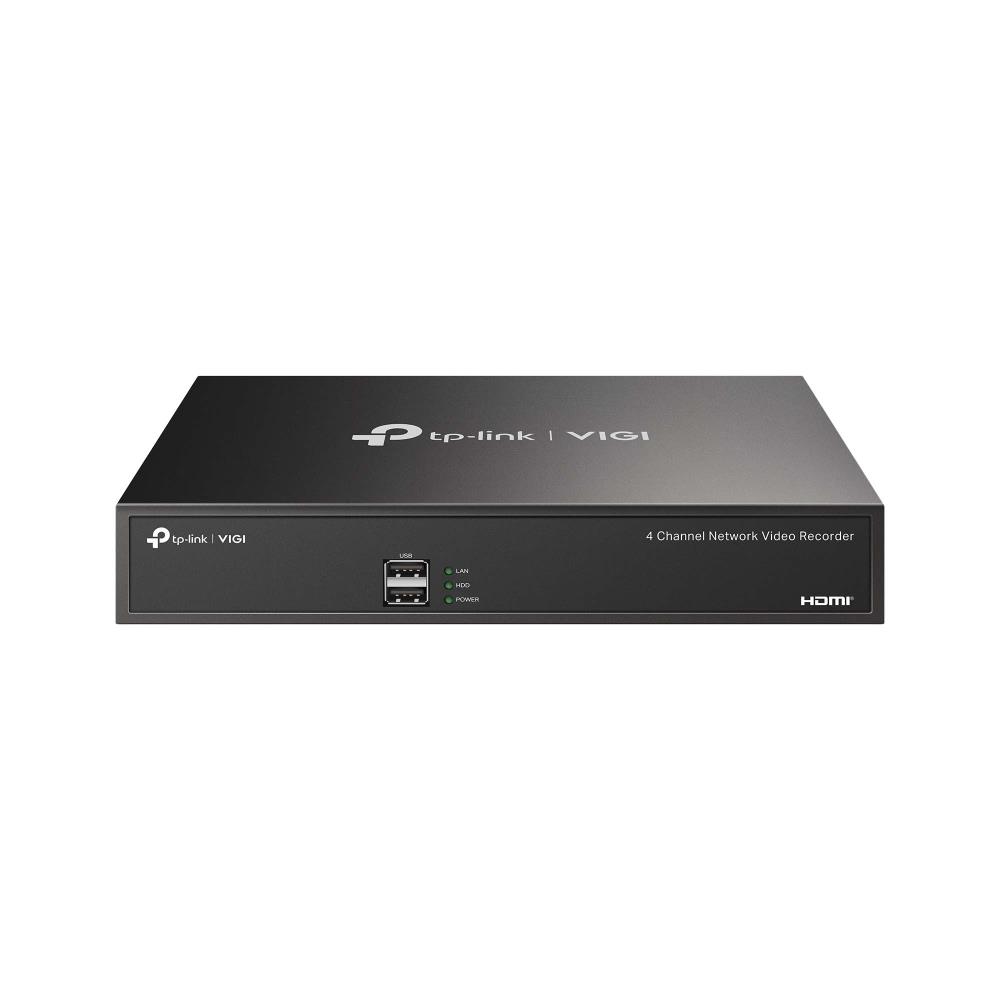

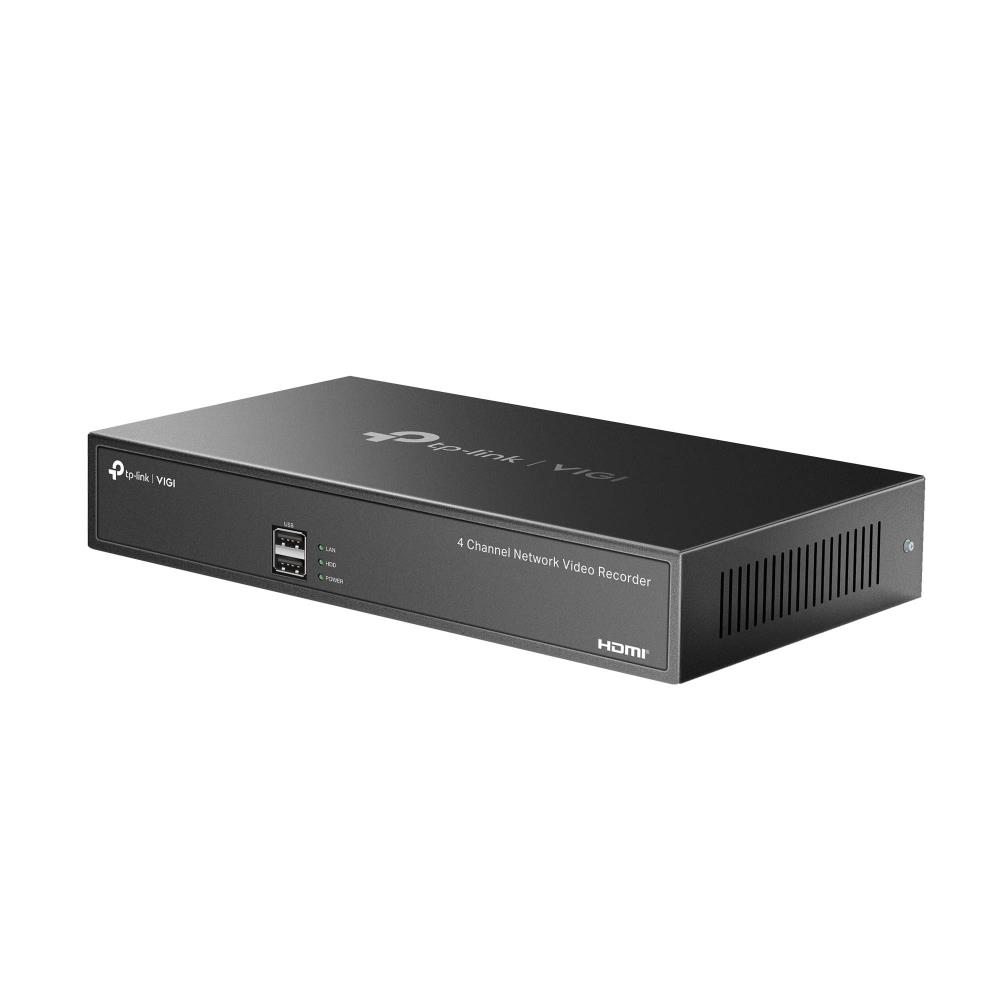

Description: VIGI 4 Channel Network Video Recorder
4-Channel Live View and 4K HDMI Video Output
2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
4-Channel Synchronous Playback†
80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
1 SATA Interface (up to 10 TB) *
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring
Vendor Homepage: www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr1004h/
Model: VIGI NVR1004H
Number of Channels: 4
Desktop/pedestal: Yes
SATA: Yes

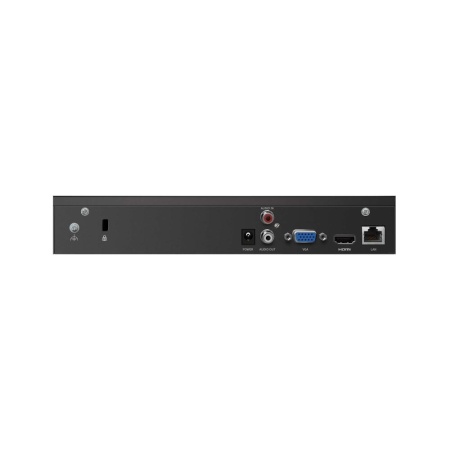

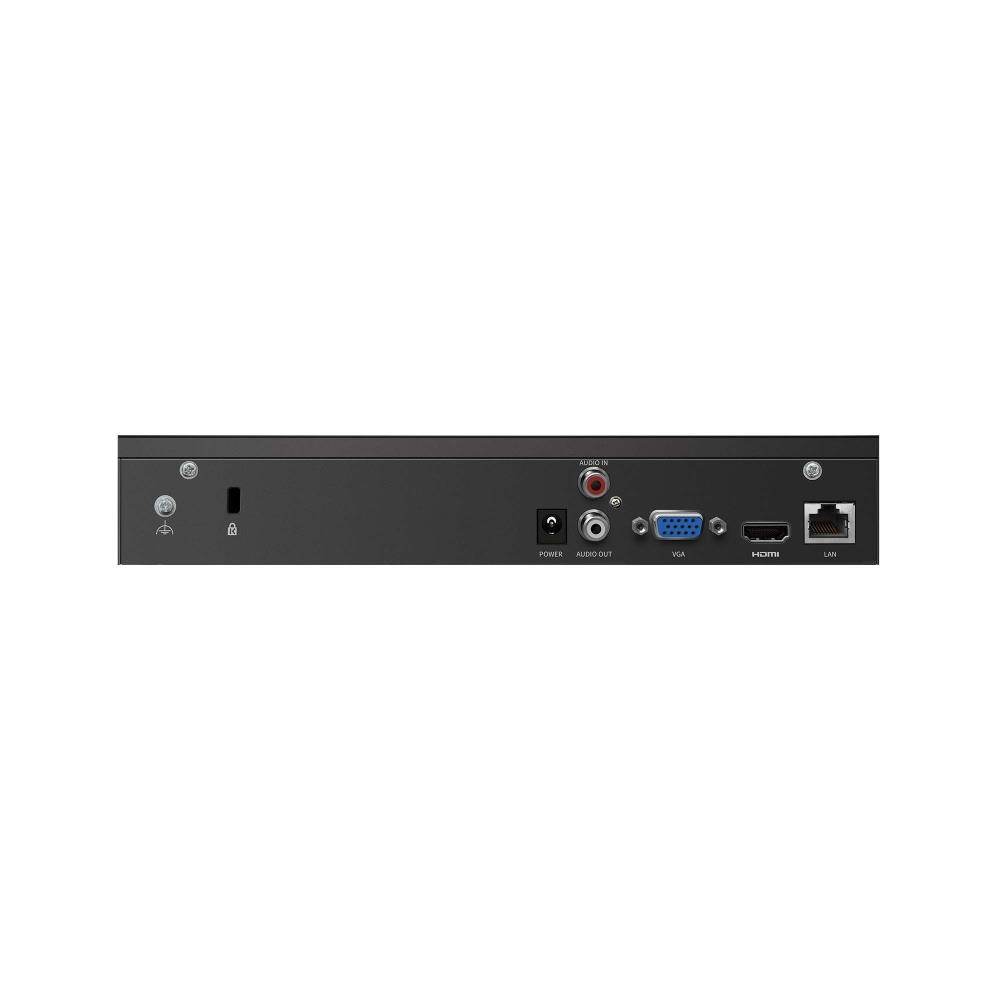

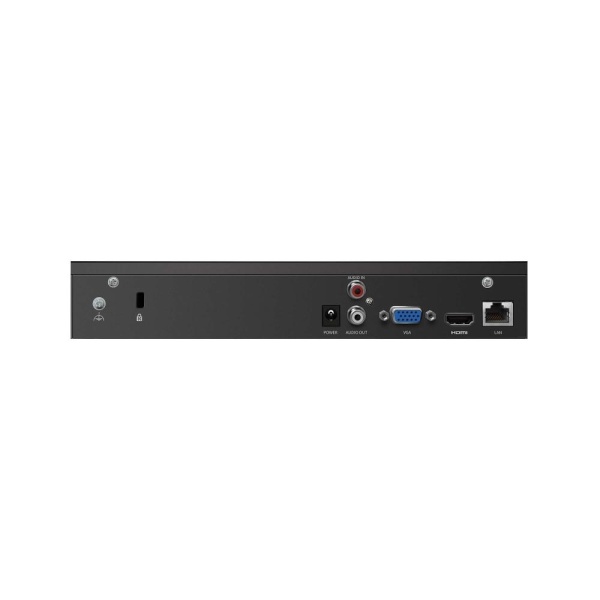

15pin D-sub: 1
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
Included Accessories: Power Adapter,
HDD Screws,
Mouse,
Rubber Feet,
Quick Installation Guide
Power supply requirements: DC 12V/1.5A
Power consumption: 4.25
Dimensions: 246.2 × 148.2 × 45 mm
Operating temperature range: -10–55 °C
Units per Shipping Box: 1
Shipping Box Depth: 30
Shipping Box Height: 27
Shipping Box Weight: 1.109
Shipping Box Width: 6
Unit Calculated Volume: 0.00486
Product Net Weight: 0.59
Unit Calculated Weight: 1.109
CnCode: 85219000
Unit Box Width: 0.06
Unit Box Length: 0.3
Unit Box Height: 0.27
Full Description Line: Channels 4|Desktop/pedestal|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Included Accessories Power Adapter,HDD Screws,Mouse,Rubber Feet,Quick Installation Guide|Power supply requirements DC 12V/1.5A|Power consumption 4.25 Watts|Dim. 246.2 × 148.2 × 45 mm|Temp. range -10–55 °C
Category Code: NVR
