Description:

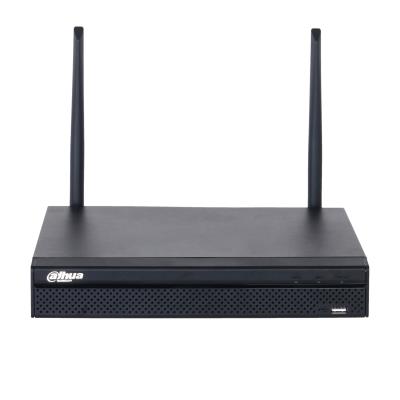

NET VIDEO RECORDER 4CH WIFI / NVR1104HS-W-S2-CE DAHUA
4 Channel Compact 1U 1HDD Network Video Recorder
> New 4.0 user interface.
> One-click wireless pairing to IPCs.
> Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions.
> Automatic cascading of IPCs for long-distance surveillance.
> 4–ch@1080P (25FPS), self-adaptive decoding capability.
> Supports mainstream cameras of ONVIF protocol.
> Smart H.265/Smart H.264
> VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P.
> Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches.
> DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System).
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/WIFI-NVR-Series/NVR1104HS-W-S2
Category Code: NVR
CnCode: 85219000
Unit Box Height: 0.115
Unit Box Length: 0.37
Unit Box Width: 0.305
Desktop/pedestal: Yes
15pin D-sub: 1
HDMI: 1
AV-In: 1
AV-out: 1
USB 2.0: 2
RJ45: 1
Model: NVR1104HS-W-S2-CE
Number of Channels: 4
Integrated LAN: 10/100
Power supply requirements: 12 VDC, 1.5 A
Dimensions: 260.3 × 247.3 × 44.7 mm
Operating temperature range: –10 °C to + 45 °C
Colour: Black
Units per Shipping Box: 1
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 2
