Description: 64 IP channel max, up to 32MP resolution
Max: 384Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
2x VGA/HDMI up to 4K output, decoding up to 2-channel 32 MP @ 20 fps
8 SATA III ports, up to 16 TB for a single HDD, RAID 0/1/5/6/10
No front panel control, 16/8 alarm I/O, 2 USB, Audio I/O: 1/2, eSATA, RS-232, RS-485

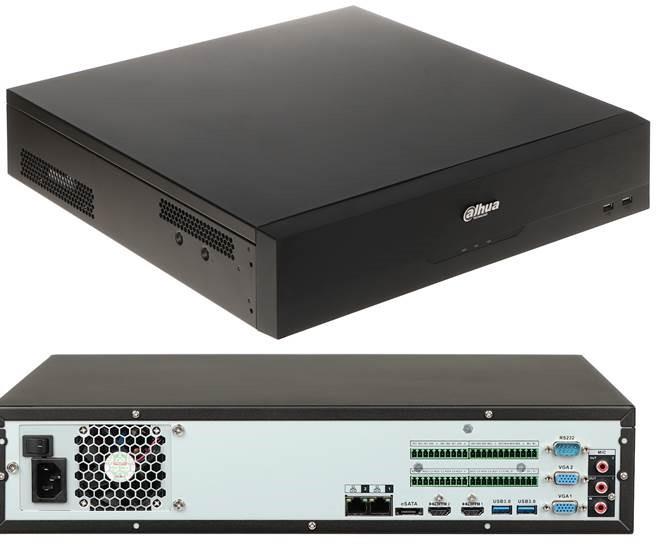

Rack/desktop mounted chassis
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
Free IP monitoring software available
Other brands IP cameras supported
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/8HDD/NVR5864-EI
Model: NVR5864-EI
Number of Channels: 64
Desktop/pedestal: Yes
Rack: Yes
CPU: Embedded Linux
Integrated LAN: Gigabit
15pin D-sub: 2
Alarm In: 16
Alarm Out: 8
Audio-In: 1
Audio-Out: 2
eSATA: 1
HDMI: 2
RJ45: 2
RS232: 1
RS-485: 1
USB 2.0: 2
Power supply requirements: 100–240 VAC, 50-60 Hz
Dimensions: 439.9 × 457.9 x 89.0 mm
Shipping box quantity: 1
Shipping Box Depth: 56
Shipping Box Height: 22
Shipping Box Weight: 8.9
Shipping Box Width: 57
Unit Brutto Volume: 0.07022
Unit Net Weight: 6.4
Unit Gross Weight: 8.9
CnCode: 85219000
Unit Box Width: 0.57
Unit Box Length: 0.56
Unit Box Height: 0.22
Full Description Line: Channels 64|Desktop/pedestal|Rack|CPU Embedded Linux|Integrated LAN Gigabit|2x15pin D-sub|2xHDMI|1xAudio-In|2xAudio-Out|1xRS232|2xUSB 2.0|1xeSATA|2xRJ45|1xRS-485|16xAlarm In|8xAlarm Out|Power supply requirements 100–240 VAC, 50-60 Hz|Dim. 439.9 × 457.9 x 89.0 mm
Category Code: NVR
