Description: 8 IP channel max, up to 12MP resolution
80Mbps record rate
VGA/HDMI up to 1-channel 12MP @30 fps; 6-channel 1080p @ 30 fps
1 SATA port, up to 16 TB 3.5” HDD, 10/100M LAN
No front panel control, no Alarm I/O, 2 USB
Smart 1U case (white), mouse included
ONVIF (profile T/S/G); CGI; SDK
Connected to the third-party network cameras
4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-S3-Series/1HDD/NVR2108-S3

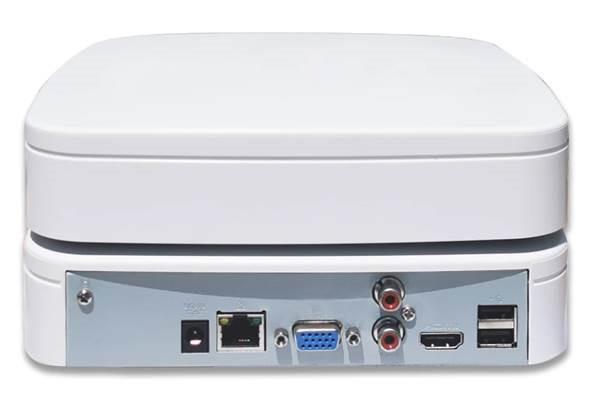

Model: DHI-NVR2108-S3
Number of Channels: 8
Number of drives/bays: 1
Desktop/pedestal: Yes
Rack: Yes
CPU: Embedded Linux
SATA: Yes
15pin D-sub: 1
Audio-In: 1
Audio-Out: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
Power supply requirements: 12 VDC, 1.5 A
Power consumption: 10
Dimensions: 204.6 × 206.4 × 45.6 mm
Operating temperature range: –10 °C to +55 °C
Shipping box quantity: 1
Shipping Box Depth: 36.5
Shipping Box Height: 9.5
Shipping Box Weight: 0.99
Shipping Box Width: 26.5
Unit Brutto Volume: 0.009189
Unit Net Weight: 0.42
Unit Gross Weight: 0.99
CnCode: 85219000
Unit Box Width: 0.265
Unit Box Length: 0.365
Unit Box Height: 0.095
Full Description Line: Channels 8|Drives/bays 1|Desktop/pedestal|Rack|CPU Embedded Linux|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 204.6 × 206.4 × 45.6 mm|Temp. range –10 °C to +55 °C
Category Code: NVR
