Description:
Ultracompact desktop with power-efficient performance and Intel® Core™ Ultra (Series 2) processors for AI workloads or Intel® Core™ (14th Gen) processors for everyday business tasks.
- Windows 11 Pro 64-bit
- Intel Core i7-14700T (33MB Cache)
- 8GB DDR5-SDRAM (1 x 8) & 512GB SSD

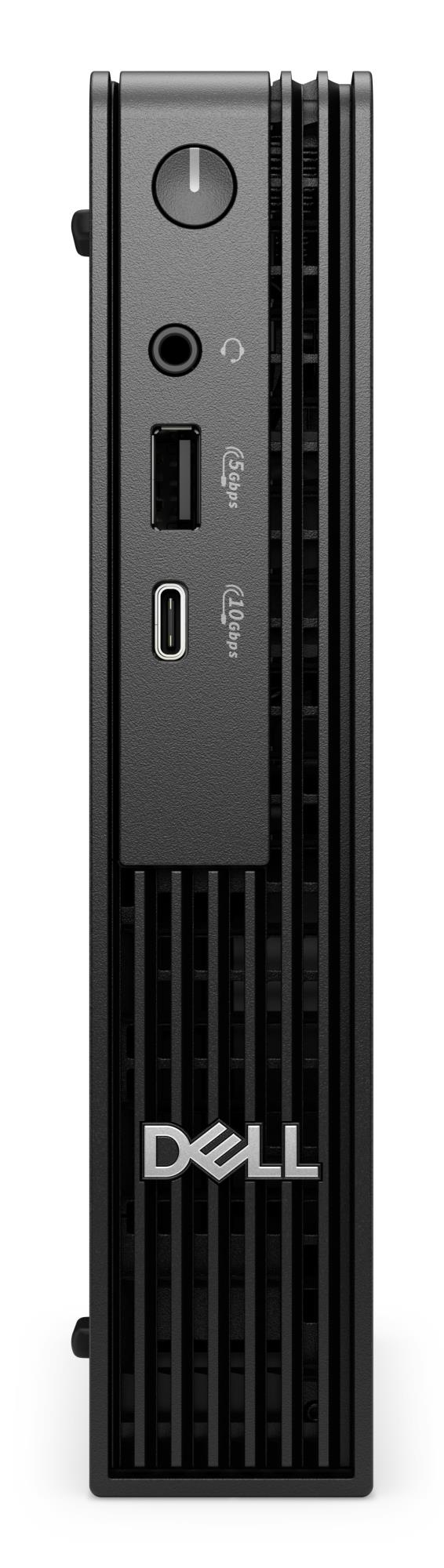

Summary: DELL Pro QCM1250. Processor family: Intel® Core™ i7, Processor model: i7-14700T. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 1.16 kg. Product colour: Black
Vendor Homepage: https://www.dell.com/en-uk/shop/desktop-computers/dell-pro-micro-desktop/spd/dell-pro-qcm1250-micro
Category Code: DT
CnCode: 84714900
Unit Box Height: 0.131
Unit Box Length: 0.5
Unit Box Width: 0.235
Cable lock slot: Yes
Cable lock slot type: Kensington
Chassis type: Micro PC
Placement supported: Horizontal/Vertical
Product colour: Black
Efficient cores: 12
Efficient-core base frequency: 0.9
Efficient-core Max Turbo Frequency: 3.7
Maximum turbo power: 106
Number of processors installed: 1
Performance cores: 8
Performance-core base frequency: 1.3
Performance-core Max Turbo Frequency: 5
Processor base power: 35
Processor boost frequency: 5.2
Processor cache: 33
Processor cache type: Smart Cache
Processor cores: 20
Processor family: Intel® Core™ i7
Processor generation: Intel® Core™ i7 (14th gen)
Processor manufacturer: Intel
Processor model: i7-14700T
Processor threads: 28
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Internal memory: 8
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64
Memory channels: Single-channel
Memory data transfer rate: 4800
Memory layout (slots x size): 1 x 8
Memory slots: 2x SO-DIMM
Non-ECC: Yes
Number of SSDs installed: 1
Number of storage drives installed: 1
NVMe: Yes
Optical drive type: No
SSD capacity: 512
SSD form factor: M.2
SSD interface: PCI Express 4.0
Storage media: SSD
Total SSDs capacity: 512
Total storage capacity: 512
Discrete graphics card: No
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card: Yes
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 770
Antenna type: 2×2
Bluetooth: Yes
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN: Yes
Ethernet LAN data rates: 10/100/1000
LAN controller: Intel WGI219LM
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Combo headphone/mic port: Yes
DC-in jack: Yes
DisplayPort version: 1.4a
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Number of front audio ports: 1
Number of front USB ports: 2
Number of rear USB ports: 4
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Audio chip: Realtek ALC3204
Audio system: High Definition Audio
Market positioning: Business
Motherboard chipset: Intel Q870
Product type: Mini PC
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Power supply: 90
Power supply input frequency: 50 / 60
Power supply input voltage: 100 – 240
Non-operating altitude: -15.2 – 10668
Non-operating shock: 105
Non-operating vibration: 1.37
Operating altitude: -15.2 – 3048
Operating relative humidity (H-H): 20 – 80
Operating shock: 40
Operating temperature (T-T): 10 – 35
Operating vibration: 0.26
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -40 – 65
Sustainability certificates: ENERGY STAR/EPEAT Climate +/EPEAT Gold
Depth: 178
Height: 182
Weight: 1160
Width: 36
Keyboard included: No
Display included: No
Desktop Computer Family name: Pro Micro
Units per Shipping Box: 1
Unit Calculated Volume: 0.0153925
Unit Calculated Weight: 2.26
