Description:

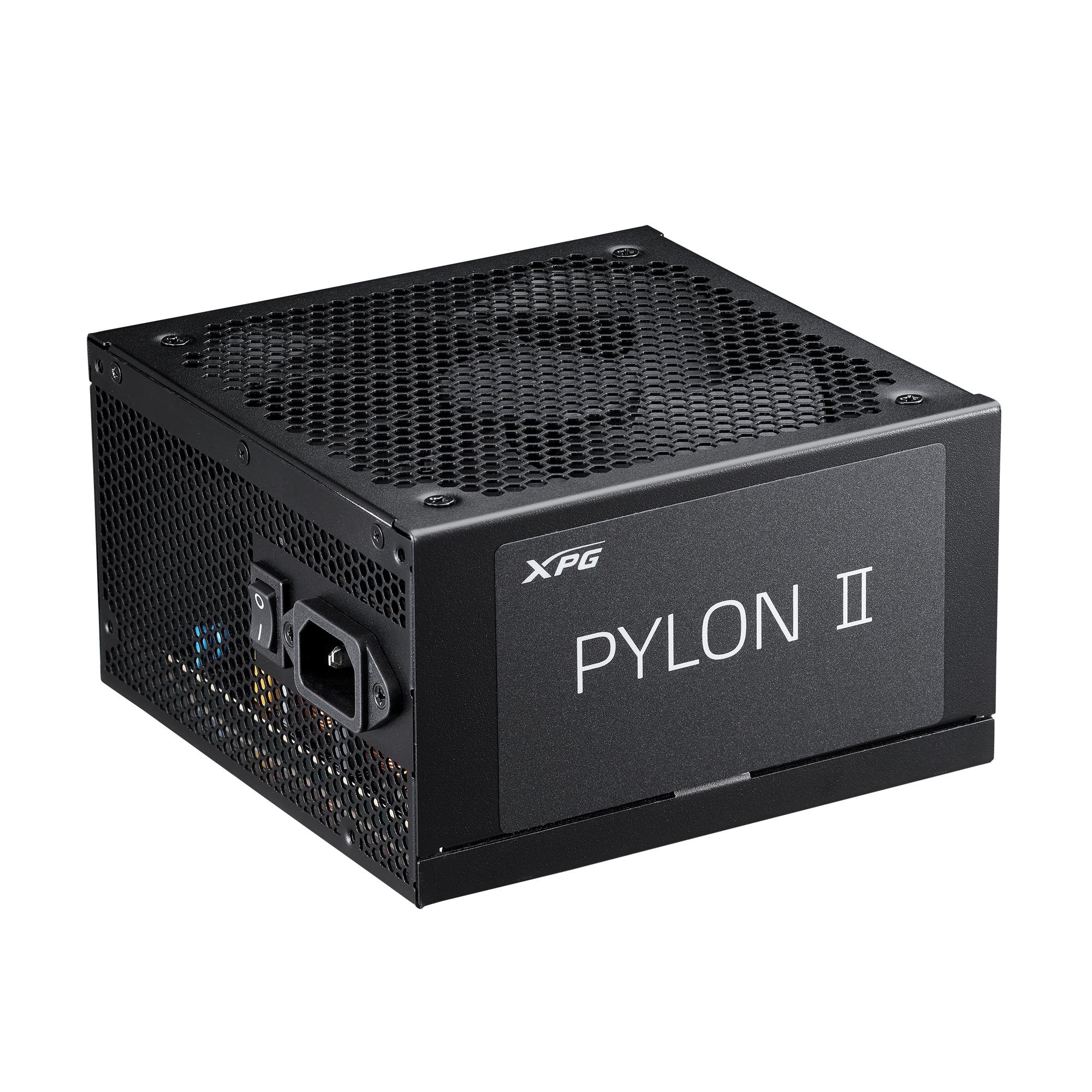

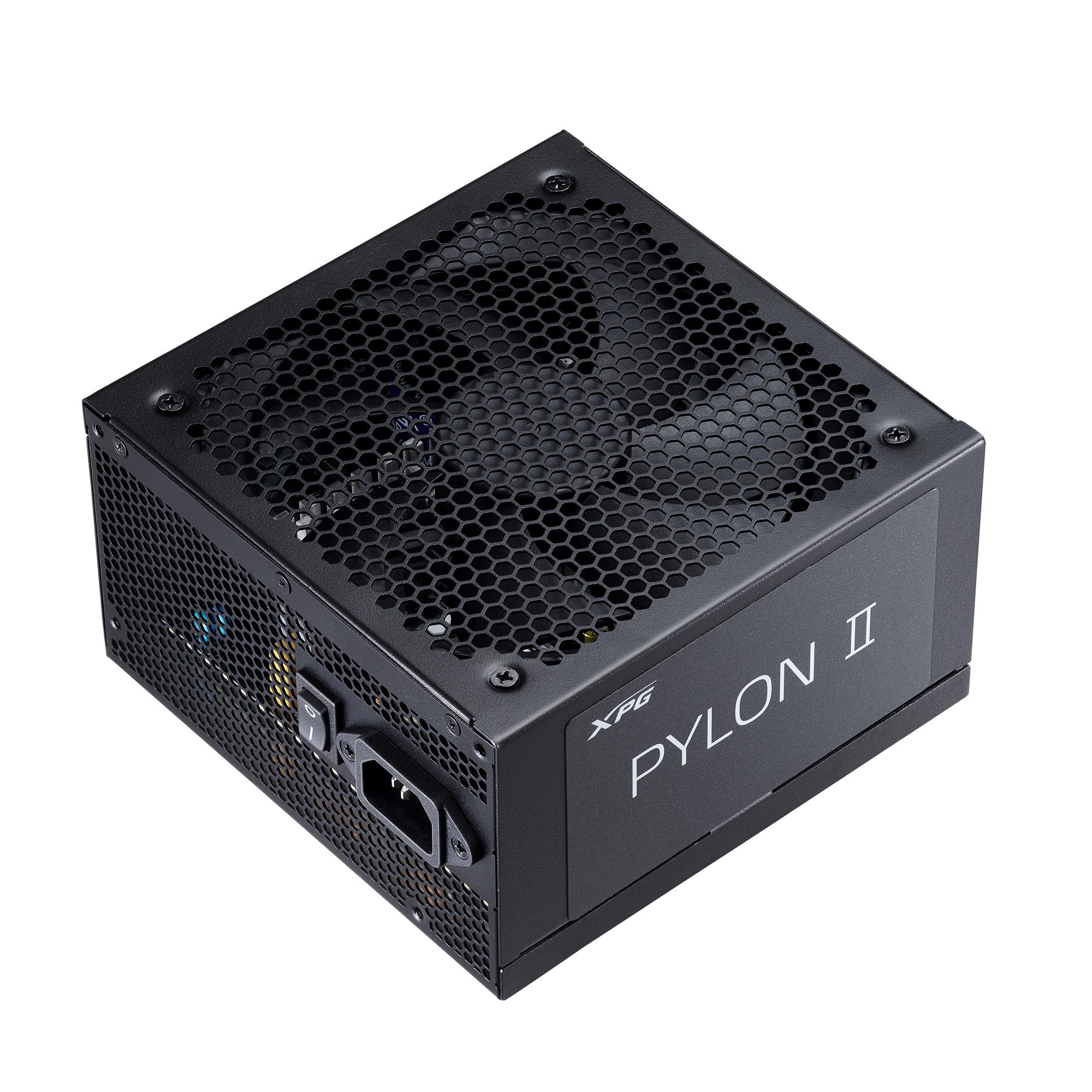

PYLON II
UNLEASH THE SURGE
The PYLON II Bronze PSU delivers 80 PLUS Bronze efficiency, cutting energy costs without sacrificing performance. Designed to meet Intel ATX 3.1 standards, it offers a future-ready solution for high-demand components. Equipped with a quiet and durable FDB fan, it ensures efficient cooling for a stable and noise-free experience. Backed by 8 industrial-grade protections and a 5-year warranty, the PYLON II guarantees long-term reliability and peace of mind for your build.
Intel ATX 3.1 Compliant, Future-Ready Design
Designed with the latest Intel ATX 3.1 standards, the PYLON II is equipped with 12V-2×6 connector*, ensuring compatibility with high-performance components. It’s engineered to meet the evolving needs of modern systems.

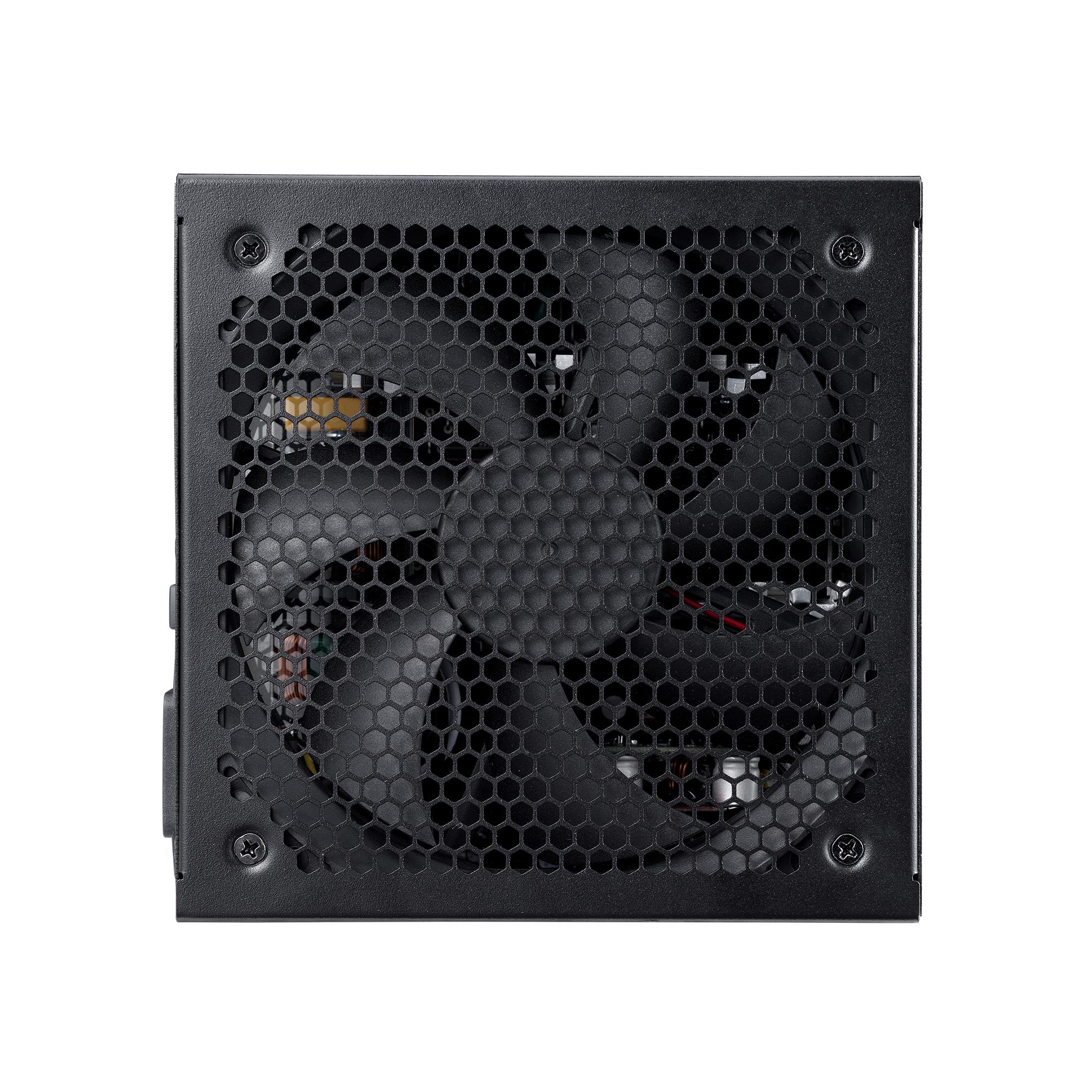

Quiet, Efficient Cooling with FDB Fan
Equipped with a 135mm FDB fan, the PYLON II ensures quiet operation and long-lasting durability. It keeps your system cool even under demanding workloads, delivering optimal cooling without compromising on noise levels.
Comprehensive Protection for Peace of Mind
With 8 industrial-grade protections, the PYLON II shields your system from power surges, short circuits, and other potential risks. This protection, combined with a 5-year warranty, offers long-term peace of mind.
Summary: XPG PYLON II 650w BROZNZE Power Supply. Total power: 650 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Vendor Homepage: https://www.xpg.com/us/xpg/pc-components-pylonll
Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.21
Unit Box Length: 0.35
Unit Box Width: 0.13
AC input frequency: 50/60
AC input voltage: 100 – 240
Input current: 10
Max output current (+12V): 54
Max output current (+3.3V): 20
Max output current (+5V): 20
Max output current (+5Vsb): 3
Max output current (-12V): 0.3
Power factor: 0.99
Power Factor Correction (PFC) type: Active
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
Total power: 650
EPS power connector (8-pin): Yes
Motherboard power connector: 24-pin ATX
Number of PATA power connectors: 2
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 2
80 PLUS certification: 80 PLUS Bronze
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active
Fan diameter: 135
Fan speed: 2290 – 2310
Number of fans: 1
Product colour: Black
Depth: 150
Height: 86
Weight: 1800
Width: 150
Model name: XPG PYLON II
Units per Shipping Box: 1
Unit Calculated Volume: 0.009555
Unit Calculated Weight: 2.39
