Description:
Exceptional efficiency for Gamers

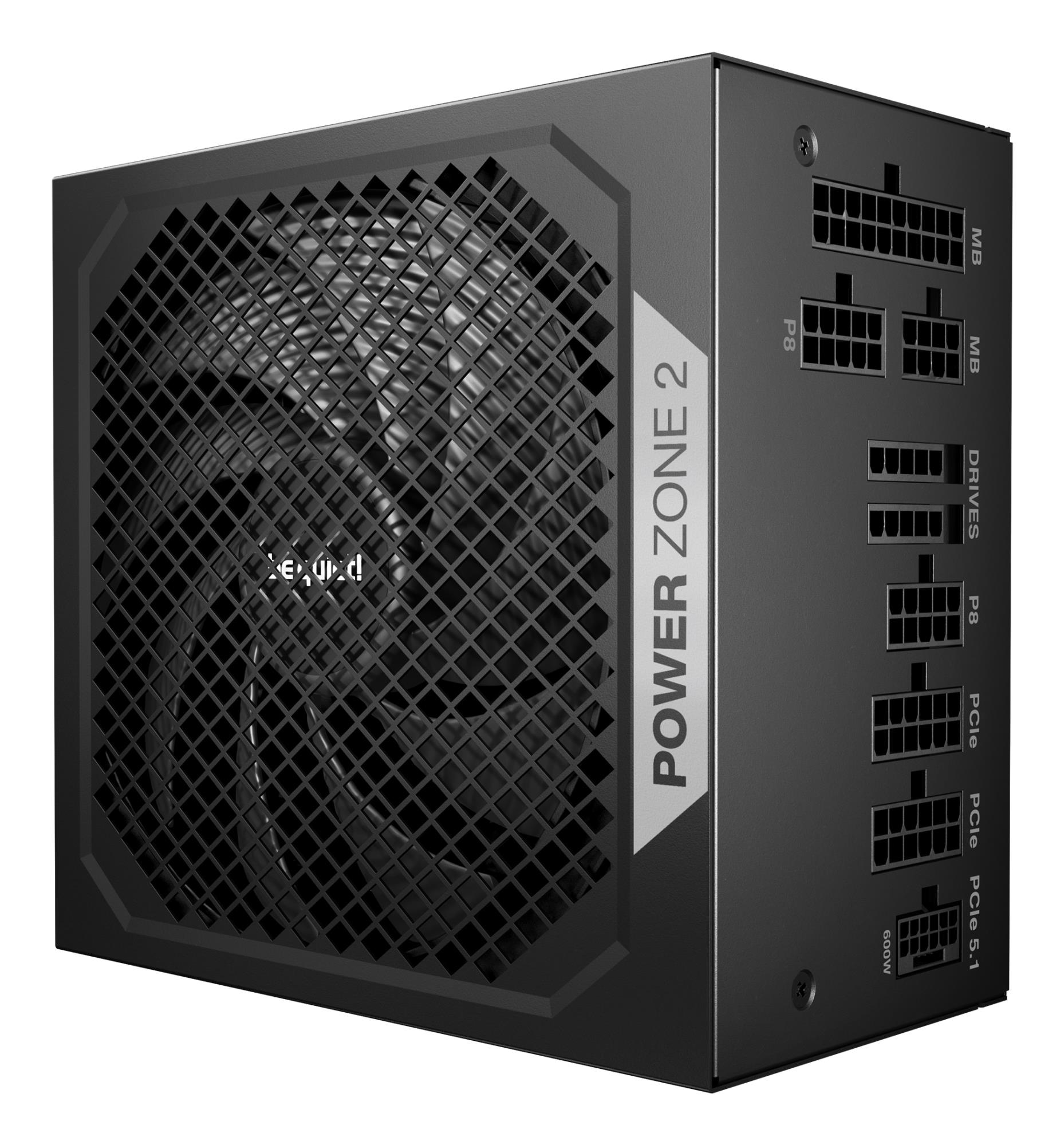

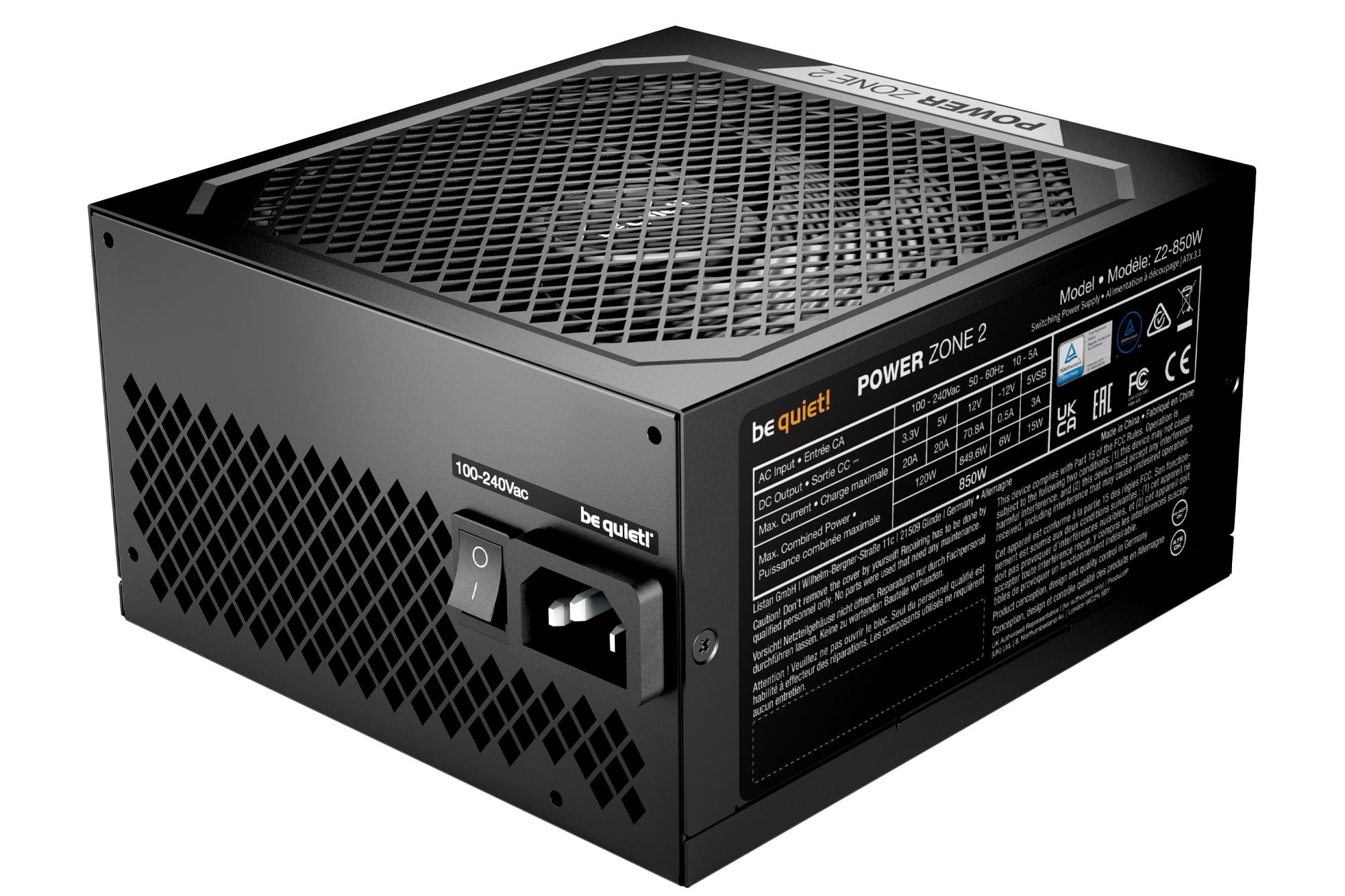

Power Zone 2 850W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.
PLATINUM CERTIFIED
Highly efficient operation
Power Zone 2 850W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.1%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.
SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence
A large Pure Wings 3 140mm fan is keeping Power Zone 2 850W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.
PURE WINGS 3 FAN
Specially designed for Power Zone 2
No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 850W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.
FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2×6 connector in scope of delivery
Power Zone 2 850W is an ATX 3.1 PSU and comes with both native integration of the 12V-2×6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2×6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 850W extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Power Zone 2 offers 850W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
HIGH-CLASS TECHNOLOGIES
All packed in a stunning design

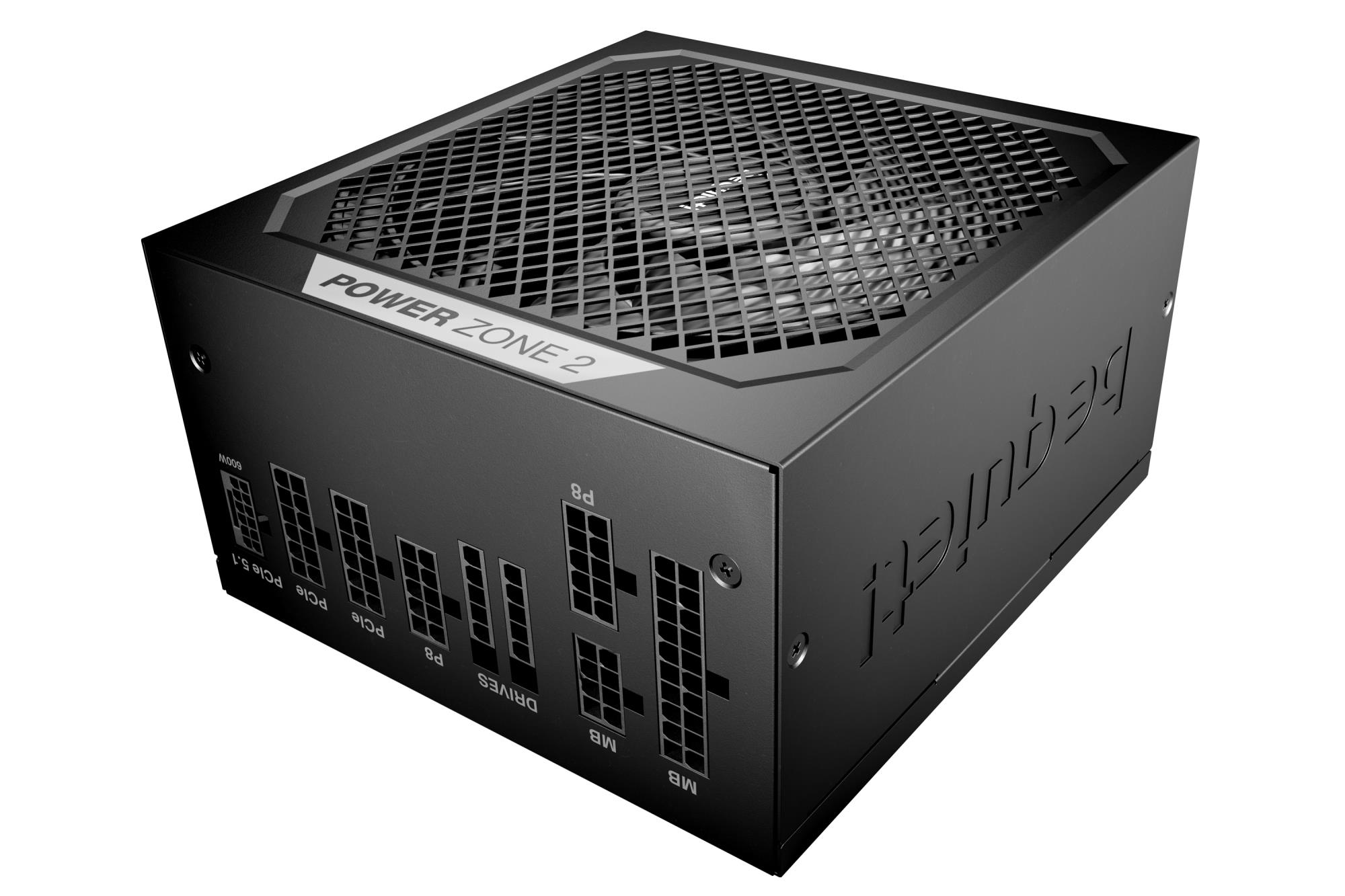

With its LLC topology, the Power Zone 2 850W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 850W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
- 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.1%)
- Semi-passive zero-RPM cooling
- Fan runs on for 2-5 minutes to avoid frequent starting noise
- Pure Wings 3 140mm fan for quiet and efficient cooling
- 90° angled 12V-2×6 connector and PCIe 5.1/ATX 3.1 compatibility
- Advanced voltage regulation and stability thanks to LLC technology
- Unique look with an unmistakable mesh design
- One massive high-performance 12V-rail
Summary: be quiet! POWER ZONE 2 850W. Total power: 850 W, AC input voltage: 100 – 240 V, Peak power: 920 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Vendor Homepage: https://www.bequiet.com/en/powersupply/5584
Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.25
Unit Box Length: 0.1
Unit Box Width: 0.33
AC input frequency: 50/60
AC input voltage: 100 – 240
Combined power (+12V): 849.6
Combined power (+3.3V): 120
Combined power (+5V): 120
Combined power (+5Vsb): 15
Combined power (-12V): 6
Efficiency: 92.3
Hold time: 21.1
Max output current (+12V): 70.8
Max output current (+3.3V): 20
Max output current (+5V): 20
Max output current (+5Vsb): 3
Max output current (-12V): 0.5
Maximum input current (@110V): 10
Maximum input current (@220V): 5
Number of +12V rail(s): 1
Peak power: 920
Power factor: 0.98
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
Total power: 850
Cabling type: Fully-Modular
CPU P4 connector (4-pin): 1

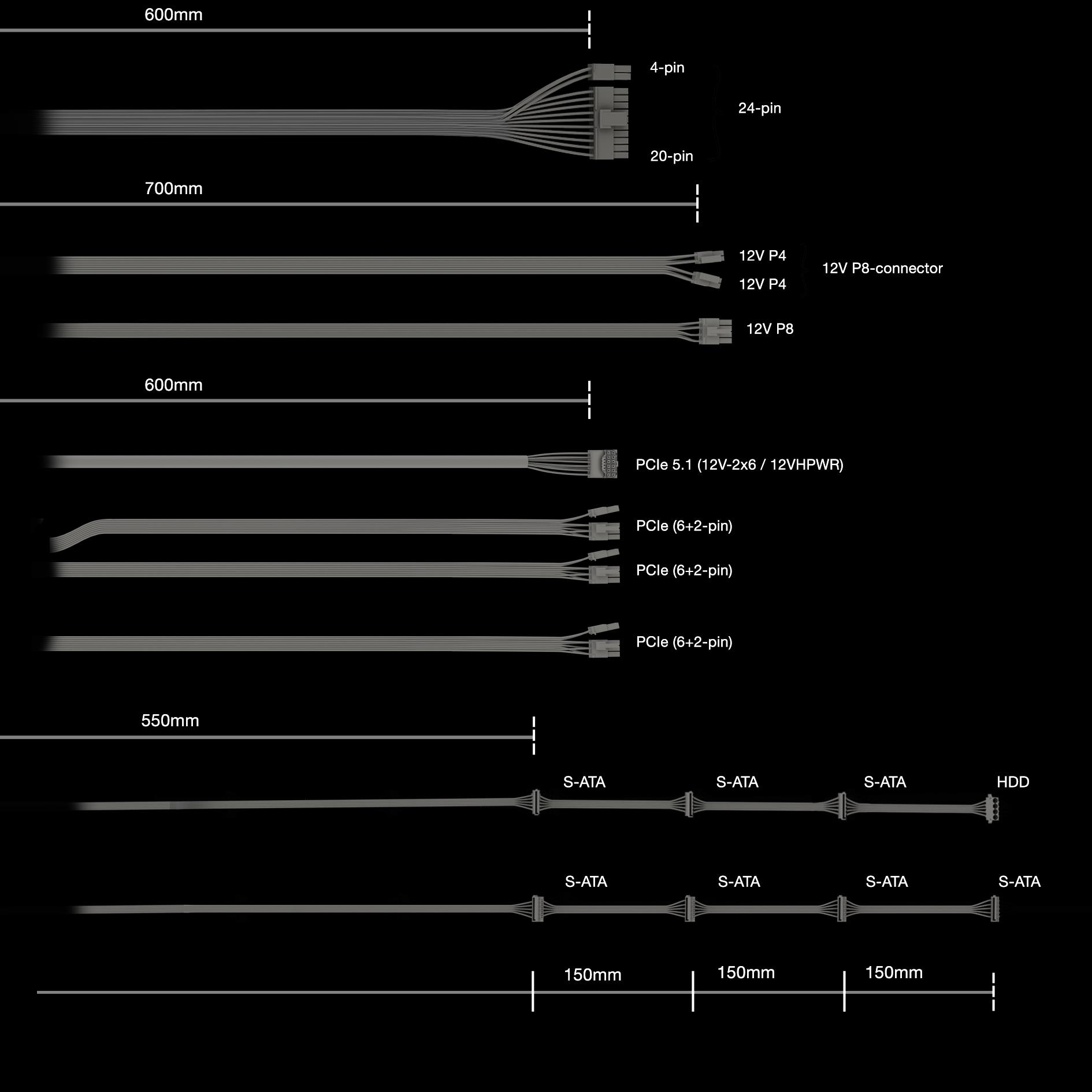

CPU power cable length: 700
CPU power connector (4+4 pin): Yes
EPS power connector (8-pin): Yes
Motherboard power cable length: 600
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 7
PCI Express power cable length: 600
PCI Express power connectors (16-pin): 1
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power cable length: 1000
Peripheral (Molex) power connectors (4-pin): 1
SATA power cable length: 1000/550/700/850
80 PLUS certification: 80 PLUS Platinum
ATX version: 3.1
Bearing technology: Rifle
EPS version: 2.92
Mean time between failures (MTBF): 100000

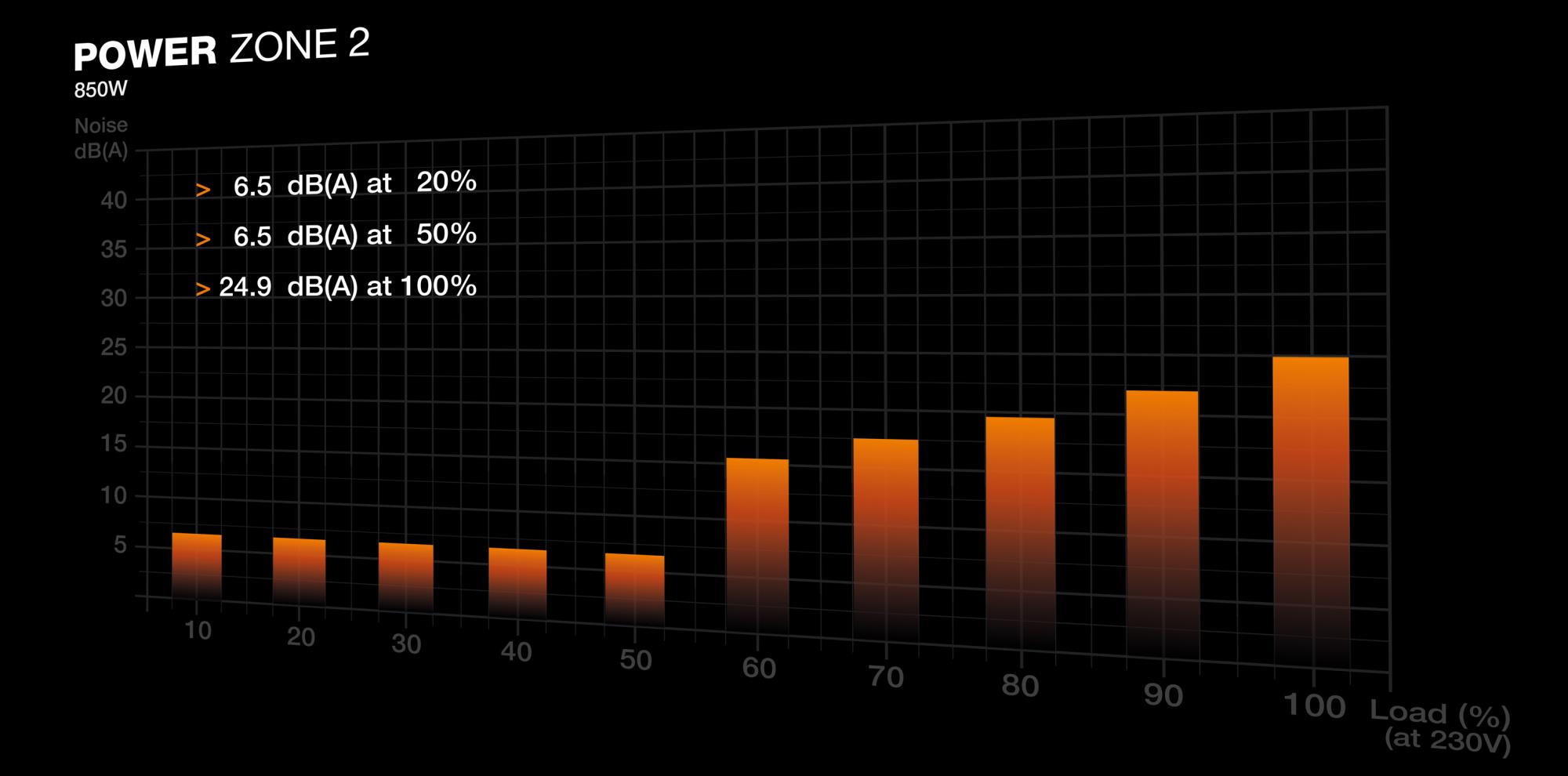

Noise level: 24.9
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active
Fan diameter: 140
Number of fans: 1
On/off switch: Yes
Product colour: Black
Operating relative humidity (H-H): 0 – 85
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 0 – 95
Storage temperature (T-T): -40 – 70
Compliance certificates: BSMI/CB/CCC/CE/Federal Communications Commission (FCC)/RCM/RoHS/TÜV mark/UKCA/WEEE
Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Depth: 160
Height: 86
Width: 150
Manual: Yes
Manual languages: English/French/German/Polish/Russian/Spanish/Ukrainian
Package depth: 328
Package height: 102
Package type: Box
Package weight: 3210
Package width: 248
Sustainability certificates: ENERGY STAR/ErP/Triman
Products per shipping (inner) case: 6
Shipping (inner) case gross weight: 19260
Shipping (inner) case height: 346
Shipping (inner) case length: 651
Shipping (inner) case width: 282

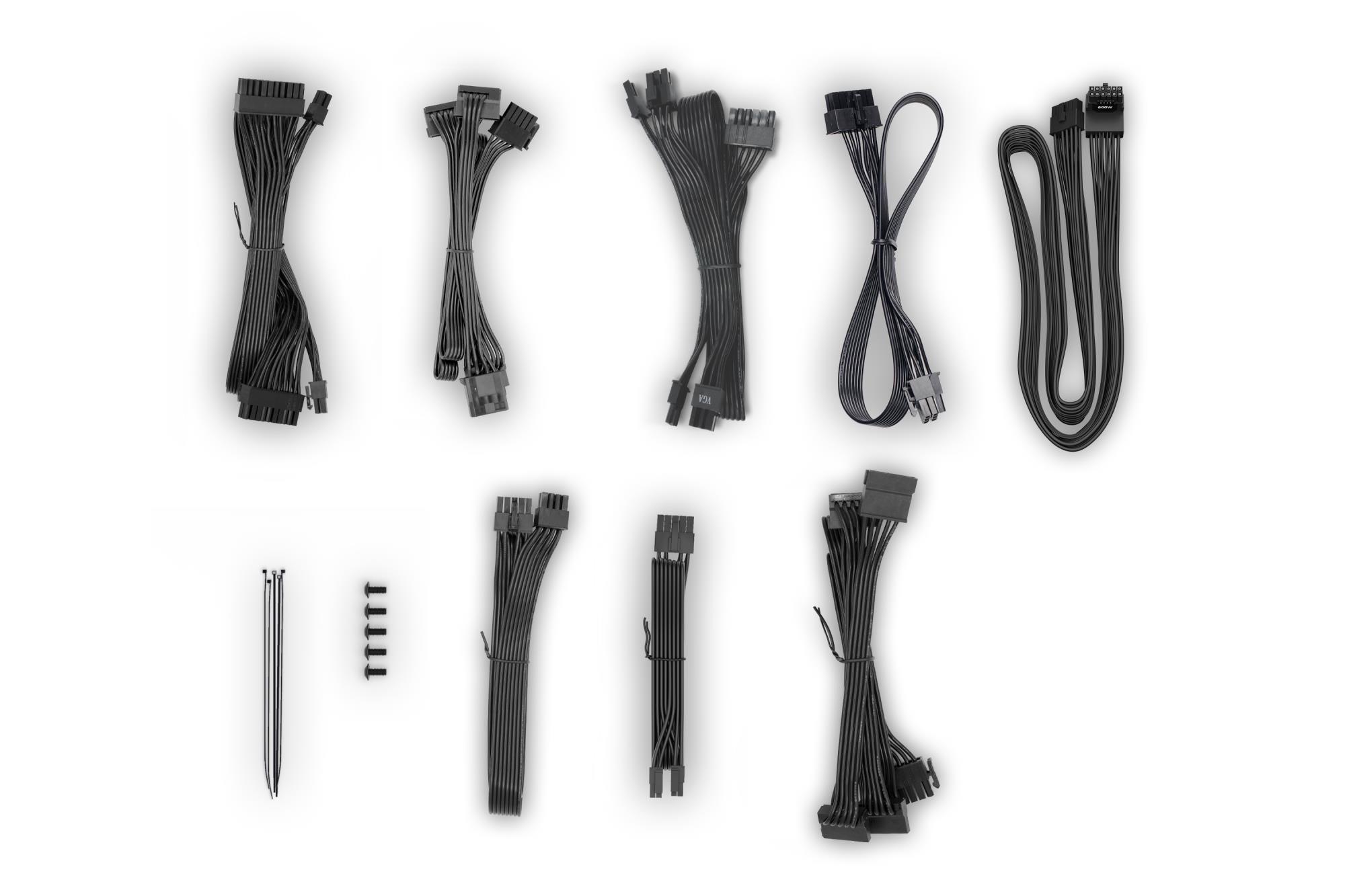

Cable ties included: Yes
Screws included: Yes
Model name: POWER ZONE 2
Units per Shipping Box: 1
Unit Calculated Volume: 0.00825
Unit Calculated Weight: 3.3
