Description:
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty

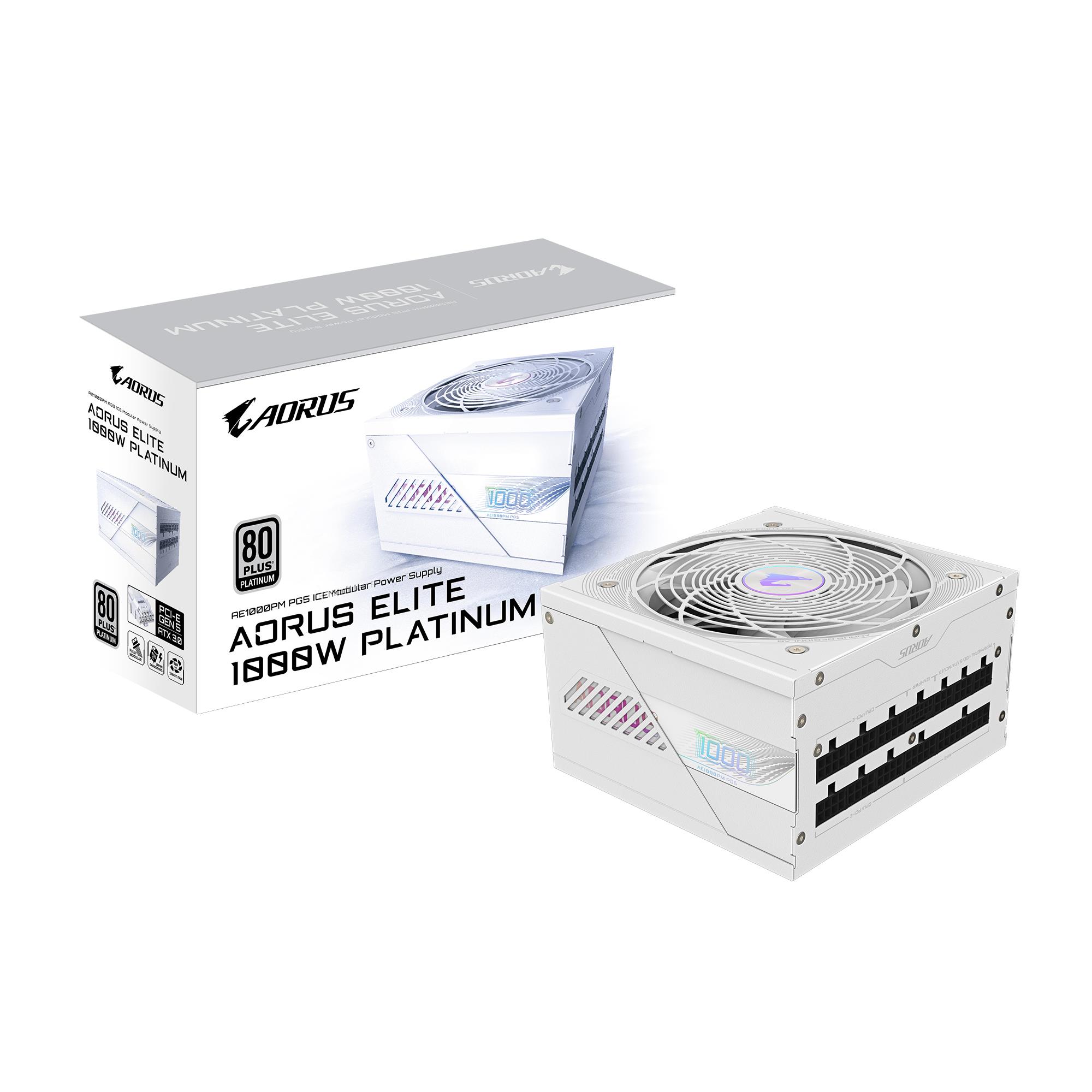

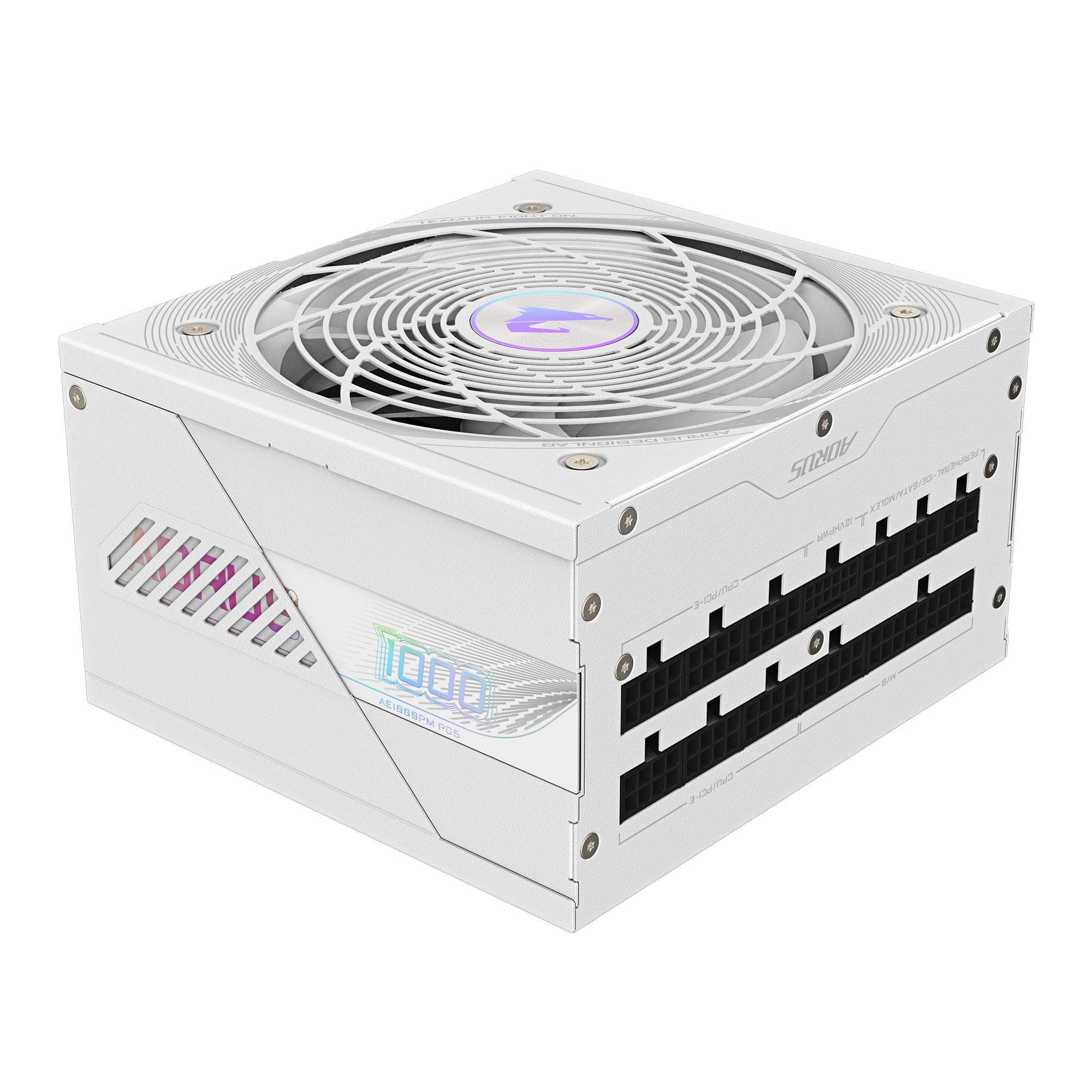

Summary: GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit – PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Vendor Homepage: https://www.gigabyte.com/uk/Power-Supply/GP-AE1000PM-PG5-ICE-rev-10#kf
Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.205
Unit Box Length: 0.34
Unit Box Width: 0.12
AC input frequency: 50/60
AC input voltage: 100 – 240

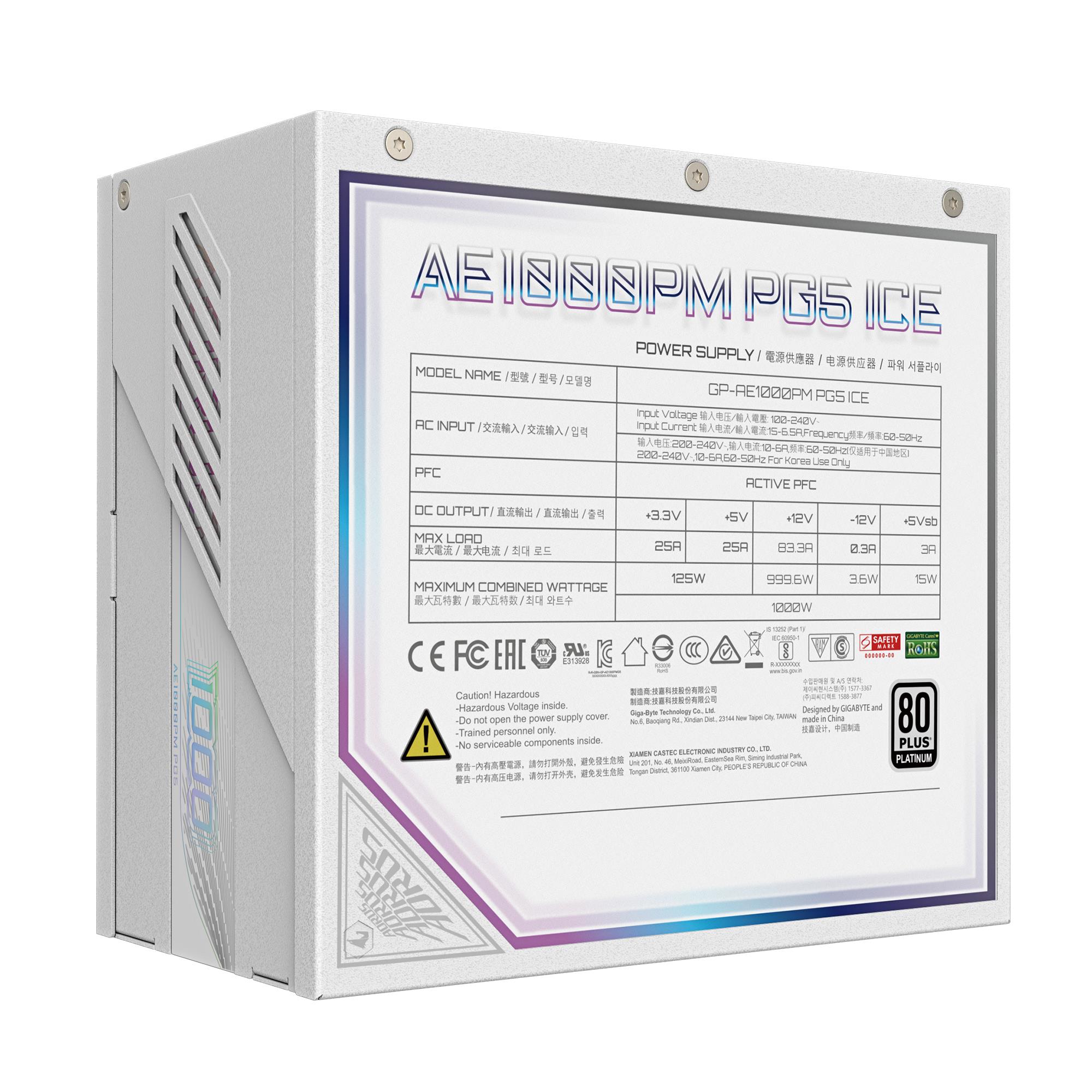

Combined power (+12V): 999.6
Combined power (+3.3V): 125
Combined power (+5V): 125
Combined power (+5Vsb): 15
Combined power (-12V): 3.6
Efficiency: 92
Hold time: 16
Input current: 15 – 6.5
Max output current (+12V): 83.3
Max output current (+3.3V): 25
Max output current (+5V): 25
Max output current (+5Vsb): 3
Max output current (-12V): 0.3
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Power Good signal delay range: 100 – 150
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power: 1000

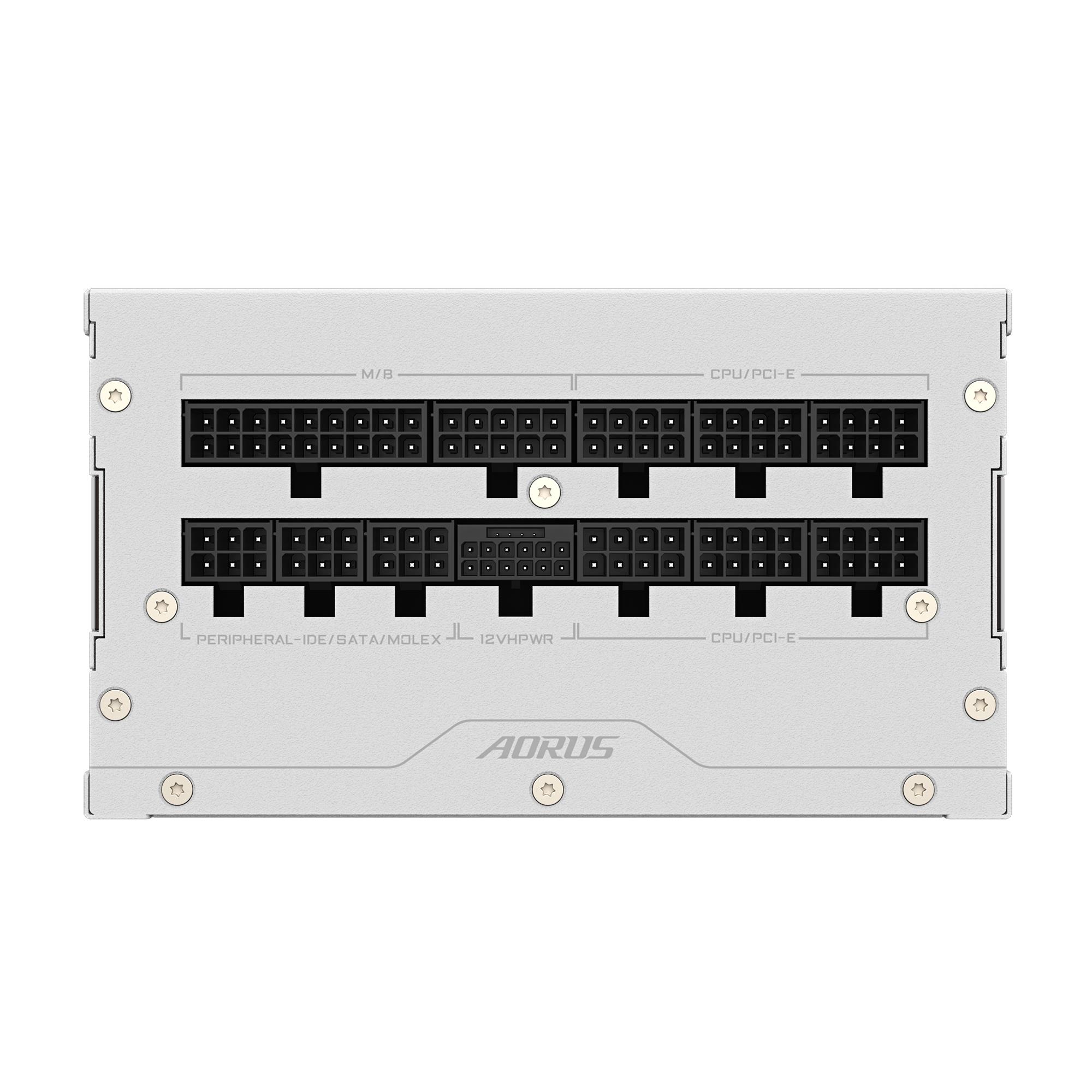

ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
Floppy disk drive connector: Yes
Floppy drive power connector: 2
Motherboard power cable length: 650
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
PCI Express connector: Yes
PCI Express power connectors (6+2 pin): 6
Peripheral (Molex) power connectors (4-pin): 4
80 PLUS certification: 80 PLUS Platinum
ATX version: 3.1
Bearing technology: Ball bearing
Mean time between failures (MTBF): 100000
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active

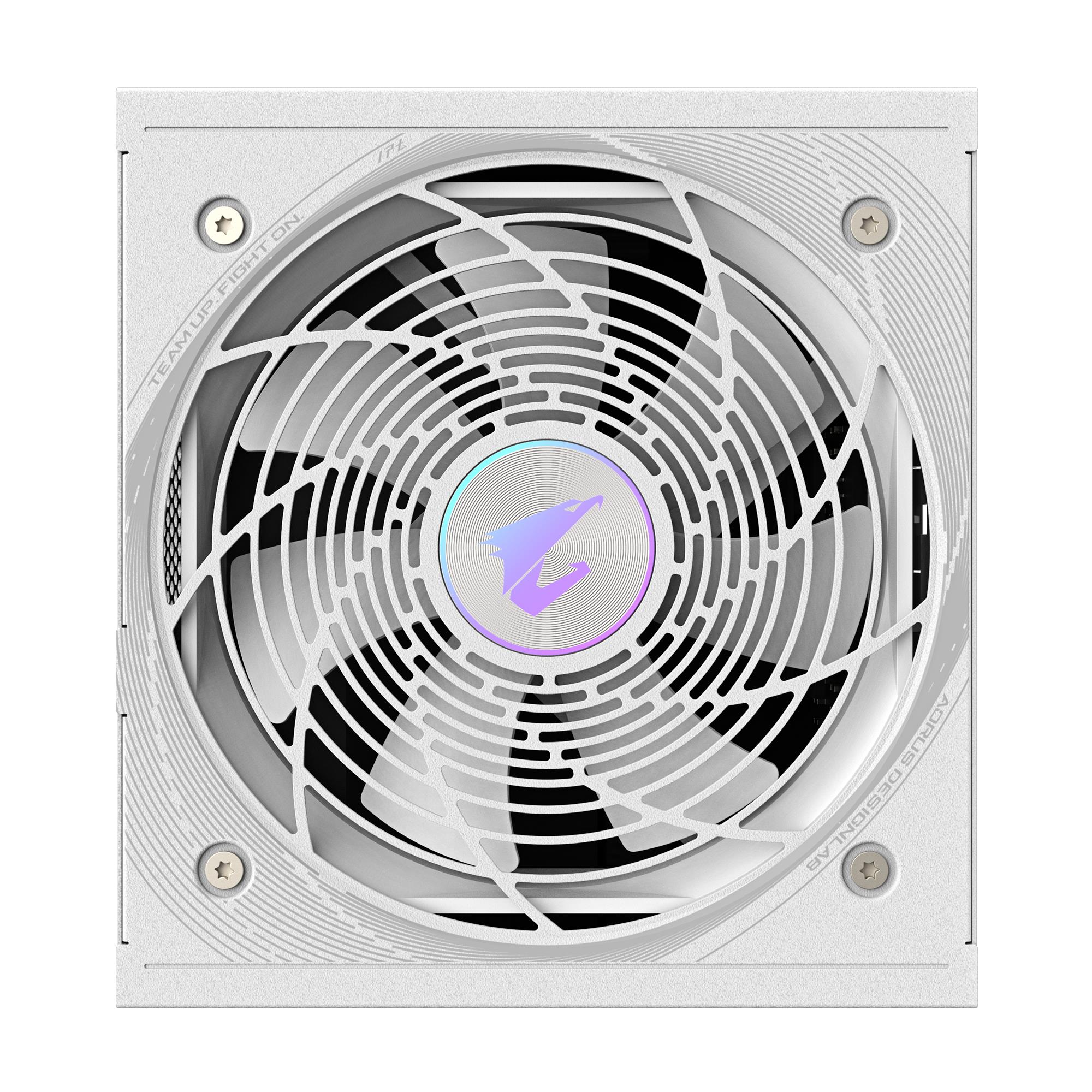

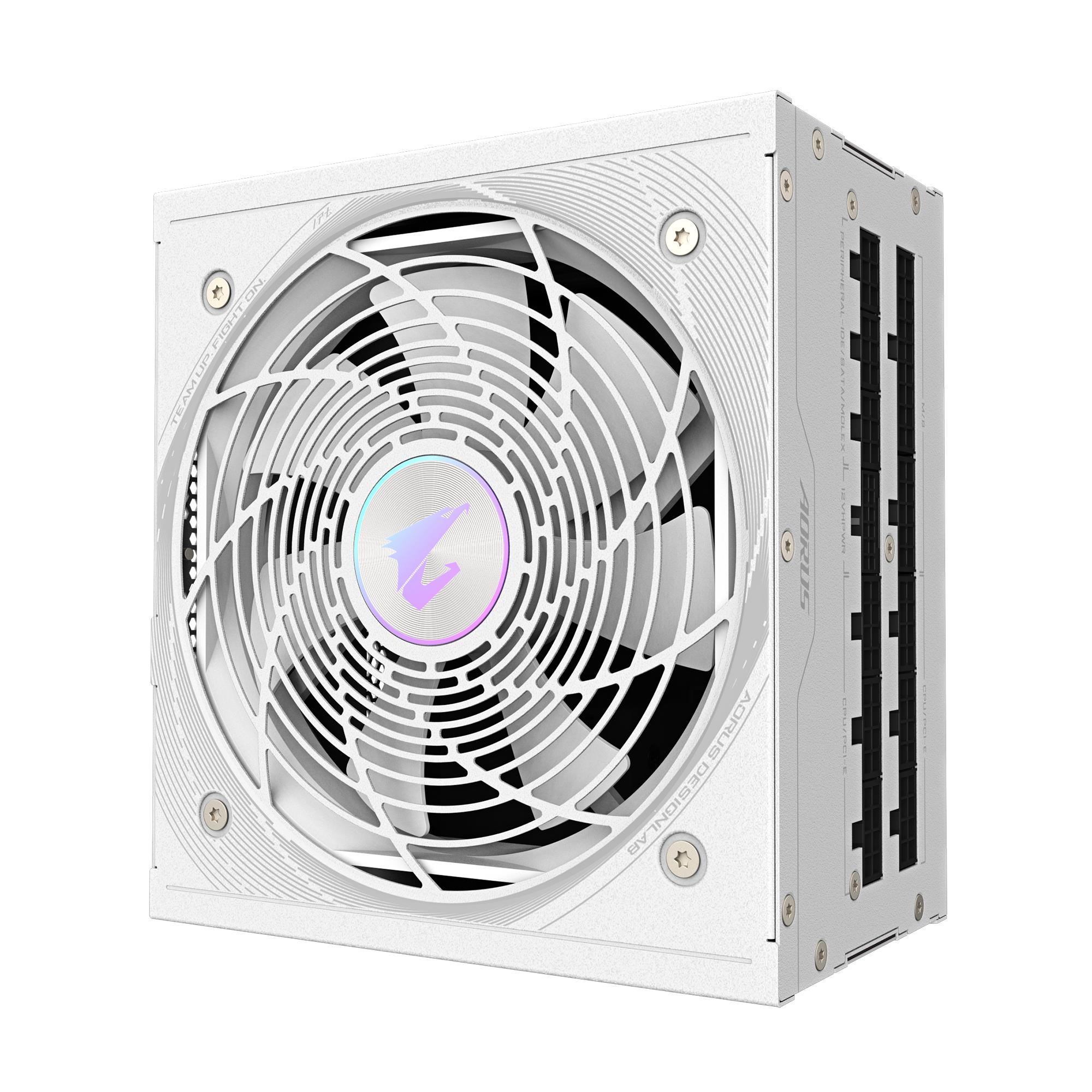

Fan diameter: 120
Fan location: Top
Number of fans: 1

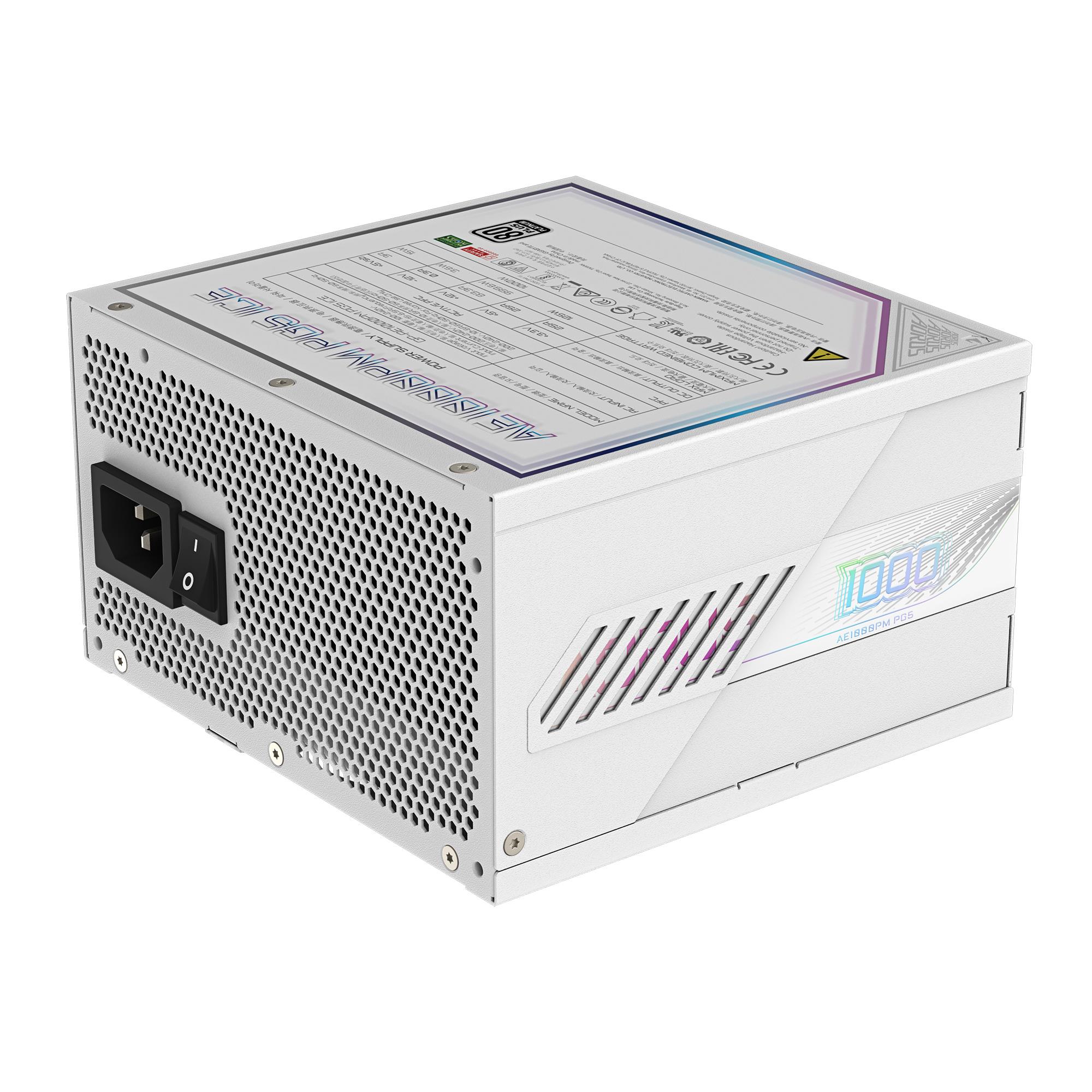

On/off switch: Yes
Product colour: White
Depth: 140
Height: 86
Weight: 3102
Width: 150
Package depth: 206
Package height: 120
Package type: Box
Package weight: 3732
Package width: 340
Warranty period: 10
Model name: GP-AE1000PM PG5 ICE
Units per Shipping Box: 5
Unit Calculated Volume: 0.01086
Unit Calculated Weight: 3.73
