Description:

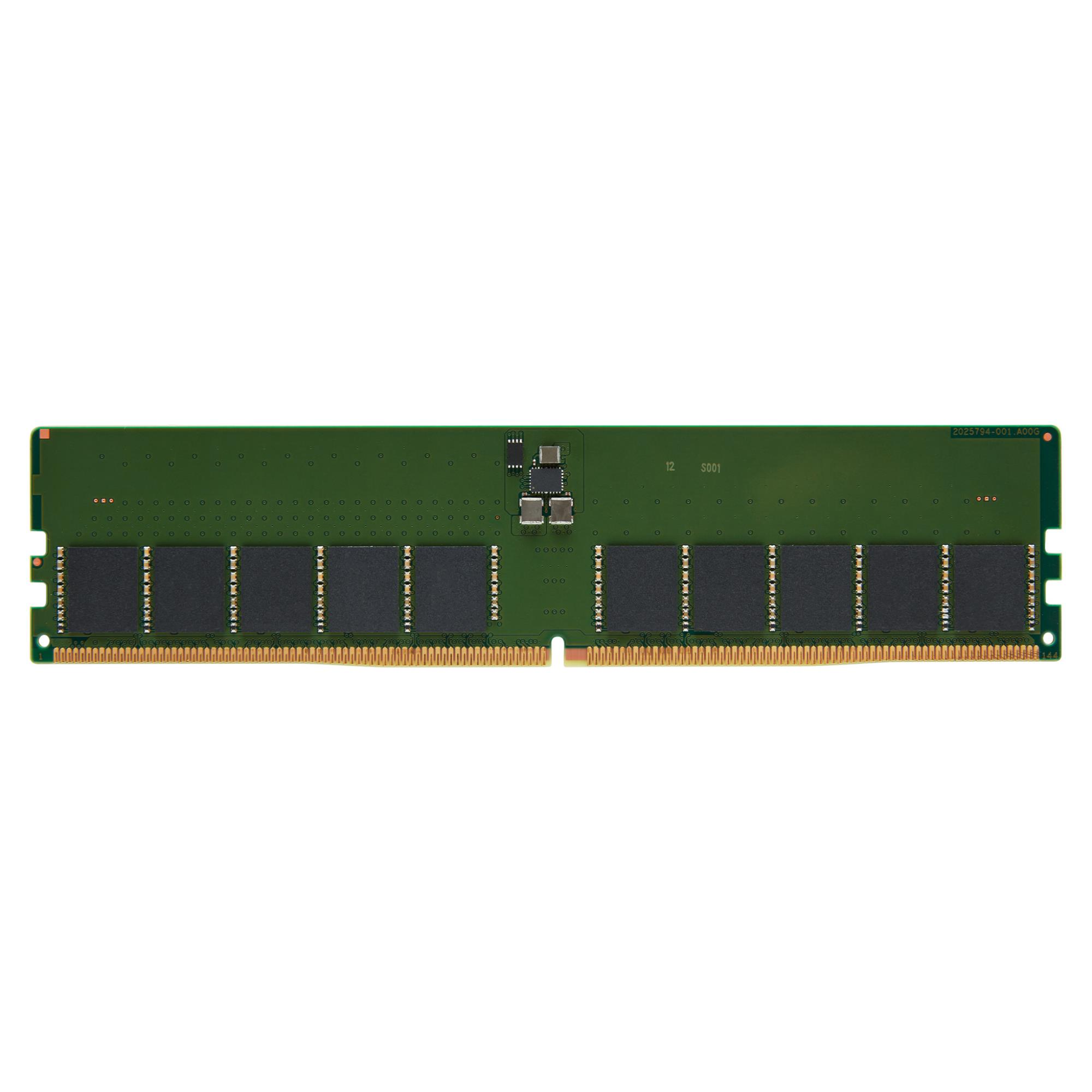

Kingston KSM56E46BD8KM-32HA
is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Summary: Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green
Vendor Homepage: https://www.kingston.com/en
Category Code: MES
CnCode: 84733020
Unit Box Height: 0.007
Unit Box Length: 0.045
Unit Box Width: 0.145
Buffered memory type: Unregistered (unbuffered)
CAS latency: 46
Component for: Server
ECC: Yes
Internal memory: 32
Internal memory type: DDR5
JEDEC standard: Yes
Lead plating: Gold
Memory data transfer rate: 5600
Memory form factor: 288-pin DIMM
Memory layout (modules x size): 1 x 32
Memory ranking: 2
Memory voltage: 1.1
Module configuration: 4096M x 72
On-Die ECC: Yes
Product colour: Black/Green
Programming power voltage (VPP): 1.8
Refresh row cycle time: 295
Row active time: 32
Row cycle time: 48
Row Precharge Time (TRP): 16
SPD profile: Yes
Operating temperature (T-T): 0 – 95
Storage temperature (T-T): -55 – 100
Compliance certificates: RoHS
Doesn’t contain: Halogen
Sustainability compliance: Yes
Height: 31.25
Width: 133.35
