Description:

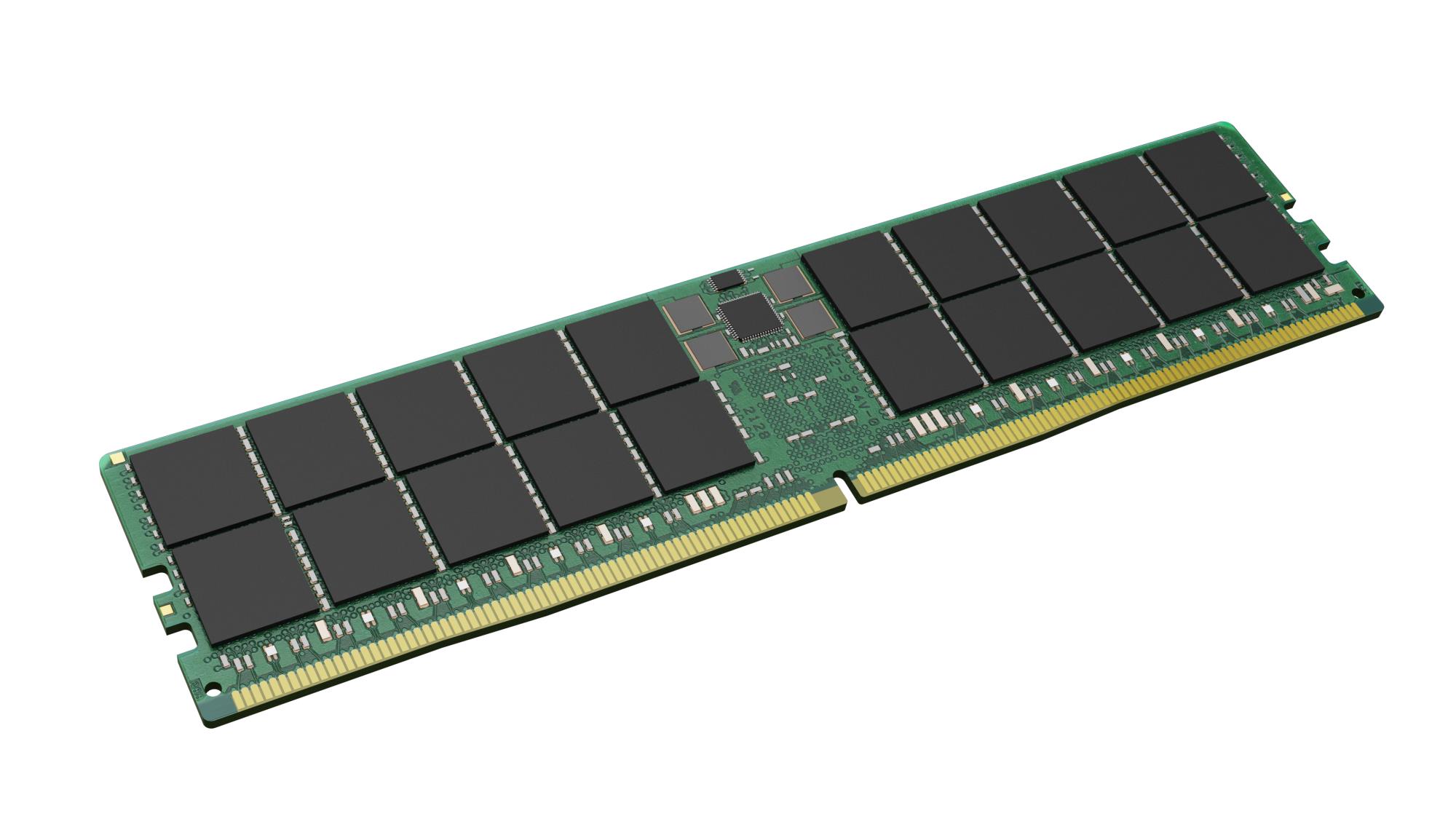

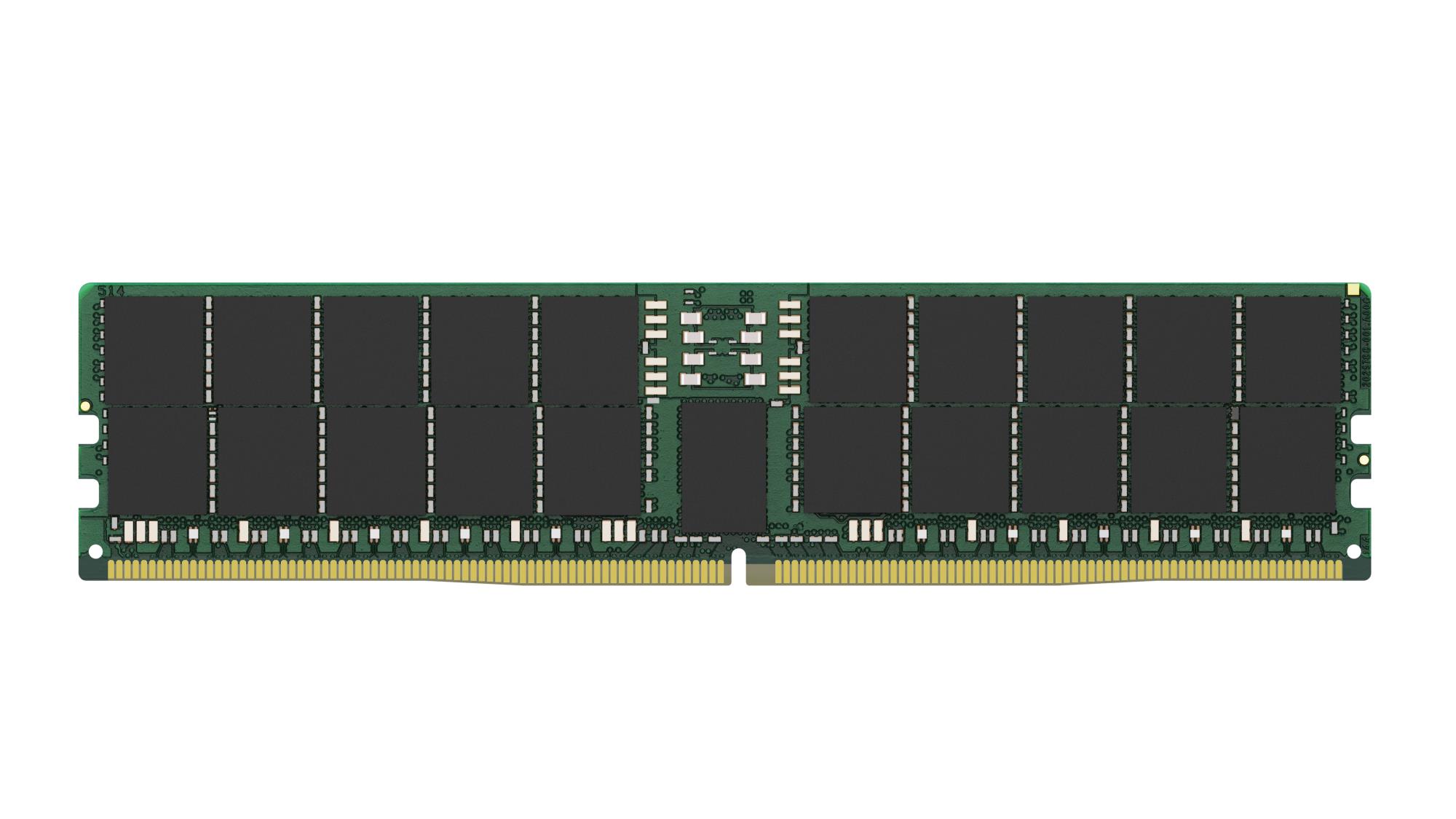

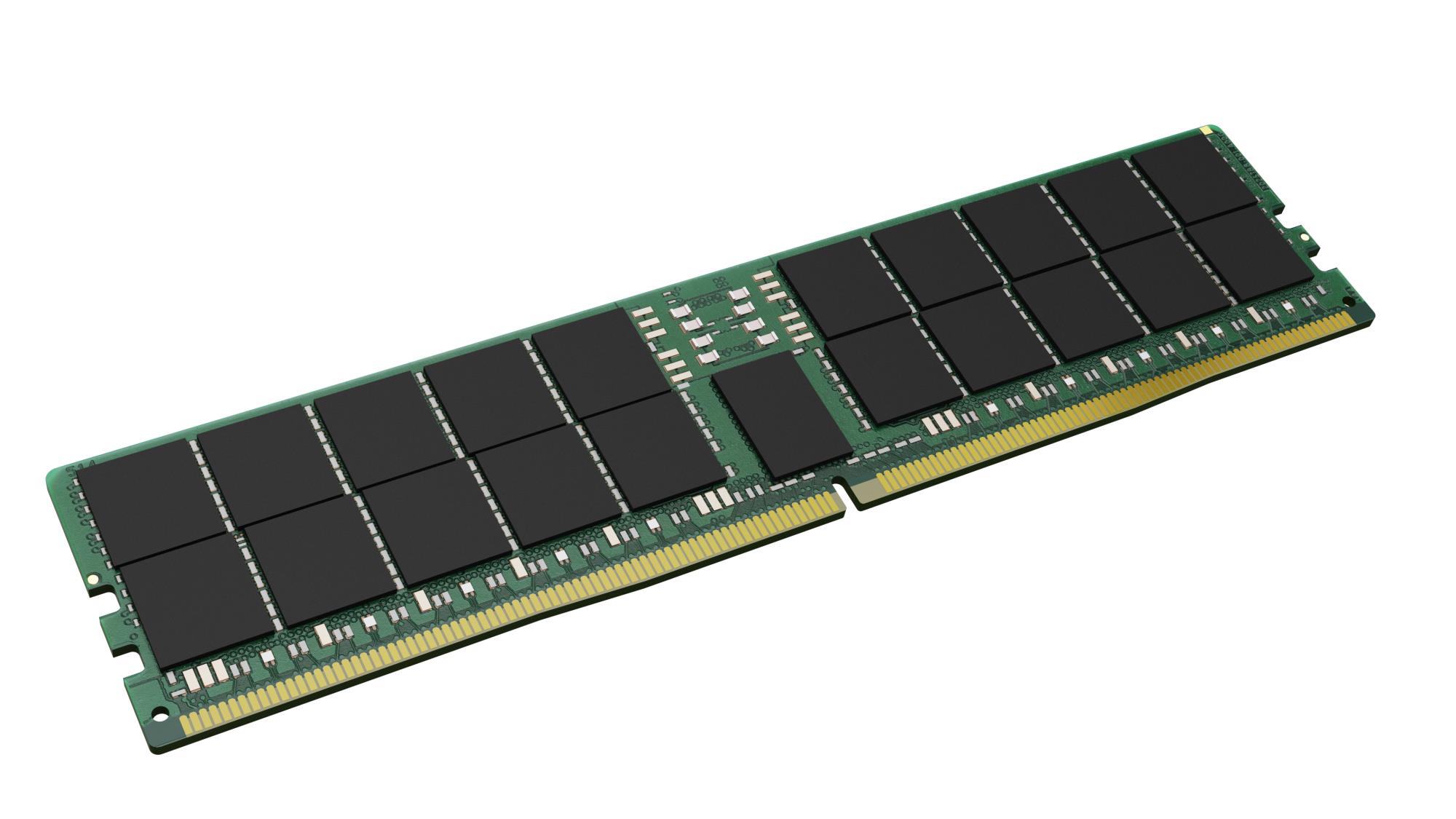

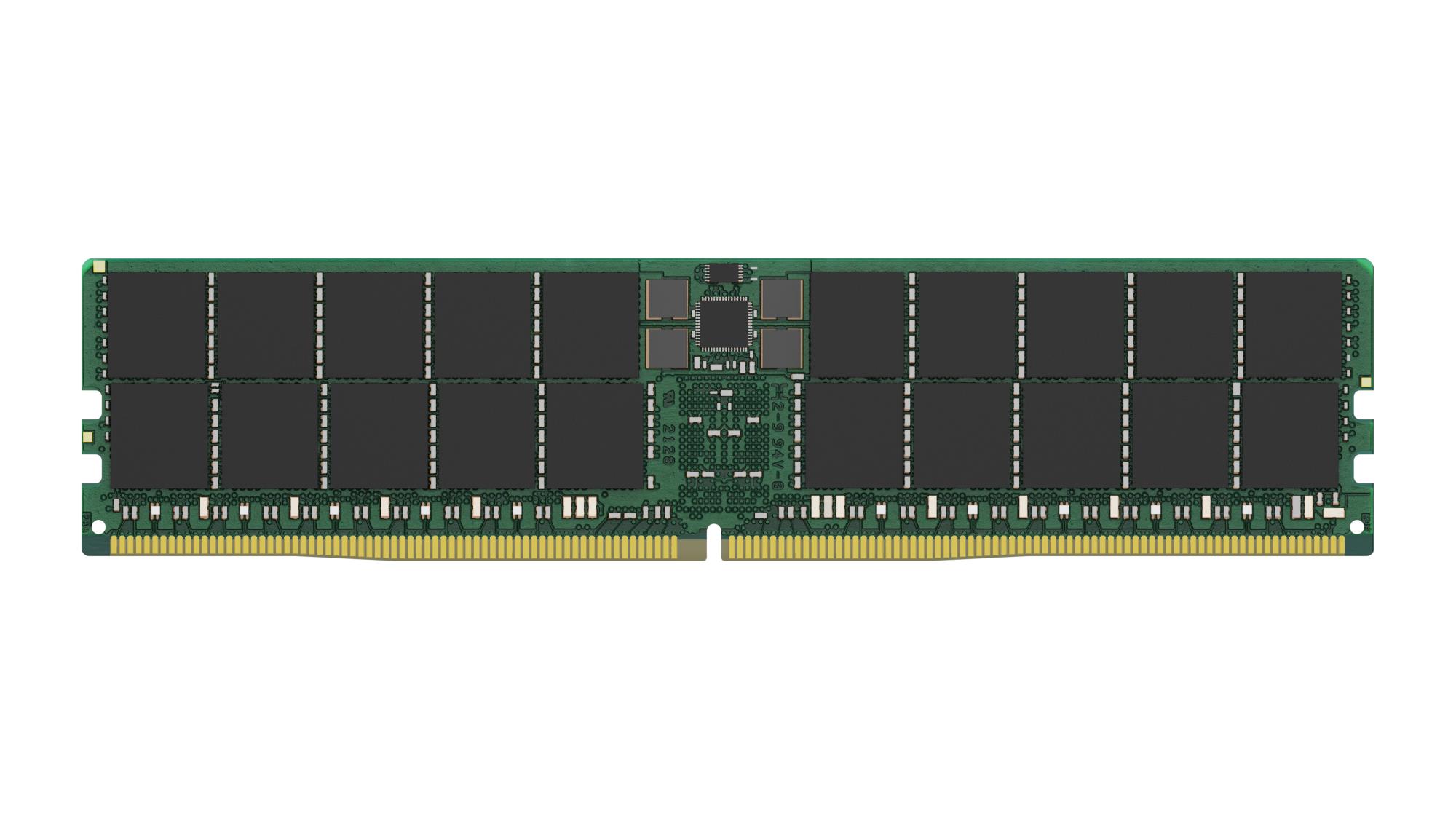

KINGSTON KSM56R46BD4-64MD
Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.
Summary: Kingston Technology KSM56R46BD4-64MD. Component for: PC/Server, Internal memory: 64 GB, Memory layout (modules x size): 1 x 64 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46
Vendor Homepage: https://www.kingston.com/en/memory/search?partid=KSM56R46BD4-64MD
Category Code: MES
CnCode: 84733020
Unit Box Height: 0.008
Unit Box Length: 0.045
Unit Box Width: 0.145
Buffered memory type: Registered (buffered)
CAS latency: 46
Component for: PC/Server
ECC: No
Internal memory: 64
Internal memory type: DDR5
JEDEC standard: Yes
Lead plating: Gold
Memory data transfer rate: 5600
Memory form factor: 288-pin DIMM
Memory layout (modules x size): 1 x 64
Memory ranking: 2
Memory voltage: 1.1
Module configuration: 8192M x 80
On-Die ECC: Yes
Programming power voltage (VPP): 1.8
Refresh row cycle time: 295
Row active time: 32
Row cycle time: 48
Row Precharge Time (TRP): 16
SPD profile: Yes
Operating temperature (T-T): 0 – 95
Storage temperature (T-T): -55 – 100
Compliance certificates: RoHS
Doesn’t contain: Halogen
Height: 31.25
Width: 133.35
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 5.22E-05
Unit Calculated Weight: 0.032
