Description:
5.1.2 Channel Q Class
Fill your room with sound, bringing the movie theater experience into your home.
620 Watts Power
Room-filling audio sound will immerse you in your favorite movies, TV shows, and music, delivering powerful audio experience.
Dolby Atmos & DTS:X
Spatial sound from above and behind putting you in the center of movies, music, and games.
RayDanz Technology
Patented technology that dramatically widens the sound stage for an amazing acoustic experience.
Auto Room Calibration (AI Sonic)
Get optimal sound quality no matter where you are in the room with Auto Room Calibration.
Bluetooth
Stream all your favorite music and podcasts wirelessly from your Bluetooth® device.

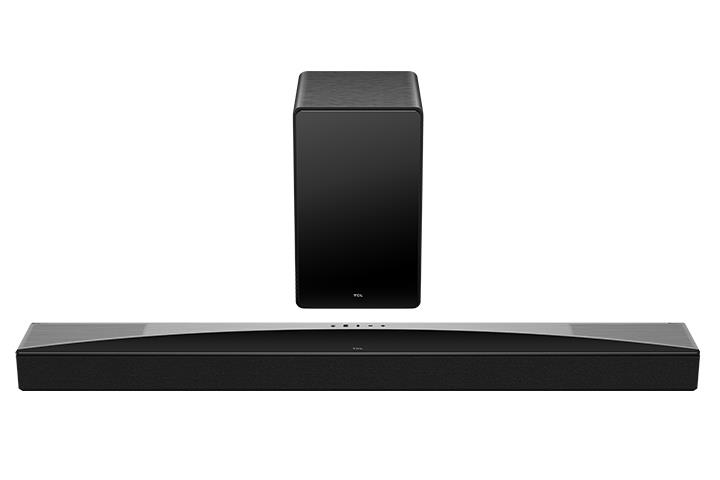

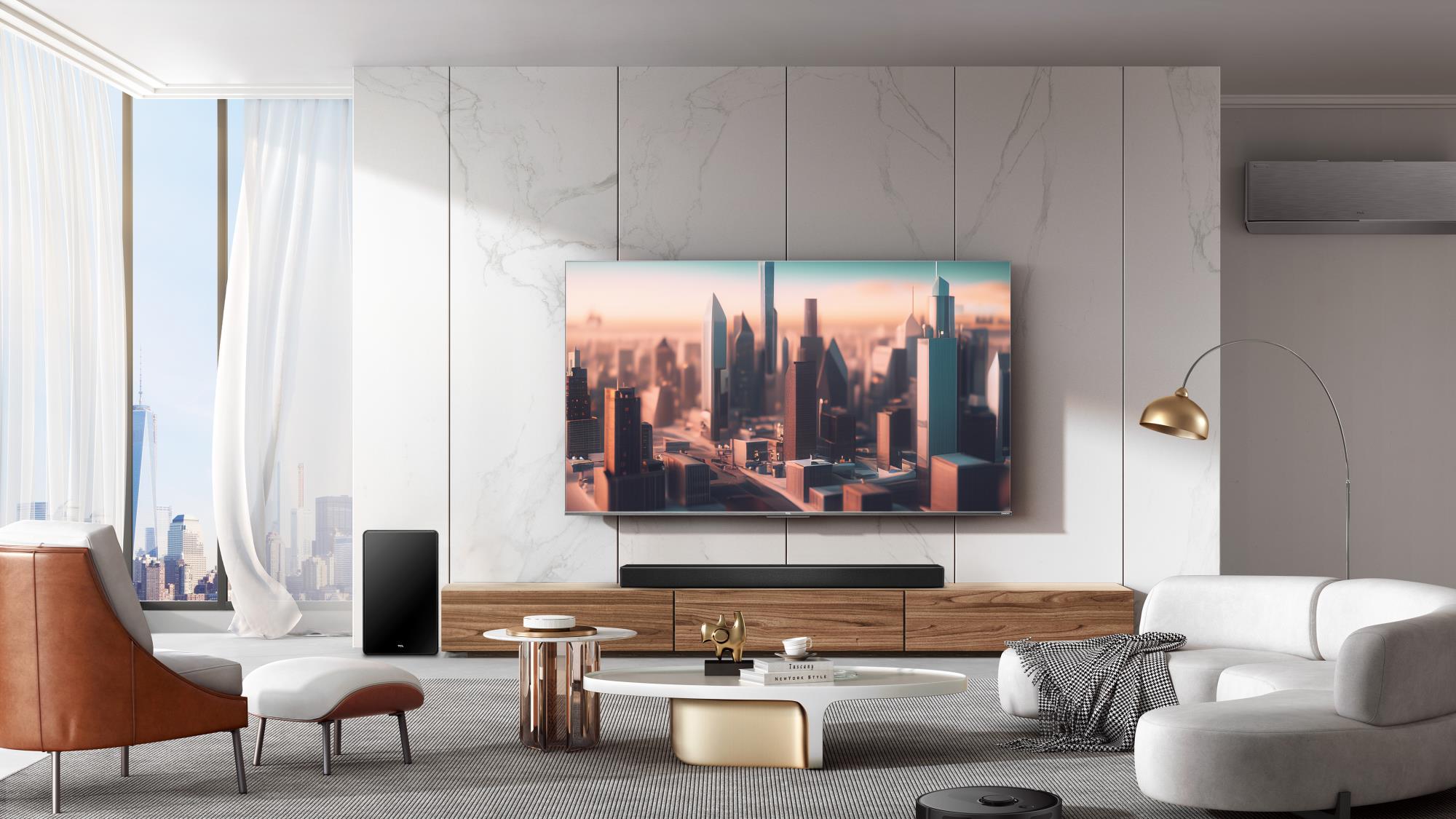

5.1.2 CHANNEL Q CLASS SOUND BAR

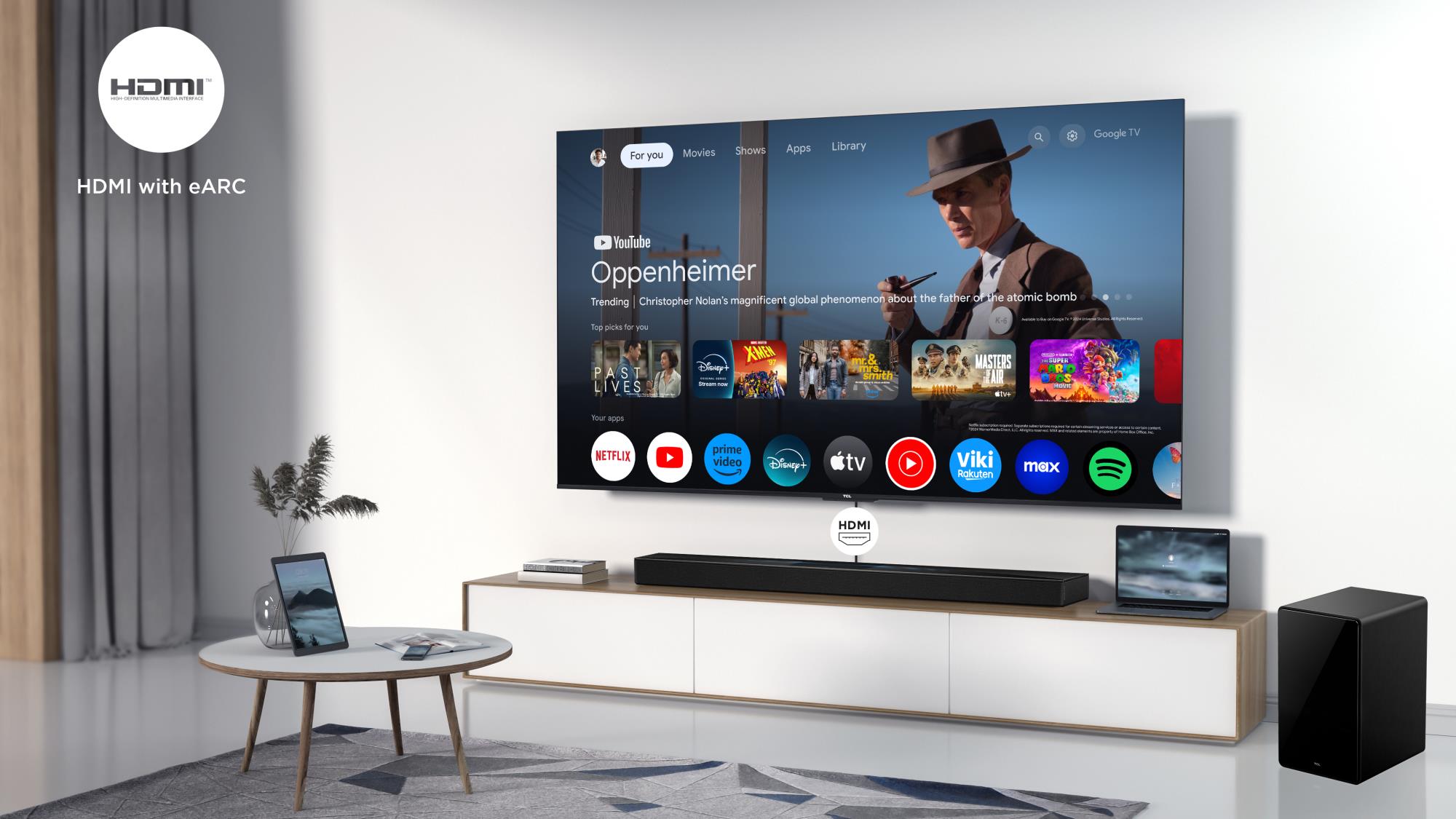

Fill your room with sound, bringing the movie theater experience into your home with just a single HDMI cable. It’s home theater, made simple.

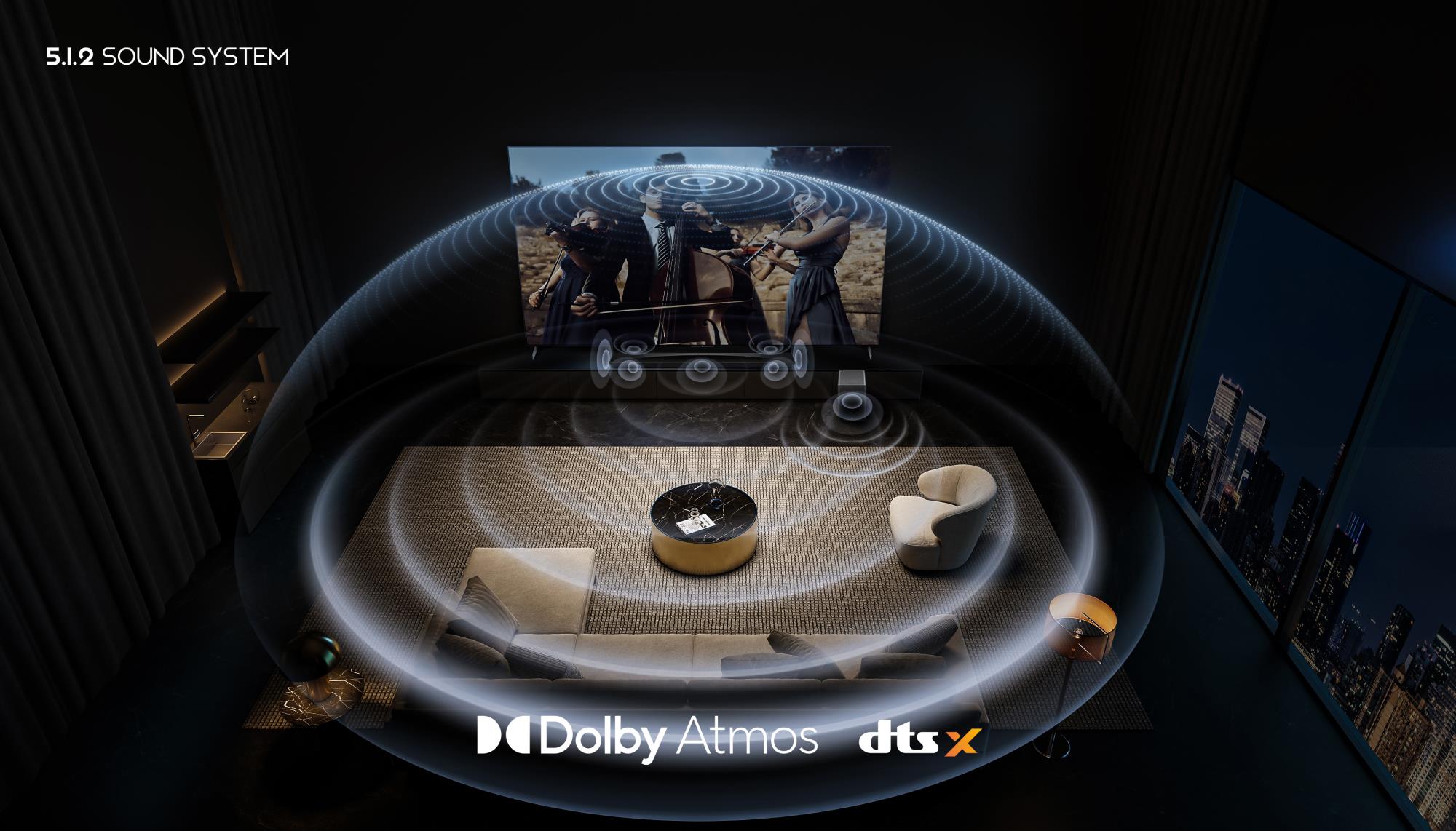

DOLBY ATMOS AND DTS:X
Spatial sound from above and behind putting you in the center of movies, music, and games.
UP TO 620 WATTS TOTAL POWER
Room-filling audio sound will immerse you in your favorite movies, TV shows, and music, delivering powerful audio experience.

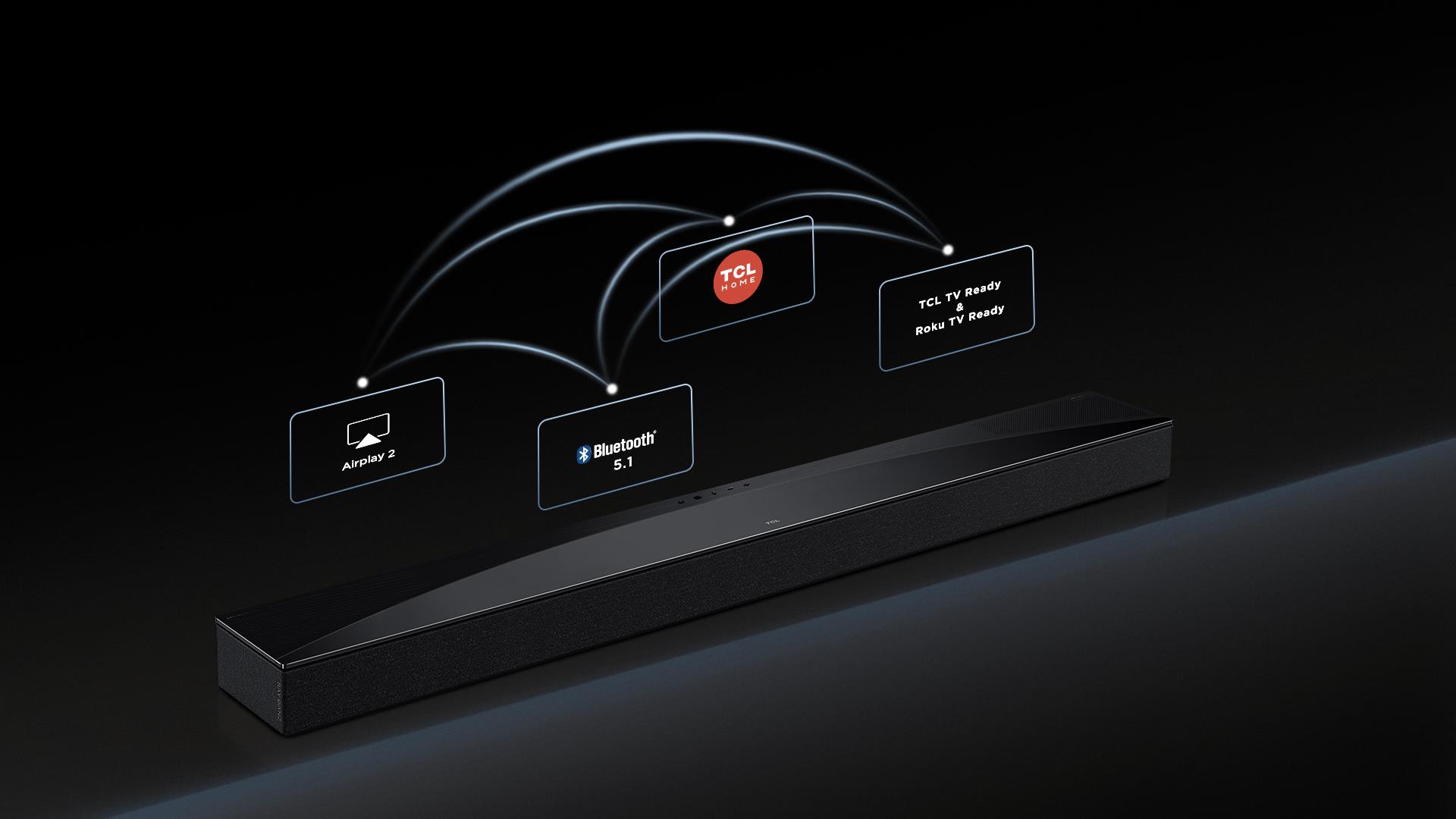

BLUETOOTH WIRELESS MUSIC STREAMING
Stream your favorite music wirelessly with Bluetooth connectivity that allows you to play your favorite songs from your smartphone, tablet, or other Bluetooth-enabled device.

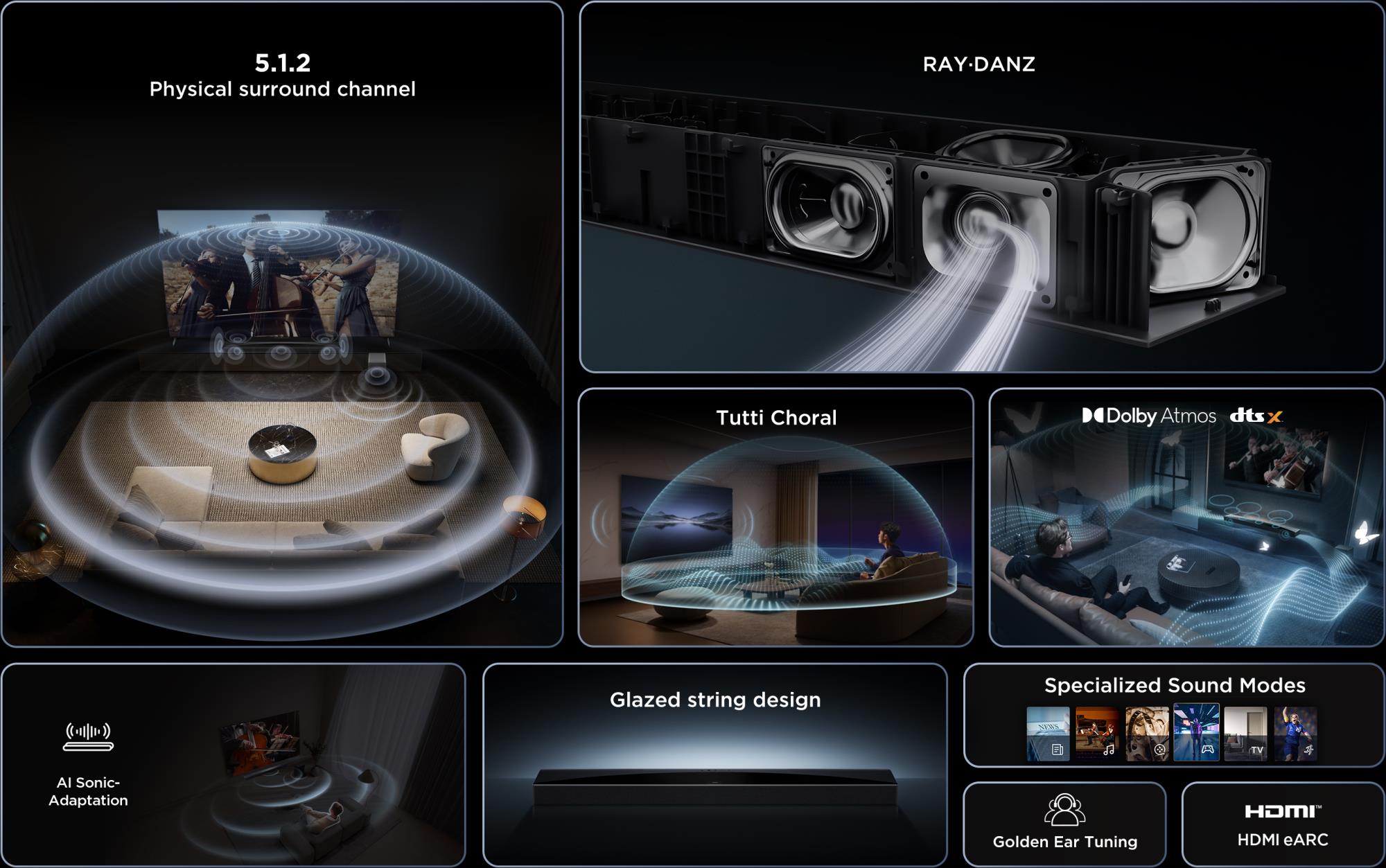

RAY DANZ TECHNOLOGY WITH ACOUSTIC REFLECTORS
Patented technology that dramatically widens the sound stage for an amazing acoustic experience
BUILT-IN TWEETERS
Hear every detail of your favorite movies and music with the built-in tweeters that deliver precise, high-frequency sound to complement the powerful bass.
BUILT-IN CENTER CHANNEL
Enjoy clear dialogue even during action-packed scenes with the built-in center speaker that ensures voices are always heard with crystal-clear clarity.
SOUND BAR WITH UP-FIRING SPEAKERS
Up-Firing Speakers reflect audio off your ceiling to completely immerse you in movies, music, and games.

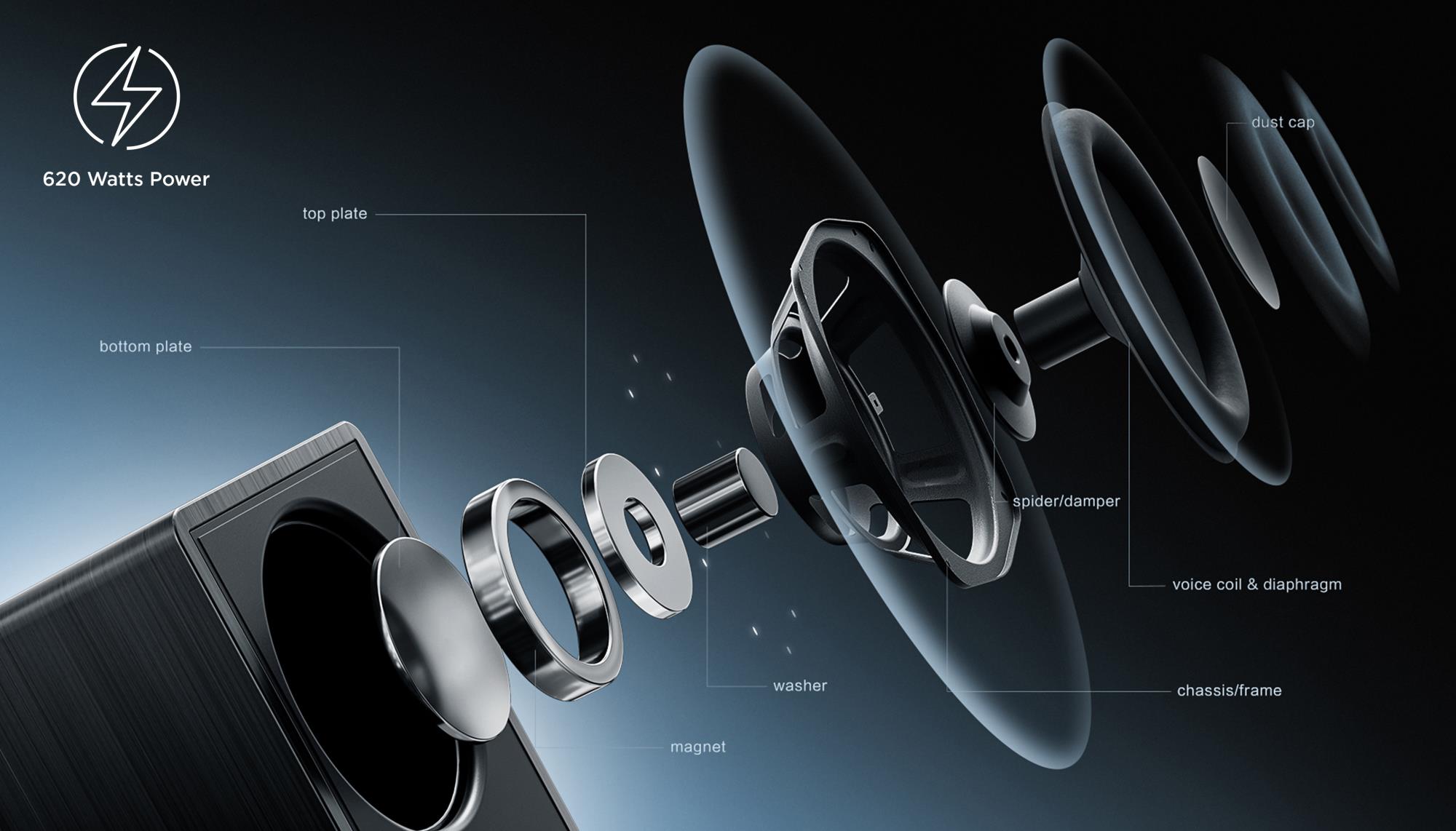

WIRELESS SUBWOOFER WITH 6.5” DRIVER AND BASS BOOST
Feel the bass with the wireless subwoofer featuring a 6.5” driver and Bass Boost technology providing deep, rich tones.
AI SONIC AUTO ROOM CALIBRATION
Get optimal sound quality with Auto Room Calibration powered by AI Sonic that tailors the sound to your unique space.
- 5.1.2 Channel Q Class Soundbar
- Dolby Atmos & DTS:X
- Up to 620 Watts Total Power
- Bluetooth Wireless Music Streaming
- Ray Danz Technology & Acoustic Reflectors
- Built-In Tweeters
- Built-In Center Channel
- Soundbar with Up-Firing Speakers
- Wireless Subwoofer with 6.5” Driver and Bass Boost
- Ai Sonic Auto Room Calibration
Summary: TCL Q Q75H Class 5.1.2 Channel Sound Bar with Dolby Atmos, Ray Danz Technology, and Wireless Subwoofwer. Audio output channels: 5.1.2 channels, RMS rated power: 620 W, Audio decoders: DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby MAT, Dolby Surround, Dolby TrueHD. Soundbar speaker RMS power: 30 W. Subwoofer type: Active subwoofer, Subwoofer connectivity: Wireless, Subwoofer RMS power: 100 W. Product colour: Titanium, Colour name: Dark titanium, High Dynamic Range (HDR) technology: Dolby Vision. Connectivity technology: Wired & Wireless, Bluetooth codec: A2DP, AVRCP, SBC, AAC, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Vendor Homepage: https://www.tcl.com/us/en/products/sound-bars/q-class-sound-bars/q-class-5-1-2-channel-sound-bar-q75h
Category Code: SBR
CnCode: 85182100
Unit Box Height: 0.515
Unit Box Length: 1.14
Unit Box Width: 0.295
Audio decoders: Dolby Atmos/Dolby Digital Plus/Dolby MAT/Dolby Surround/Dolby TrueHD/DTS:X/DTS-HD Master Audio
Audio output channels: 5.1.2
Audio Return Channel (ARC): Yes
Audio sample rate (24bit): 48
Enhanced Audio Return Channel (eARC): Yes
Equalizer: Yes
Equalizer modes: Game,Movie,Music,Sport,Standard,Voice
RMS rated power: 620
Soundbar mode control: Yes
TV Sound Share: Yes
Number of speakers: 11
Soundbar speaker RMS power: 30
Bass adjustment: Yes
Subwoofer connectivity: Wireless
Subwoofer included: Yes
Subwoofer location: Separate
Subwoofer RMS power: 100
Subwoofer type: Active subwoofer
Woofer diameter (subwoofer): 8
Apple AirPlay 2 support: Yes
Audio formats supported: AAC/MP3
Auto power off: Yes
Built-in Chromecast: Yes
Built-in display: Yes
Colour name: Dark titanium
Consumer Electronics Control (CEC): T-link
Detachable power cord: Yes
Display type: LED
FM radio: No
High Dynamic Range (HDR) technology: Dolby Vision
Network streaming services supported: Chromecast/Spotify
Night mode: Yes
On/off switch: Yes
Plug and Play: Yes
Product colour: Titanium
Quick power on: Yes
Sleep timer: No
Smartphone/tablet remote support: Yes
Spotify Connect: Yes
Supported radio bands: Not supported
Supported video streaming resolutions: 4096 x 2160
USB direct playback: Yes
Virtual surround: Yes
Wall mountable: Yes
3D: Yes
Video formats supported: Not supported
Warranty period: 2
AUX in: No
Bluetooth: Yes
Bluetooth codec: A2DP, AVRCP, SBC, AAC
Bluetooth version: 5.3
Card reader integrated: No
Compatible memory cards: Not supported

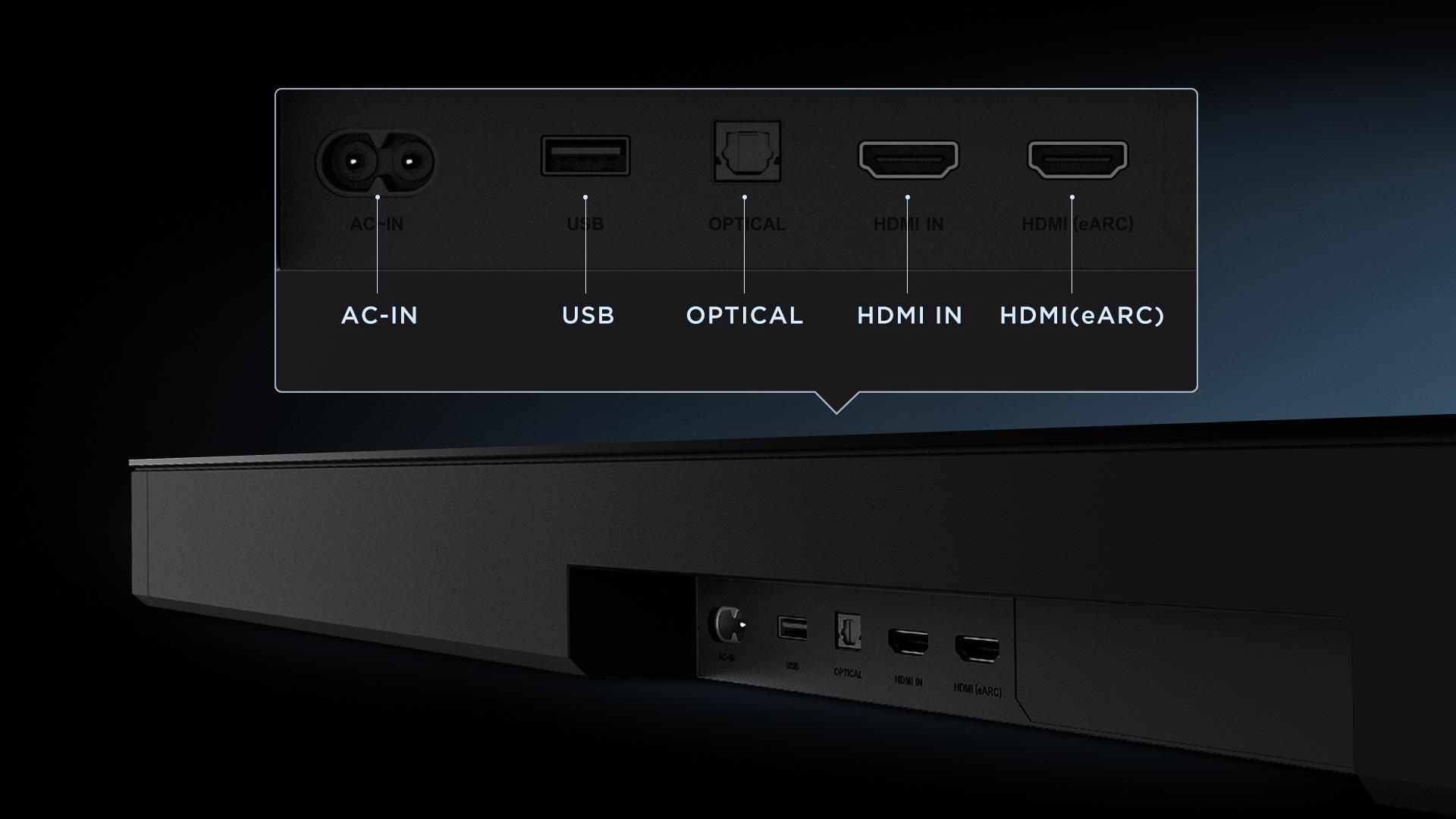

Connectivity technology: Wired & Wireless
DC-in jack: Yes
Digital audio optical in: 1
Digital audio optical out: 1
Ethernet LAN: No
HDCP: Yes
HDMI in: 1
HDMI ports quantity: 2
HDMI version: 2.1
Number of HDMI outputs: 1
USB 2.0 ports quantity: 1
USB port: Yes
Wi-Fi: Yes
Wi-Fi ready: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
AC input frequency: 50/60
AC input voltage: 100 – 240
Power consumption (standby): 1
Power consumption (typical): 98
Cord length: 1.5

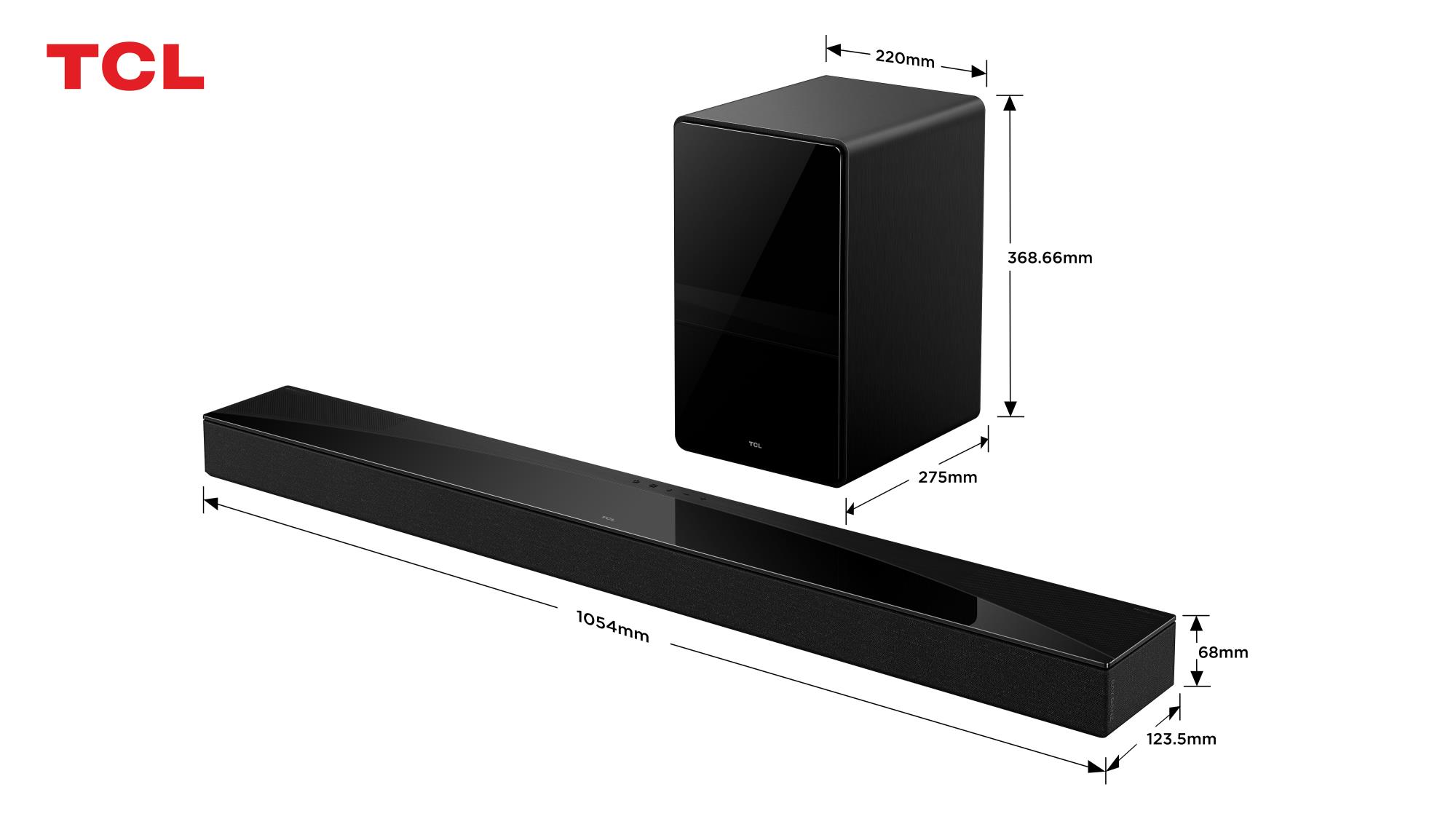

Depth: 110
Height: 58
Soundbar weight: 5600
Subwoofer depth: 275
Subwoofer height: 368.66
Subwoofer weight: 5600
Subwoofer width: 220
Weight: 6400
Width: 1040
Batteries included: Yes
Cables included: AC,HDMI
Mounting brackets included: Yes
Number of products included: 2
Package depth: 512
Package height: 292
Package type: Carton
Package weight: 15150
Package width: 1138
Quick start guide: Yes
Receiver included: Yes
Remote control included: Yes
Wall mounting kit: Yes
Warranty card: Yes
Number of pallets per truck: 33
Pallet gross height: 800
Pallet gross length: 1800
Pallet gross width: 1200
Products per pallet: 10
Quantity per truck: 330
Digital Living Network Alliance (DLNA) certified: No
Optical disc player type: Not included
Remote control battery technology: Alkaline
Units per Shipping Box: 1
Unit Calculated Volume: 0.1732
Unit Calculated Weight: 15.2
