Description:
Durable SSDs Built for Demanding Caching Workloads
Synology SNV3410/3510 NVMe SSDs are designed to handle tough caching workloads in a 24/7 multi-user environment. Their consistent I/O performance boosts system responsiveness and speeds up handling of frequent access data. Purpose-built for Synology systems, the NVMe solid-state drive line provides a streamlined storage experience while minimizing service disruptions. SNV3410/3510 comes with advanced lifetime analytics 3 and is backed by Synology’s 5-year limited warranty.
Consistently Fast Caching for 24/7 Environment
Built for system cache, SNV3410/3510 drives push up random I/O performance and reduce latency in demanding 24/7 environments. They provide a durable caching experience with up to 400,000/70,000 4K random read/write IOPS 1 and a 1,022 TBW endurance rating, 2 suitable for multi-user environments, multimedia post-production, and database applications. The SNV3000 series comes in two form factors, SNV3410 for 2280 and SNV3510 for 22110 . It allows you to build a highly efficient storage system with exceptional performance, without sacrificing any 3.5” drive bays.
Data Integrity Safeguards
SSD caching boosts your system’s read/write performance by storing transient data in solid-state drives to increase retrieval efficiency and cut down recurring requests to the primary storage. Data integrity is important, as cached data are continuously relocated. The Synology SNV3000 series offers end-to-end data protection to safeguard data integrity over the entire transfer path. The SNV3510 comes with power loss protection circuit design , 6 further preventing data corruption during an abnormal shutdown: Dedicated capacitors provide power to flush data-in-flight into NAND flash in a power loss event and firmware is designed to enable a correct restart on the next power-up.
Lifetime Analytics Based on Your Workload
Full integration with Synology’s DiskStation Manager (DSM) operating system allows Synology systems to provide lifetime analytics 3 based on actual workloads for each SNV3000 series drive. Timely notifications allow you to plan further ahead for uninterrupted system performance and longevity. Easy monitoring allows you to make optimal use of each SSD.
Purpose-Built for Synology Systems
Firmware versions and component changes can over time cause SSD compatibility issues. Synology SNV3000 series SSDs are thoroughly tested for compatibility with our systems following each engineering change, while firmware and component changes are strictly managed. Firmware updates can be installed through Synology DSM at a touch of a button. 4 Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability
- Performance
- Up to 70,000 4K random write IOPS1
- Endurance
- Up to 1,022 TBW2
- Analytics
- Actionable insight for optimal performance and longevity3
- Updates
- Automatic firmware updates with DSM4

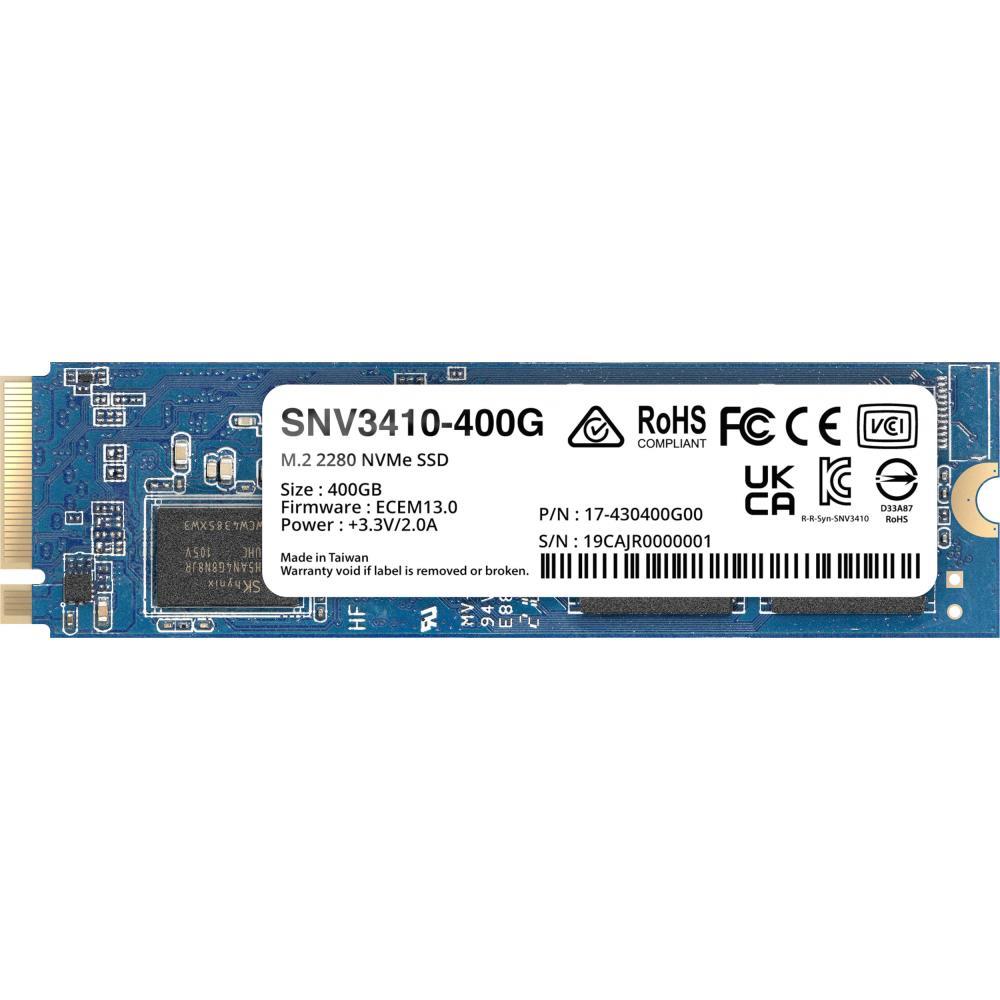

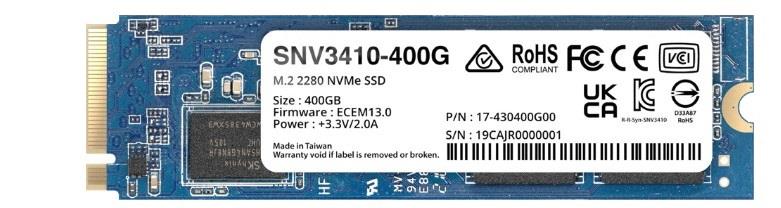

Summary: Synology SNV3410. SSD capacity: 400 GB, SSD form factor: M.2, Read speed: 3000 MB/s, Write speed: 750 MB/s, Component for: NAS
Vendor Homepage: https://global.download.synology.com/
Category Code: SSU
CnCode: 84717098
Unit Box Height: 0.02
Unit Box Length: 0.145
Unit Box Width: 0.1
Component for: NAS
Interface: PCI Express 3.0
Mean time between failures (MTBF): 1800000
NVMe: Yes
Random read (4KB): 225000
Random write (4KB): 45000
Read speed: 3000
SSD capacity: 400
SSD form factor: M.2
Write speed: 750
Operating voltage: 3.3
Power consumption (idle): 1.6
Power consumption (read): 3.5
Power consumption (write): 3.3
Depth: 80
Height: 3.5
Width: 22
Operating temperature (T-T): 0 – 70
Storage temperature (T-T): -40 – 85
Sustainability compliance: Yes
Compliance certificates: RoHS
Harmonized System (HS) code: 84717070
SSD series: SNV3400
Units per Shipping Box: 1
Unit Calculated Volume: 0.00029
Unit Calculated Weight: 0.036
