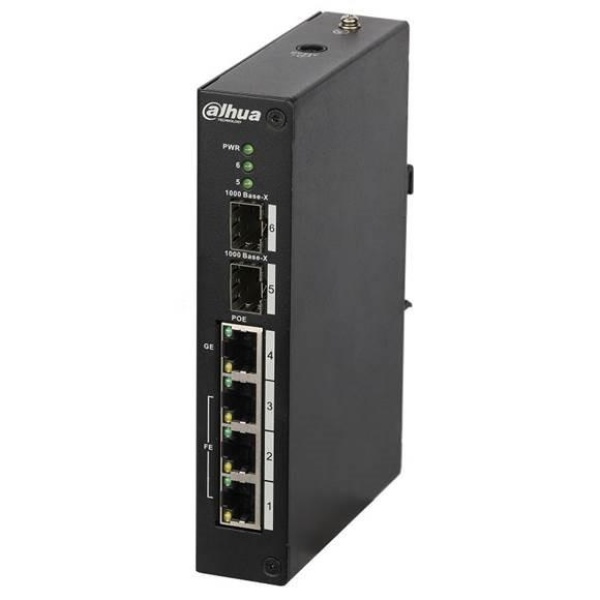

Switch DAHUA PFS3206-4P-96 Type L2 3x10Base-T / 100Base-TX 1x10Base-T / 100Base-TX / 1000Base-T 2x1000Base-X DH-PFS3206-4P-96

Description: > Two-layer unmanaged PoE switch
> Cascade can be realized via SFP fiber port
> MAC auto study and aging, MAC address list capacity is 8K
> Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Industrial wide temperature design
Vendor Homepage: www.dahuasecurity.com/products/productDetail/6981
Model name: PFS3206-4P-96
Switch type: L2
Primary port count: 4
1000Base-X: 2
10Base-T / 100Base-TX: 3
10Base-T / 100Base-TX / 1000Base-T: 1
IEEE 802.3: Yes
IEEE 802.3ab: Yes
IEEE 802.3af: Yes
IEEE 802.3at: Yes
IEEE 802.3u: Yes
IEEE 802.3x: Yes
IEEE 802.3z: Yes
Switching capacity: 6.8
Forwarding rate: 4.91
Dimensions: 150 x 100 x 30mm
Shipping box quantity: 1
Shipping Box Depth: 27
Shipping Box Height: 7.5
Shipping Box Weight: 1.22
Shipping Box Width: 24
Unit Brutto Volume: 0.00486
Unit Net Weight: 0.48
Unit Gross Weight: 1.22
CnCode: 85176200
Unit Box Width: 0.24
Unit Box Length: 0.27
Unit Box Height: 0.075
Full Description Line: Type L2|3x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base-X|IEEE 802.3|IEEE 802.3ab|IEEE 802.3af|IEEE 802.3at|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|Switching capacity 6.8 Gbps|Forwarding rate 4.91 Mpps|Dimensions 150 x 100 x 30mm|Unit Net Weight 0.48 kg
Category Code: SWI
