Description:

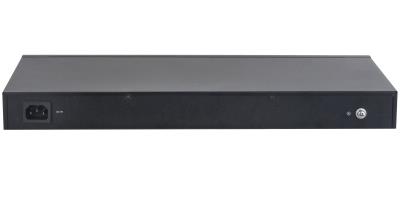

20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Summary: Dahua Technology CS4220-16GT-135. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE…. Power over Ethernet (PoE). Rack mounting
Vendor Homepage: https://www.dahuasecurity.com/la/products/All-Products/Transmission/Cloud-Managed-Switches/CS4220-16GT-135
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.345
Unit Box Length: 0.535
Unit Box Width: 0.09
Cloud-managed: Yes
Switch layer: L2
Switch type: Managed
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 18
SFP module slots quantity: 2
10G support: No
Ethernet LAN data rates: 10,100,1000
Flow control support: Yes
Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs: 32
VLAN support: Yes
Forwarding rate: 29.76
Jumbo frames: 15000
Jumbo frames support: Yes
MAC address table: 8000
Packet buffer memory: 4
Switching capacity: 40
DHCP features: DHCP client
Housing material: Metal
Product colour: Black
Rack mounting: Yes
Reset button: Yes
AC input frequency: 47/63
AC input voltage: 100 – 240
Input current: 3
Power consumption (typical): 154
Power source: AC
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 16
Total Power over Ethernet (PoE) budget: 135
Operating relative humidity (H-H): 5 – 95
Operating temperature (T-T): -10 – 55
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -40 – 70
Depth: 220
Height: 44
Weight: 2260
Width: 440
Package depth: 342
Package height: 90
Package weight: 2910
Package width: 540
Units per Shipping Box: 1
Unit Calculated Volume: 0.01661
Unit Calculated Weight: 3.15
