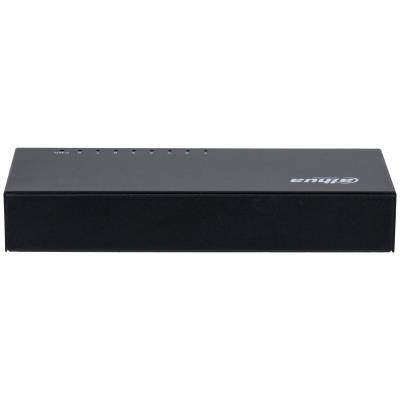

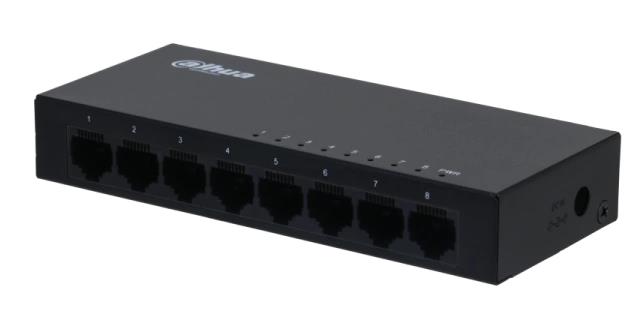

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the Device features great heat dissipation capability on the shell surface. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Transmission/SG1008 |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.155 |
| Unit Box Width | 0.09 |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-T/10BASE-T |
| Forwarding rate | 11.904 Mpps |
| MAC address table | 2000 entries |
| Packet buffer memory | 1.5 MB |
| Switching capacity | 16 Gbit/s |
| Housing material | Metal |
| Product colour | Black |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3 W |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 56 mm |
| Height | 22 mm |
| Weight | 230 g |
| Width | 133.5 mm |
| Package depth | 91 mm |
| Package height | 74.5 mm |
| Package weight | 350 g |
| Package width | 154 mm |
| Compliance certificates | CE |
| Model name | SG1008-EUR |
| Units per Pallet | 0 |
| Units per Shipping Box | 30 |
| Unit Calculated Volume | 0.001325 cubm |
| Unit Calculated Weight | 0.347 kg |
