Description:

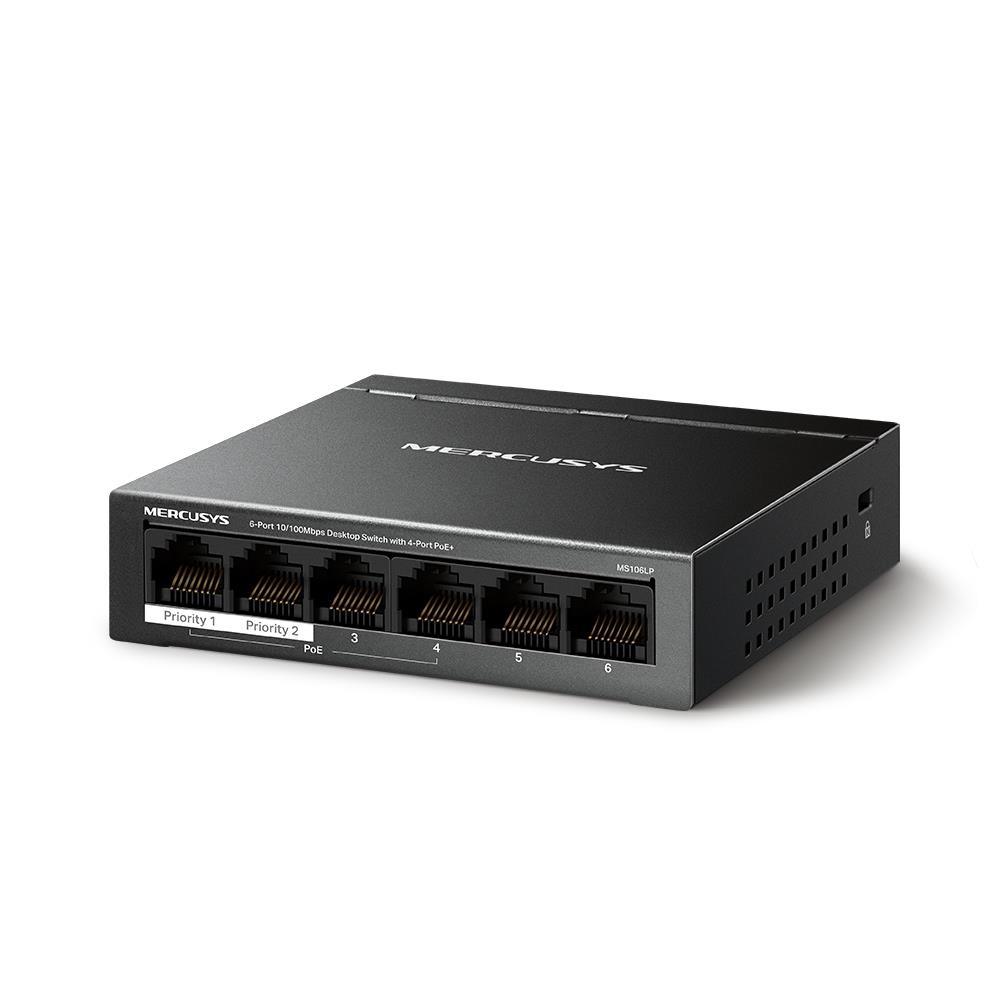

MS106LP

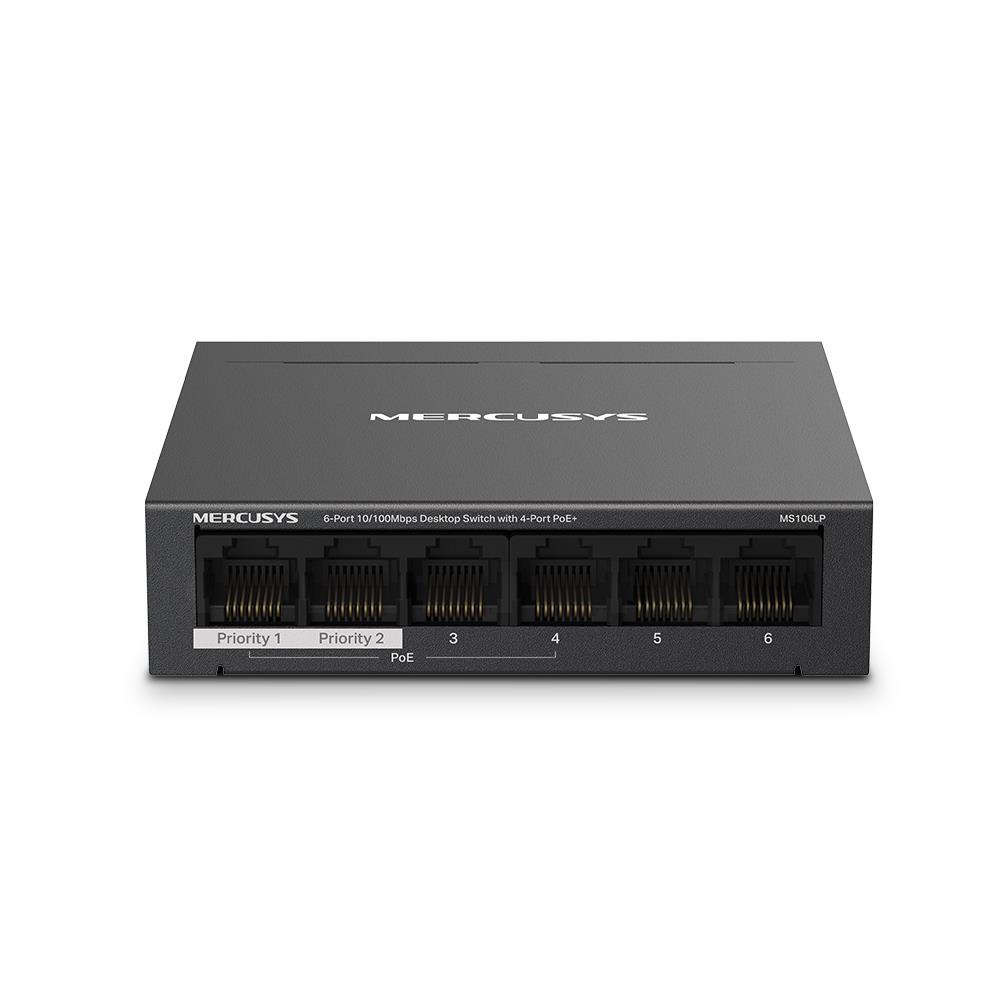

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports

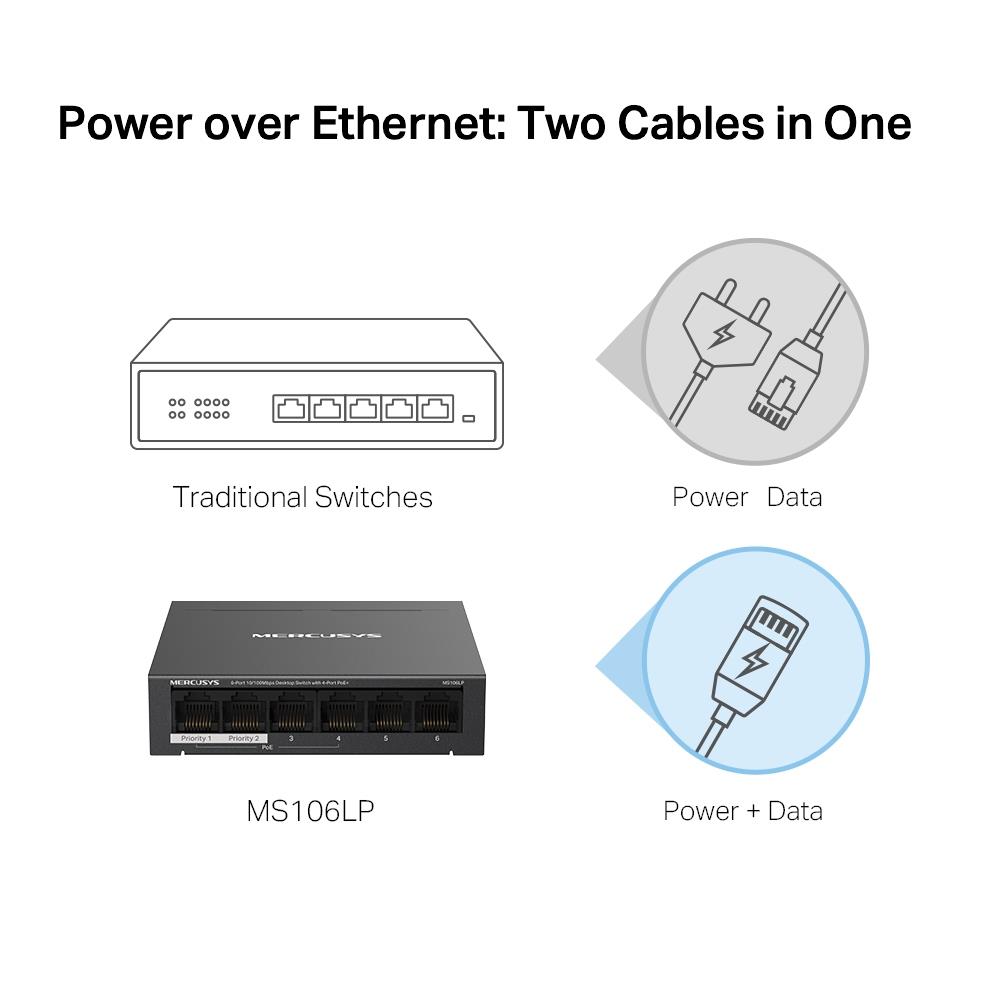

- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable

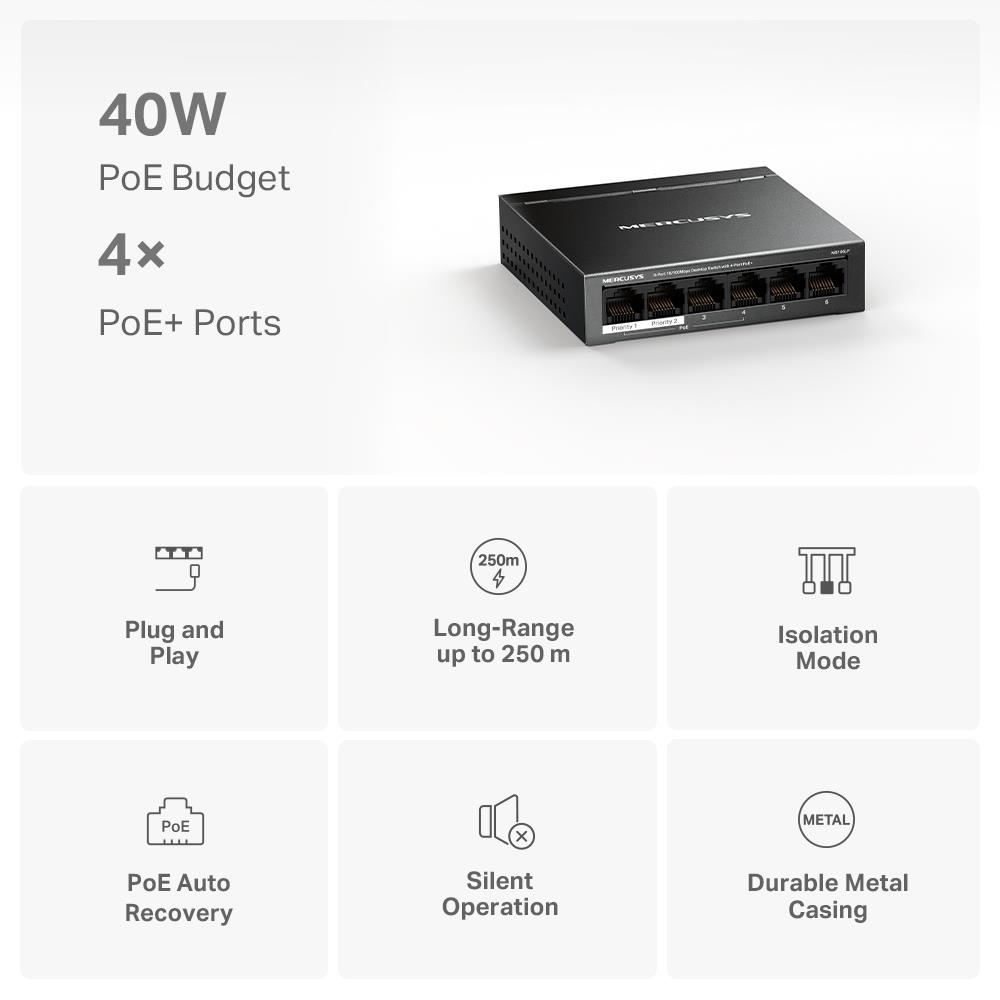

- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports
- 2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

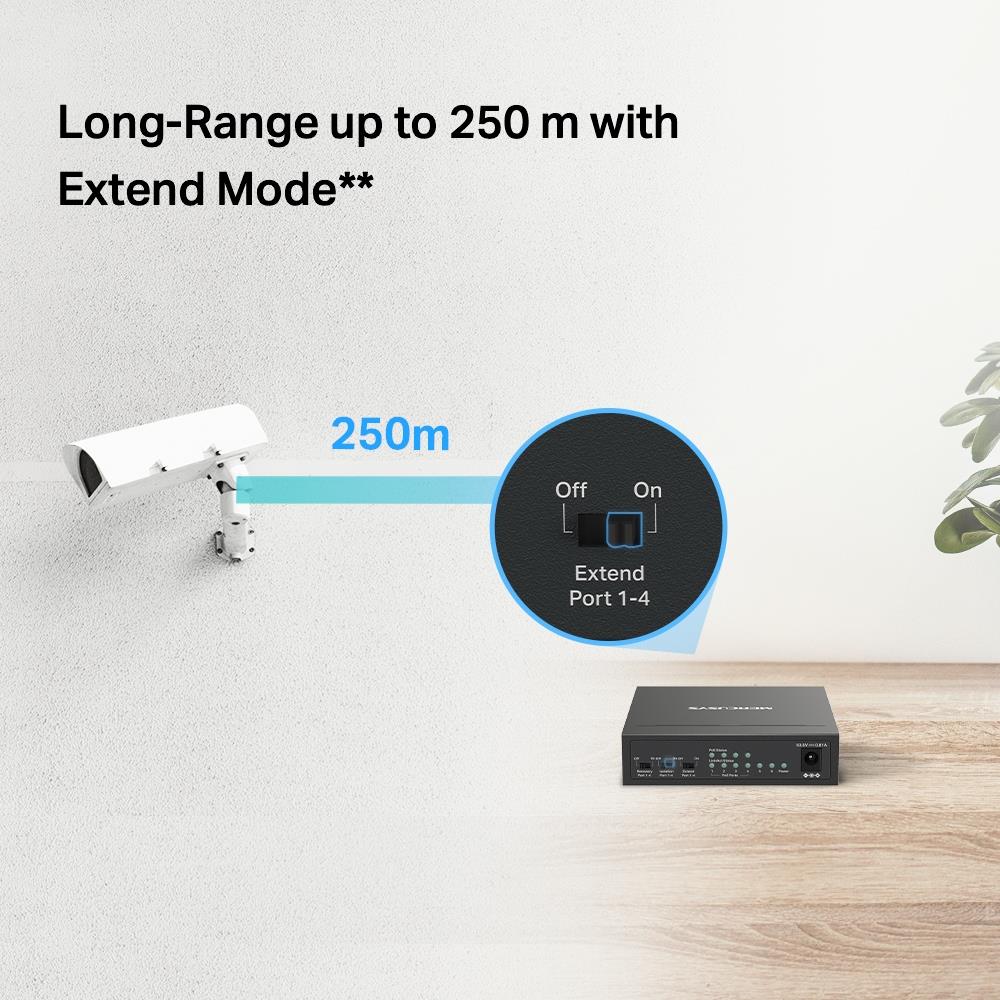

- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode

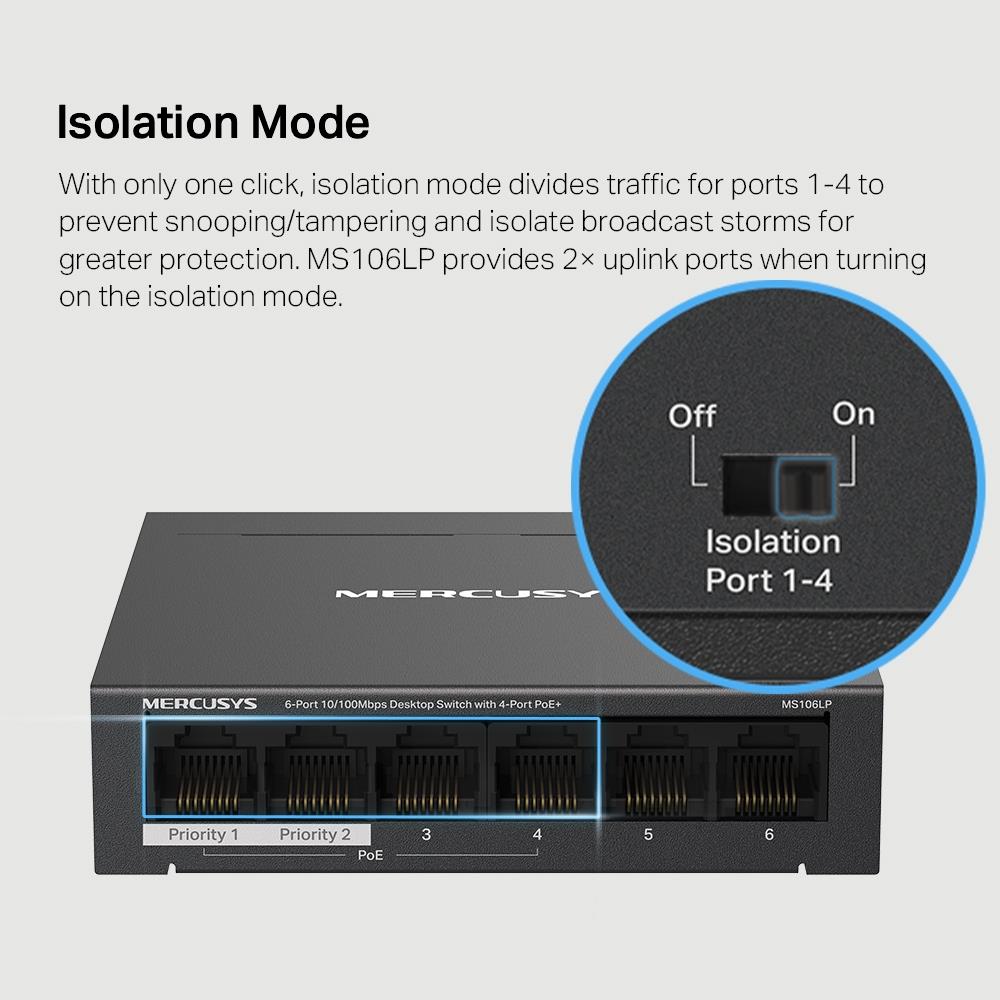

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life

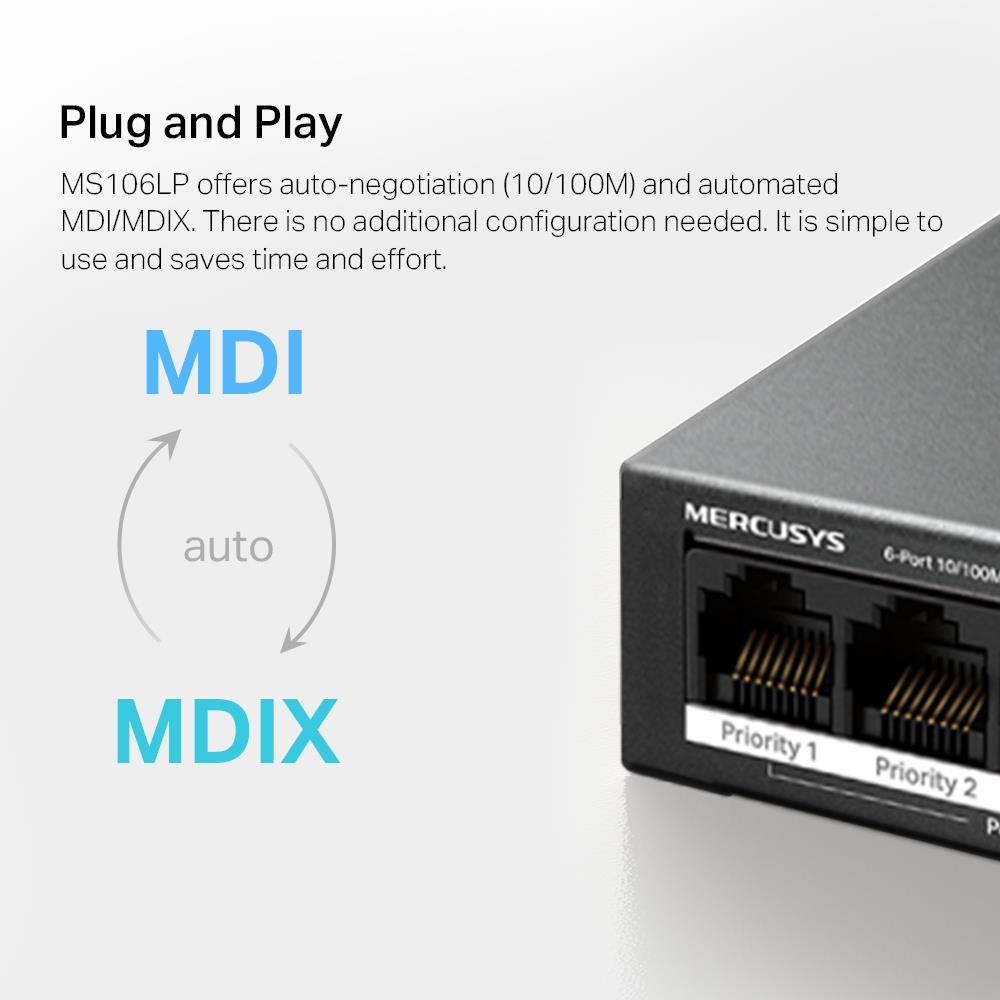

- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Vendor Homepage: www.mercusys.com/en/product/details/ms106lp/
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.125
Unit Box Length: 0.085
Unit Box Width: 0.135
Desktop/pedestal: Yes
10Base-T / 100Base-TX: 6
IEEE 802.3af: Yes
IEEE 802.3at: Yes
IEEE 802.3x: Yes
Model: MS106LP
Primary port count: 6
PoE+ ports: 4
Included Accessories: 6-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports (MS106LP); Power Adapter; Manual

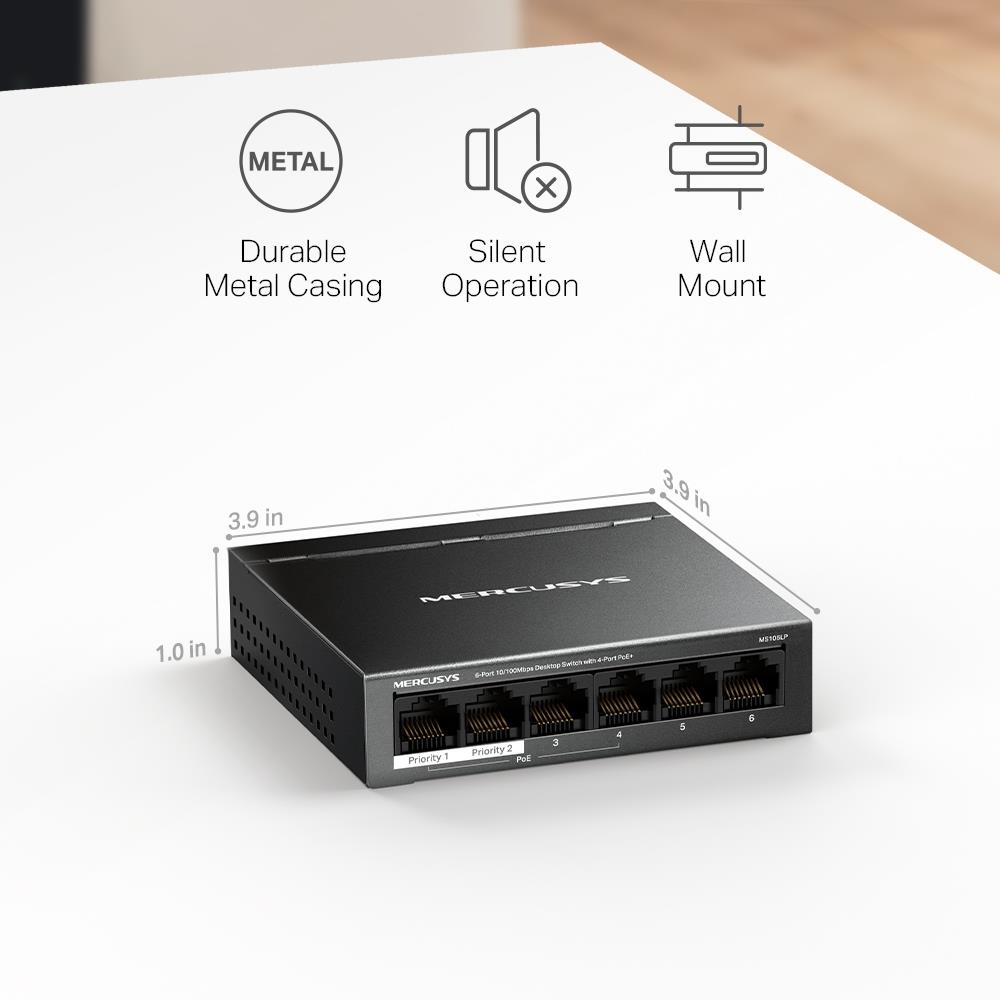

Dimensions: 99.8 x 98 x 25 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0
Product Net Weight: 0
Unit Calculated Weight: 0
