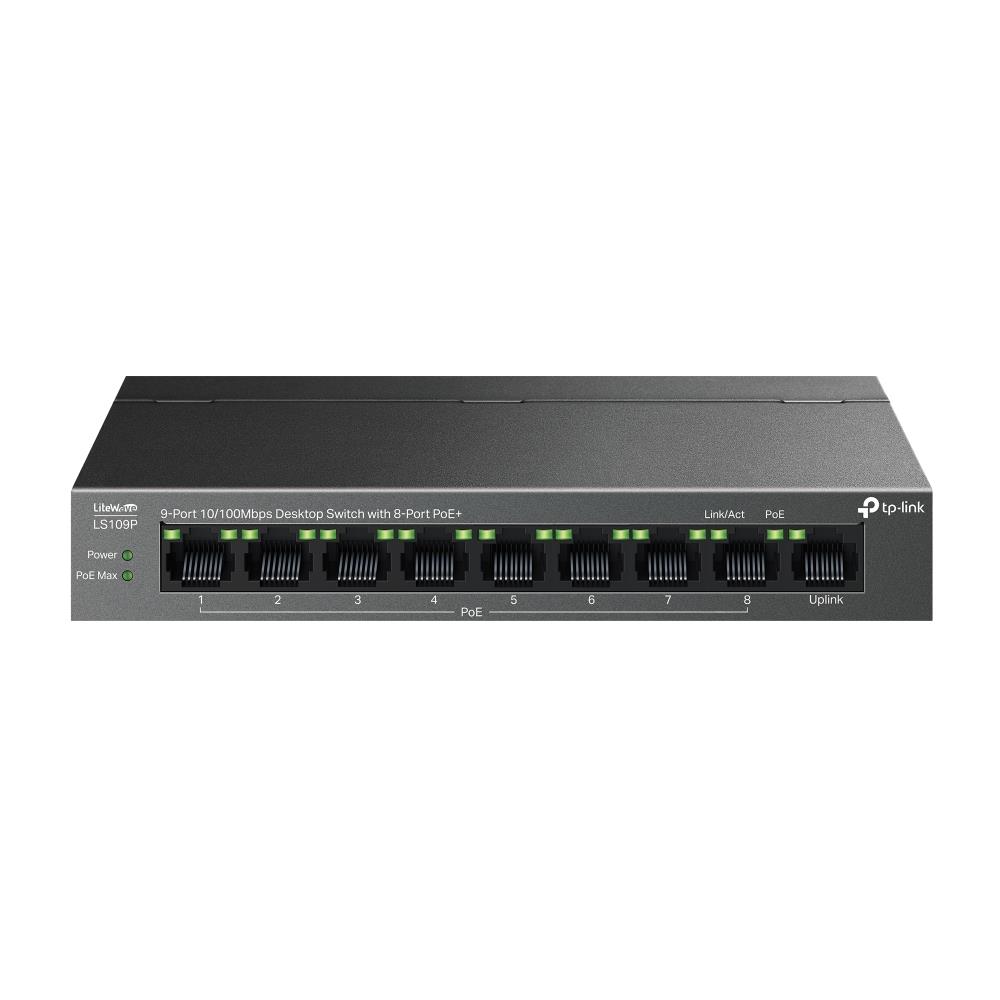

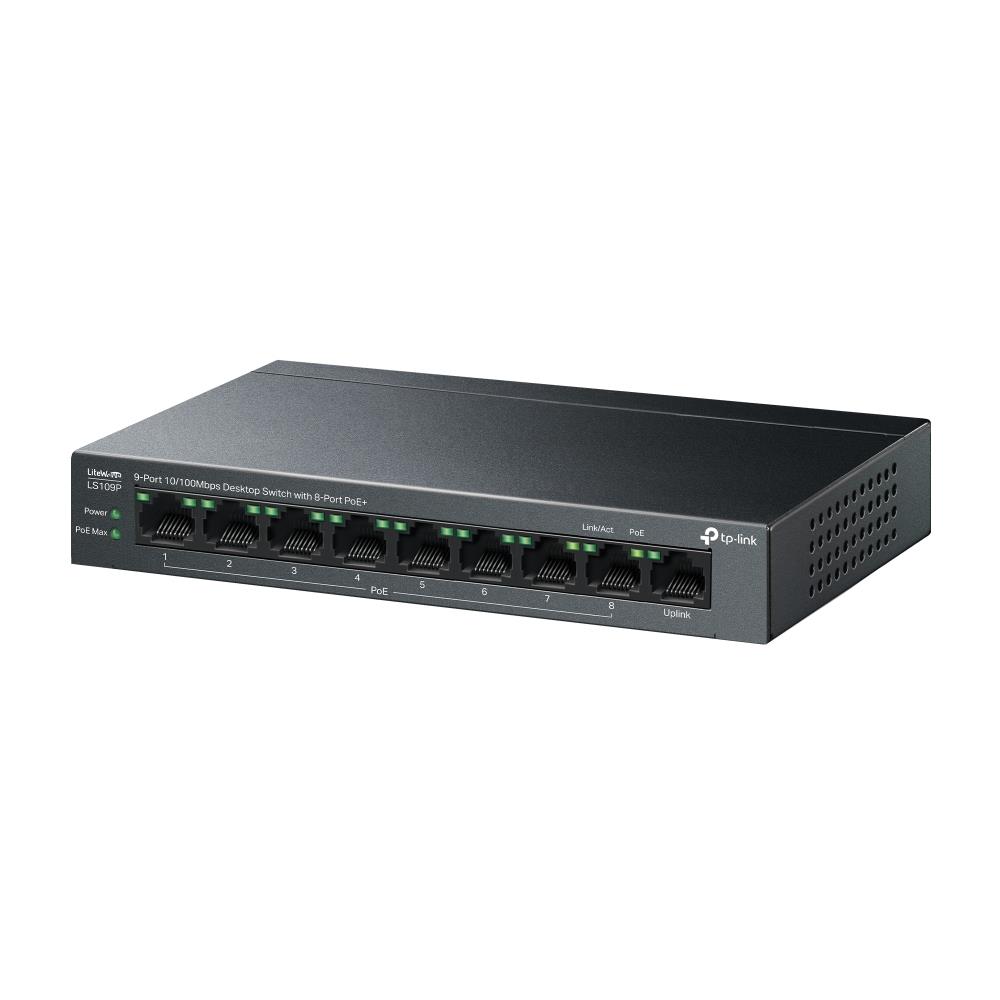

Description: LS109P
9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
– 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.

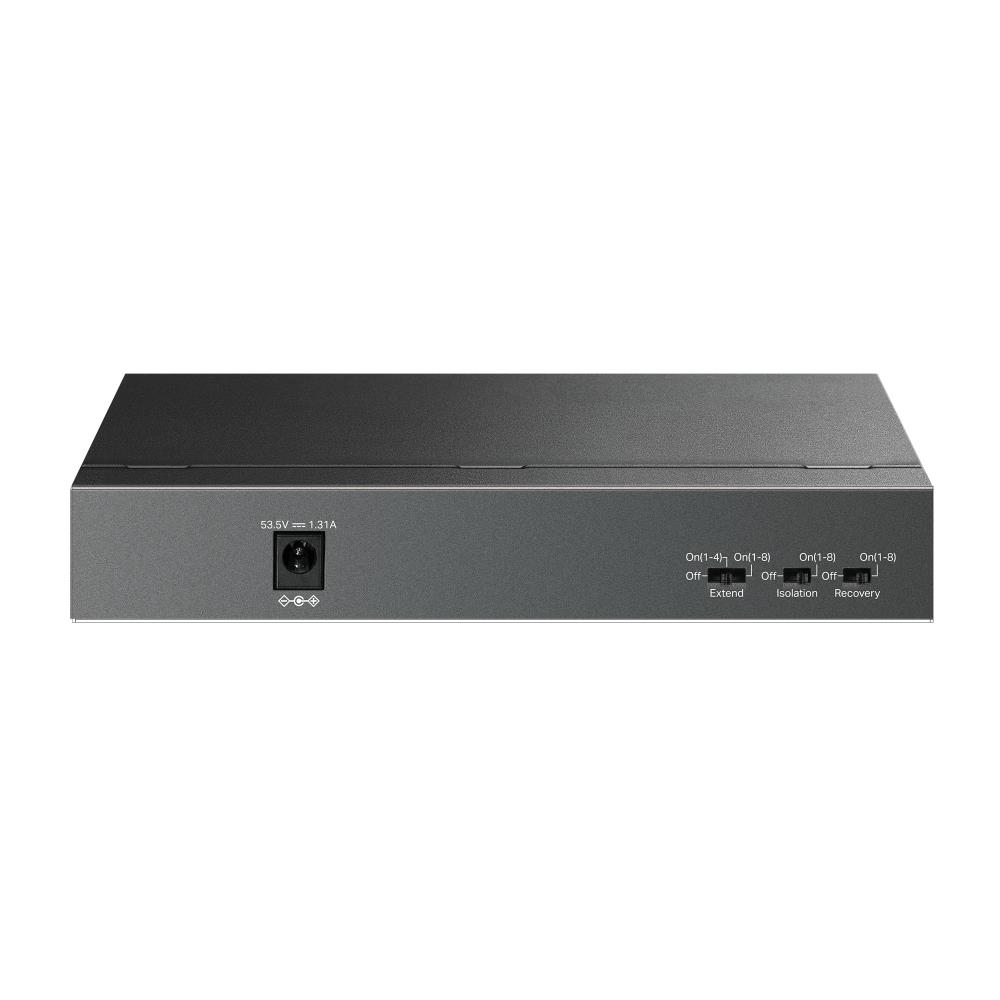

– Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
– PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
– Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.
– Plug and Play: Simply plug and play for instant connectivity with no configuration required.
– Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
– Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Vendor Homepage: www.tp-link.com/za/business-networking/soho-switch-poe/ls109p/
Model name: LS109P
Desktop/pedestal: Yes
10Base-T / 100Base-TX: 9
IEEE 802.3af: Yes
IEEE 802.3at: Yes
IEEE 802.3x: Yes
PoE+ ports: 8
Switching capacity: 1.8
Forwarding rate: 1.3392
Link: Yes
Power: Yes
Power supply: External
Dimensions: 171×98×27 mm
Units per Shipping Box: 1
Shipping Box Depth: 28
Shipping Box Height: 22.5
Shipping Box Weight: 0.9
Shipping Box Width: 7
Unit Calculated Volume: 0.00441
Product Net Weight: 0.6
Unit Calculated Weight: 0.9
CnCode: 85176200
Unit Box Width: 0.07
Unit Box Length: 0.28
Unit Box Height: 0.225
Full Description Line: Desktop/pedestal|9x10Base-T / 100Base-TX|IEEE 802.3af|IEEE 802.3at|IEEE 802.3x|PoE+ ports 8|Switching capacity 1.8 Gbps|Forwarding rate 1.3392 Mpps|Link|Power|Power supply External|Dimensions 171×98×27 mm|Product Net Weight 0.6 kg
Category Code: SWI
