Description:
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 24× Gigabit RJ45 ports
- 128 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and rackmountable design

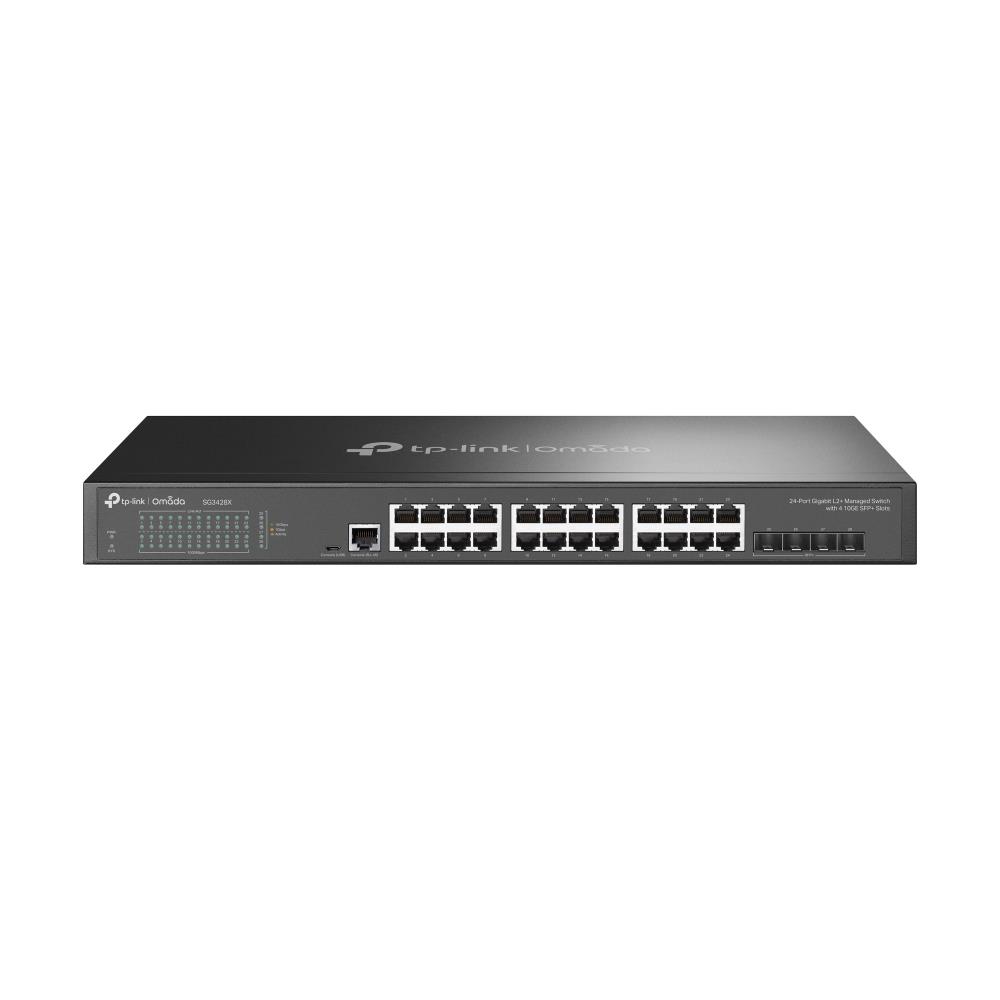

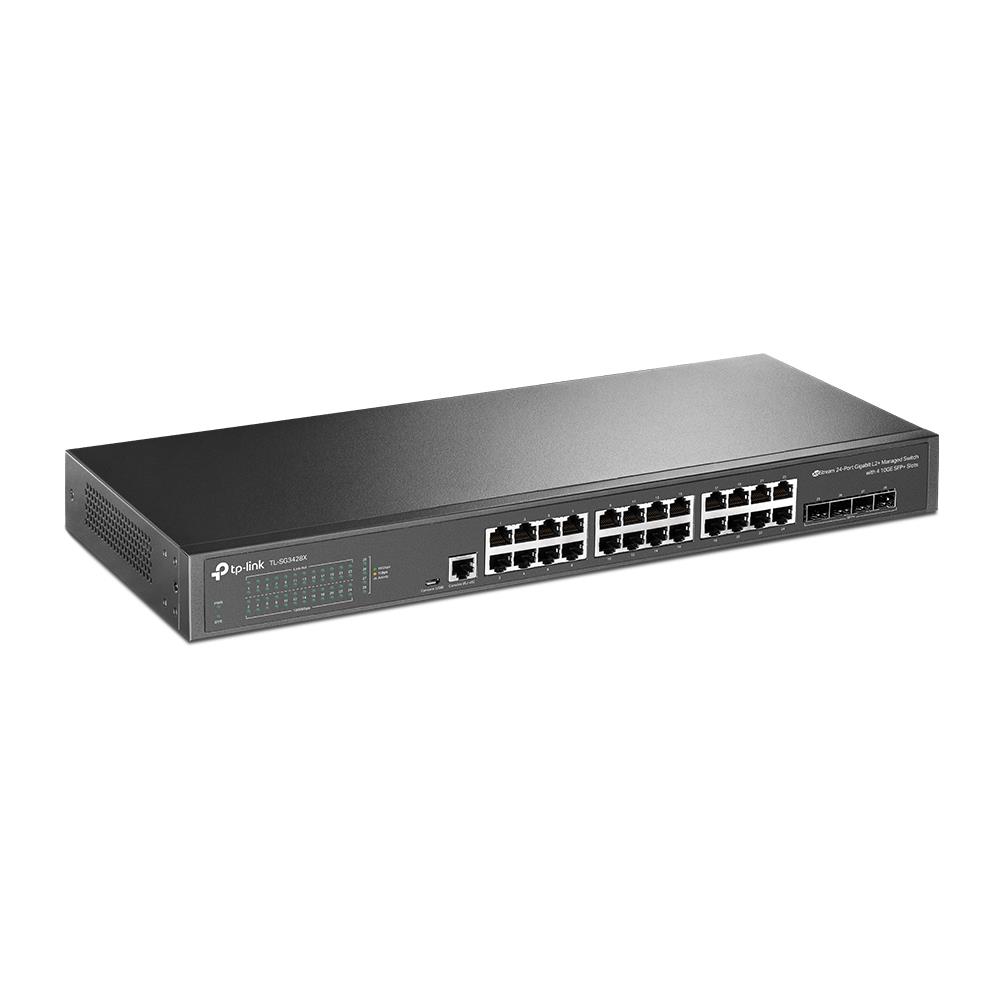

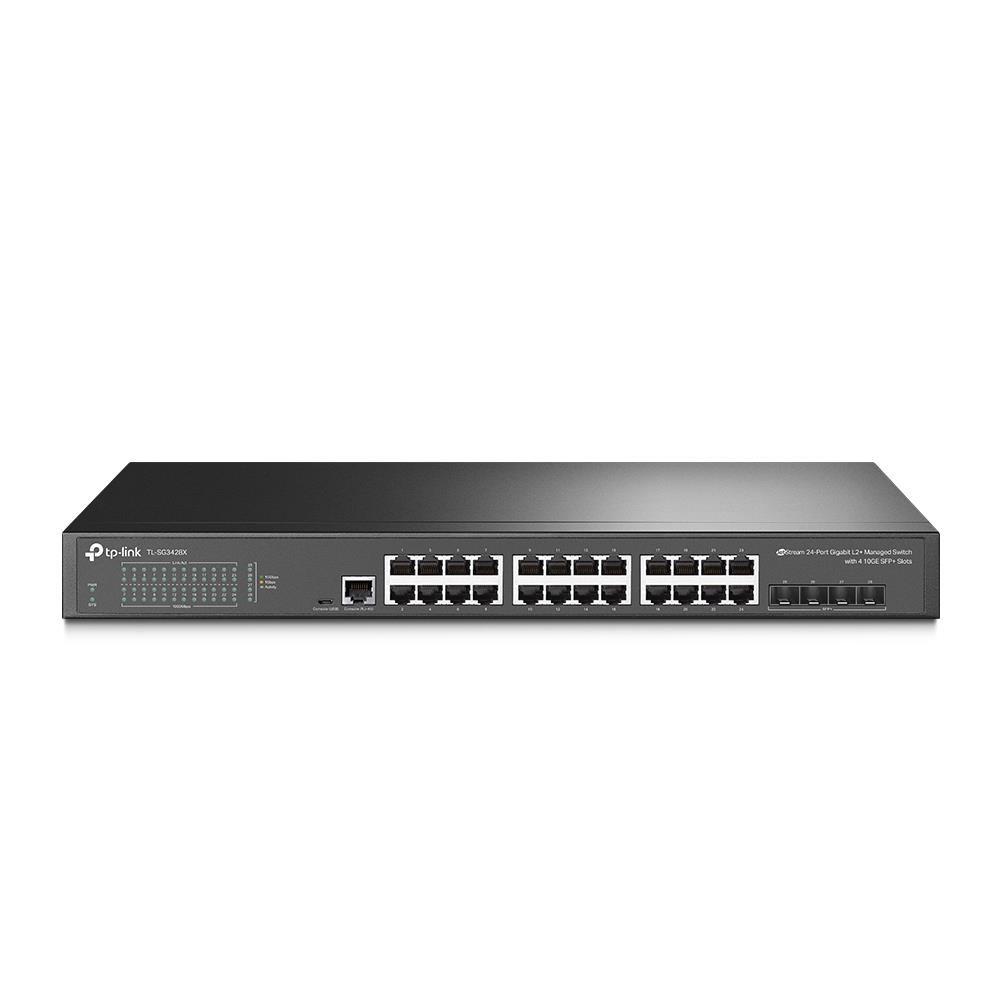

Summary: TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Vendor Homepage: https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428x/#overview
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.25
Unit Box Length: 0.53
Unit Box Width: 0.08
ARP inspection: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes
MIB support: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2+/L3
Switch type: Managed
System event log: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45/micro-USB
Gigabit Ethernet (copper) ports quantity: 24
Power connector: AC-in jack
SFP+ module slots quantity: 4
10G support: Yes
Active link detection: Yes
Broadcast storm control: Yes
Ethernet LAN data rates: 10,100,1000
Flow control support: Yes
Head-of-line (HOL) blocking: Yes
IPv4 routes: 48
IPv6 routes: 48
Link aggregation: Yes
Networking standards: IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Number of VLANs: 4000
Policy-based routing: Yes
Port mirroring: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Virtual LAN features: Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
VLAN support: Yes
Forwarding rate: 95.23
Jumbo frames: 9000
Jumbo frames support: Yes
MAC address table: 16000
Number of static routes: 48
Packet buffer memory: 12
Static route: Yes
Store-and-forward: Yes
Switching capacity: 128
Access Control List (ACL): Yes
Authentication: Guest VLAN,MAC-based authentication,Port-based authentication
Authentication type: AAA,RADIUS,TACACS+
BPDU filtering/protection: Yes
DHCP features: DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Loop protection: Yes
SSH/SSL support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Multicast support: Yes
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
Management protocols: SNMPv1/v2c/v3, SNTP
Form factor: 1U
LED indicators: Yes
Number of fans: 0
Product colour: Black
Rack mounting: Yes
Fanless: Yes
AC input frequency: 50/60
AC input voltage: 100 – 240
Power consumption (max): 23.6
Power source: AC
Power supply included: Yes
Power over Ethernet (PoE): No
Heat dissipation: 80.52
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 45
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 180
Height: 44
Width: 440
Cables included: LAN (RJ-45)
Quick start guide: Yes
Series: Omada
Model name: TL-SG3428X
Units per Shipping Box: 6
Unit Calculated Volume: 0.01263
Unit Calculated Weight: 3.03
