Description:
- With 16 PoE+ ports, transfers data and power on one single cable
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 120 W for all PoE ports*
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required

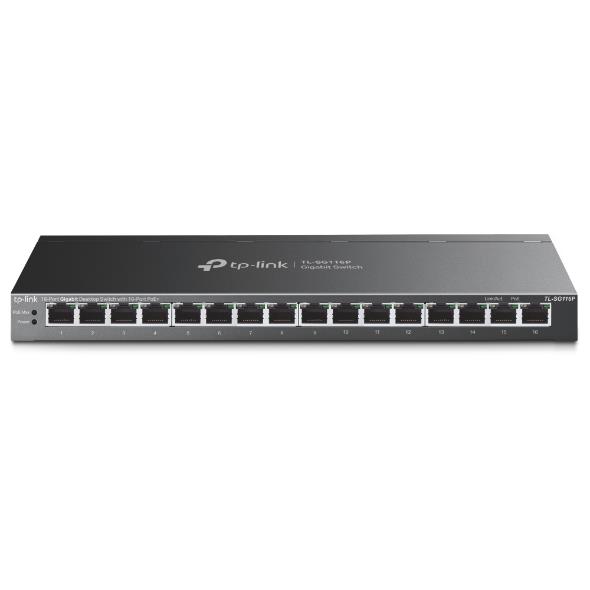

Summary: TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Power over Ethernet (PoE). Wall mountable
Vendor Homepage: https://www.tp-link.com/au/business-networking/unmanaged-switch/tl-sg116p/
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.23
Unit Box Length: 0.435
Unit Box Width: 0.07
Quality of Service (QoS) support: Yes
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Broadcast storm control: Yes
Cable length detection: Yes
Cable types supported: Cat3/Cat4/Cat5/Cat5e/Cat6
Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
Flow control support: Yes
Full duplex: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u
Number of VLANs: 32
Port mirroring: Yes
Rate limiting: Yes
Virtual LAN features: Protocol-based VLAN/Tagged VLAN
VLAN support: Yes
Forwarding rate: 23.81
Jumbo frames: 9000
Jumbo frames support: Yes
MAC address table: 8000
Number of queues: 4
Packet buffer memory: 4.1
Store-and-forward: Yes
Switching capacity: 32
IGMP snooping: Yes
Loop protection: Yes
Housing material: Metal
LED indicators: Yes
Product colour: Black
Stackable: Yes
Wall mountable: Yes
AC input frequency: 50
AC input voltage: 220
DC input voltage: 9
Input current: 0.6
Power consumption (max): 144.28
Power consumption (typical): 11.72
Power supply included: Yes
Power over Ethernet (PoE): Yes
Heat dissipation: 490.55
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 111.7
Height: 25.4
Width: 286
Quick start guide: Yes
Package depth: 434
Package height: 70
Package weight: 2000
Package width: 227
Model: TL-SG116P
Units per Shipping Box: 1
Unit Calculated Volume: 0.007004
Unit Calculated Weight: 2.01
