Description:

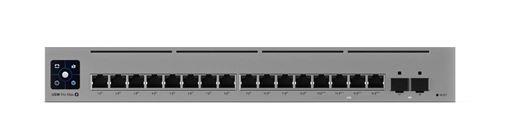

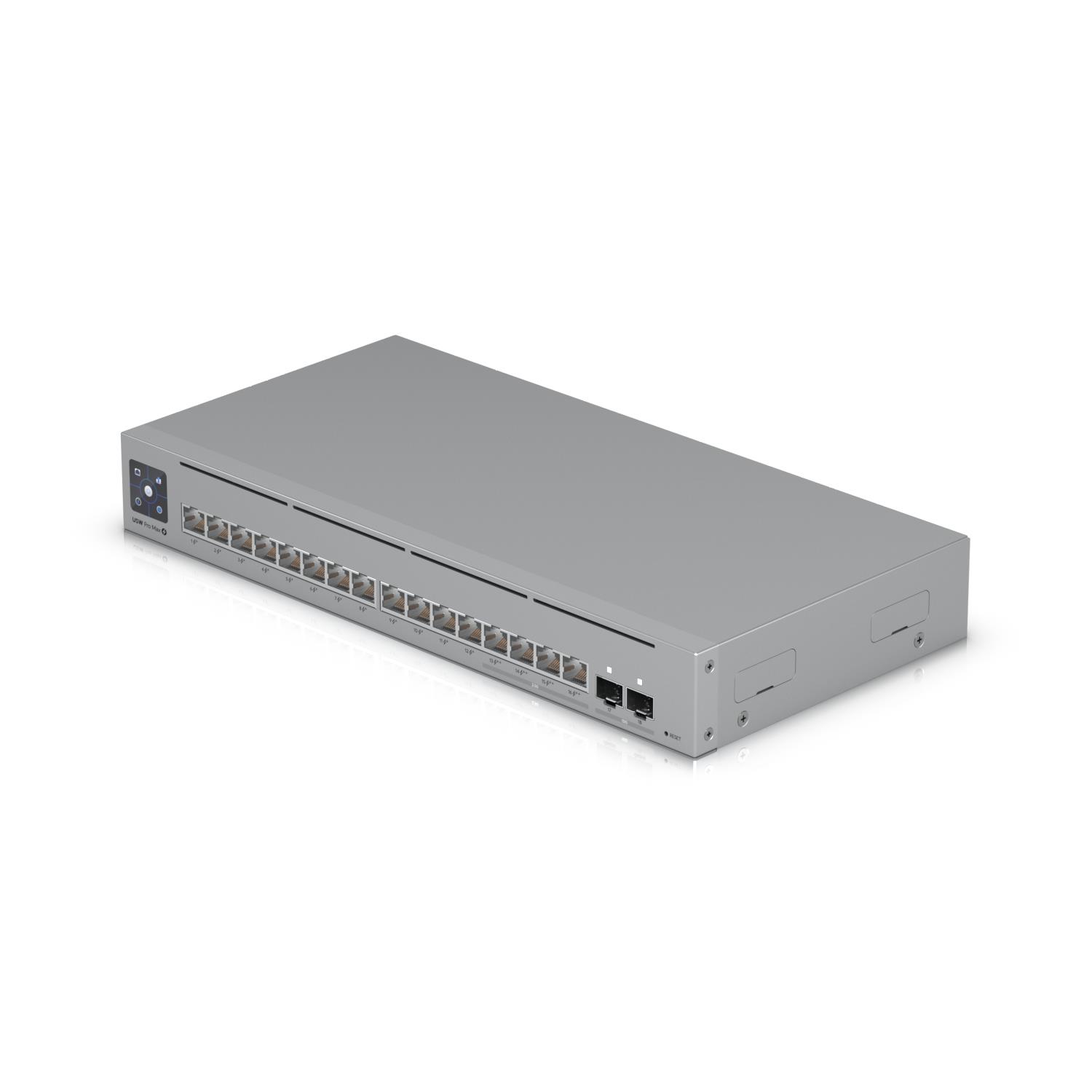

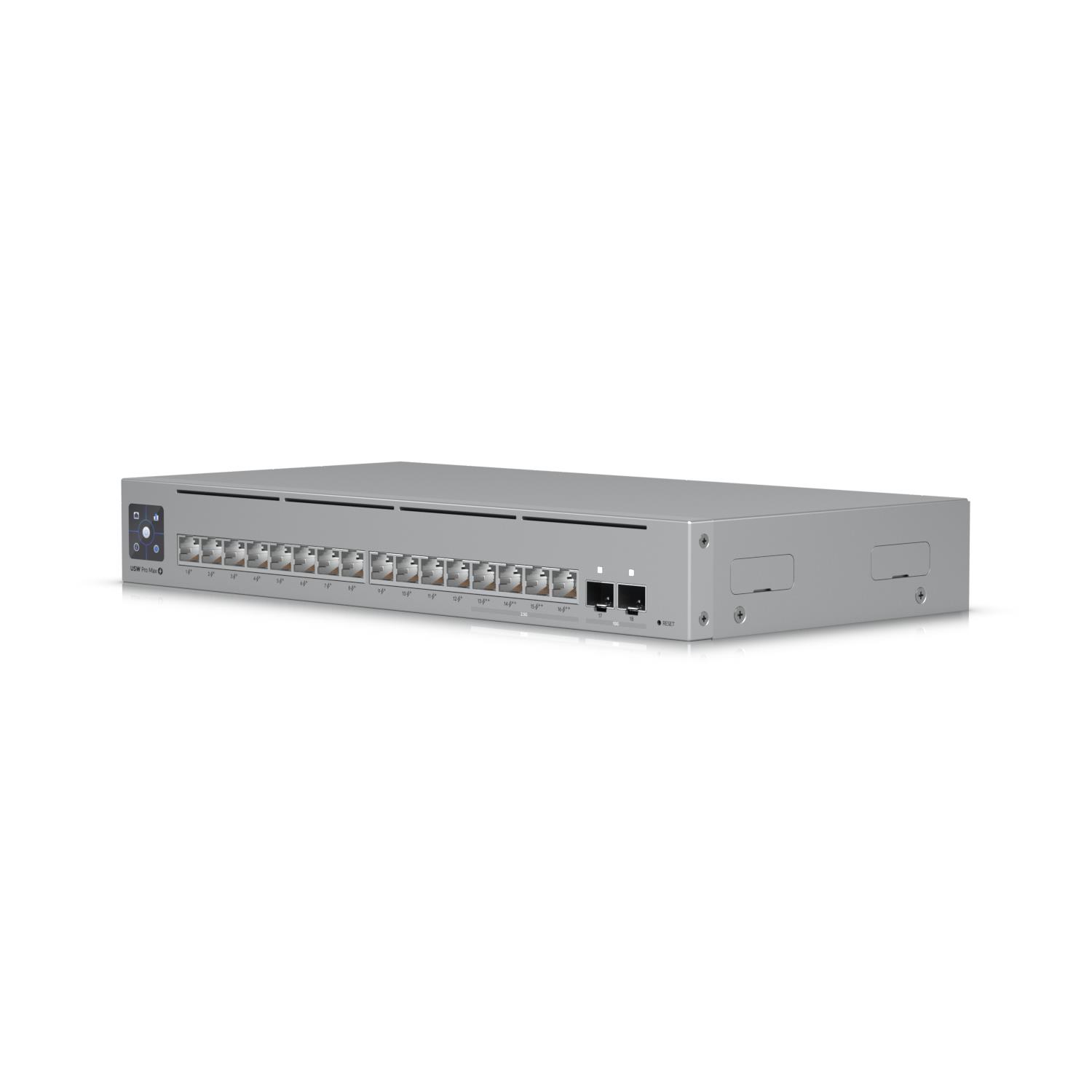

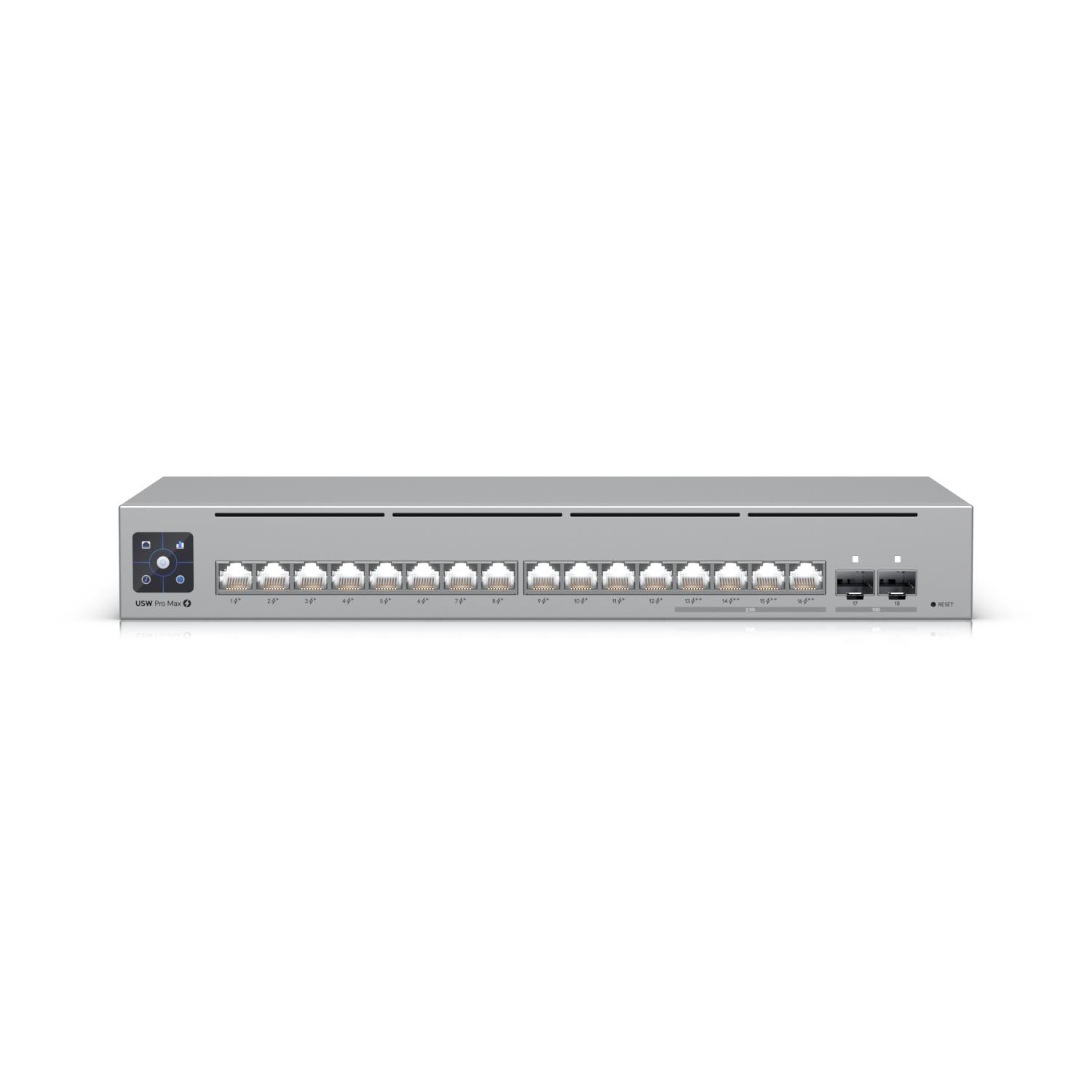

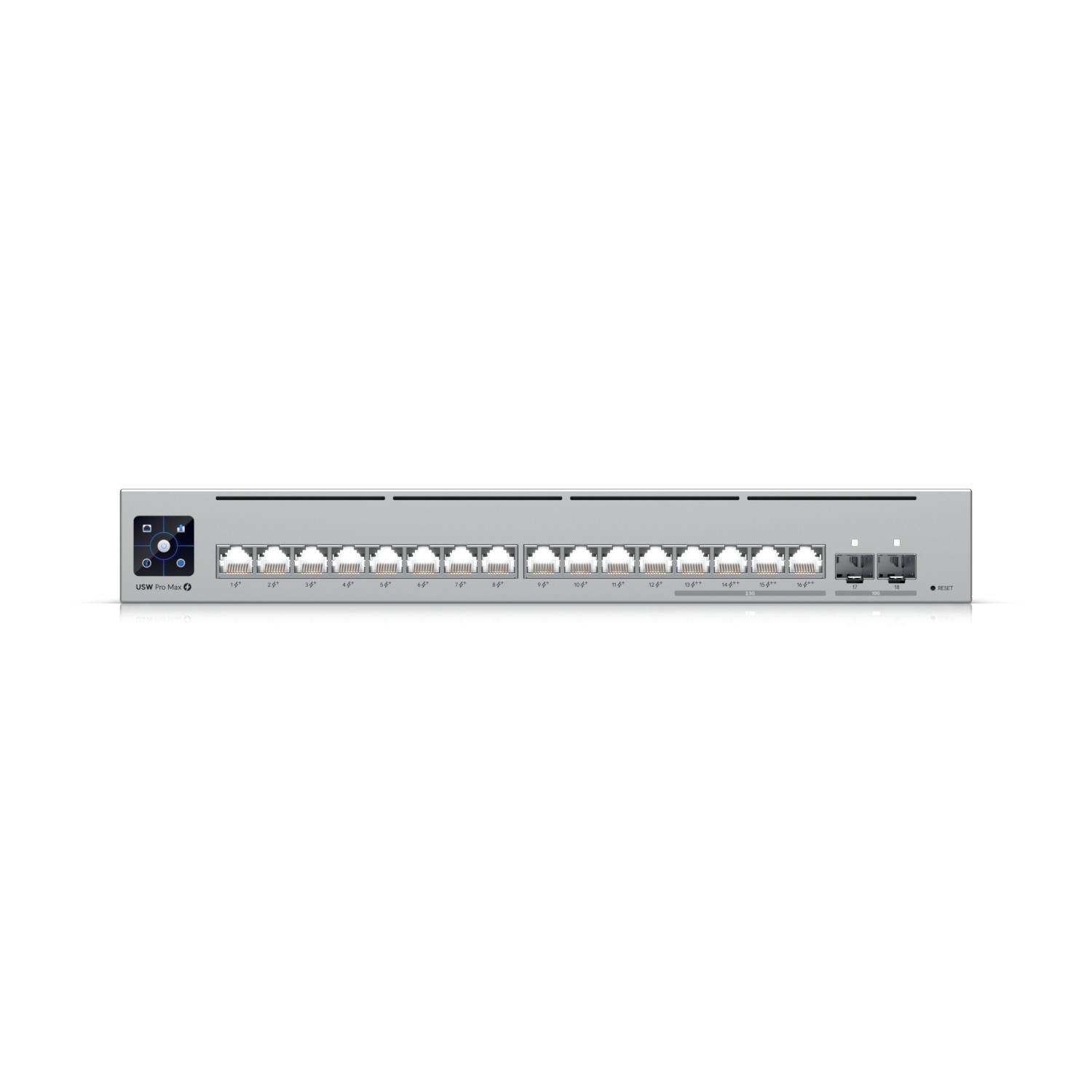

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

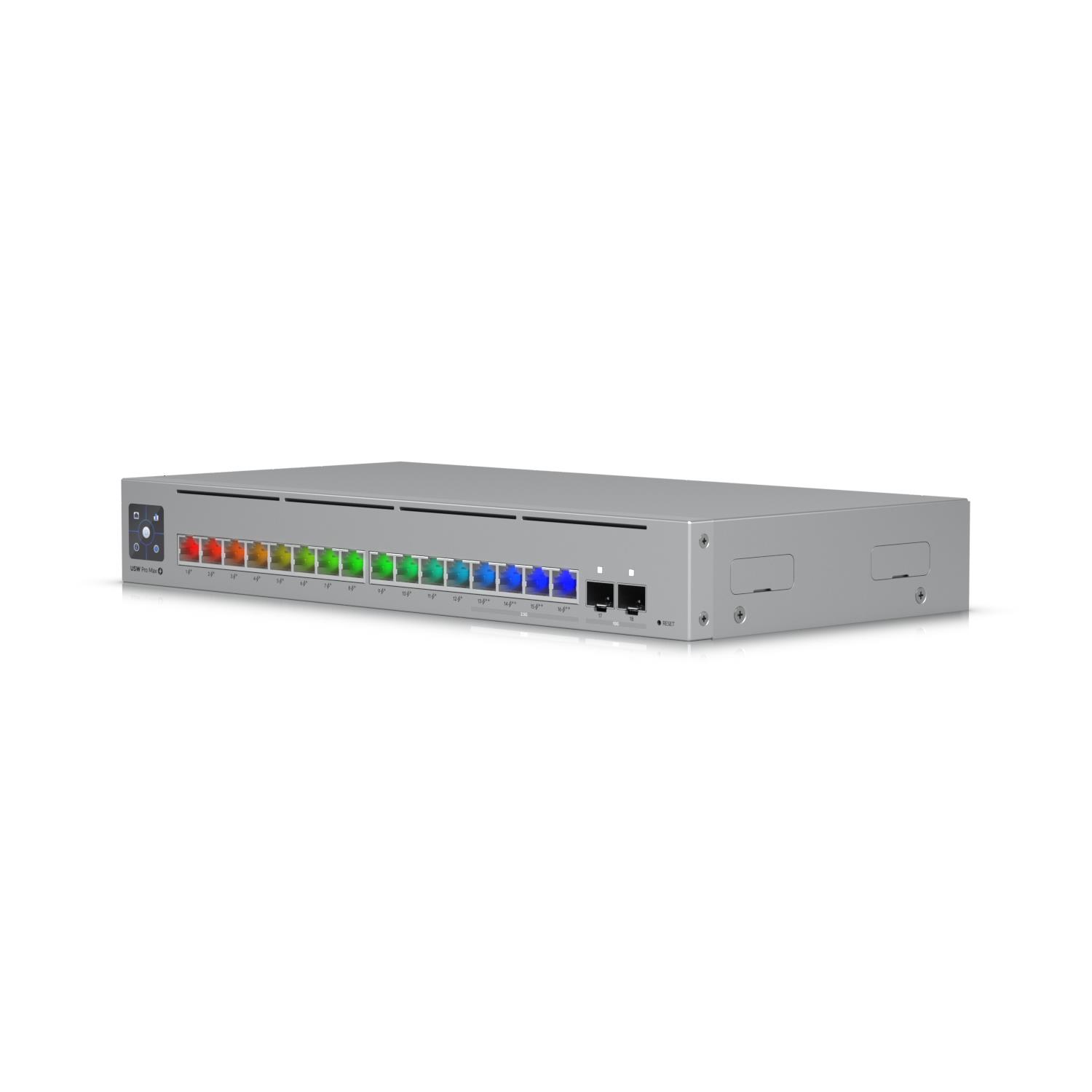

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
Summary: Ubiquiti Pro Max 16 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 84 Gbit/s. Networking standards: IEEE 802.1x. DC input voltage: 44 – 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
Vendor Homepage: https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/products/usw-pro-max-16-poe
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.11
Unit Box Length: 0.515
Unit Box Width: 0.25
Switch layer: L3
Switch type: Managed
2.5G Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 12
Power connector: DC-in jack
SFP+ module slots quantity: 2
10G support: Yes
Broadcast storm control: Yes
Flow control support: Yes
Networking standards: IEEE 802.1x
Port mirroring: Yes
Rate limiting: Yes
Virtual LAN features: Voice VLAN
VLAN support: Yes
Forwarding rate: 62.496
Jumbo frames support: Yes
Switching capacity: 84
Throughput: 42
DHCP features: DHCP snooping/DHCPv6 relay
IGMP snooping: Yes
Loop protection: Yes
Multicast support: Yes
Display type: LCM
Housing material: Steel
LED indicators: System
Product colour: Grey
Rack mounting: Yes
Reset button: Yes
AC input frequency: 50/60
AC input voltage: 100 – 240
DC input voltage: 44 – 57
Power consumption (max): 30
Power source: AC/DC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 15
Power over Ethernet 4PPoE (PoE++) ports quantity: 4
Power over Ethernet plus (PoE+) ports quantity: 12
Total Power over Ethernet (PoE) budget: 180
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): -5 – 40
Depth: 160
Height: 43.7
Weight: 2100
Width: 325.1

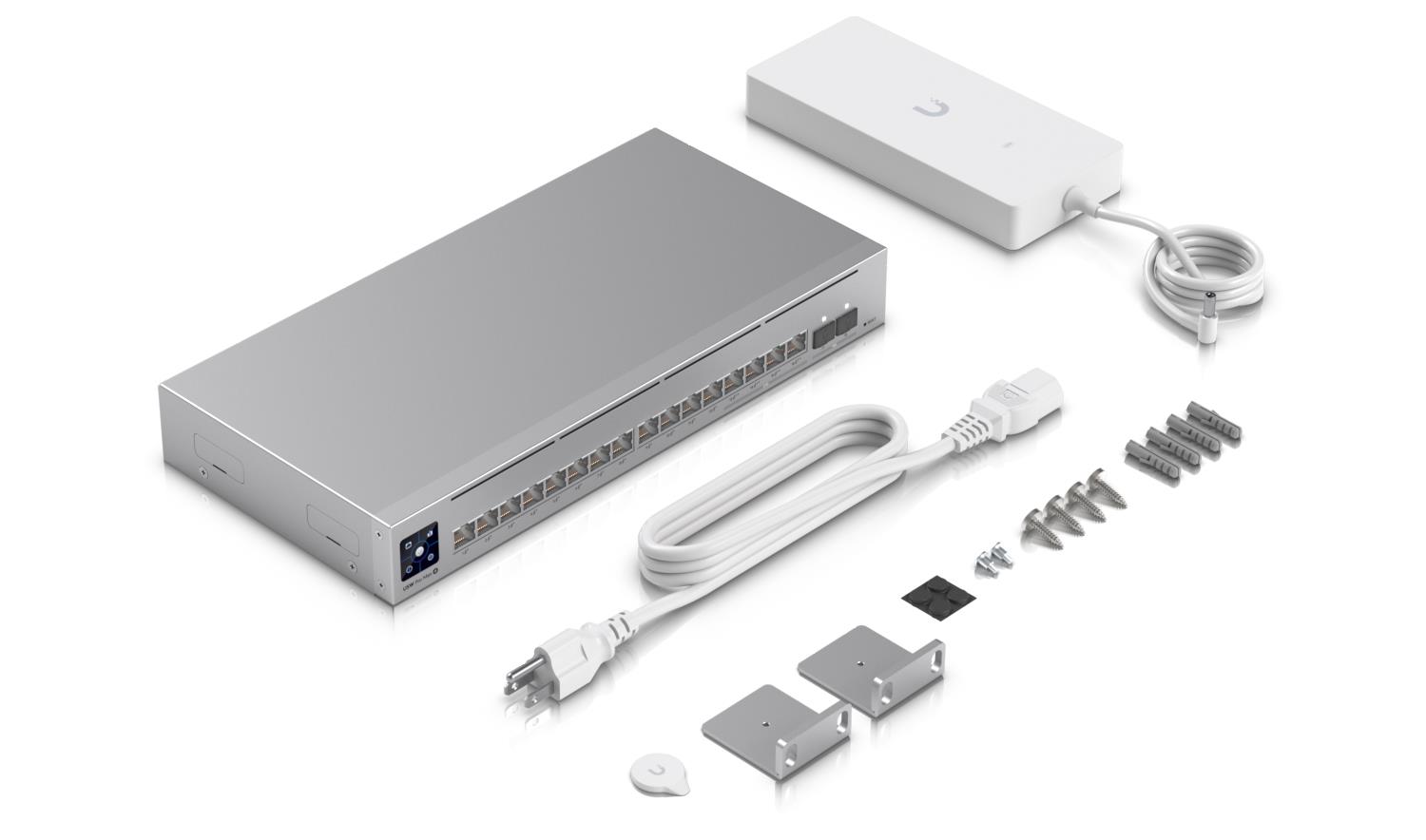

Cables included: Power
Manual: Yes
Mounting brackets included: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Model: USW-PRO-MAX-16-POE
Units per Shipping Box: 4
Unit Calculated Volume: 0.01723
Unit Calculated Weight: 4.08
