Description:

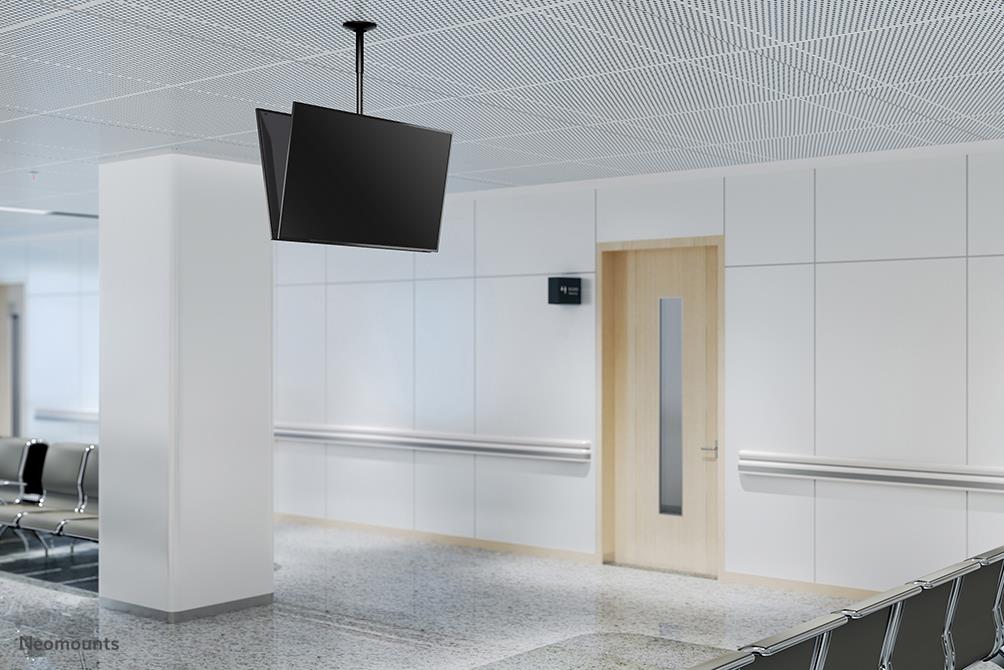

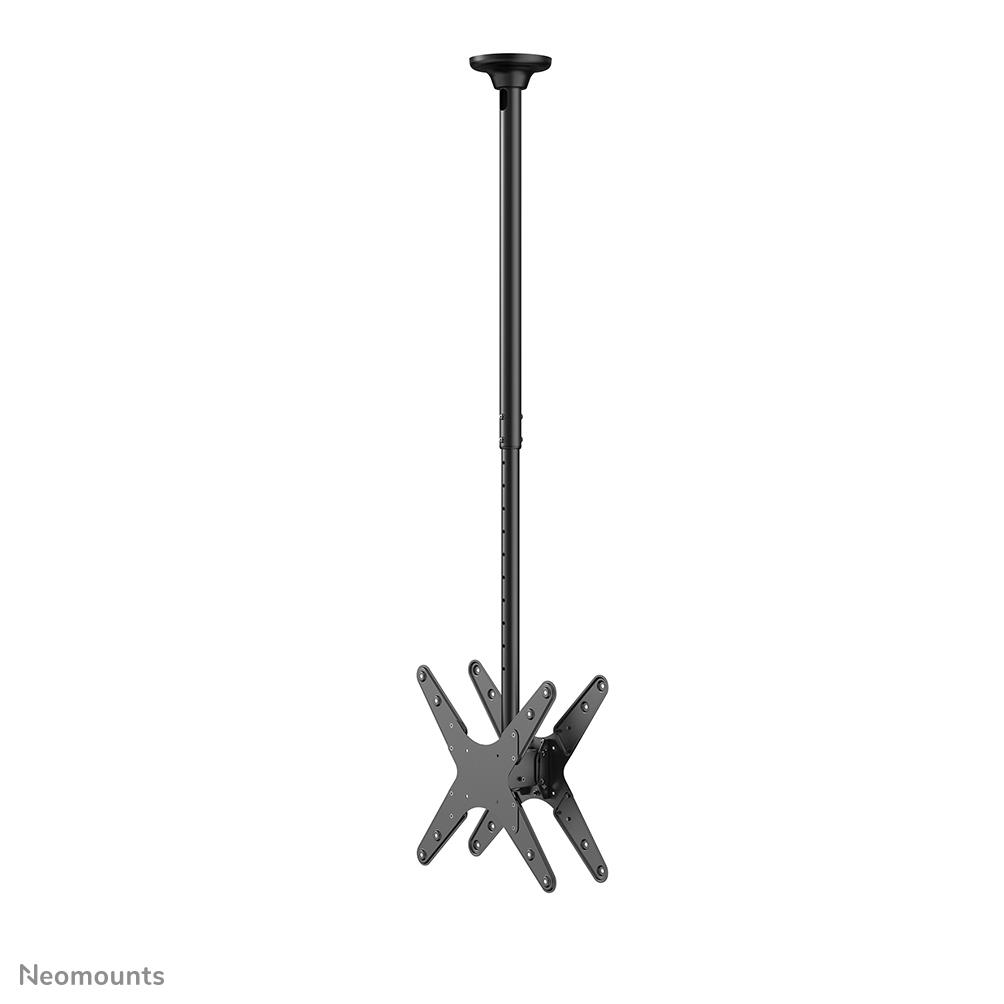

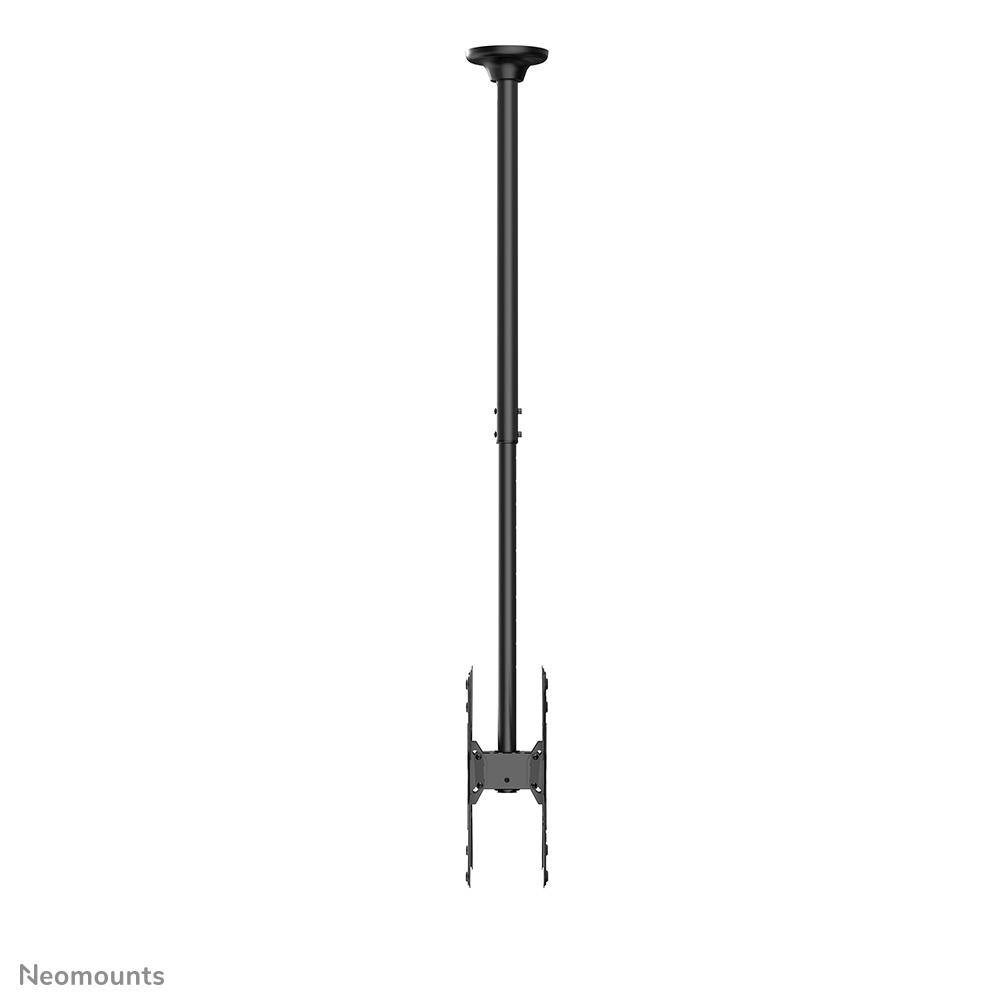

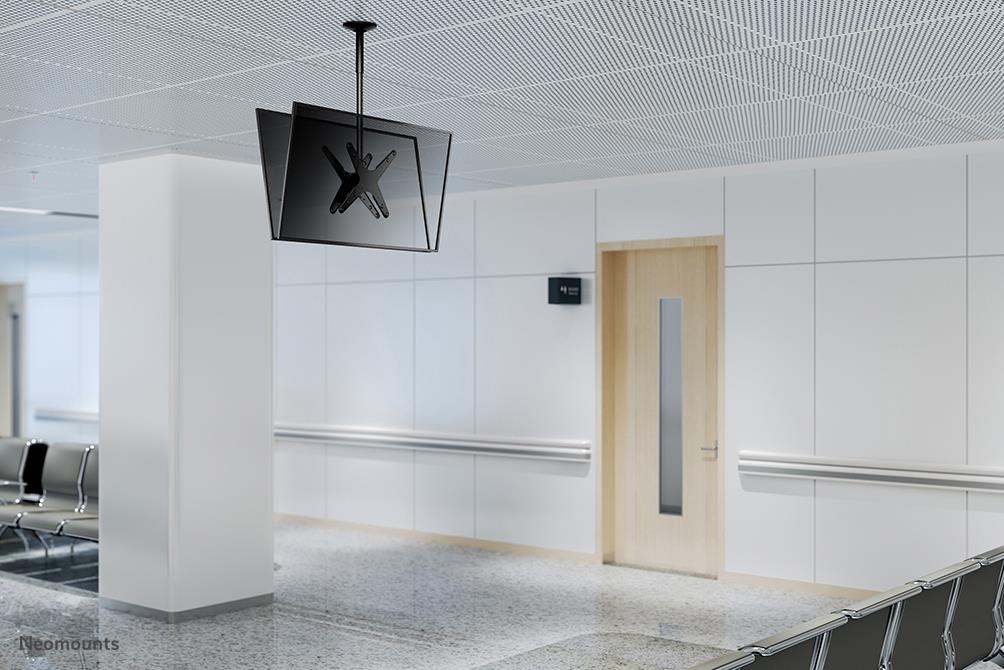

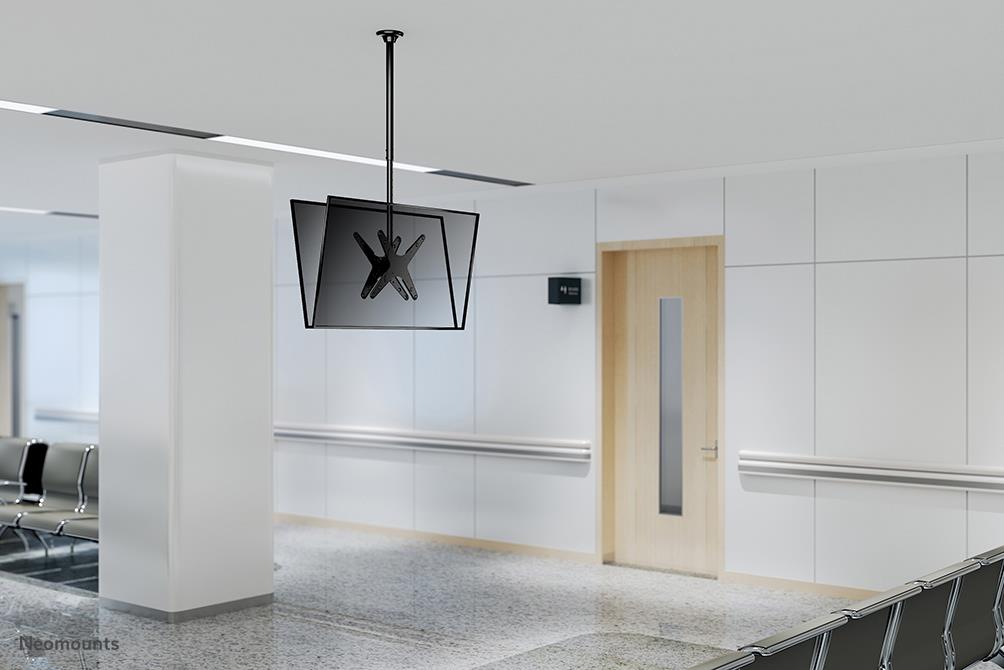

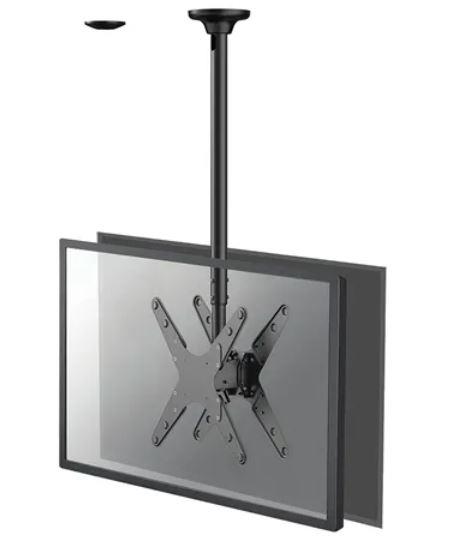

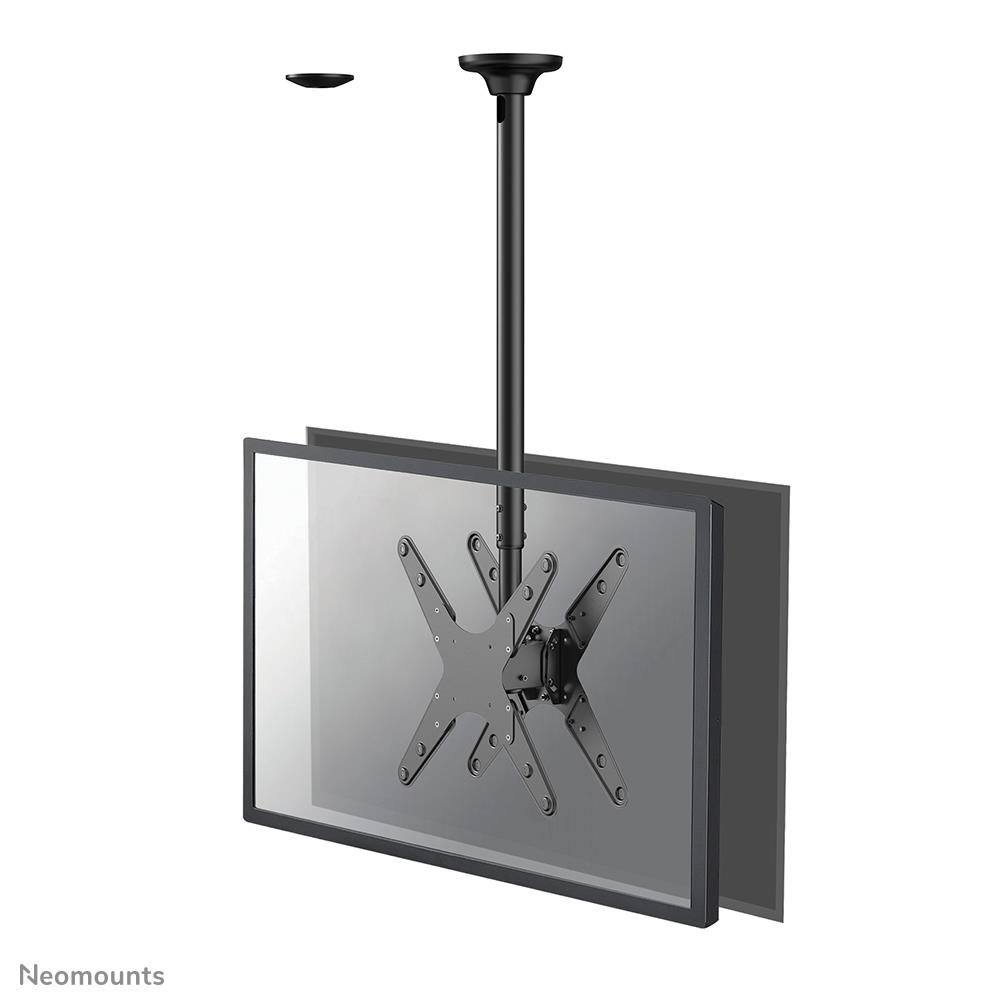

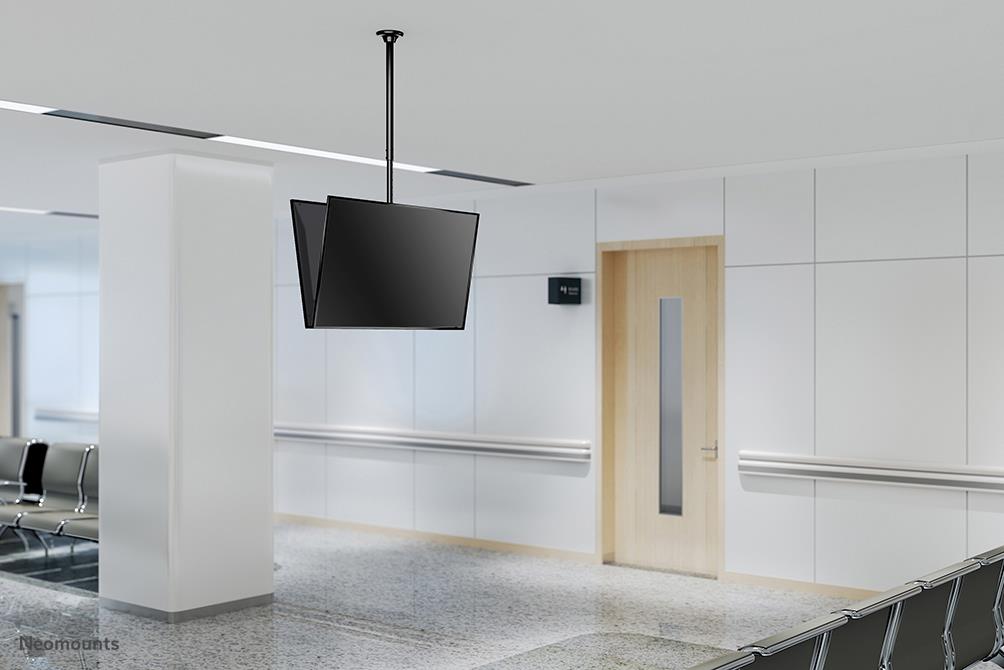

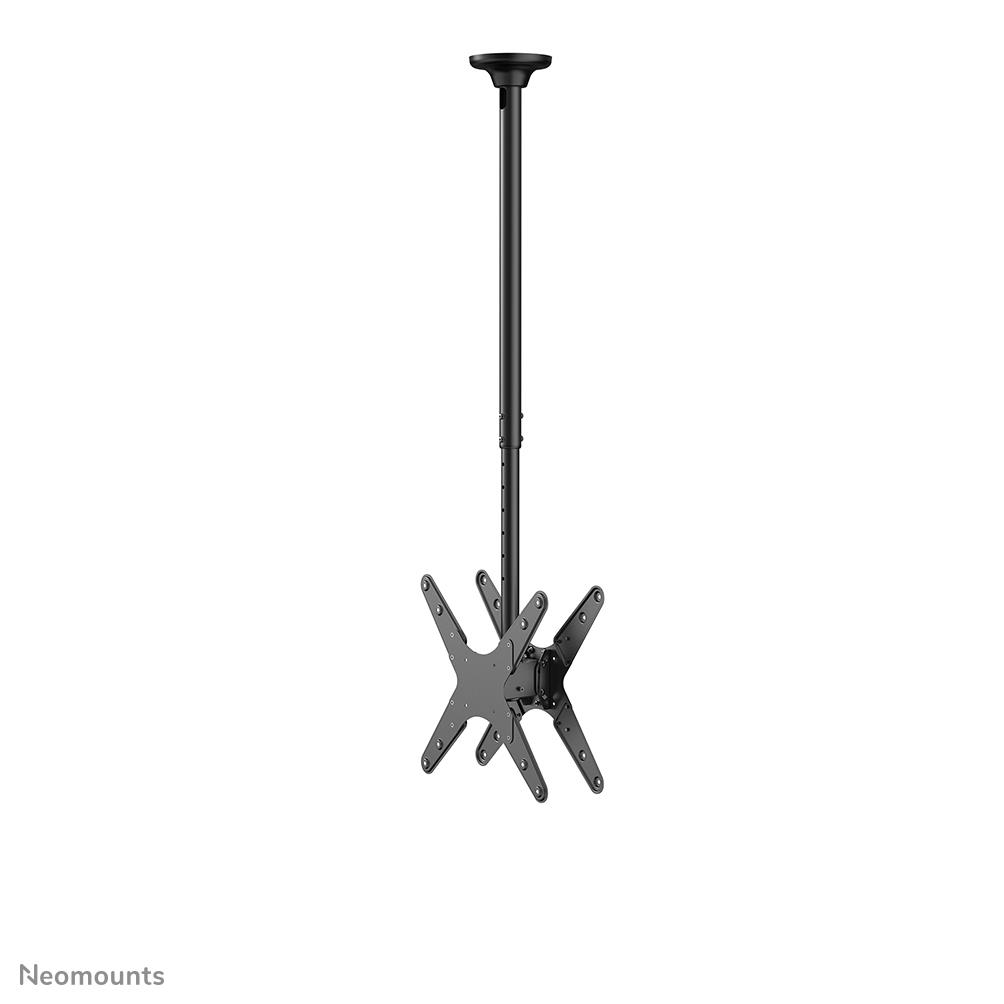

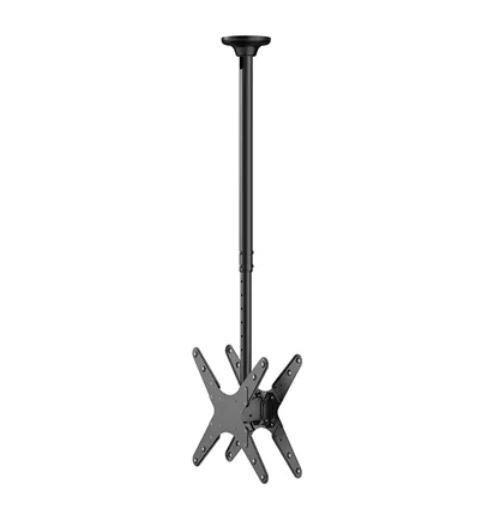

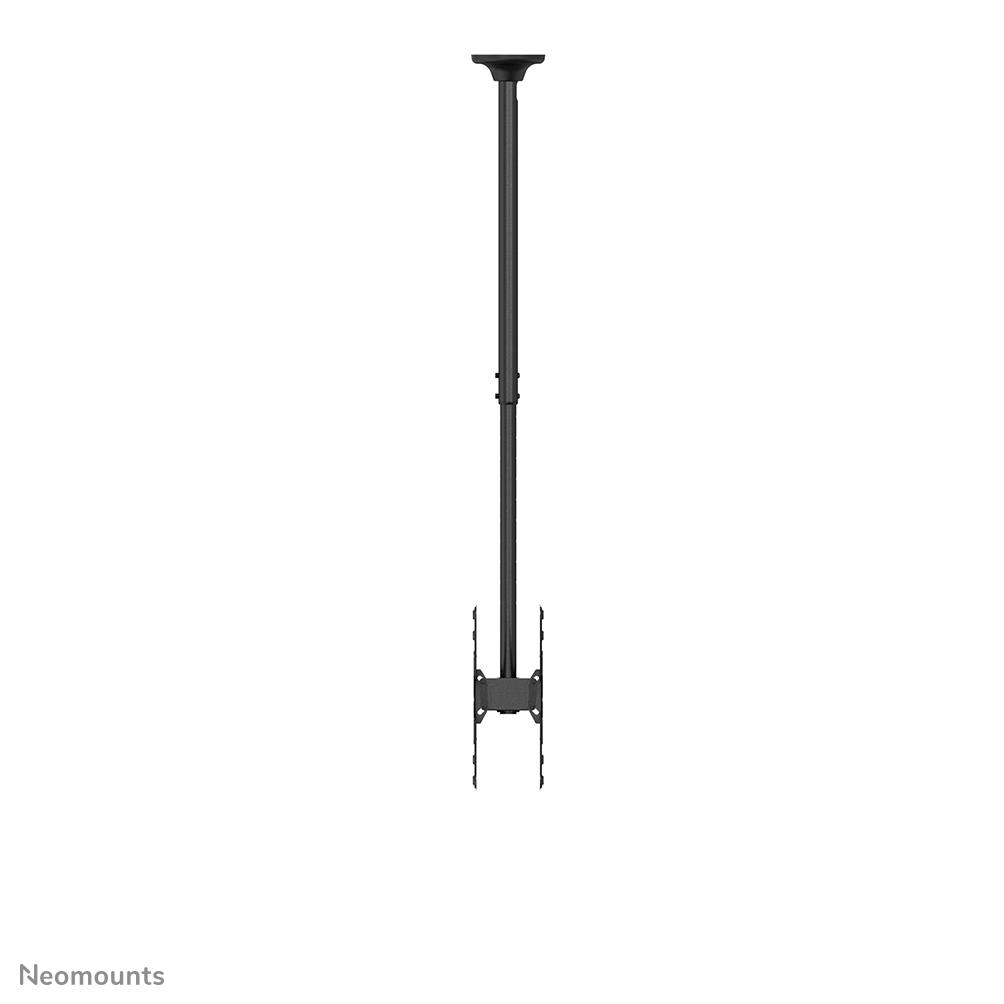

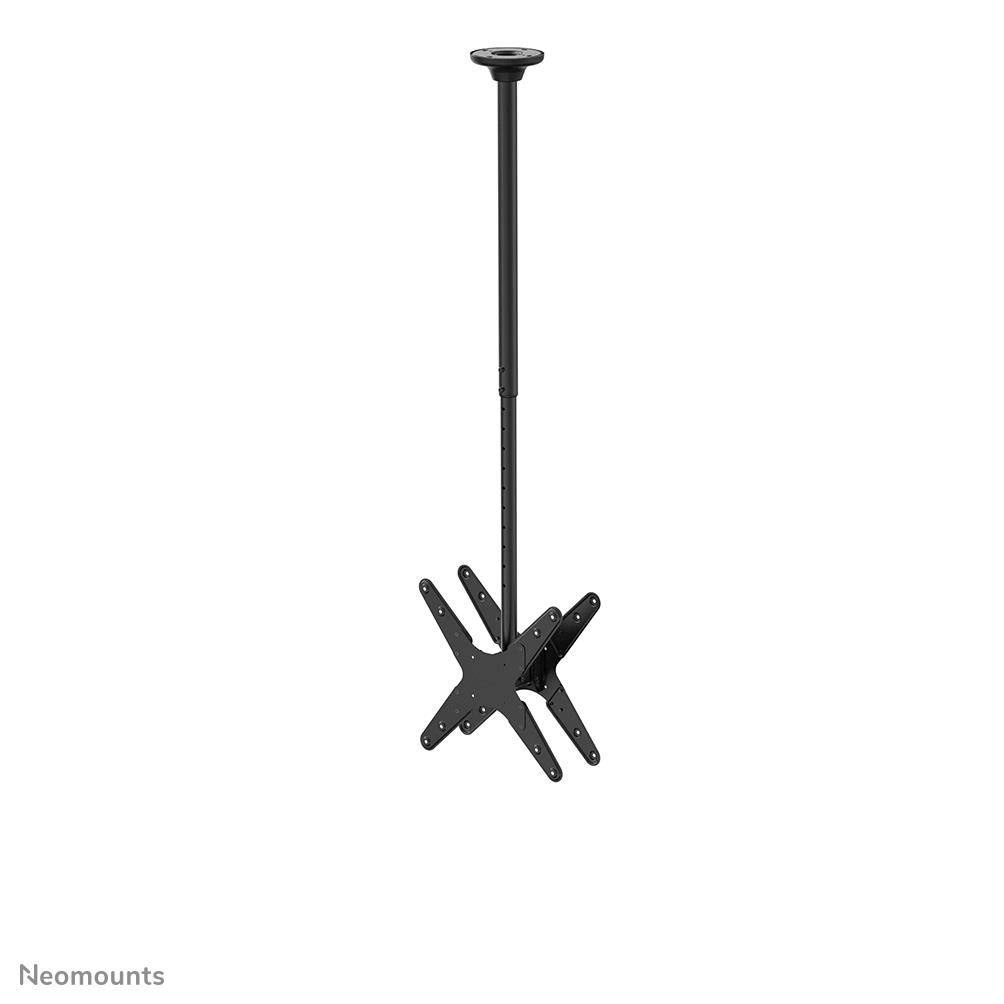

The Neomounts FPMA-C340DBLACK is a full motion ceiling mount for 2 flat screens up to 75″. The unique tilt (10°), swivel (360°) and rotate technology (6°) allows the mount to change to the best angle for the optimal viewing position.

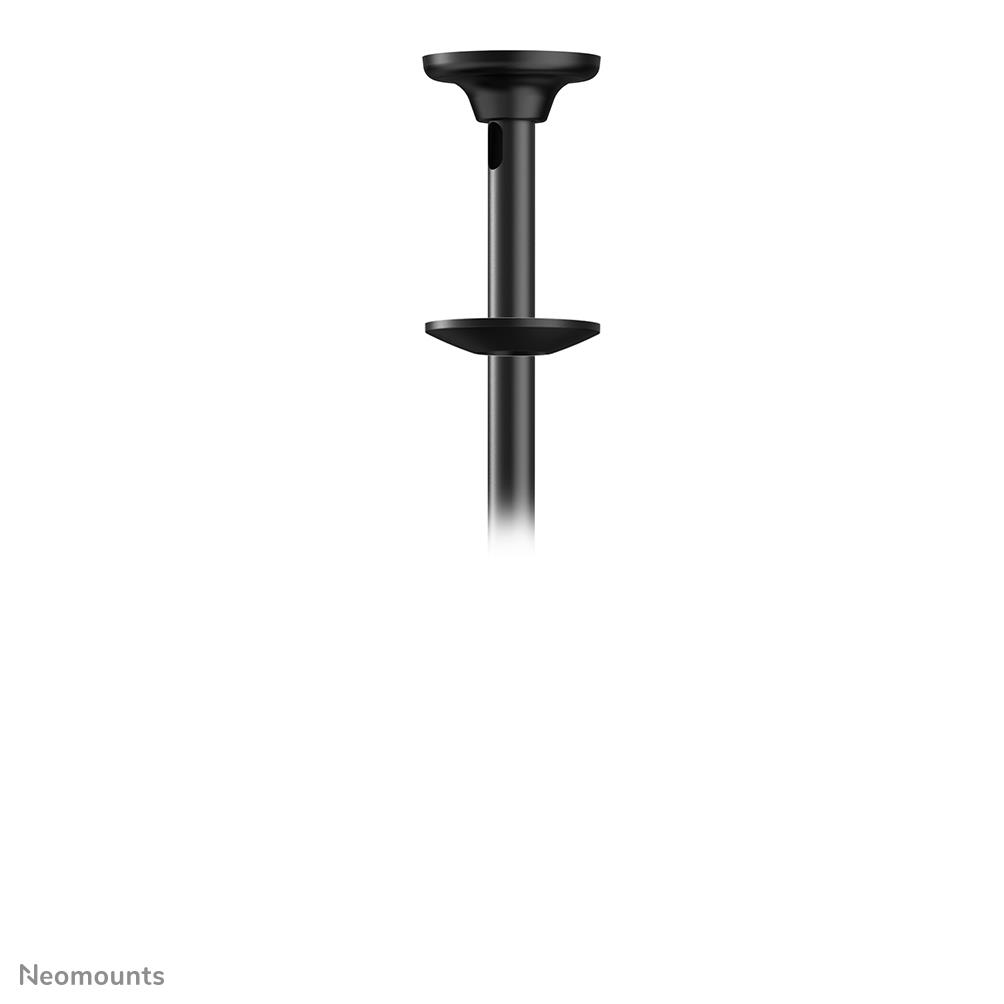

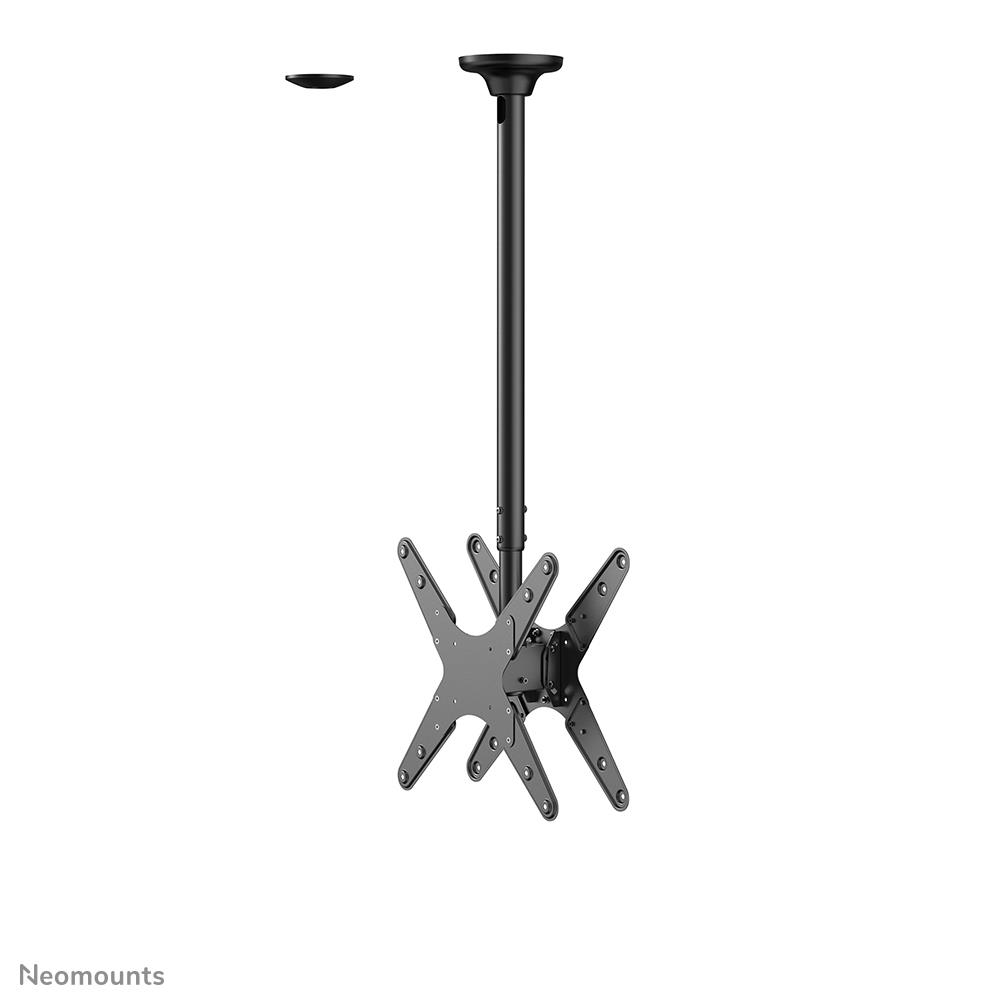

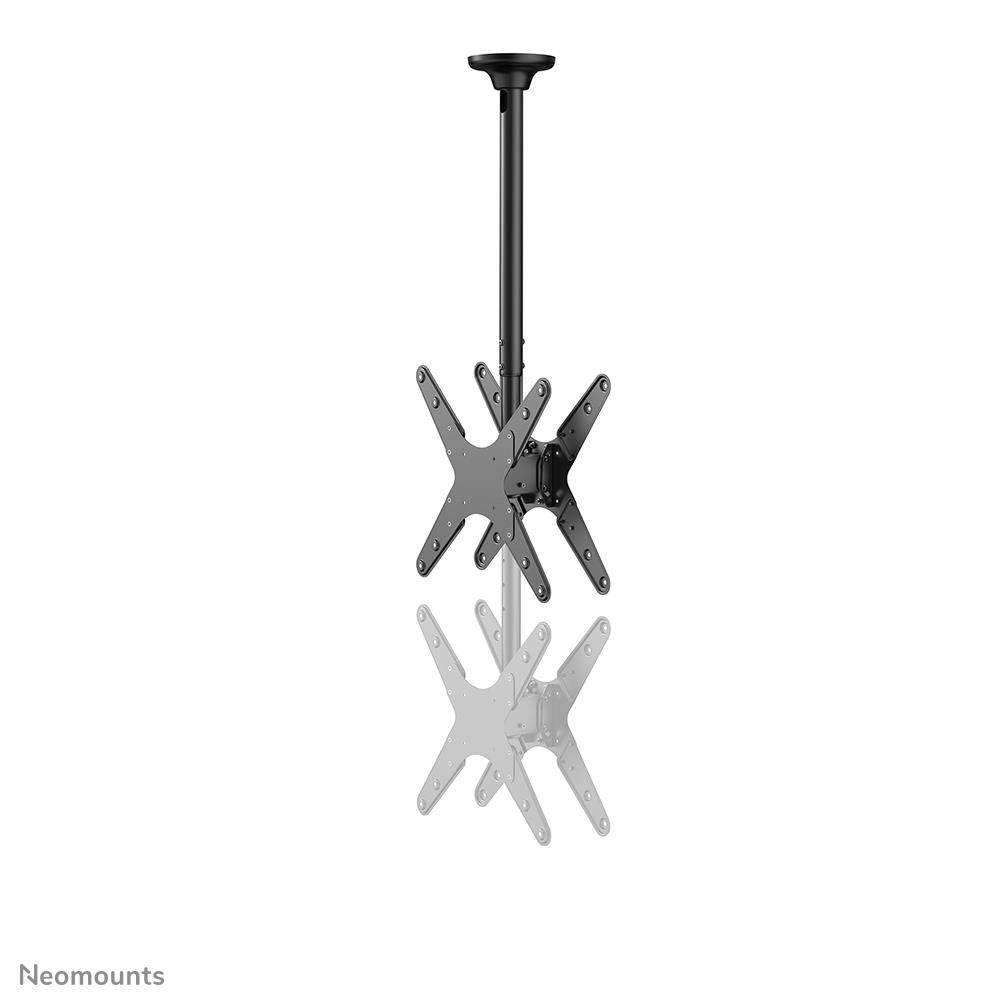

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg (2x). The FPMA-C340DBLACK is suitable for screens that meet VESA hole pattern 100×100 to 400x400mm. A nifty cable management systems conceals and routes cables from ceiling to screen. The mount comes with an additional cover for installation on suspended ceilings.
* The Neomounts NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK, FPMA-C340BLACK and FPMA-C340DBLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with an extra 107,5 cm.
Summary: Neomounts FPMA-C340DBLACK Dual monitor/TV mount ceiling 32-75″ – h 106-156 cm. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32″), Maximum screen size: 190.5 cm (75″), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 1060 – 1560 mm, Tilt angle range: -10 – 0°, Swivel angle range: -180 – 180°, Angle of rotation: 6°. Product colour: Black
Vendor Homepage: https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C340DBLACK
Category Code: TMS
CnCode: 83021000
Unit Box Height: 0.25
Unit Box Length: 0.93
Unit Box Width: 0.15
Maximum screen size: 75
Maximum VESA mount: 400 x 400
Maximum weight capacity: 50
Maximum weight capacity (per display): 50
Minimum screen size: 32
Minimum VESA mount: 100 x 100
Mounting type: Ceiling
Number of displays supported: 2
Panel mounting interface: 100 x 100/200 x 100/200 x 200/300 x 300/400 x 200/400 x 400
Angle of rotation: 6
Cable management: Yes
Height adjustment: Yes

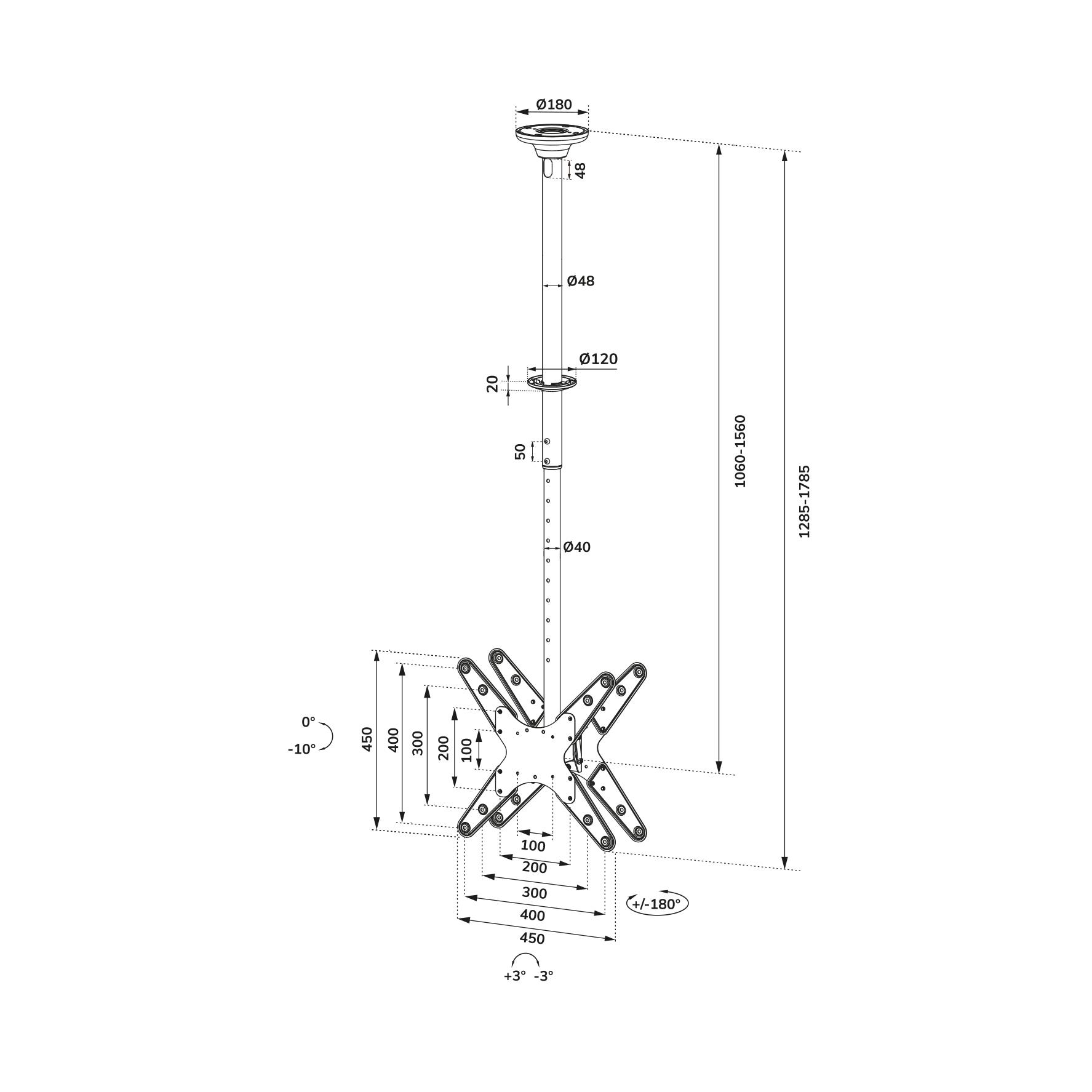

Height adjustment range: 1060 – 1560
Height adjustment type: Manual
Pivot angle: -3 – 3
Swivel angle: 360
Swivel angle range: -180 – 180
Swivelling: Yes
Tilt adjustment: Yes
Tilt angle range: -10 – 0
Housing material: Steel
Product colour: Black
Country of origin: China
Orientation: Landscape
Height: 1785
Weight: 7260
Package depth: 250
Package height: 145
Package weight: 8500
Package width: 930
Harmonized System (HS) code: 7326909890
Master (outer) case gross weight: 17900
Master (outer) case height: 310
Master (outer) case length: 270
Master (outer) case net weight: 14500
Master (outer) case width: 950
Products per master (outer) case: 2
Products per pallet (EU): 30
Model: FPMA-C340DBLACK
Units per Shipping Box: 1
Unit Calculated Volume: 0.03488
Unit Calculated Weight: 8.55
