Summary: ONKRON Full Motion Wall Mount 42″-120″ max 220lbs, Black. Maximum weight capacity: 100 kg, Minimum screen size: 106.7 cm (42″), Maximum screen size: 3.05 m (120″), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 1000 x 600 mm. Tilt angle range: -13 – 9°, Swivel angle range: -45 – 45°, Distance to the wall (min): 9 cm, Distance to the wall (max): 60 cm. Product colour: Black
Vendor Homepage: https://onkron.us/products/m10-b
Category Code: TMS
CnCode: 83021000
Unit Box Height: 0.37
Unit Box Length: 0.86
Unit Box Width: 0.165
Maximum screen size: 120
Maximum VESA mount: 1000 x 600
Maximum weight capacity: 100
Maximum weight capacity (per display): 100
Minimum screen size: 42
Minimum VESA mount: 200 x 100
Mounting type: Wall
Number of displays supported: 1
Panel mounting interface: 200 x 100/200 x 200/200 x 300/200 x 400/200 x 600/300 x 400/300 x 500/300 x 600/400 x 200/400 x 300/400 x 400/400 x 500/400 x 600/500 x 200/500 x 400/500 x 500/500 x 600/600 x 200/600 x 300/600 x 400/600 x 600/700 x 400/700 x 500/800 x/800 x 200/800 x 400
Distance to the wall (max): 600
Distance to the wall (min): 90

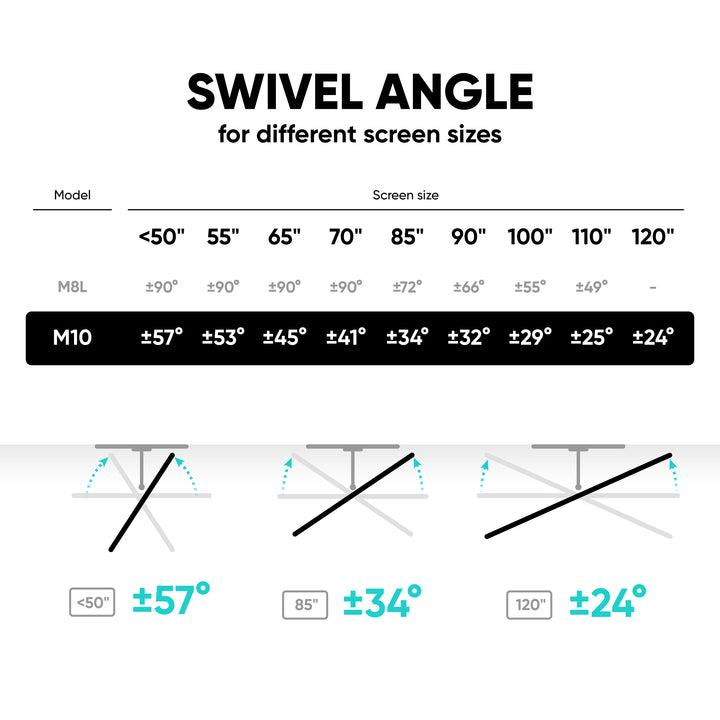

Swivel angle: 90

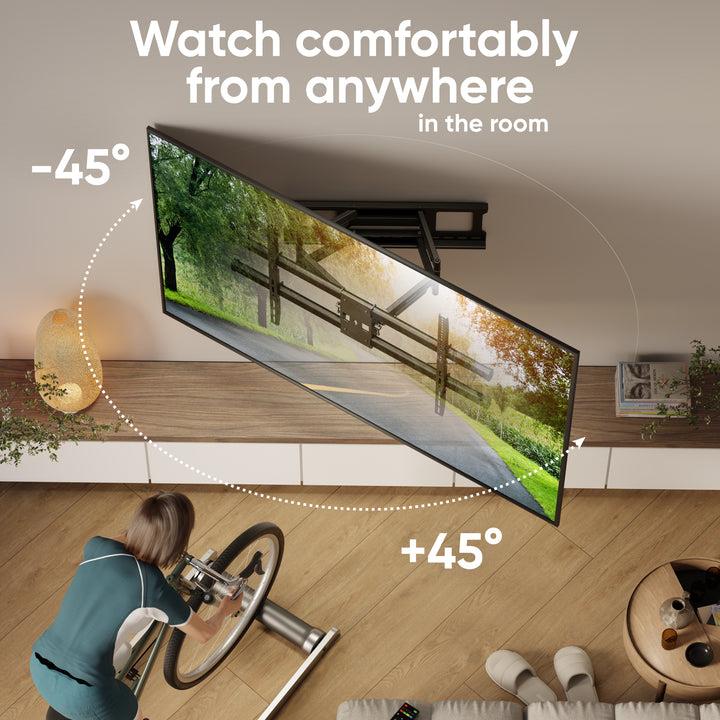

Swivel angle range: -45 – 45
Swivelling: Yes
Tilt adjustment: Yes
Tilt angle: 22

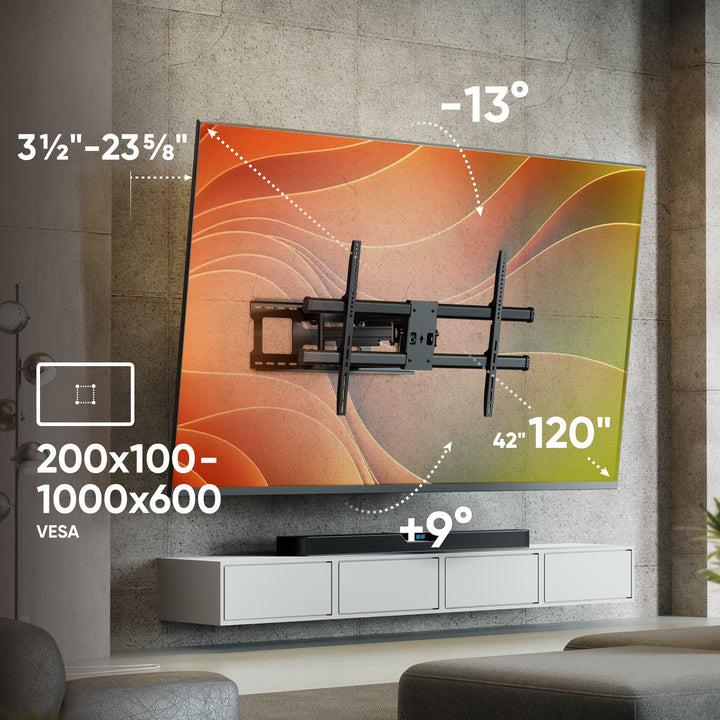

Tilt angle range: -13 – 9
Type: Full motion
Housing material: SPCC
Product colour: Black
Manual: Yes

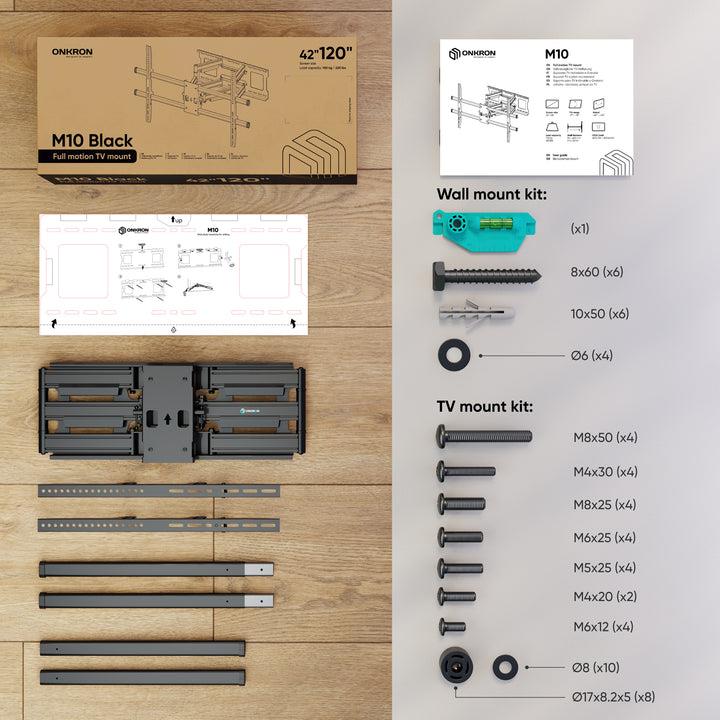

Mounting kit: Yes
Warranty period: 5
Package depth: 370
Package height: 170
Package type: Box
Package weight: 16300
Package width: 865
Quantity per pack: 1
Model: M10
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.0525
Unit Calculated Weight: 16.5
