Summary: Eaton 5P850IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Vendor Homepage: https://www.eaton.com/ua/en-gb/skuPage.5P850IRNG2.html
Category Code: UPW
CnCode: 85044095
Unit Box Height: 0.17
Unit Box Length: 0.59
Unit Box Width: 0.54
Automatic Voltage Regulation (AVR): Yes
Efficiency: 98
Heat dissipation: 307
Input frequency: 47/70
Input operation voltage (max): 294
Input operation voltage (min): 150
Noise level: 35
Number of input phases: 1
Number of output phases: 1
Output frequency: 50/60
Output operation voltage (max): 240
Output operation voltage (min): 200
Output power: 680
Output power capacity: 0.85
Power factor: 0.8
UPS topology: Line-Interactive
Waveform: Sine
AC outlet types: C13 coupler
AC outlets quantity: 4

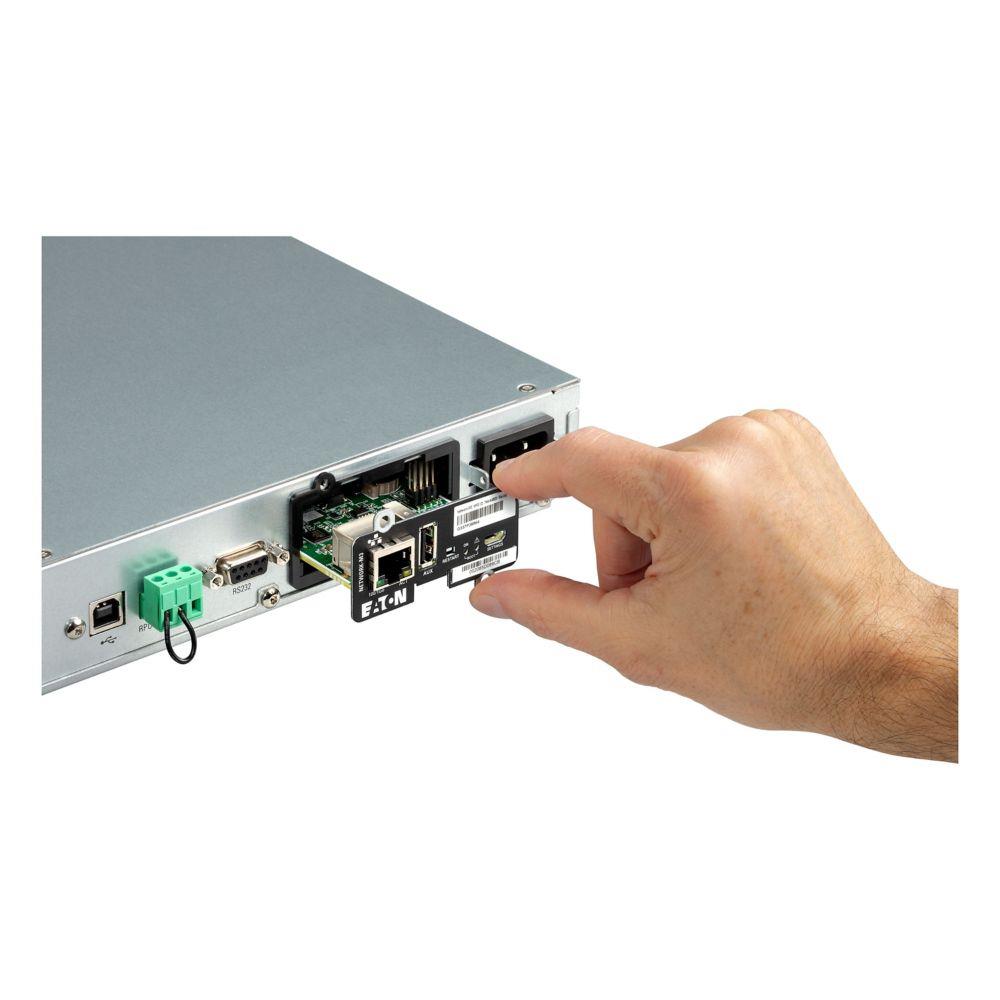

Network card slot: Yes
Power plug: C14 coupler
RS-232 ports: 1
Serial interface: Yes
Serial interface type: RS-232
Serial ports quantity: 1
USB port: Yes
USB port type: USB Type-B
Battery capacity: 7
Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 6
Hot-swap battery: Yes
Number of battery cells: 4
Typical backup time at half load: 13
Display type: LCD
Form factor: Rackmount
Product colour: Black,Silver
Operating altitude: 0 – 3000
Operating relative humidity (H-H): 0 – 90
Operating temperature (T-T): 0 – 40
Cables included: USB cable
Certification: IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Compliance certificates: Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS
Quick installation guide: Yes
Rack mount kit: Yes
Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Depth: 509
Height: 43.2
Weight: 13780
Width: 438
Model: 5P850IRNG2
Units per Shipping Box: 1
Unit Calculated Volume: 0.05416
Unit Calculated Weight: 18.5
