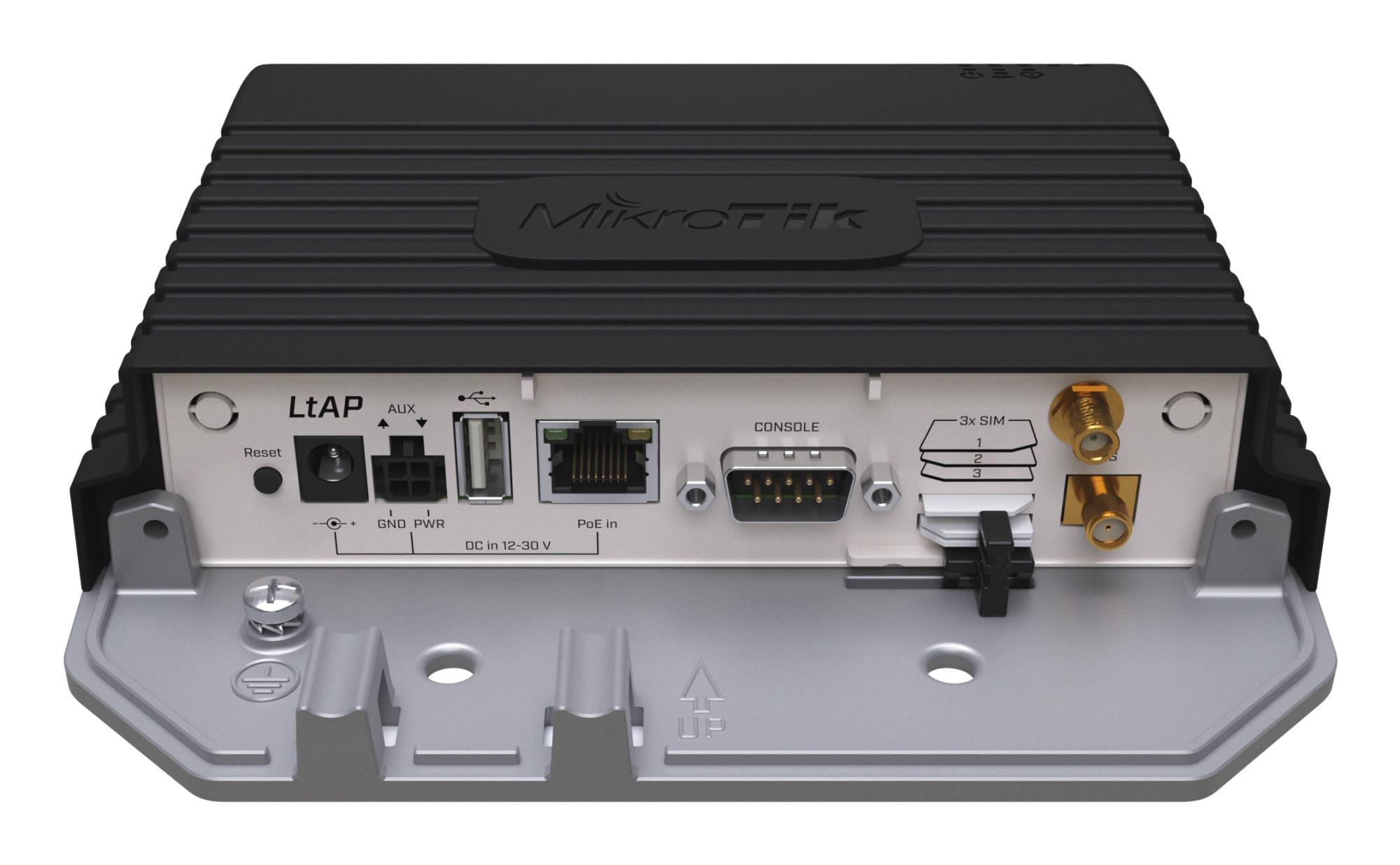

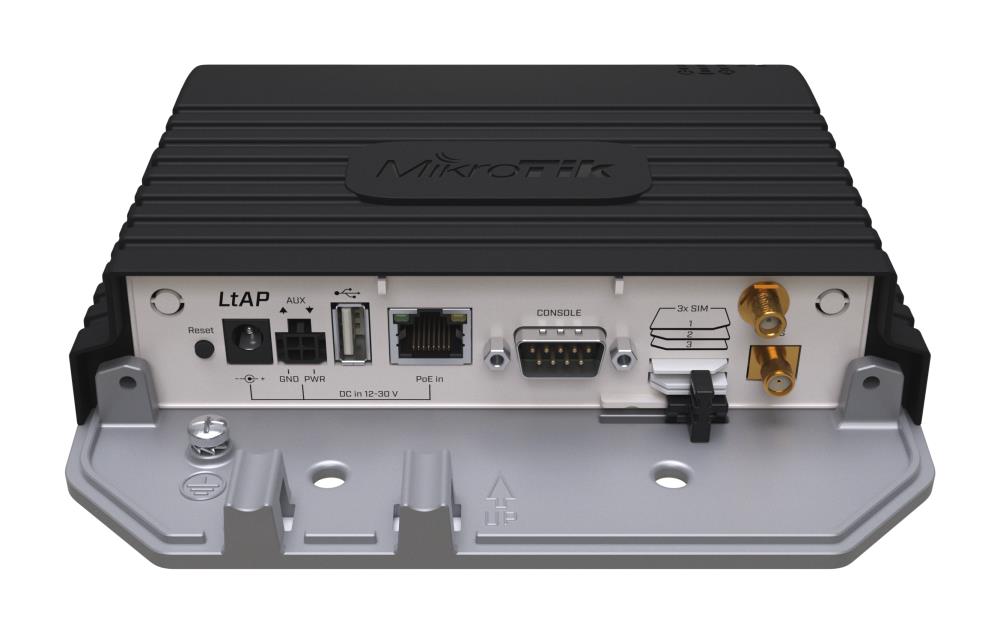

A rugged all-in-one device for IoT connectivity, ideal for industrial or public use. Perfect for transportation projects or logistics, the LtAP LR8G LTE6 Kit combines:
– LoRa® connectivity, LTE, and GPS for maximum versatility
– Dual-chain 2.4 GHz WiFi for added flexibility
– A tough, robust enclosure built for industrial and mobile setups
– Mini SIM slot and a built-in modern LTE6 modem for fast and responsive mobile connectivity
– Enhanced 868MHz Rx sensitivity for effective long-range communication
– Many powering options, including automotive
– SMA female connectors for external antennas
The Things Network
Our products for LoRa® are ready to work with “The Things Network” – the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.
The setup is so easy – anyone can learn it. No need to reinvent the wheel – join “The Things Network” to save time and energy with smart solutions!
| Summary | Mikrotik LtAP LR8G LTE6 kit. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Black. Power consumption (max): 24 W |
|---|---|
| Vendor Homepage | https://mikrotik.com/product/ltap_lr8g_lte6_kit |
| Category Code | WAP |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.29 |
| Unit Box Width | 0.19 |
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| GPS (satellite) | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Mean time between failures (MTBF) | 200000 h |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| DC voltage range | 12 – 30 V |
| Power consumption (max) | 24 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| International Protection (IP) code | IPX0 |
| Product colour | Black |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Operating system installed | RouterOS |
| Processor frequency | 880 MHz |
| Processor model | MediaTek MT7621AT |
| 3G bands supported | 850,900,2100,1800 MHz |
| 4G FDD-LTE bands supported | 2100,1800,850,2600,900,800,700 MHz |
| 4G LTE category | 6 |
| 4G TDD-LTE bands supported | 2600,2300,2500 MHz |
| Compliance certificates | CE/EAC/RoHS |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Model | LTAP-2HND&FG621-EA&LR8G |
| Model name | LtAP LR8G LTE6 kit |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.003413 cubm |
| Unit Calculated Weight | 1.11 kg |
