Boost Your PC’s Network Speeds
AC1300 Dual Antennas High-Gain Wireless USB Adapter
Archer T4U Plus
High-Speed, Dual Band WiFi
The Archer T4U Plus grants your PC access to 802.11ac technology while receiving WiFi signals on two separate bands, boosting speeds up to 1.2 Gbps (up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). This means better networking experience for all your online needs. Choose the 2.4 GHz band for web browsing, email, and social media, or switch to 5 GHz for gaming, HD streaming, and large file downloads.
Dual High-Gain Antennas, Broader Coverage
Two powerful 5 dBi high-gain external antennas ensure stronger signal transmission and reception between web devices and your router even from farther away or across multiple walls and floors. Enjoy stable wireless connections and faster speeds without WiFi drops and lag.
A Great Match for Faster Speeds
Connect the newest hardware with USB 3.0. USB 3.0 is specially suited for the 802.11ac WiFi protocol and utilizes its transfer rate for better connections. Take full advantage of USB 3.0 and 802.11ac WiFi for optimized network performance.
Adjustable, Multi-Directional Antenna
Rotate and adjust the antenna 180° for the best reception in different environments.
Flexible Design, Easy Setup

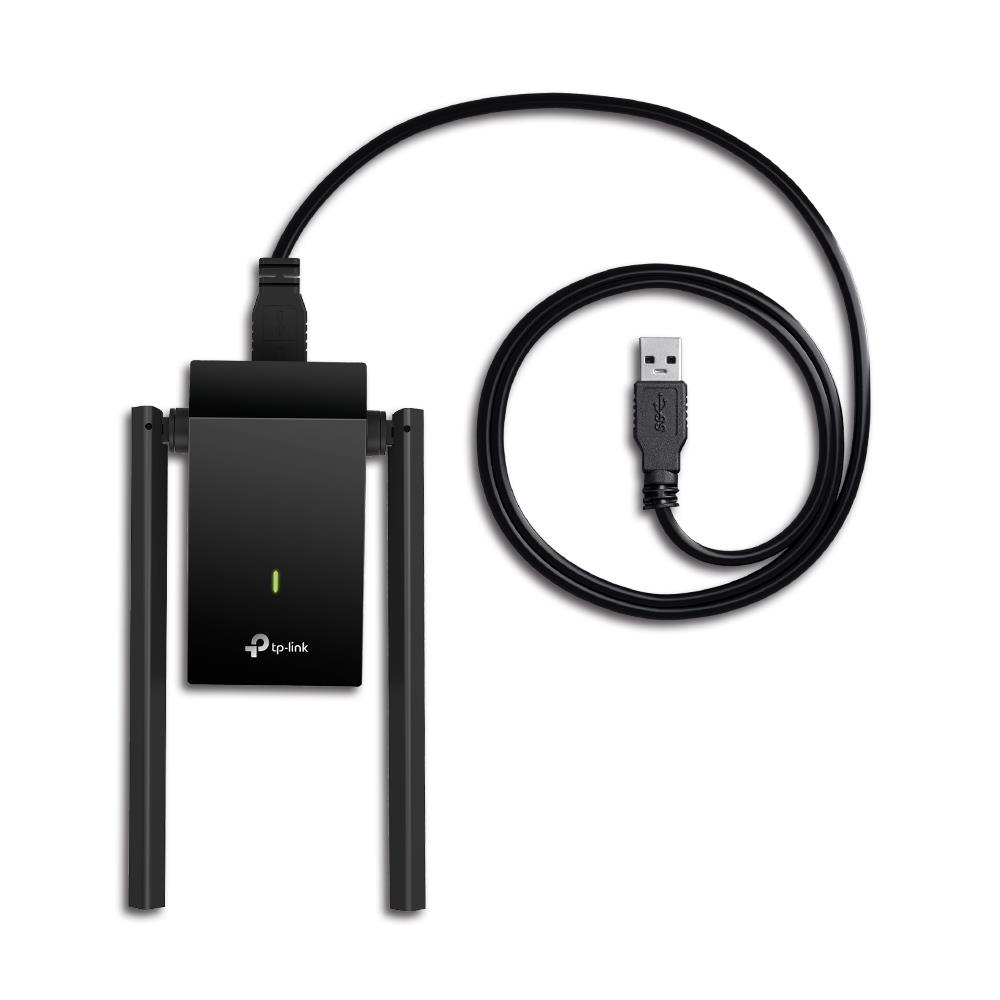

The adapter’s desktop-style design and 1.0 m USB cable help you find the best spot for network reception. Enjoy an easy and desktop-friendly setup for flexible deployment.
- Ultra-Fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
- Dual Band Wireless – 2.4GHz and 5GHz bands for flexible connectivity
- Dual High-Gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection
- Super Speed USB 3.0 Port – Up to 10x faster transfer speeds than USB 2.0
- Adjustable, Multi-Directional Antenna – Enable flexible deployment for the best reception
| Summary | TP-Link Archer T4U Plus. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). USB powered. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.tp-link.com/au/home-networking/high-gain-adapter/archer-t4u-plus/ |
| Category Code | WRA |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.045 |
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Frequency range | 2.4 – 5 GHz |
| Maximum data transfer rate | 867 Mbit/s |
| MU-MIMO | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Security algorithms | WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11/300/400/54/867 Mbit/s |
| Antenna | Yes |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Certification | FCC, CE |
| Component for | PC/Laptop |
| Internal | No |
| LED indicators | Status |
| Product colour | Black |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 20 dBm |
| USB powered | Yes |
| Mac operating systems supported | Mac OS X 10.15 Catalina/Mac OS X 10.15.3 Catalina/Mac OS X 11.0 Big Sur/Mac OS X 12.0 Monterey/Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows/Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64/Windows 11 |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage relative humidity (H-H) | 5 – 90 % |
| Sustainability compliance | Yes |
| Depth | 19.2 mm |
| Height | 156.3 mm |
| Width | 84 mm |
| Package depth | 150 mm |
| Package height | 44 mm |
| Package weight | 230 g |
| Package width | 200 mm |
| Cables included | USB |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Model | Archer T4U Plus |
| Units per Shipping Box | 40 |
| Unit Calculated Volume | 0.001712 cubm |
| Unit Calculated Weight | 0.257 kg |
