Description:

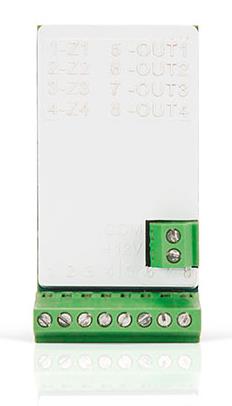

The ACX-210 module makes it possible to use wired devices (detectors, sirens, etc.) in the ABAX 2/ABAX wireless system. It has 4 programmable zones with support for the NO and NC type wire detectors and EOL, 2 EOL configurations, as well as 4 programmable OC type wired outputs.
ACX-210 settings are configured and its firmware updated remotely. In the ABAX 2 system, two-way radio communication is encrypted using is AES encrypted.
– adding wired devices to the ABAX 2 or ABAX system
– compatible with:
ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
ABAX system controllers (ACU-120 and ACU-270), INTEGRA 128-WRL control panel and ARU-100 radio signal repeater
– range of radio communication in the open area:
in ABAX 2: up to 2000 m (with ACU-220) / up to 1400 m (with ACU-280)
in ABAX: up to 500 m
– 4 programmable zones – support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations
– 4 programmable OC type outputs
– remote configuration and update of the firmware
– compact dimensions
– power supply: 4-24 V DC
Vendor Homepage: www.satel.pl/en/produktid/1033
Category Code: ADM
CnCode: 85311030
Unit Box Height: 0.03
Unit Box Length: 0.085
Unit Box Width: 0.05
Max. number of zones: 4
Dimensions: 21 x 41 x 13mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.0001275
Product Net Weight: 0.01
Unit Calculated Weight: 0.03
