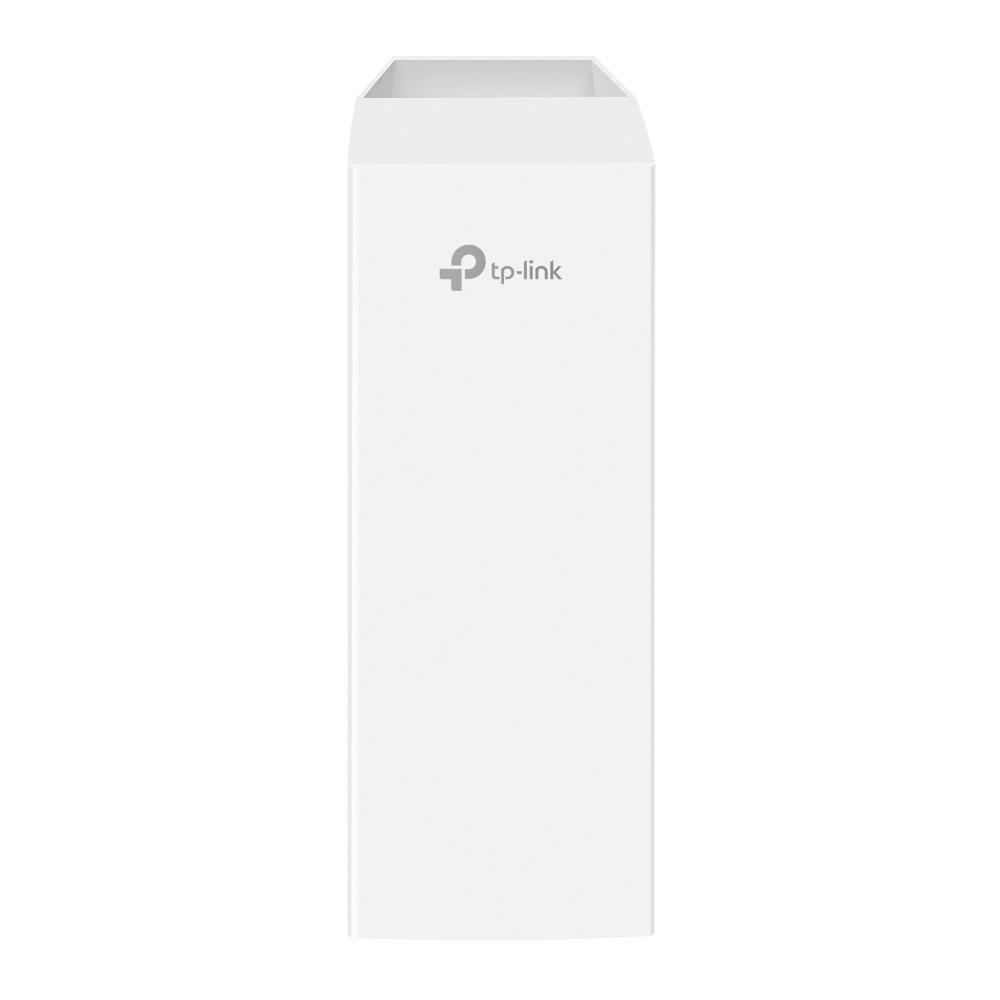

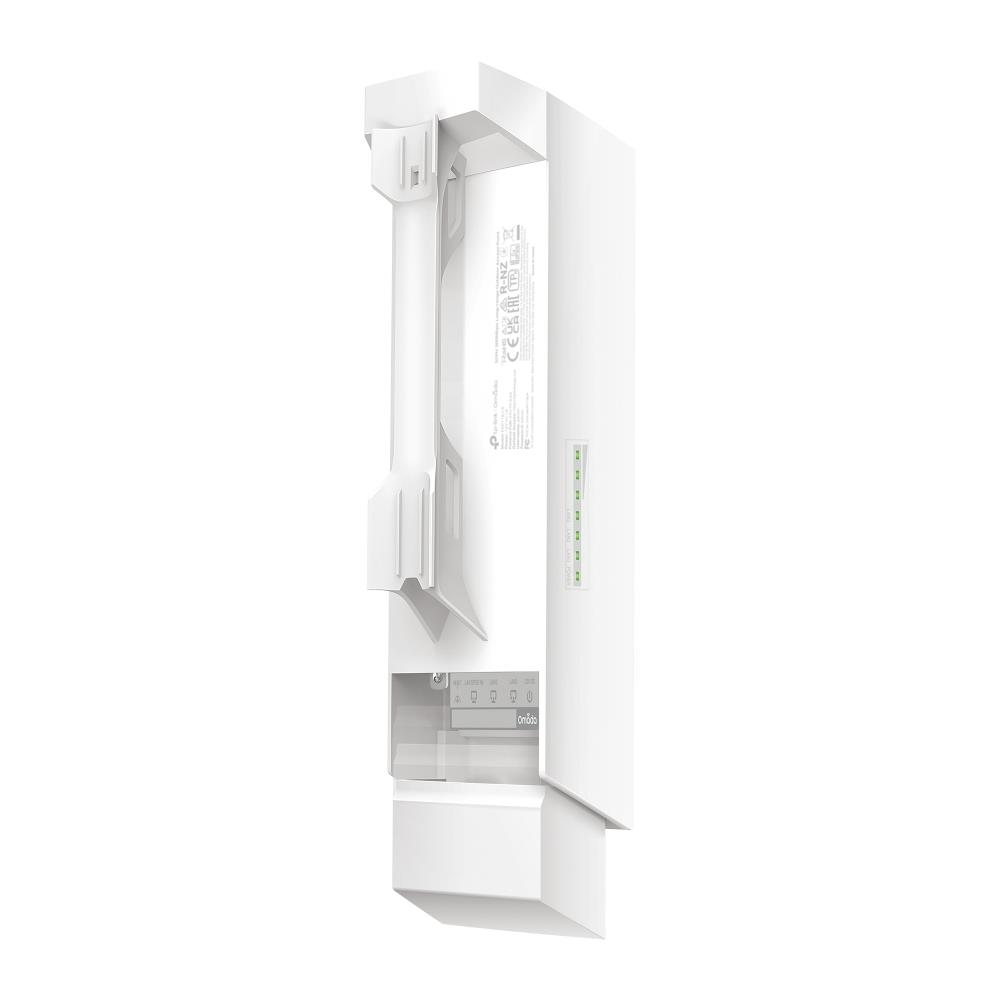

Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point
– Long-Distance Transmission
– Auto-Pairing
– Agile LEDs for Easy Deployment

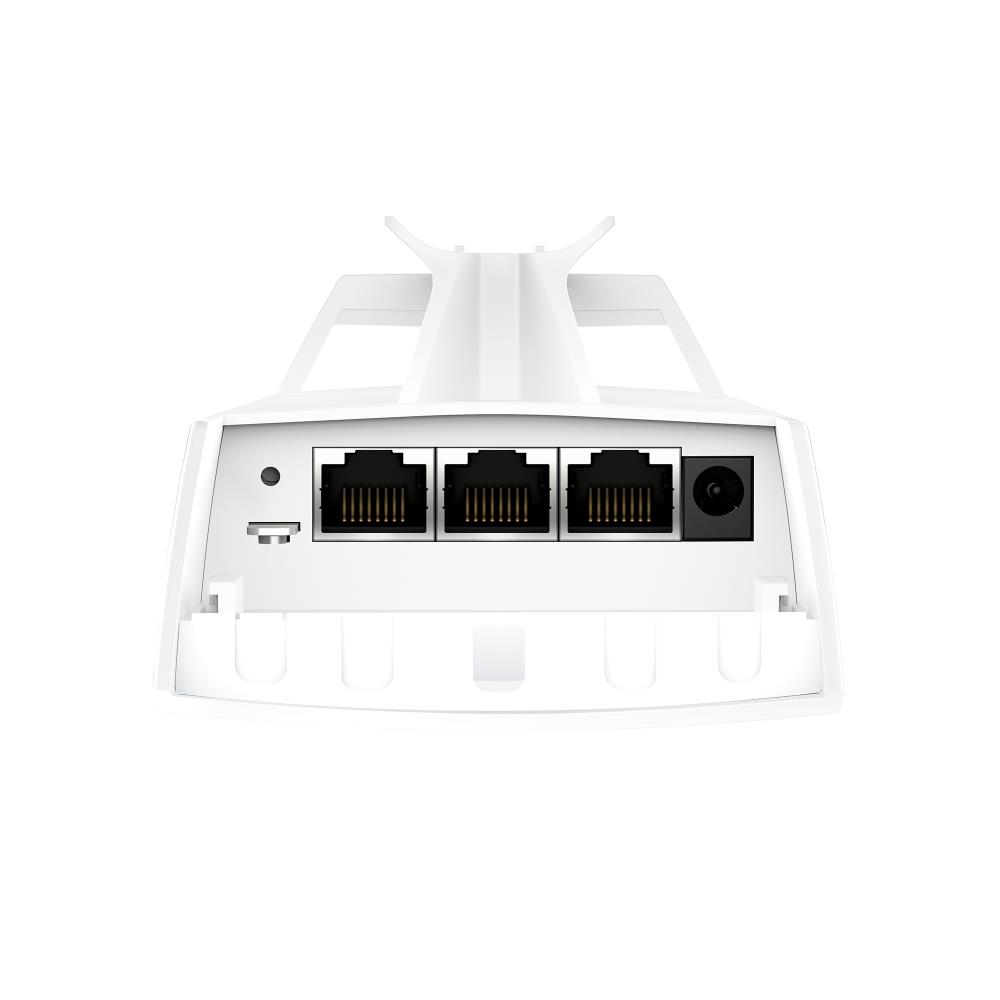

– 3× Fast Ethernet Ports
– 12V DC/Passive PoE
– IP65 Weatherproof & 6 KV Lightning Protection
– Omada Centralized Cloud Management
– Passive PoE Adapter Included
5-km Long-Distance Wi-Fi Transmission
Easy and Simple Deployment

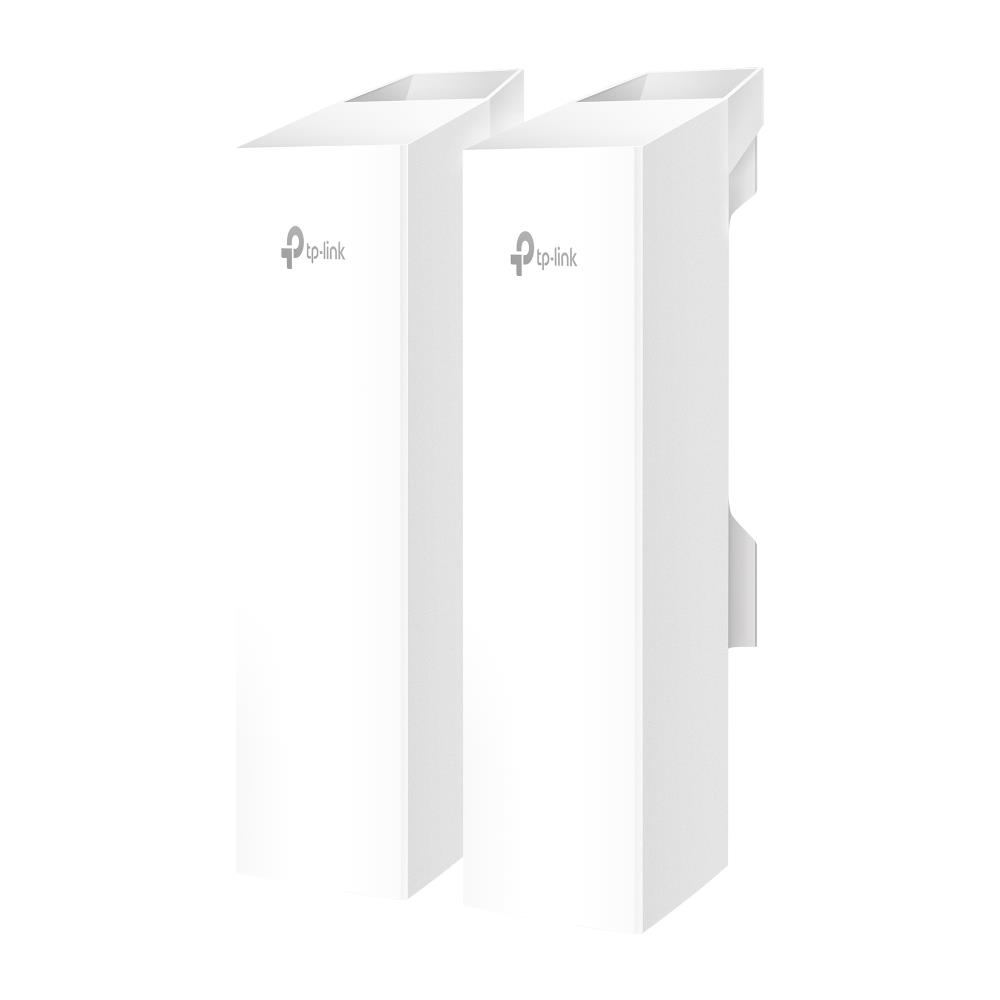

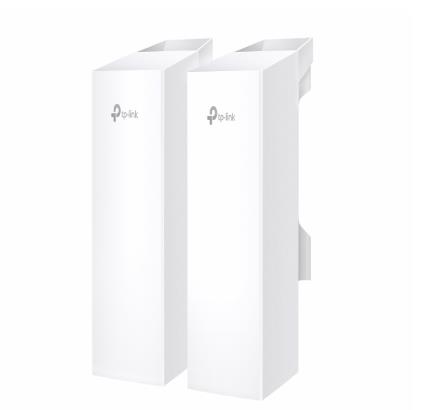

Point-to-Point Connection, Perfect for Surveillance
Seamless Integration into Omada SDN
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
- Ideal for long-range wireless transmission up to 5 km
- Auto-pairing and agile LEDs for efficient deployment
- 3 × Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
| Summary | TP-Link Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point. 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
|---|---|
| Vendor Homepage | https://www.tp-link.com/my/business-networking/omada-wifi-outdoor/eap215-bridge-kit/ |
| Category Code | WAP |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.235 |
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| BeamForming | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Transmitting power (CE) | <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP) dBm |
| Transmitting power (FCC) | <22dBm (5 GHz band1/4) dBm |
| VLAN support | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | SNMP/SNMPv2/SNMPv3/SSH |
| Syslog | Yes |
| Web-based management | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| DC voltage range | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| LED indicators | Yes |
| Placement | Pole |
| Product colour | White |
| Reset button | Yes |
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 11 dBi |
| Antenna type | Internal |
| Polarization | Dual polarization |
| Certification | CE, FCC, RoHS |
| Depth | 79 mm |
| Height | 60 mm |
| Weight | 330.9 g |
| Width | 224 mm |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90 % |
| Storage temperature (T-T) | -40 – 70 °C |
| Series | Omada |
| Model name | EAP215-BRIDGE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005916 cubm |
| Unit Calculated Weight | 1.53 kg |
