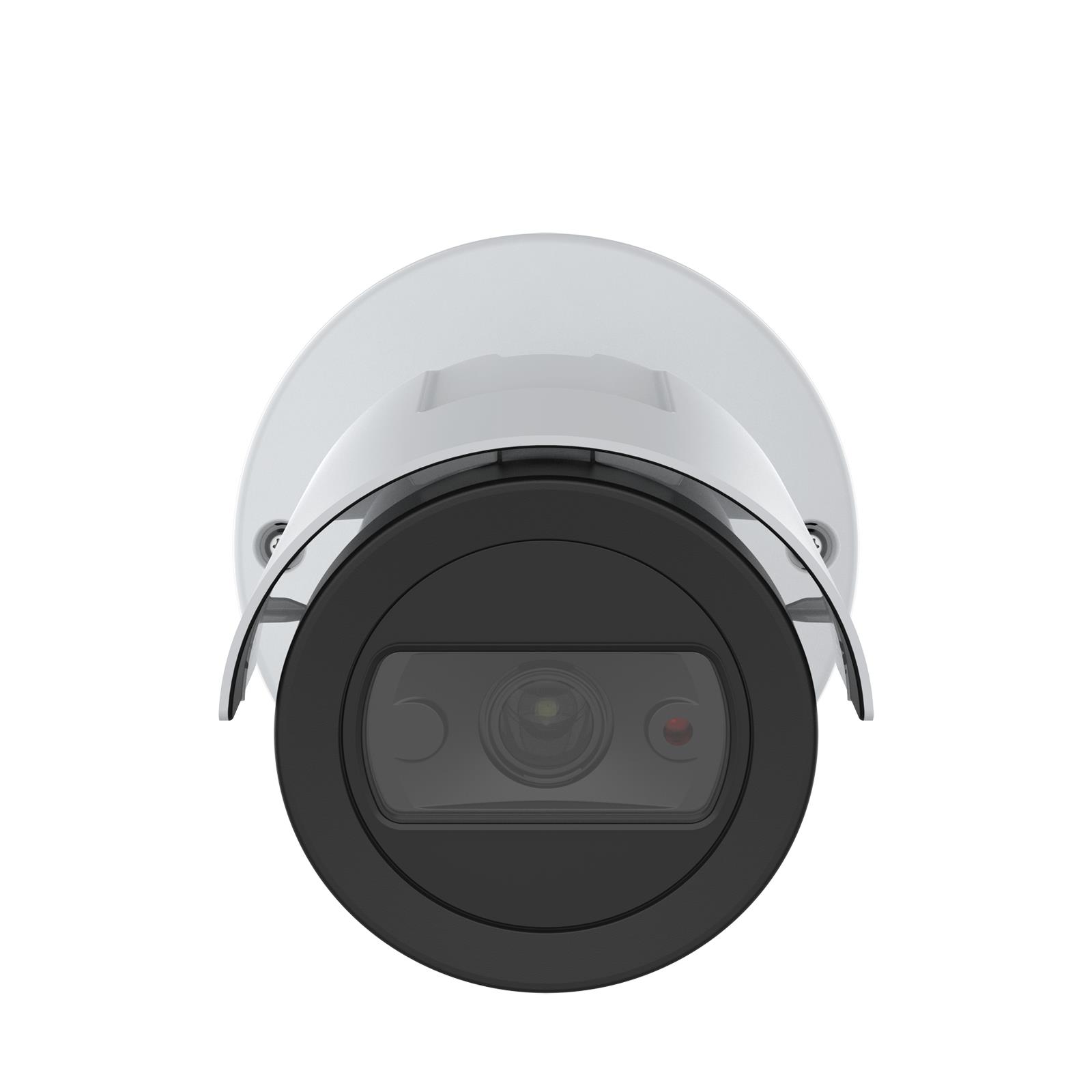

Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.
- Analytics with deep learning; Compact, lightweight design; Outdoor-ready with IR illumination; Quad HD 1440p/4 MP; Zipstream supporting H.264/H.265
Axis 02125-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 81°, White balance: Auto. Sensor type: CMOS. Fixed focal length: 2.4 mm, Closest focusing distance: 0.5 m
Specifikacijos
| Vendor Homepage | https://www.axis.com/products/axis-m2036-le#part-numbers |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.14 |
| Form factor | Bullet |
| Housing material | Aluminium/Plastic |
| IK code | IK08 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Vandal proof/Water resistant |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN 62368-1, IEC 62471, IS 13252 IEC 60068-2-X, IEC/EN 60 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 12 |
| Placement supported | Outdoor |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/38500 - 1/5 s |
| Lens viewing angle, horizontal | 130 ° |
| Lens viewing angle, vertical | 81 ° |
| Minimum illumination | 0 lx |
| White balance | Auto |
| Sensor type | CMOS |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.4 mm |
| Maximum aperture number | 2.1 |
| Number of lenses | 1 |
| Infra-red wavelength | 855 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 20 m |
| Image stabilizer | Yes |
| Maximum resolution | 2304 x 1728 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 2304 x 1728/2668 x 1512 |
| Supported video modes | 1440p |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.265/M-JPEG |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Video streaming | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Active tampering alarm | Yes |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Security algorithms | 802.1x RADIUS/EAP-TLS/HTTPS/SSH |
| Video motion detection | Yes |
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 5 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Diameter | 101 mm |
| Length | 170 mm |
| Weight | 491 g |
| Number of cameras | 1 |
| Doesn't contain | BFR/PVC |
| Harmonized System (HS) code | 85258900 |
| Model | M2036-LE |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002464 cubm |
| Unit Calculated Weight | 0.7 kg |
