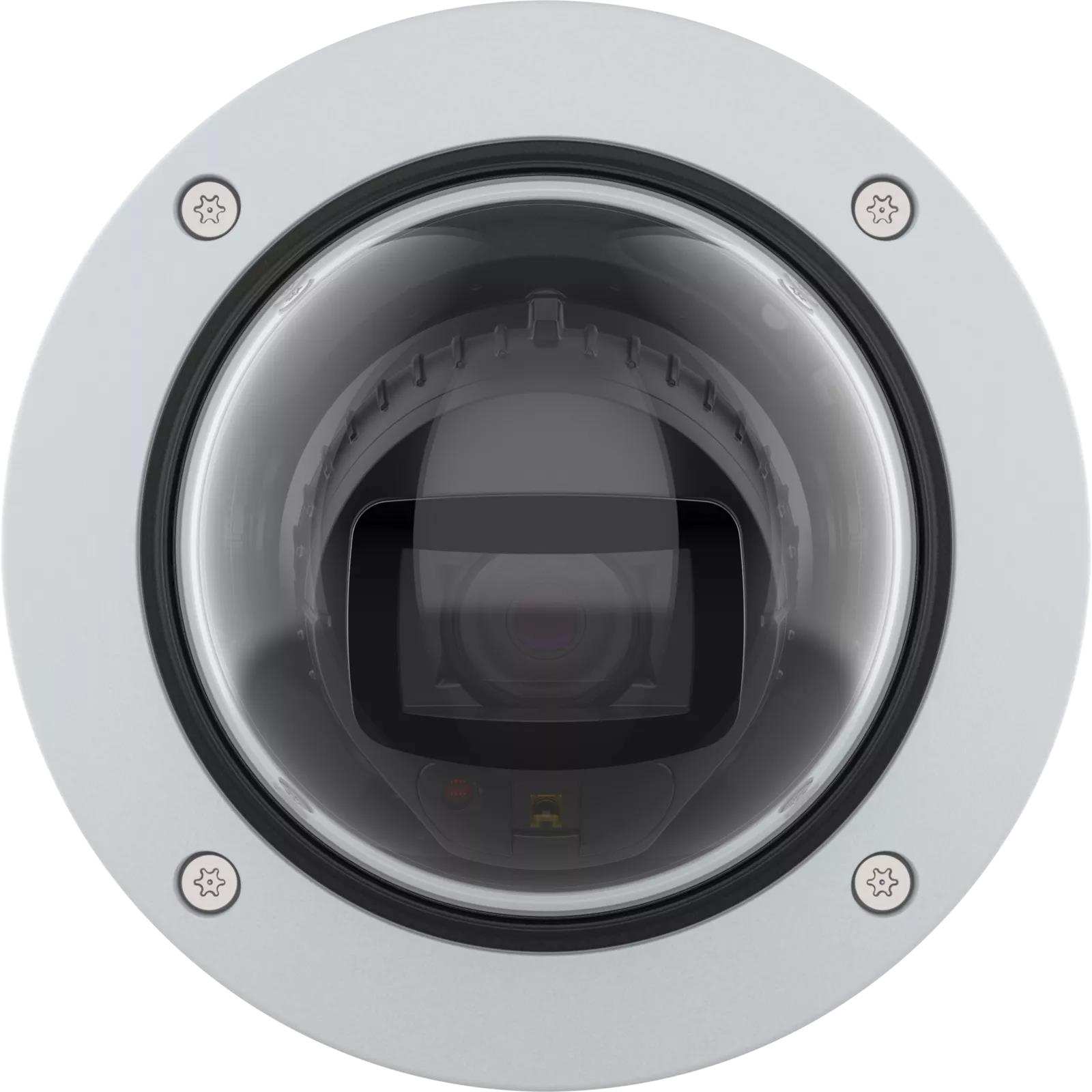

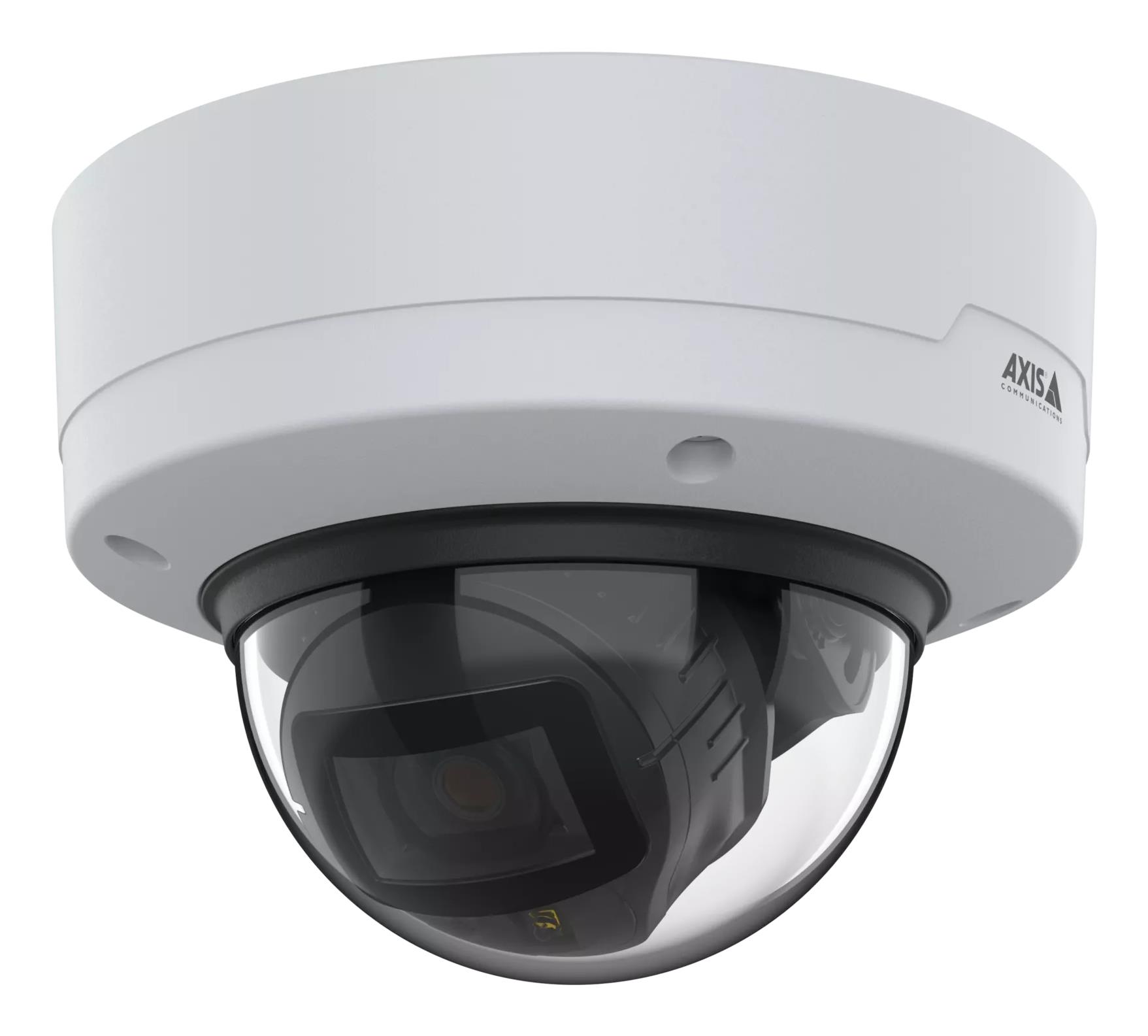

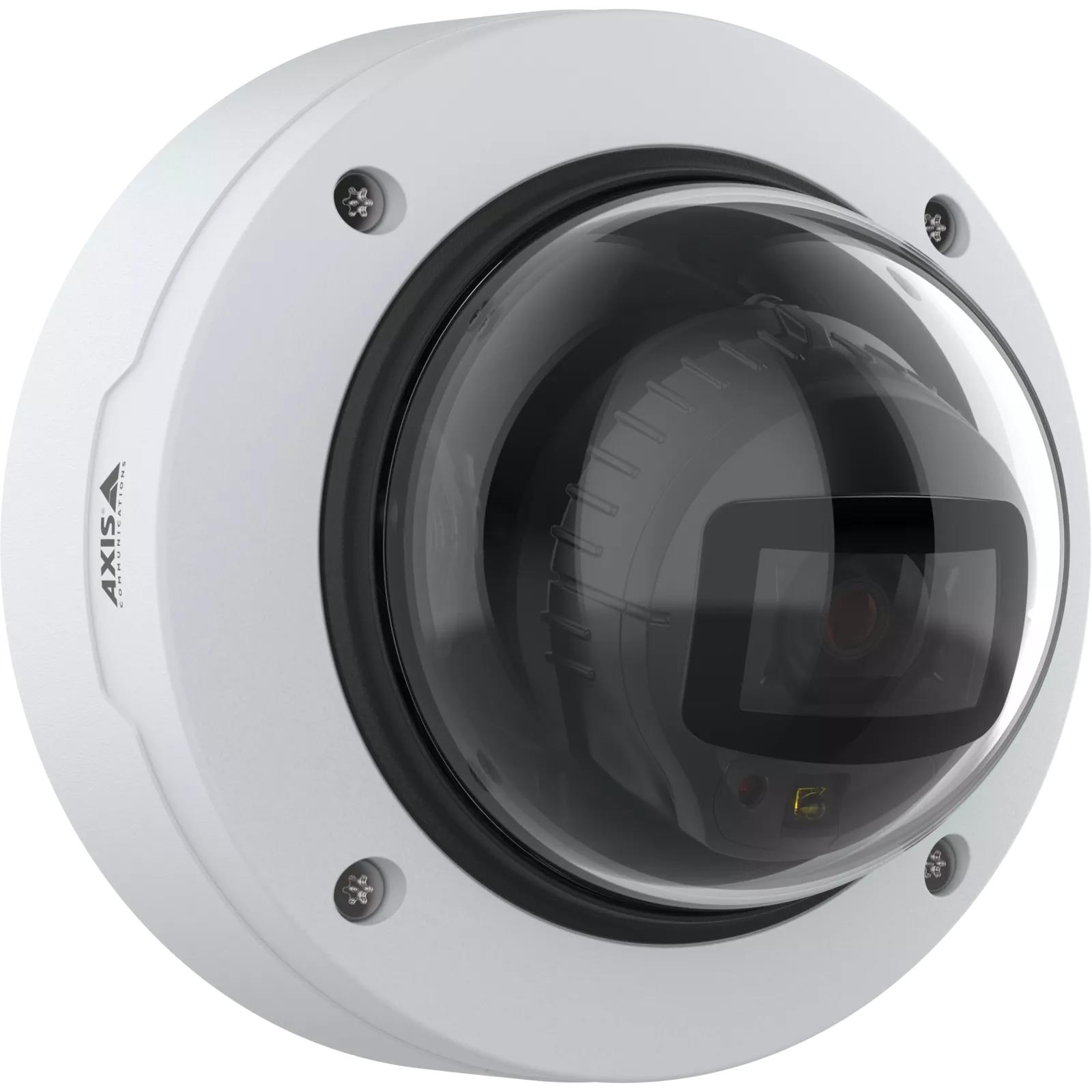

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 2 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3275-LV offers excellent image quality and forensic details in 2 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
- Excellent image quality in 2 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- Audio and I/O connectivity
- Built-in cybersecurity with Axis Edge Vault
Specifikacijos
| Vendor Homepage | https://www.axis.com/products/axis-p3275-lv |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.165 |
| Form factor | Dome |
| Housing material | Plastic/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP54 |
| LED indicators | Yes |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Alarm input/output | Yes |
| Built-in processor | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor |
| Processor model | ARTPEC-9 |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 95 ° |
| Camera pan control | Yes |
| Camera pixel size | 2.9 µm |
| Camera shutter speed | 1/37000 - 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 100 - 32 ° |
| Lens viewing angle, vertical | 52 - 18 ° |
| Minimum illumination | 0.02 lx |
| Pan range | -190 - 190 ° |
| Tilt angle range | -45 - 80 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Detect distance (tele) | 135 m |
| Detect distance (wide) | 48 m |
| Focal length range | 3.4 - 9.8 mm |
| Identify distance (tele) | 14 m |
| Identify distance (wide) | 4.8 m |
| Maximum aperture number | 2.7 |
| Minimum aperture number | 1.4 |
| Observe distance (tele) | 54 m |
| Observe distance (wide) | 19 m |
| Recognize distance (tele) | 27 m |
| Recognize distance (wide) | 9.6 m |
| Zoom capability | Yes |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness/White balance |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Text caption overlay | Yes |
| Total megapixels | 2 MP |
| Video compression formats | AV1/H.264/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 2048 MB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Video motion detection | Yes |
| Cloud-managed | Yes |
| DC output current | 0.025 A |
| DC output voltage | 12 |
| Power consumption (max) | 10 W |
| Power consumption (typical) | 3.4 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Weight | 800 g |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Model | P3275-LV |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003506 cubm |
| Unit Calculated Weight | 1 kg |
