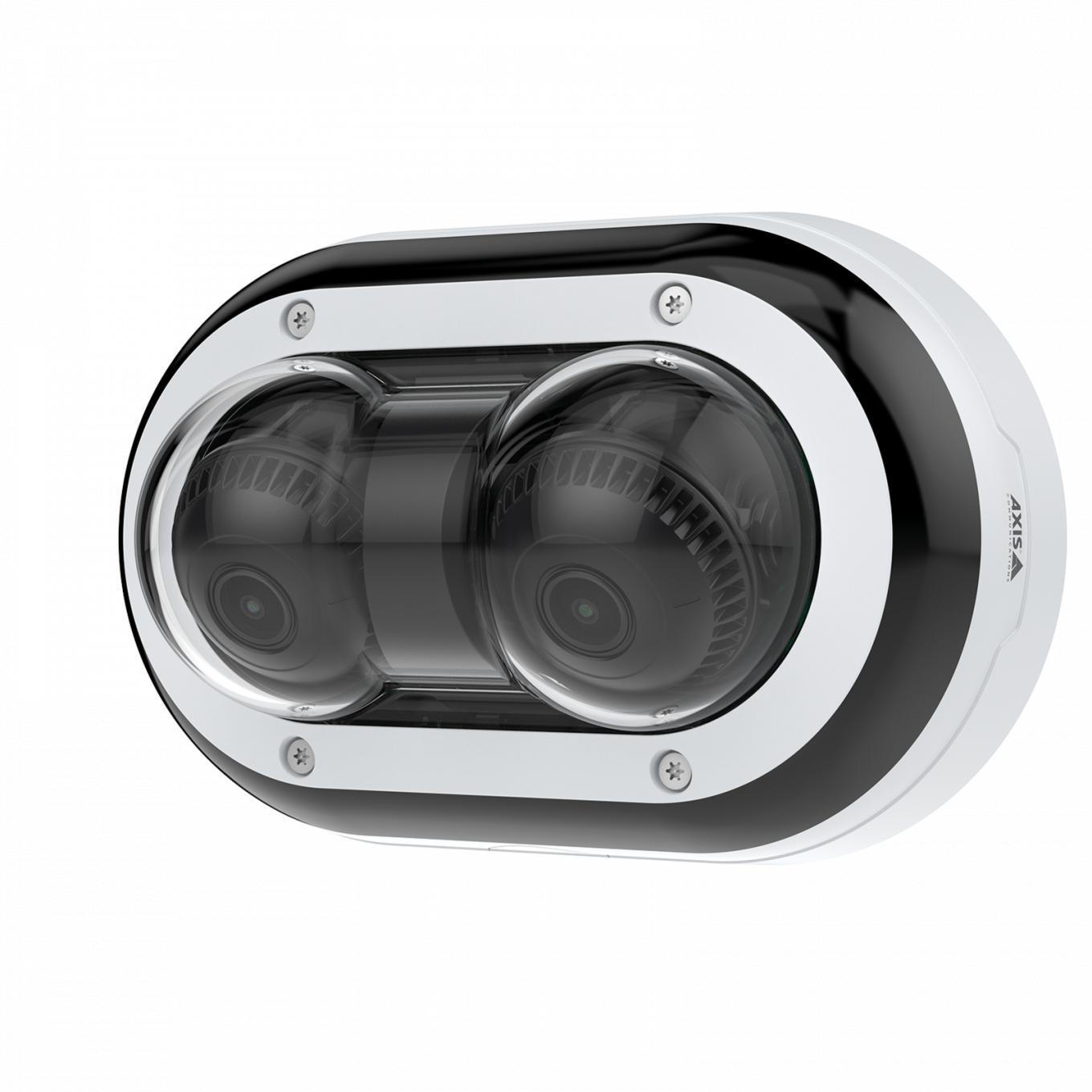

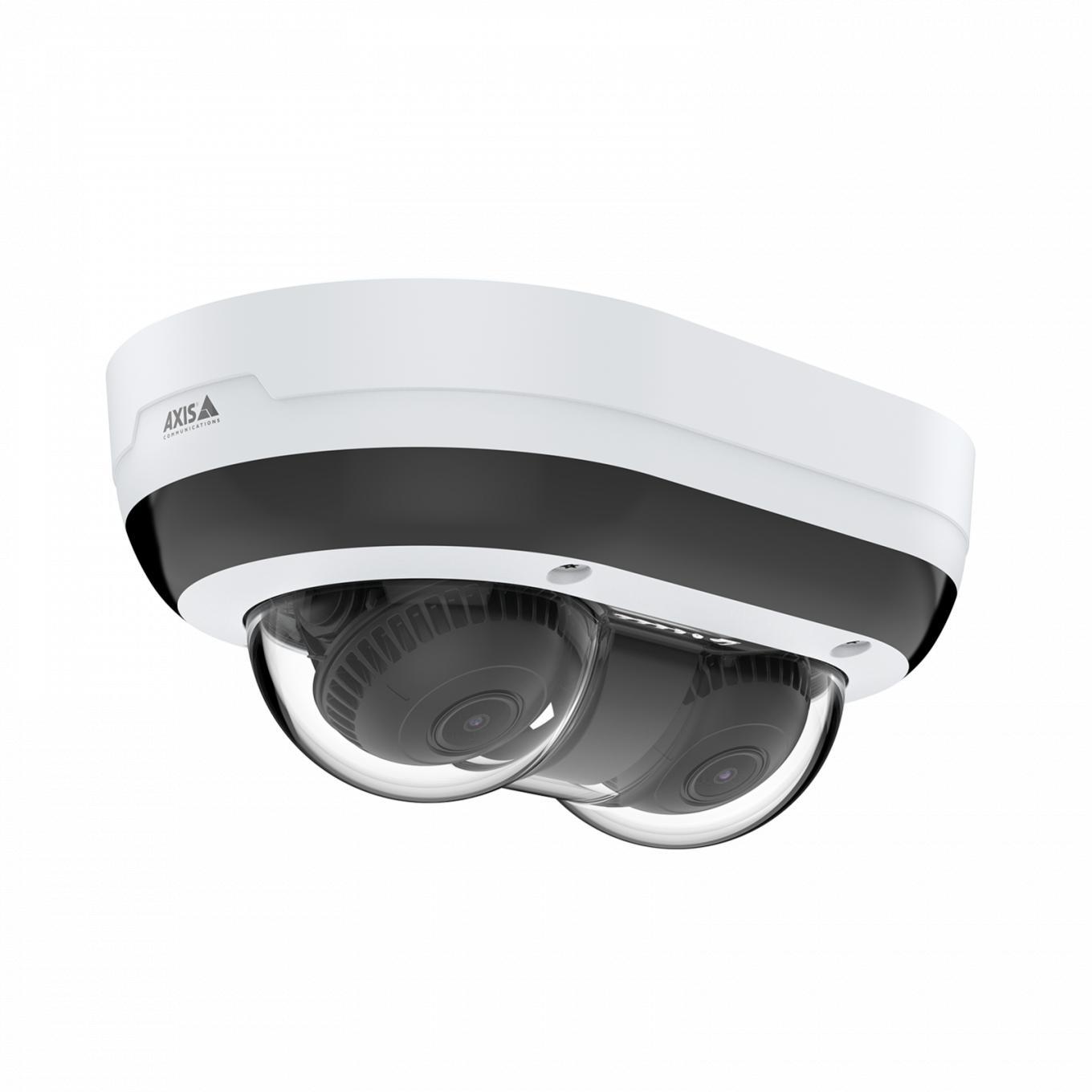

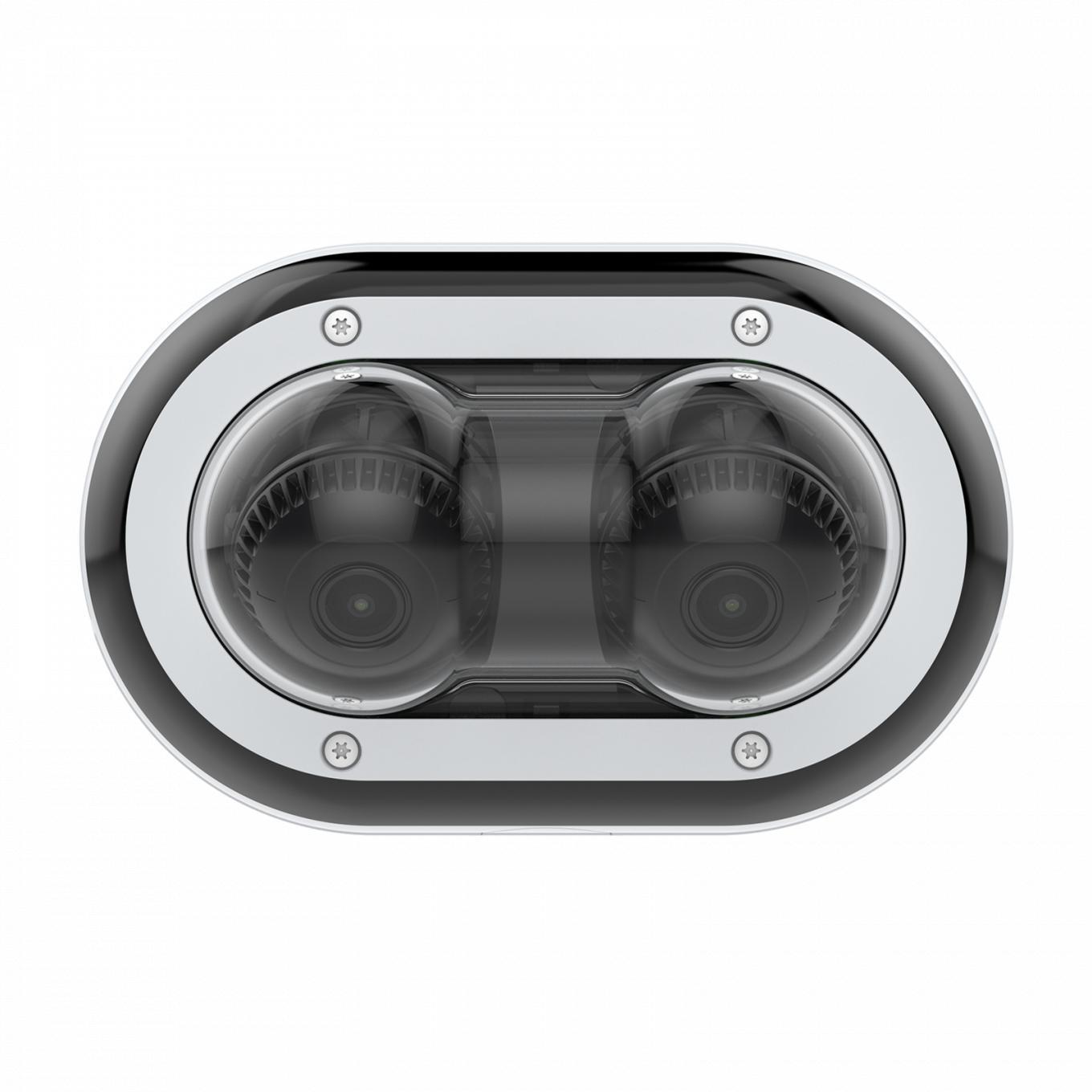

This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.
- 2*5 MP, multidirectional camera, with one IP address; 2.5x zoom; 360° IR illumination; Axis Lightfinder and Forensic WDR; Support for analytics with deep learning on both sensors
| Summary | Axis 02416-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bulb. Angle of rotation: 170°, Lens viewing angle, horizontal: 98 – 36°, Lens viewing angle, vertical: 69 – 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7"), Camera shutter speed (panoramic camera): 1/33500 – 1/5 s |
|---|---|
| Vendor Homepage | https://www.axis.com/products/axis-p4707-plve |
| Category Code | FNC |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.19 |
| Form factor | Bulb |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black/White |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 170 ° |
| Camera shutter speed | 1/33500 – 1/5 s |
| Lens viewing angle, diagonal | 133 – 46 ° |
| Lens viewing angle, horizontal | 98 – 36 ° |
| Lens viewing angle, vertical | 69 – 27 ° |
| Pan range | -100 – 110 ° |
| Tilt angle range | -75 – 75 ° |
| Camera shutter speed (panoramic camera) | 1/33500 – 1/5 s |
| Focal length range (panoramic camera) | 3.26 – 8.12 mm |
| Minimum illumination (panoramic camera) | 0.19 lx |
| Optical sensor size | 1/2.7 " |
| Optical sensor size (panoramic camera) | 1/2.7 " |
| Sensor type | CMOS |
| Sensor type (panoramic camera) | CMOS |
| Auto focus | Yes |
| Focal length range | 3.26 – 8.12 mm |
| Number of lenses | 1 |
| Zoom capability | Yes |
| LED type | IR |
| Night vision | Yes |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast/Sharpness |
| Maximum resolution | 2592 x 1944 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 2560 x 1440/2592 x 1944 |
| Total megapixels | 2.5 MP |
| Video compression formats | H.264/H.265/M-JPEG |
| Video streaming | Yes |
| Audio codecs | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Live view | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Security algorithms | HTTPS |
| Power consumption (Power over Ethernet (PoE)) | 7.9 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 5 – 95 % |
| Operating temperature (T-T) | -30 – 50 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 208 mm |
| Height | 88 mm |
| Weight | 975 g |
| Width | 133 mm |
| Number of cameras | 2 |
| Doesn't contain | BFR/PVC |
| Model | P4707-PLVE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004912 cubm |
| Unit Calculated Weight | 1.29 kg |
