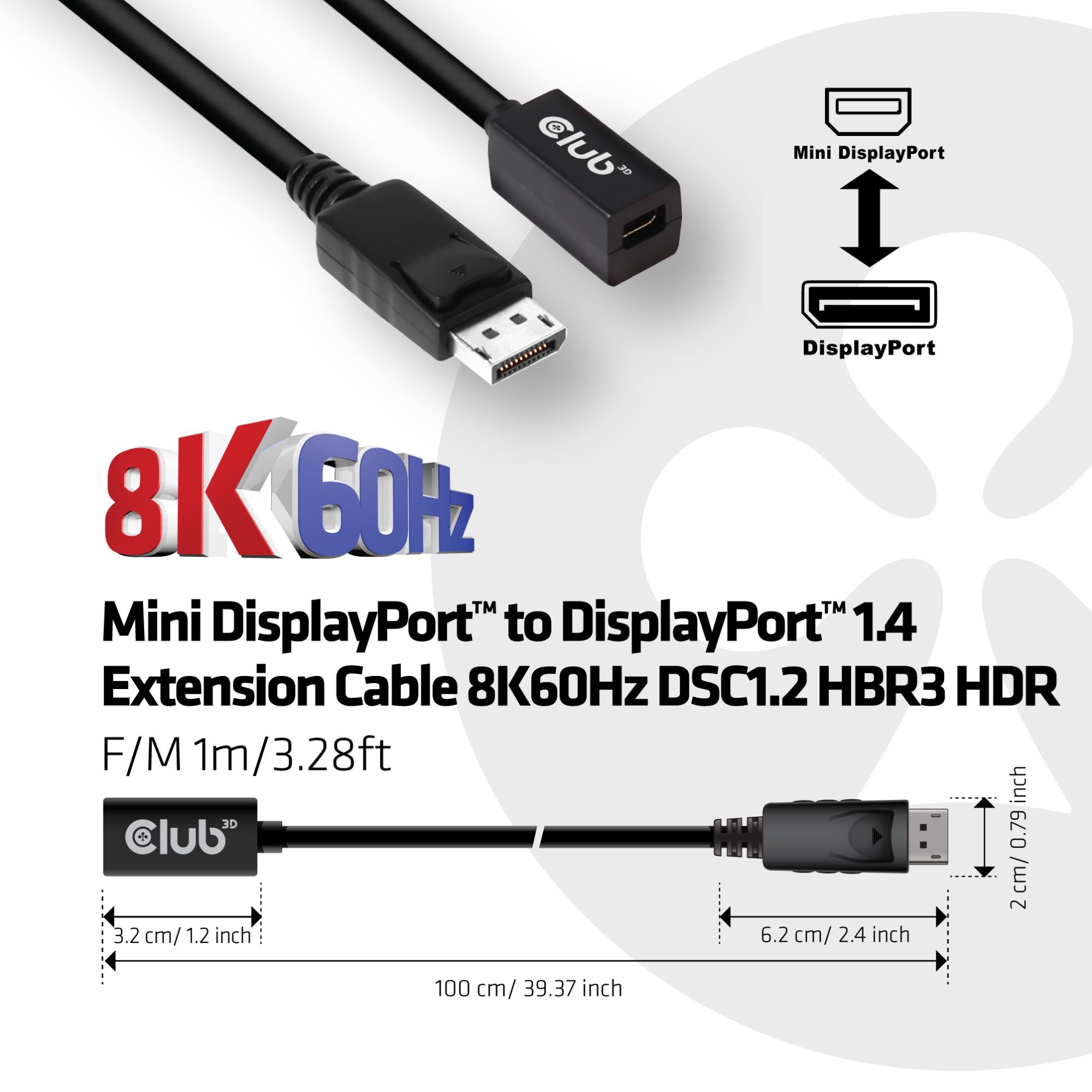

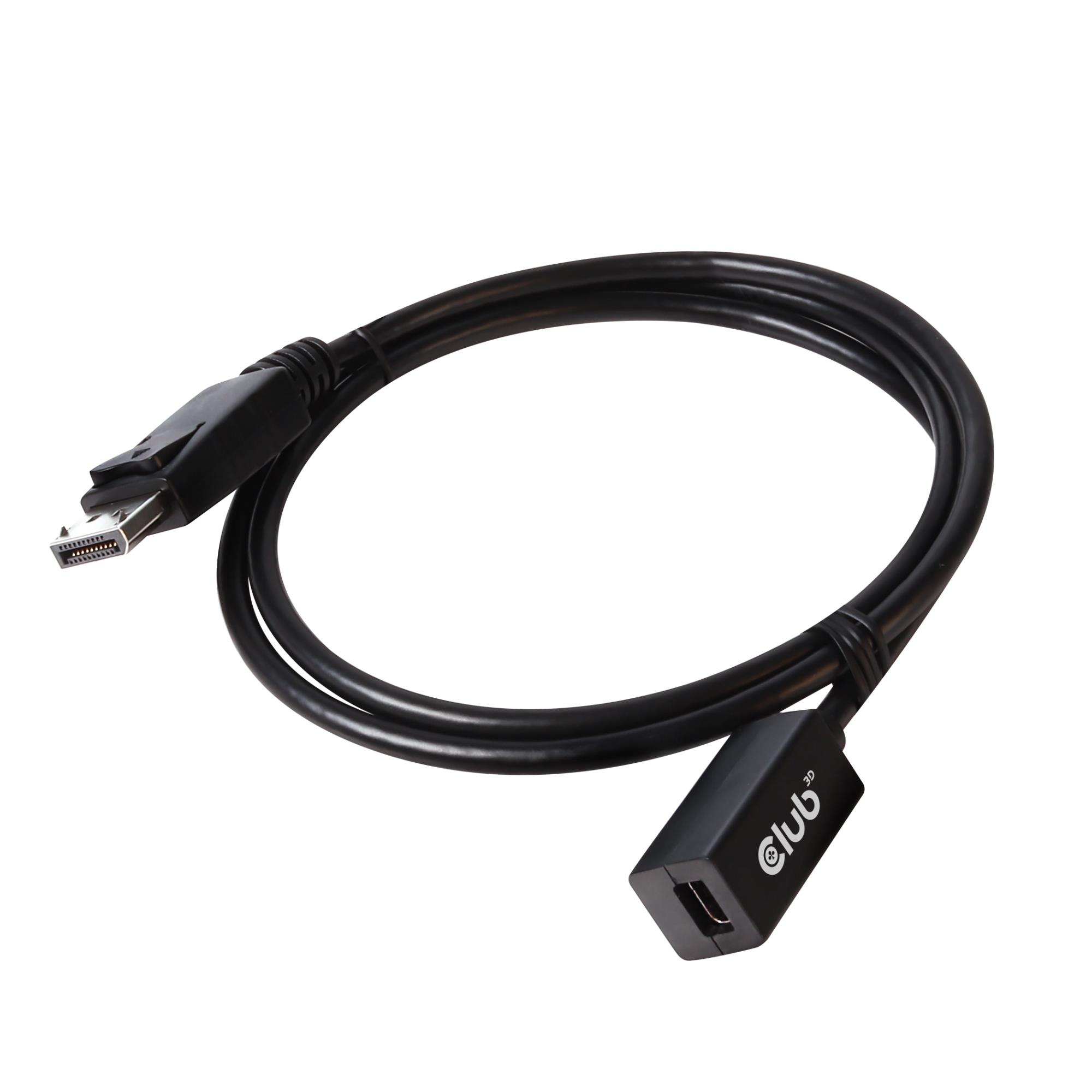

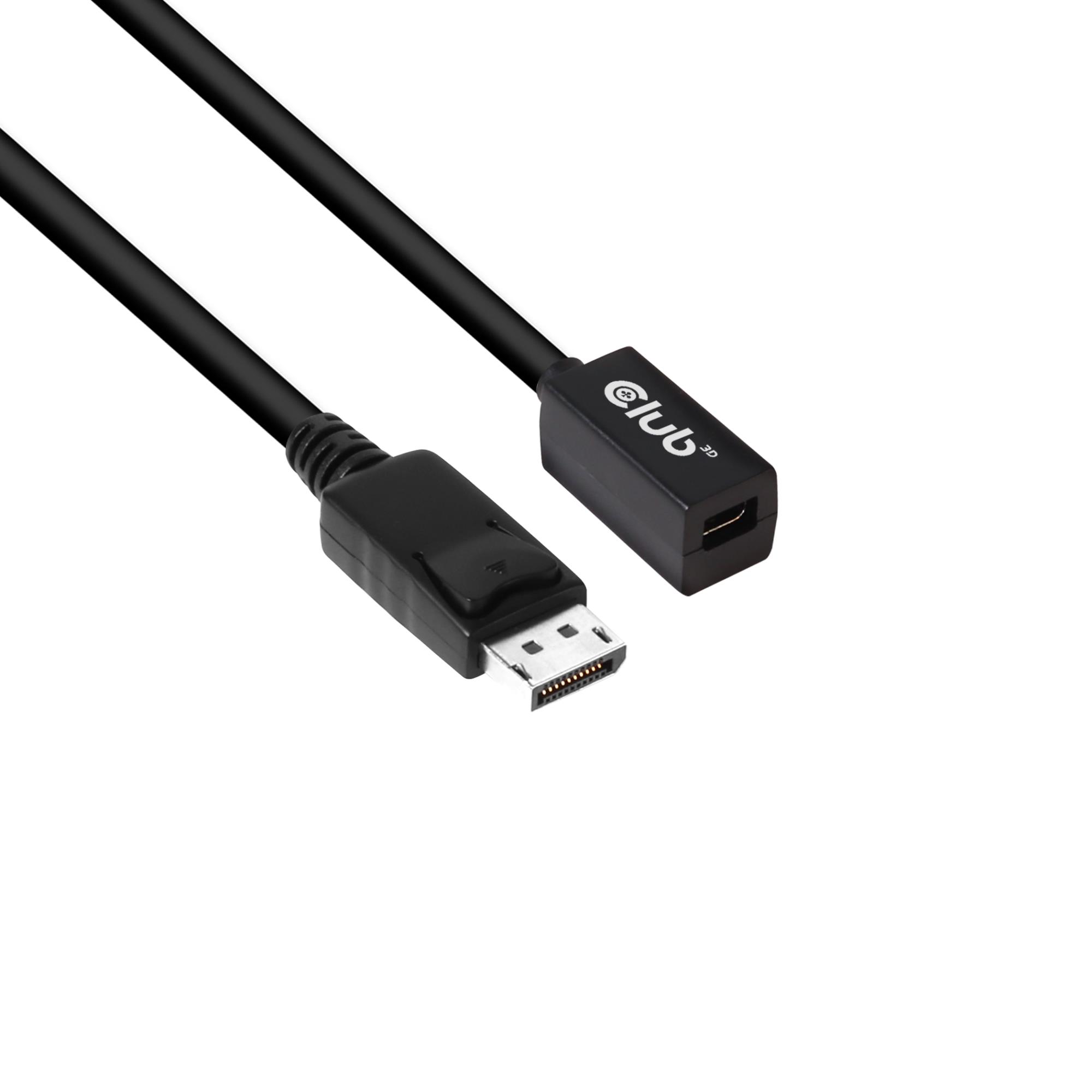

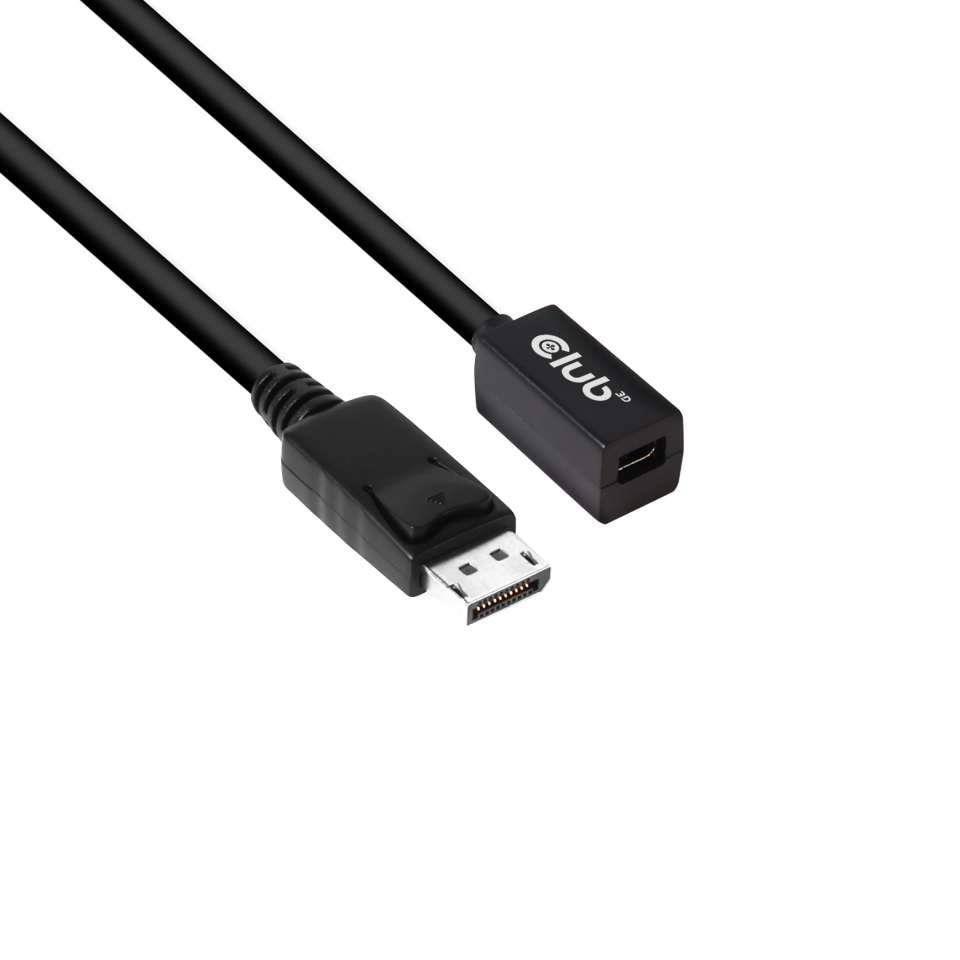

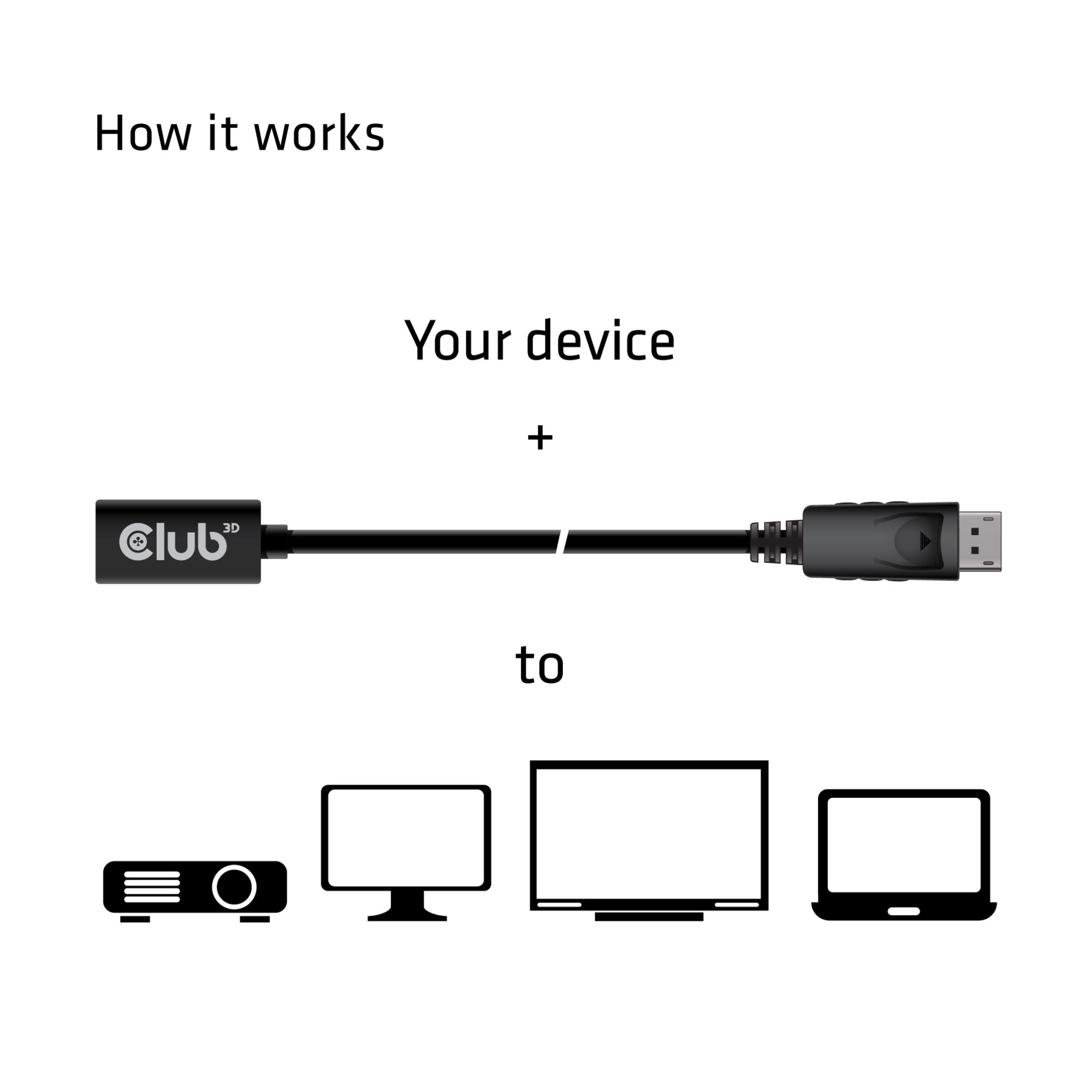

CAC-1120- Club 3D MiniDisplayPort™ 1.4 to DisplayPort Bidirectional Extension Cable 8K60Hz DSC 1.2 HBR3 HDR enables the connection of your standard DisplayPort™ supported (Gaming) PC or Laptop to any miniDisplayport™ cable to extend the distance to your miniDisplayPort™ supported Television, Monitor, Projector or other miniDisplayPort™ supported device. DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.
It features locking DisplayPort™ connectors providing a secure, dependable connection. Simply press the built-in one-touch latch button to unlock the connector.

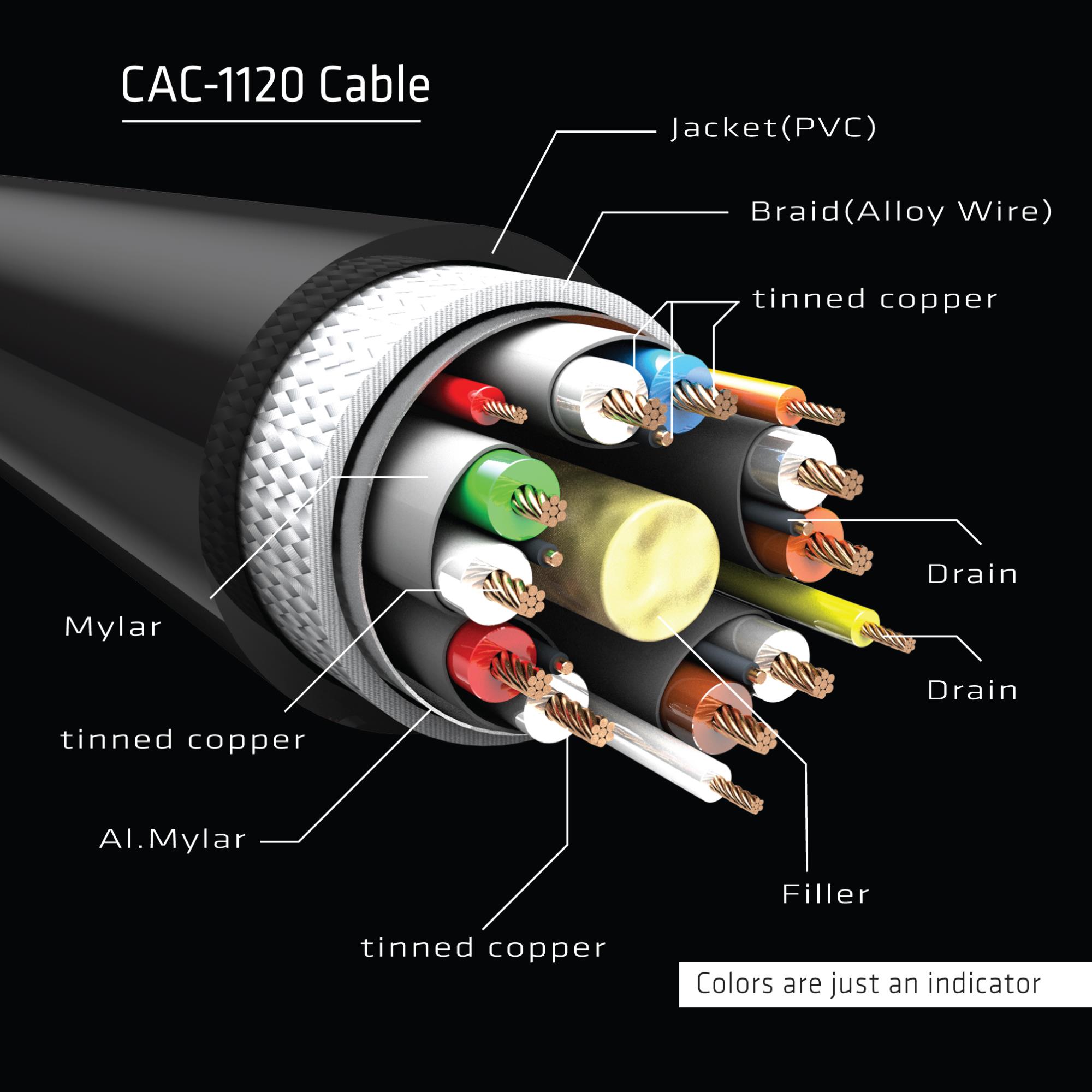

The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 32AWG and fully Bi-Directional.
- Fully DisplayPort™ Version 1.4 Compliant, HBR3, HDR 32.4Gbps
- Support for Display Stream Compression (DSC) 1.2
- Support for Forward Error Correction
- Support for up to 32 Inline Audio Channels
- Downwards compatible to older DisplayPort standards
- Support resolutions up to 8K @ 60Hz and 4K @ 144Hz
- The Cable is 32AWG and fully Bi-Directional
| Summary | CLUB3D Mini DisplayPort 1.4 to DisplayPort Extension Cable 8K60Hz DSC 1.2 HBR3 HDR Bidirectional F/M 1m/3.28ft. Cable length: 1 m, Connector 1: Mini DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, Certification: FCC, CE EMI. Weight: 42 g. Package width: 145 mm, Package depth: 145 mm, Package height: 45 mm. Quantity per pack: 1 pc(s) |
|---|---|
| Vendor Homepage | https://www.club-3d.com/en/cat/1606/CABLES/ |
| Category Code | CDP |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |
| 3D | Yes |
| AWG wire size | 32 |
| Cable length | 1 m |
| Cable type | Round cable |
| Connector 1 | Mini DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Female |
| Connector 2 | DisplayPort |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Data transfer rate | 32.4 Gbit/s |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |
| DisplayPort version | 1.4 |
| HDCP | Yes |
| Maximum refresh rate | 144 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Supported graphics resolutions | 3840 x 2160/7680 x 4320 |
| Supported video modes | 2160p/4320p |
| Certification | FCC, CE EMI |
| Compliance certificates | RoHS |
| Weight | 42 g |
| Package depth | 145 mm |
| Package height | 45 mm |

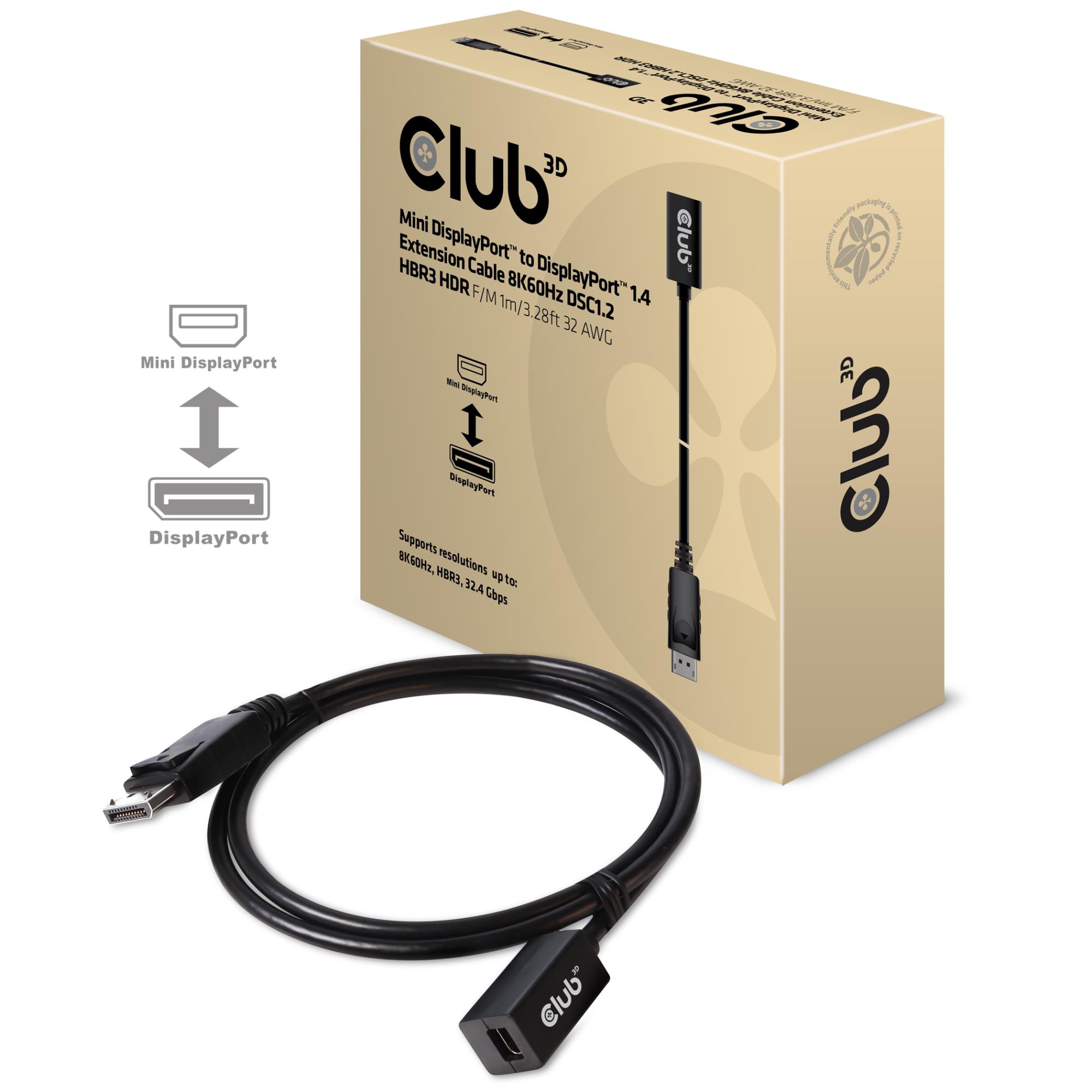

| Package type | Box |
| Package weight | 97 g |
| Package width | 145 mm |
| Paper/cardboard packaging weight | 46 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Quantity per pack | 1 pc(s) |
| Country of origin | Netherlands |
| Harmonized System (HS) code | 8544 4290 |
| Model name | CAC-1120 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0009461 cubm |
| Unit Calculated Weight | 0.09 kg |
