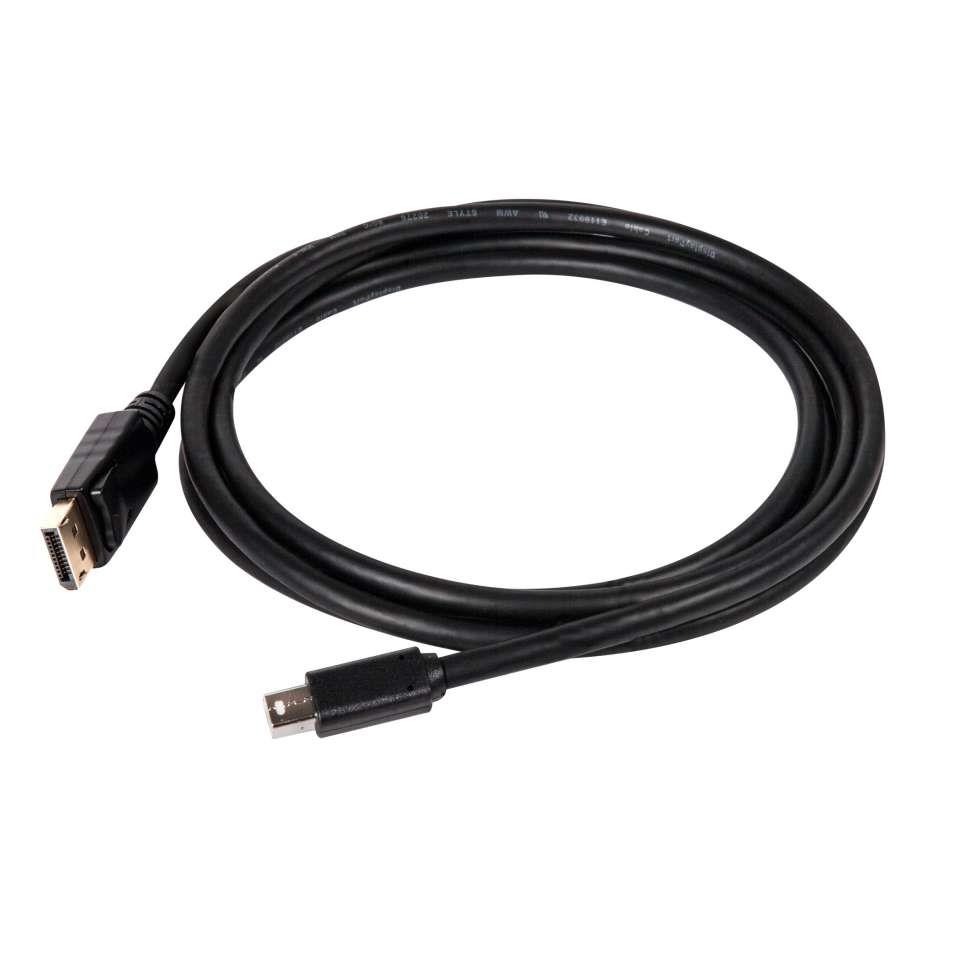

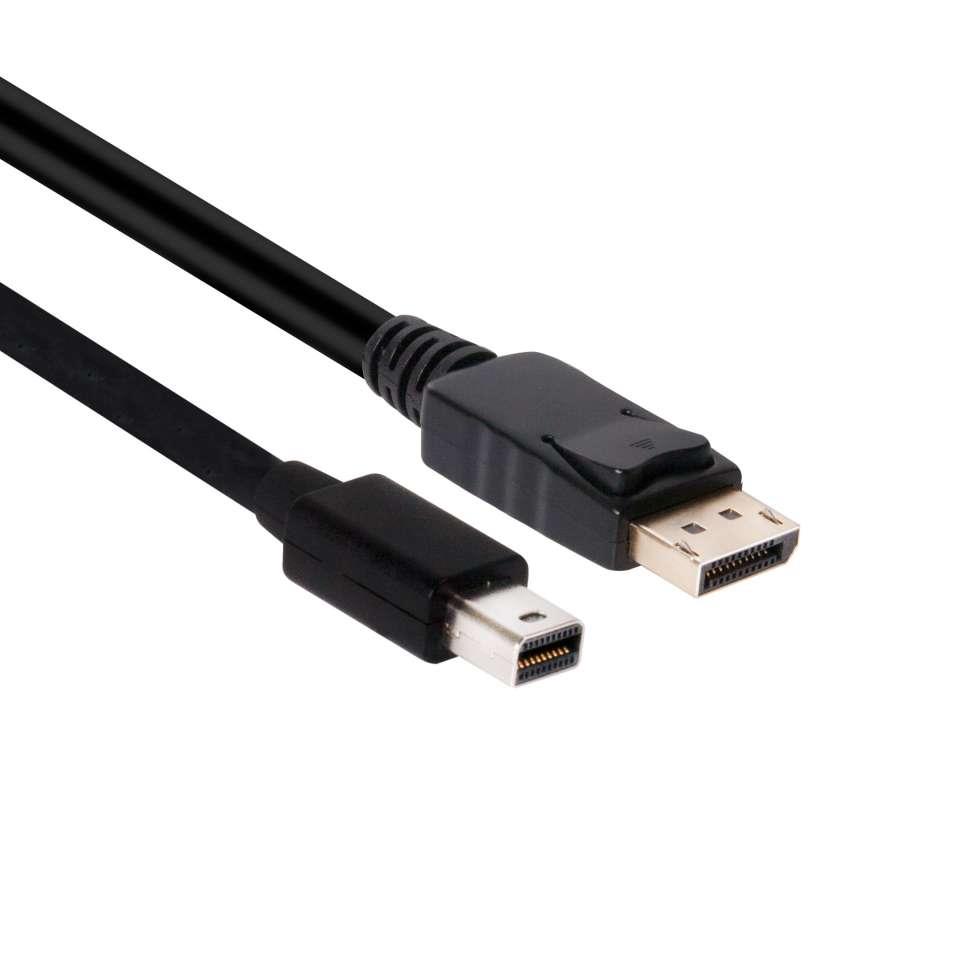

The Club 3D Mini DisplayPort™ to DisplayPort™ 1.2 cable enables the connection of your Mini DisplayPort™ supported source device to a monitor or other DisplayPort™ supported device. It features a locking DisplayPort connector providing a secure, dependable connection. Simply press the built-in one- touch latch button to unlock the connector. The Cable is Bi-Directional.
The soft UltraFlex jacket protects the cable from bends and deformation damage.
- Professional Quality DisplayPort 1.2 Cable
- Supports up to 21.6 Gbps and 4K 60Hz
- Bi-Directional
| Summary | CLUB3D Mini DisplayPort to DisplayPort 1.2 M/M 2m/6.56ft 4K60Hz. Cable length: 2 m, Connector 1: Mini DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, Certification: RoHS, WEEE, CE, REACH. Weight: 65 g. Package width: 150 mm, Package depth: 215 mm, Package height: 18 mm. Quantity per pack: 1 pc(s) |
|---|---|
| Vendor Homepage | https://www.club-3d.com/en/detail/2429/minidisplayport_a_displayport_1.2_cable_m-m_2m-6.56ft/ |
| Category Code | CDP |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.155 |
| Unit Box Width | 0.02 |
| 3D | Yes |
| AWG wire size | 30 |

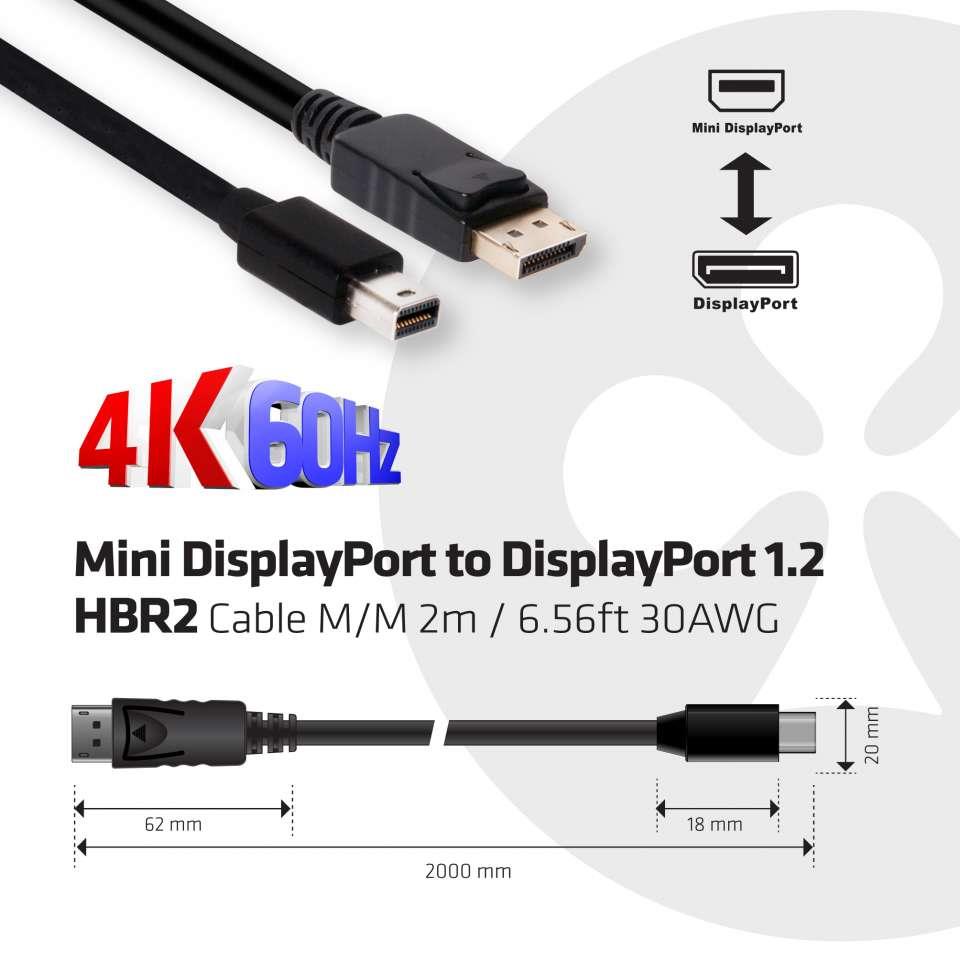

| Cable length | 2 m |
| Cable type | Round cable |
| Connector 1 | Mini DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Copper |
| Data transfer rate | 21.6 Gbit/s |
| DisplayPort Content Protection (DPCP) | Yes |
| DisplayPort version | 1.2a |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Number of shielding layers | 4 |
| Plug and Play | Yes |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/3840 x 2160/4096 x 2160 |
| Supported video modes | 1080p/2160p |
| Certification | RoHS, WEEE, CE, REACH |
| Compliance certificates | RoHS |
| Weight | 65 g |
| Package depth | 215 mm |
| Package height | 18 mm |

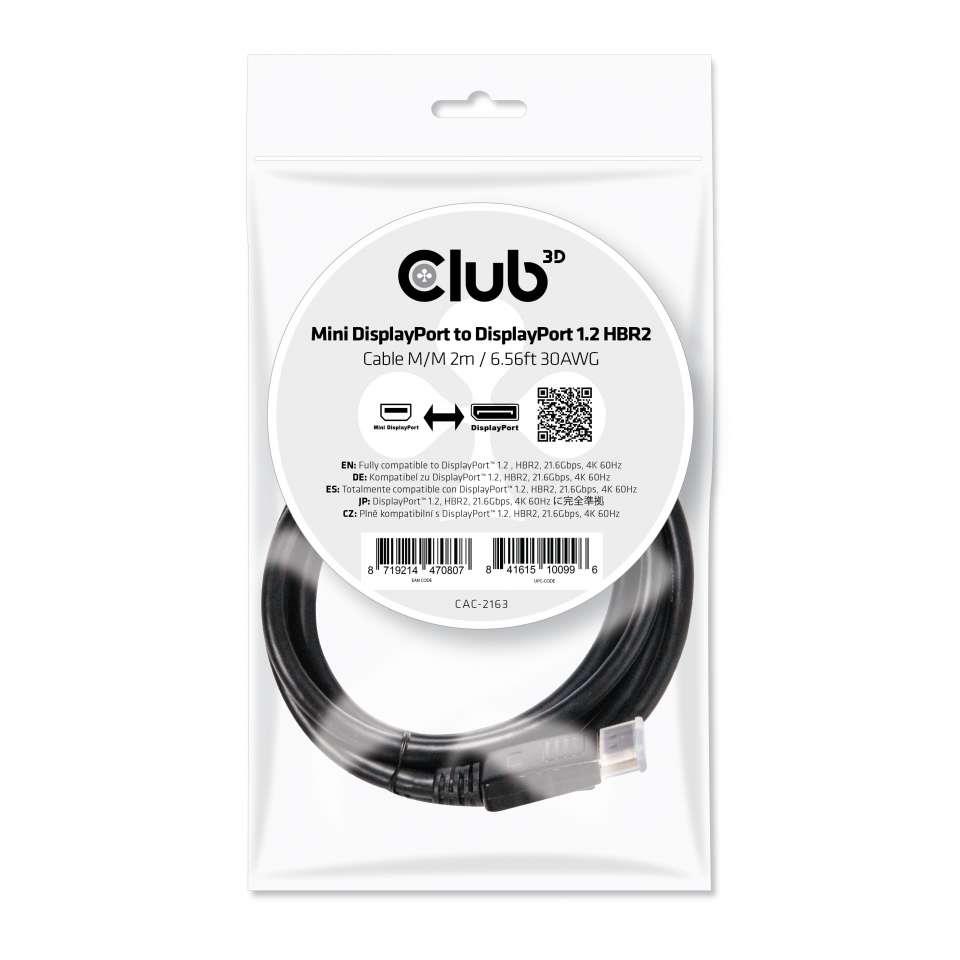

| Package type | Polybag |
| Package width | 150 mm |
| Paper/cardboard packaging weight | 0 g |
| Plastic packaging weight | 10 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 300 g |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 8544 4290 |
| Products per master (outer) case | 10 pc(s) |
| Model name | Mini DisplayPort to DisplayPort 1.2 M/M 2m/6.56ft 4K60Hz |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000713 cubm |
| Unit Calculated Weight | 0.08 kg |
