- Max. 30 fps@1080p
- Smart IR Illumination
- 30 m illumination distance
- 3.6 mm fixed lens (2.8 mm, 6 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC

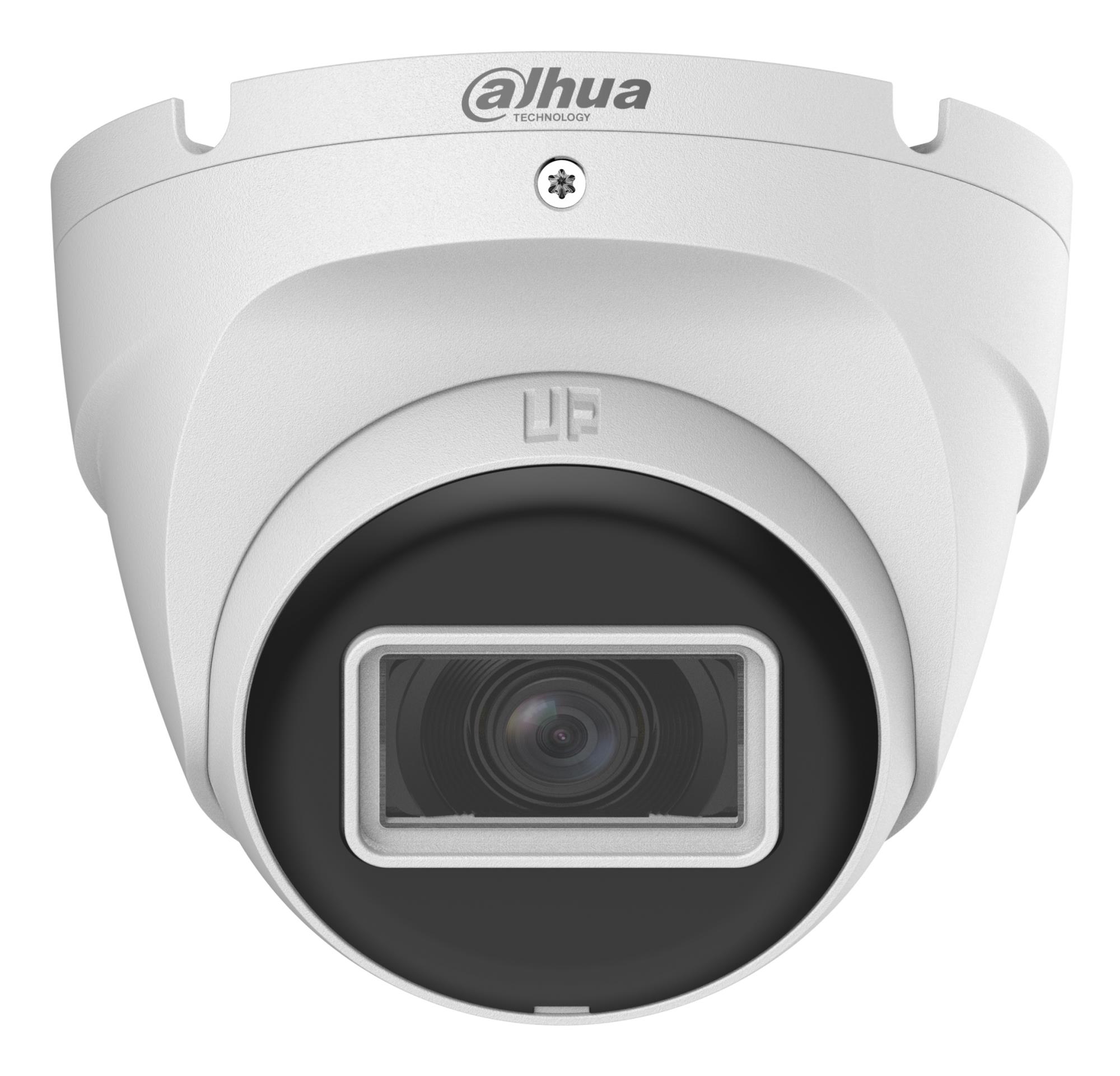

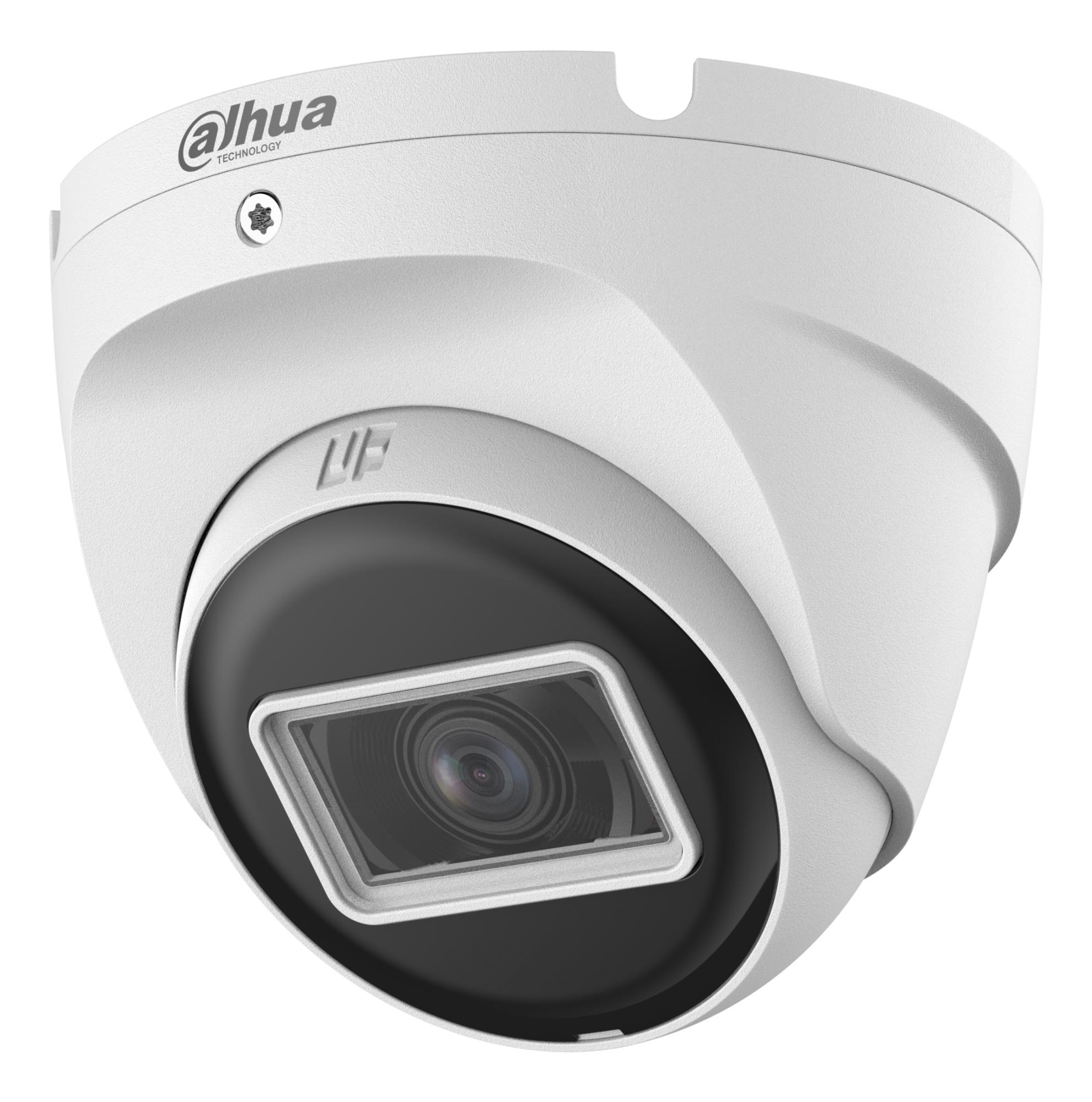

Dahua Technology HAC-T2A21-U-0280B. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 100°. Sensor type: CMOS. Detect distance: 44.7 m, Observe distance: 17.9 m, Recognize distance: 8.9 m
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Cooper-Series/1080P/HAC-T2A21-U |
|---|---|
| Category Code | HSC |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.102 |
| Unit Box Width | 0.101 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 65 dB |
| Placement supported | Indoor & outdoor |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Turret |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 117 ° |
| Lens viewing angle, horizontal | 100 ° |
| Lens viewing angle, vertical | 54 ° |
| Minimum illumination | 0.002 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 78 ° |
| White balance | Auto |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.5 m |
| Detect distance | 44.7 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 4.5 m |
| Maximum aperture number | 2 |
| Observe distance | 17.9 m |
| Recognize distance | 8.9 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 2 |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| NTSC resolutions | 1920 x 1080, 960 x 576, 960 x 480 pixels |
| PAL resolutions | 1920 x 1080, 960 x 576, 960 x 480 pixels |
| Smart IR | Yes |
| Total megapixels | 2 MP |
| Bluetooth | No |
| Wi-Fi | No |
| Built-in HDD | No |
| BNC output ports | 1 |
| DC-in jack | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 2.8 W |
| Power source type | DC |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Diameter | 94 mm |
| Height | 77.9 mm |
| Weight | 270 g |
| Compliance certificates | CE |
| Package weight | 330 g |
| Manual | Yes |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0008242 cubm |
| Unit Calculated Weight | 0.36 kg |
