- Max. 25 fps@5 MP (16:9 video output)
- Starlight, 3D NR
- 25 m illumination distance
- Quick-to-install eyeball saves installation time
- Built-in MIC
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP50, 12 VDC

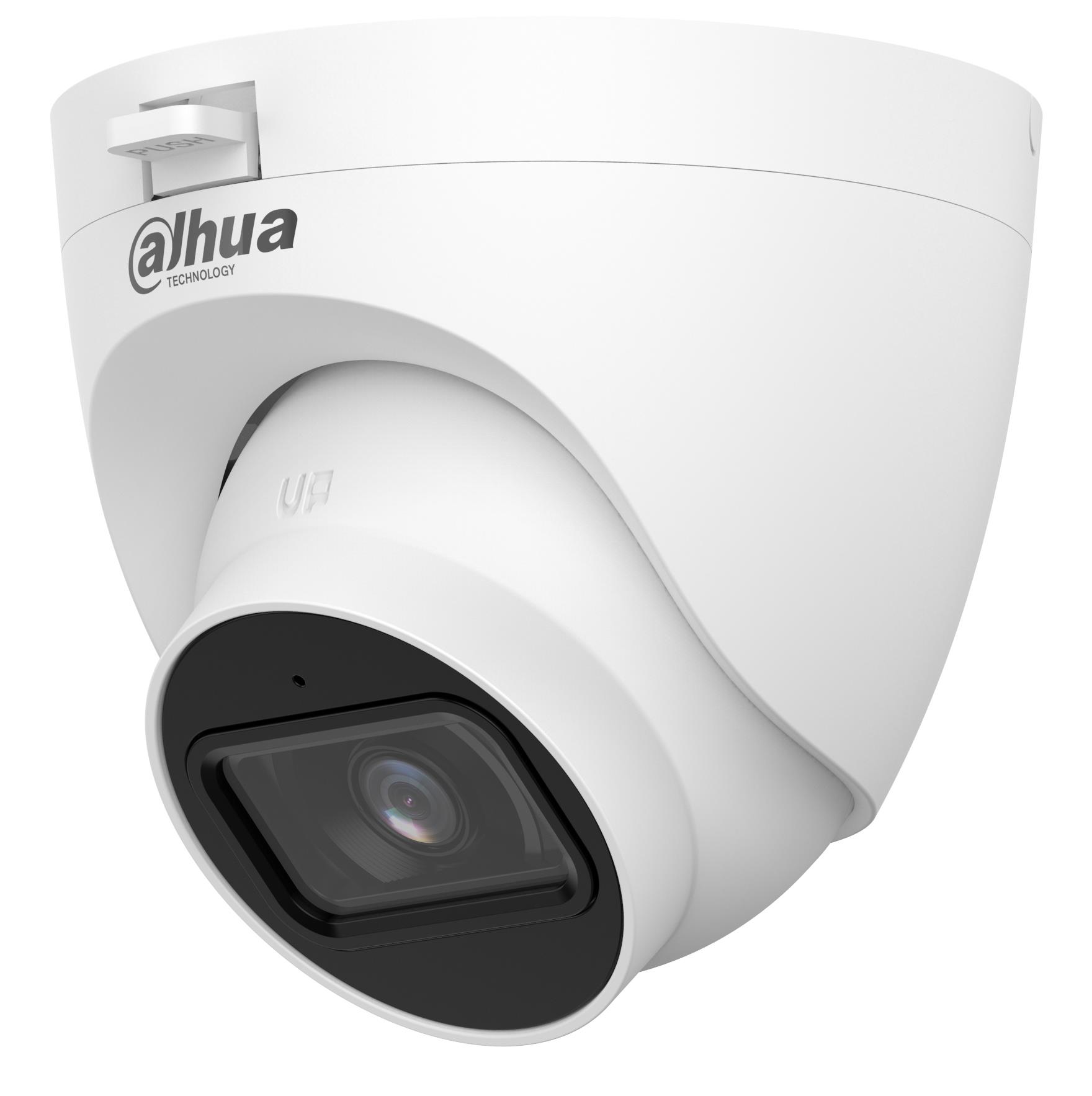

| Summary | Dahua Technology HAC-HDW1500TRQ-A-0280B-S3-DIP. Type: CCTV security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.001 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 113.3°. Sensor type: CMOS. Detect distance: 59.8 m, Observe distance: 23.9 m, Recognize distance: 12 m |
|---|---|
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Starlight/HAC-HDW1500TRQ-A=S3 |
| Category Code | HSC |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.125 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Turret |
| Housing material | Plastic |
| International Protection (IP) code | IP50 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 134.3 ° |
| Lens viewing angle, horizontal | 113.3 ° |
| Lens viewing angle, vertical | 62.1 ° |
| Minimum illumination | 0.001 lx |
| Number of Privacy masking areas | 8 |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 78 ° |
| White balance | Area white balance/Auto |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.8 m |
| Detect distance | 59.8 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 6 m |
| Maximum aperture number | 1.6 |
| Observe distance | 23.9 m |
| Recognize distance | 12 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 25 m |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2880 x 1620 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Smart IR | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480/960 x 576 |
| Total megapixels | 5 MP |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Built-in HDD | No |
| BNC output ports | 1 |
| DC-in jack | Yes |
| Mirror | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 2.9 W |
| Power source type | DC |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Diameter | 97.1 mm |
| Height | 93 mm |
| Weight | 170 g |
| Compliance certificates | CE |
| Package weight | 230 g |
| Manual | Yes |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00165 cubm |
| Unit Calculated Weight | 0.27 kg |
