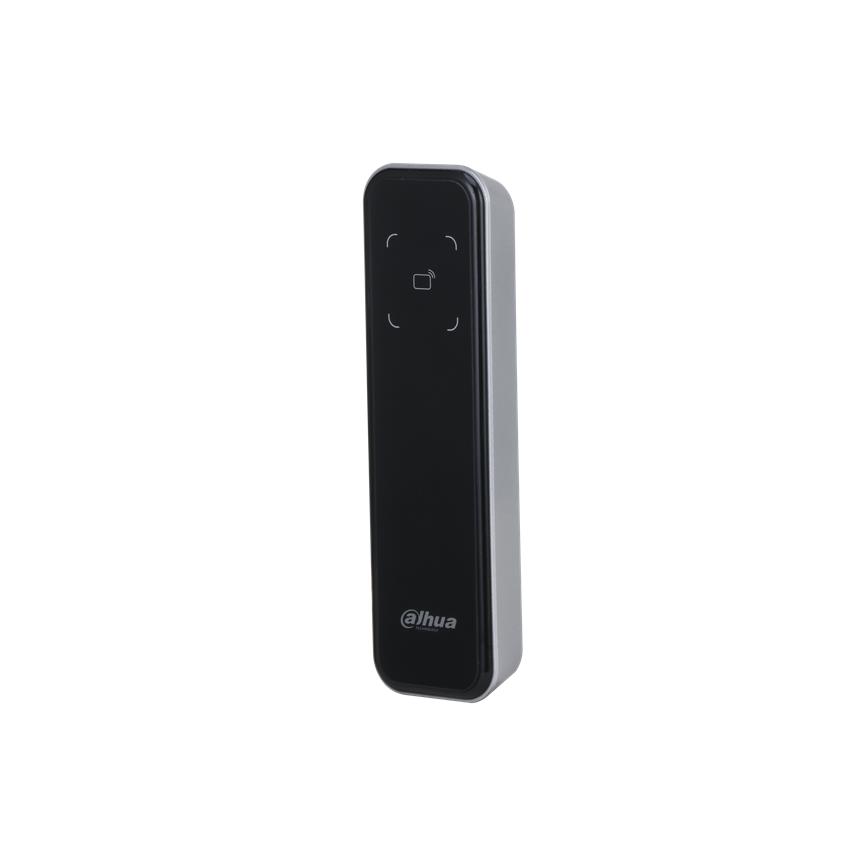

Dahua Card Swiping, Bluetooth card Reader
> PC material, tempered glass panel and IP66, suitable for indoor and outdoor use.
> Contactless card reading for IC cards (Mifare cards).
> Unlock through card swiping and Bluetooth.
> Communicates through the RS-485 port, Wiegand port, and Bluetooth.
> Prompts using the buzzer and indicator light.
> Supports the anti-tampering alarm.
> The built-in watchdog program can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment.
> All the connection ports have overcurrent and overvoltage protection.
> Works with the DMSS mobile client and ASC3202B.
Specifikacijos
| Vendor Homepage | www.dahuasecurity.com/products/All-Products/Access-Control--Time-Attendance/Access-Control/Readers/ASR2200A-B |
|---|---|
| Category Code | CRL |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.075 |
| Operating temperature range | –30 °C to +70 °C |
| Power supply requirements | 12 VDC, 0.5 A |
| Dimensions | 135 × 40 × 15 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0007313 cubm |
| Product Net Weight | 0.12 kg |
| Unit Calculated Weight | 0.21 kg |
