PURE WINGS 3
140mm PWM 3-Pack
PERFORMANT, PROGRESSIVE, QUIET
With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM Triple Pack are the perfect addition to PCs for any application. The fans offer outstanding reliability and make for a long-lasting companion for your gaming system.
OPTIMIZED TO THE MAX
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 140mm PWM Triple Pack. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 140mm PWM Triple Pack.
PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM Triple Pack is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulence but also ensure Pure Wings 3 140mm PWM Triple Pack provides the performance that is needed, even in demanding configurations.
ICONIC DESIGN
Streamlined look makes it an instant timeless classic
Pure Wings 3 140mm PWM Triple Pack trims all the fat. Every part and single detail contributes to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 140mm PWM Triple Pack a timeless classic and elegant addition to every gaming PC.
RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 140mm PWM Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.

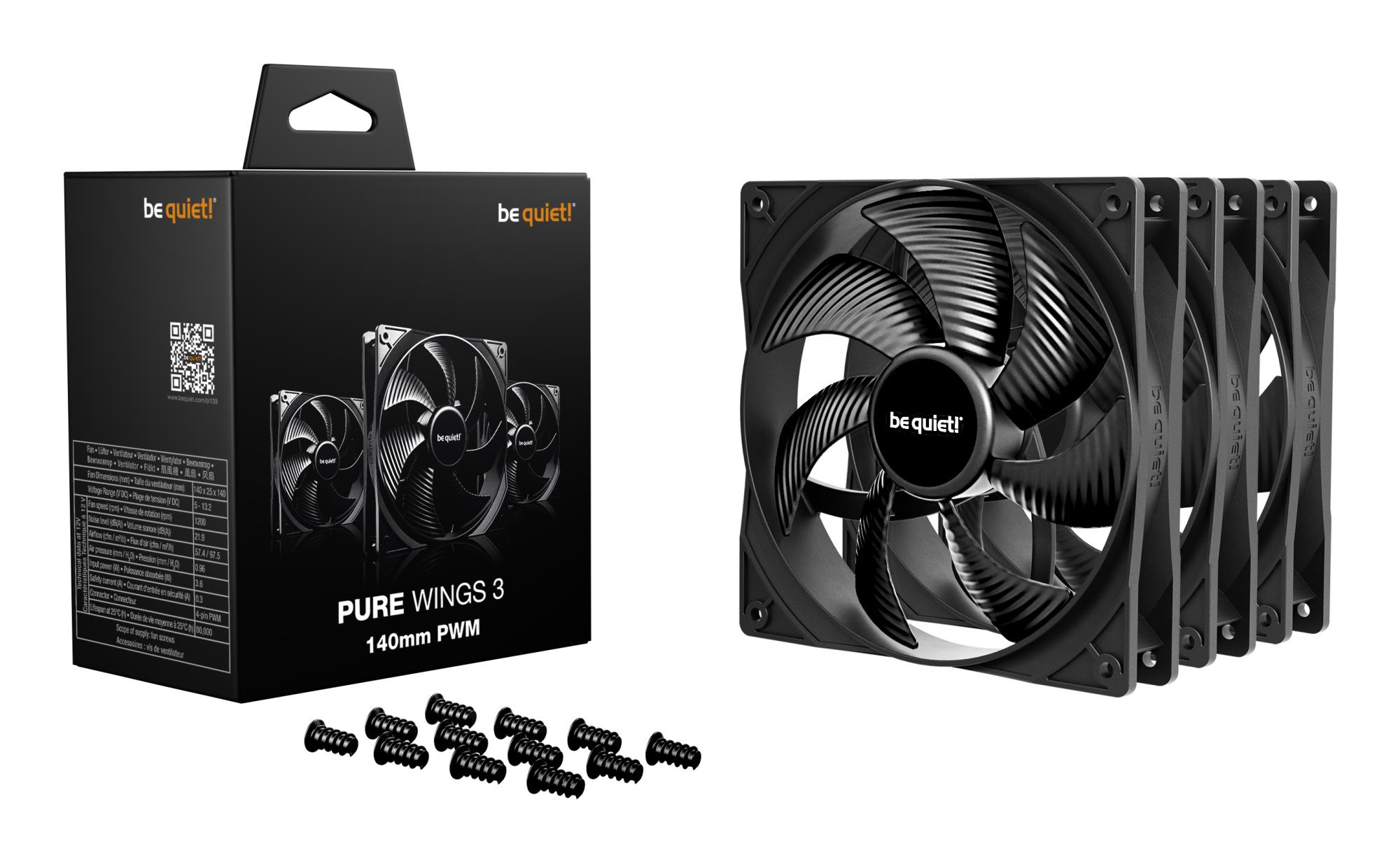

- 3 fans included
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure

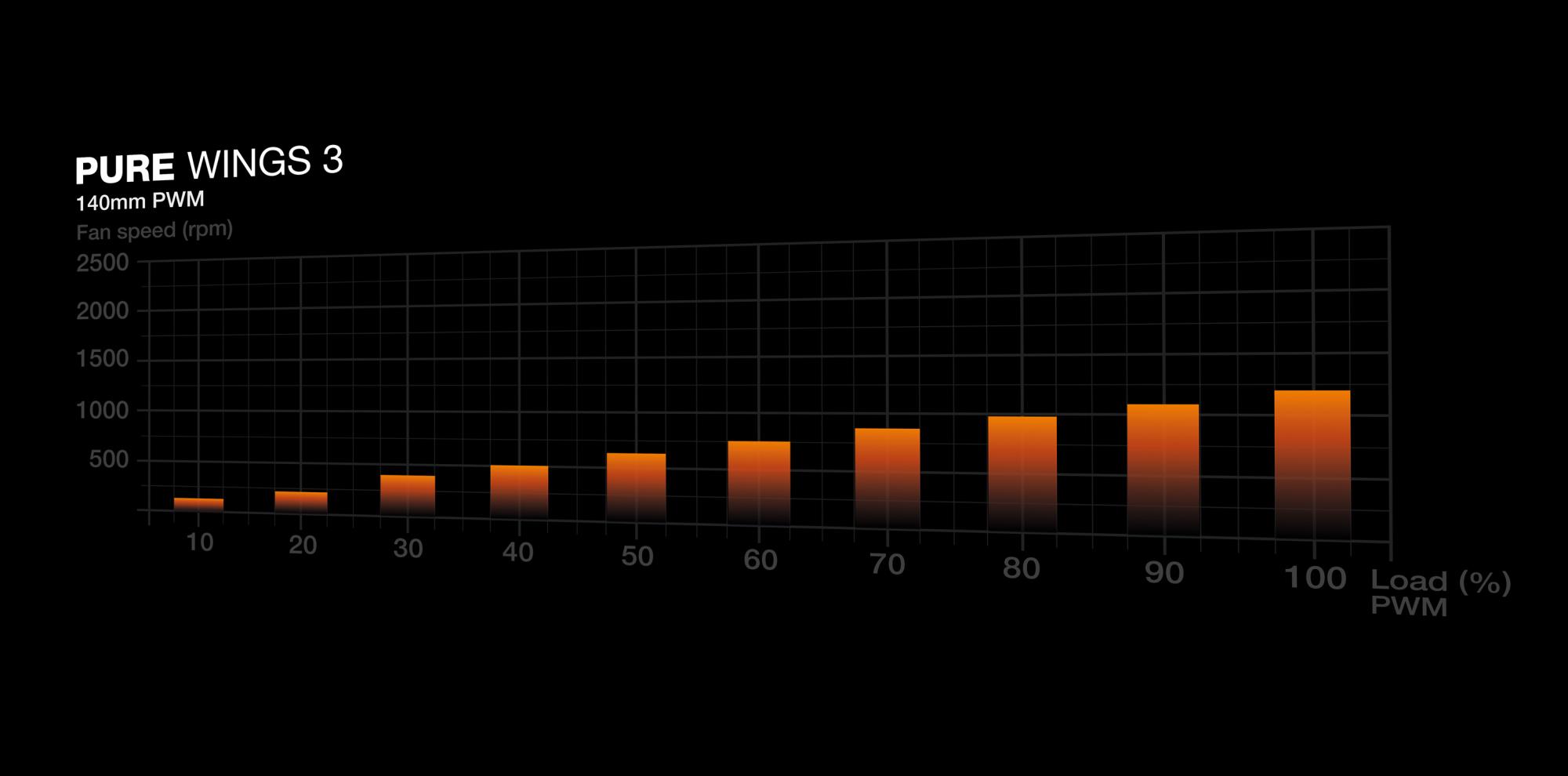

- Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
- Characteristics
Specifikacijos
| Vendor Homepage | https://www.bequiet.com/en/casefans/6700 |
|---|---|
| Category Code | COS |
| Unit Box Height | 0.081 |
| Unit Box Length | 0.143 |
| Unit Box Width | 0.153 |
| Airflow | 97.5 m³/h |
| Bearing type | Rifle bearing |
| Fan diameter | 140 mm |
| Fan's mean time to failure (MTTF) | 80000 h |
| Maximum air pressure | 0.96 mmH2O |
| Maximum airflow | 57.4 cfm |
| Noise level (high speed) | 21.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 3 pc(s) |
| Rotational speed (max) | 1200 RPM |
| Suitable location | Computer case |
| Type | Fan |
| Certification | RU |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Fan current | 0.3 A |
| Fan power consumption | 3.6 W |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Cable length | 0.46 m |

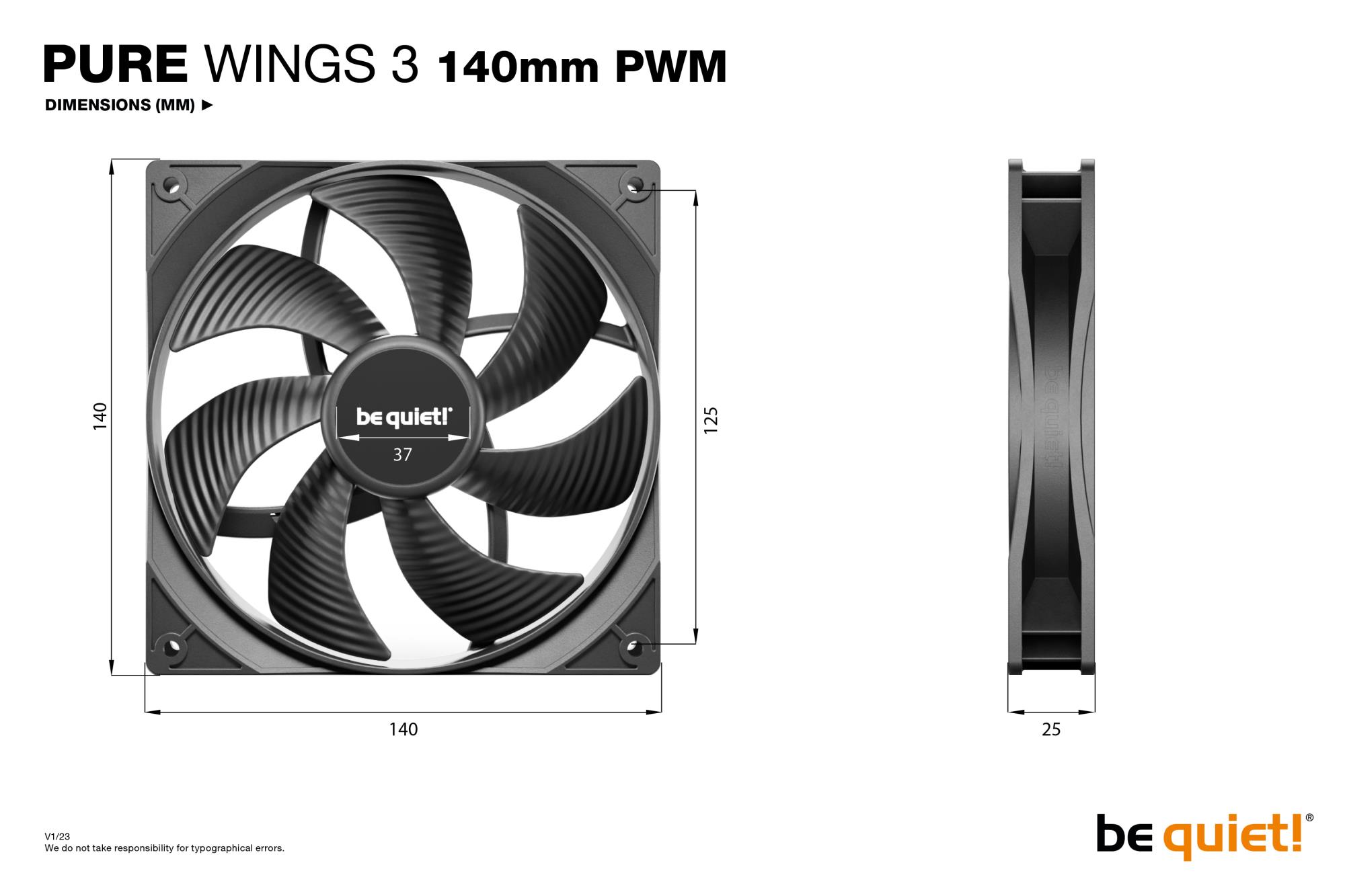

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan weight | 178 g |
| Package depth | 152 mm |
| Package height | 142 mm |
| Package weight | 650 g |
| Package width | 80 mm |
| Compliance certificates | CE/RoHS/UKCA/WEEE |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
| Package type | Hanging box |
| Screws included | Yes |
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case gross weight | 12910 g |
| Shipping (inner) case height | 304 mm |
| Shipping (inner) case length | 423 mm |
| Shipping (inner) case width | 344 mm |
| Model | BL139 |
| Model name | PURE WINGS 3 |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.002294 cubm |
| Unit Calculated Weight | 0.655 kg |
