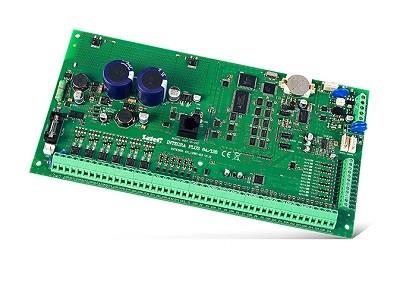

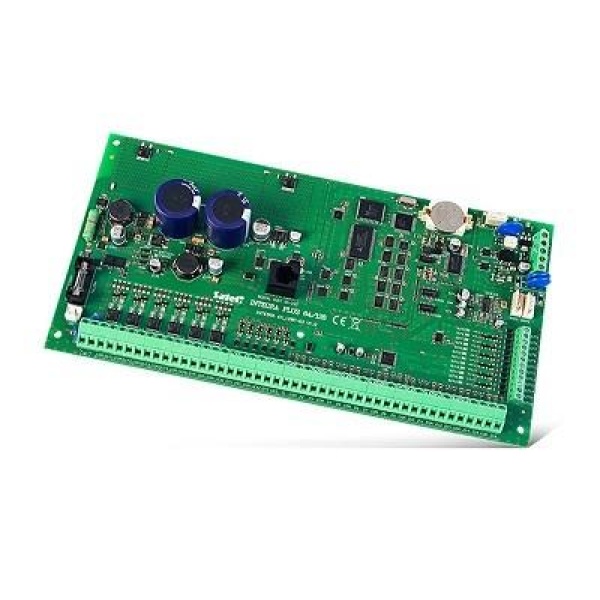

Description: EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs
– full compliance with EN50131 series of standards for Grade 3 equipment
– built-in advanced 2A+2A power supply with extended autodiagnostics
– up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
– USB port for programming via PC
– up to 32 partitions, 8 tenants
– up to 64fully programmable outputs
– dedicated buses for communication with keypads and expansion modules
– system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
– remote system operation with PC, smartphone or voice-guided telephone menu
– 64 independent timers for automatic control
– access control and home automation features
– non-volatile event log with 6143entries, with on-line printing support
– support for 192+8+1 user codes
– firmware upgrades via PC
Vendor Homepage: http://www.satel.pl/en/produktid/806
Max. number of outputs: 64
Max. number of zones: 64
Dimensions: 264 x 134 mm
Shipping box quantity: 1
Shipping Box Depth: 29.5
Shipping Box Height: 6
Shipping Box Weight: 0.51
Shipping Box Width: 15
Unit Brutto Volume: 0.002655
Unit Net Weight: 0.32
Unit Gross Weight: 0.51
CnCode: 85311030
Unit Box Width: 0.15
Unit Box Length: 0.295
Unit Box Height: 0.06
Full Description Line: Max. number of outputs 64|Max. number of zones 64
Category Code: CNP
