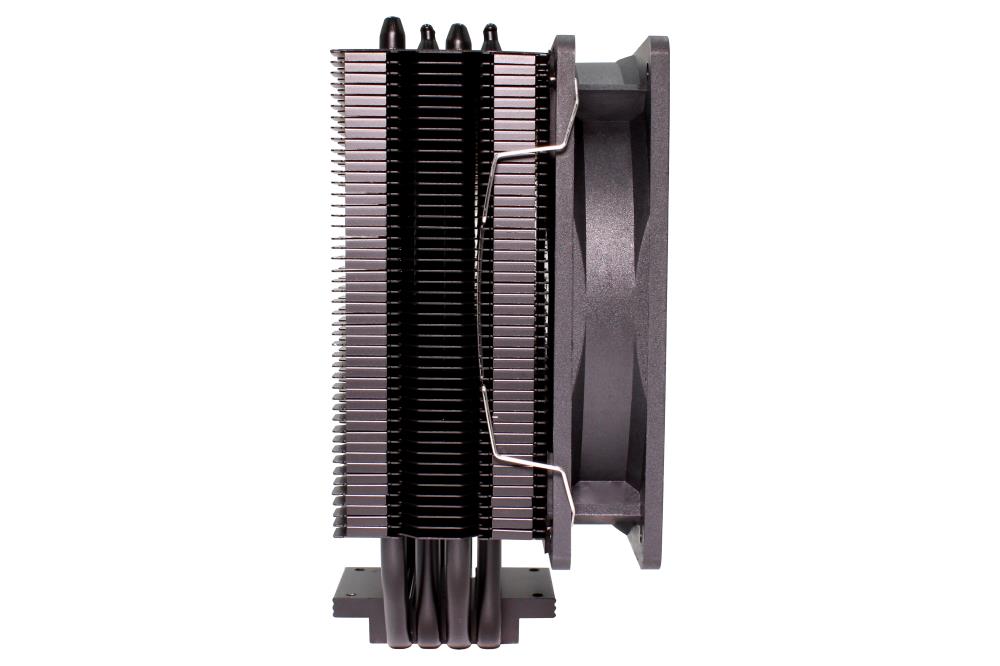

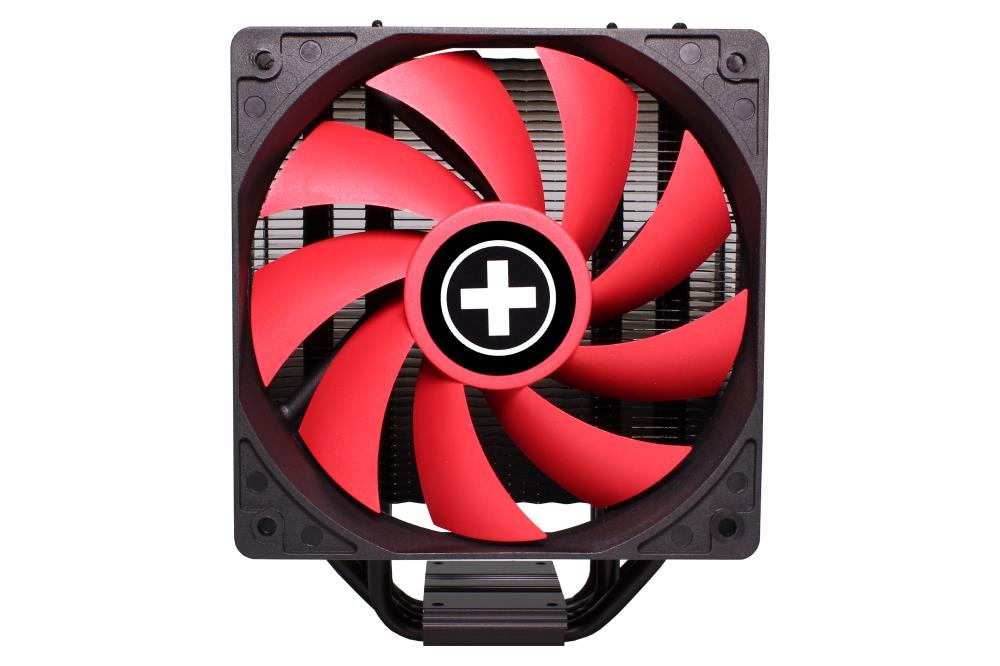

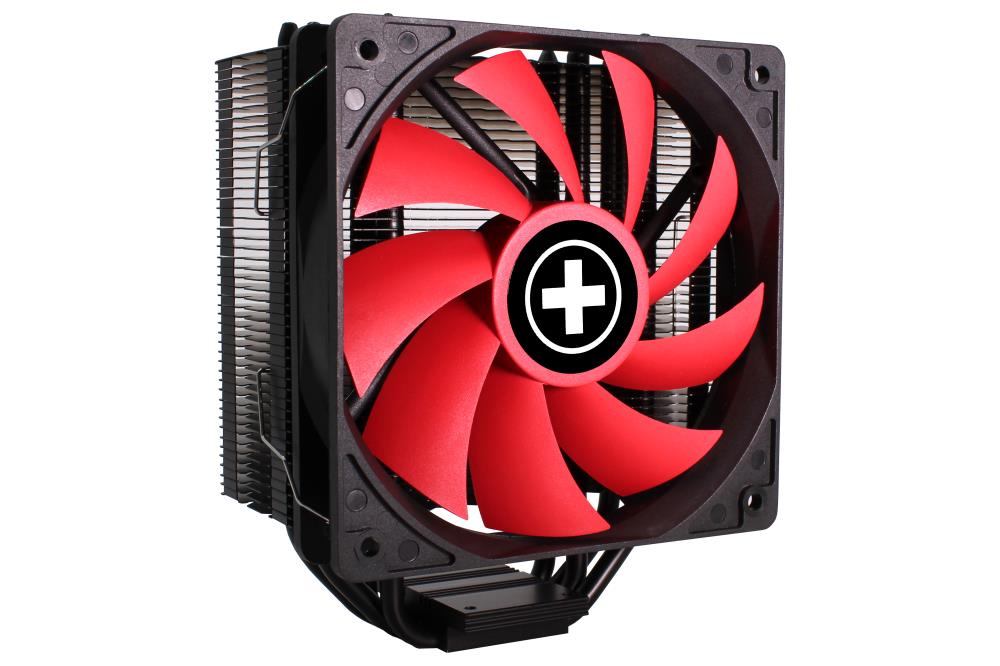

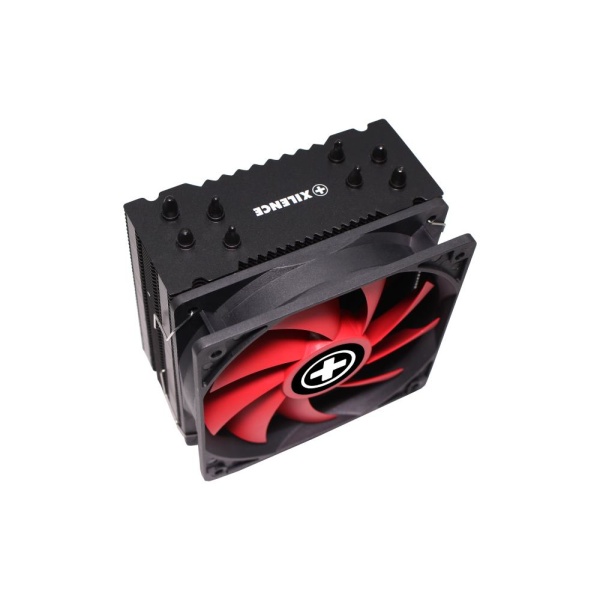

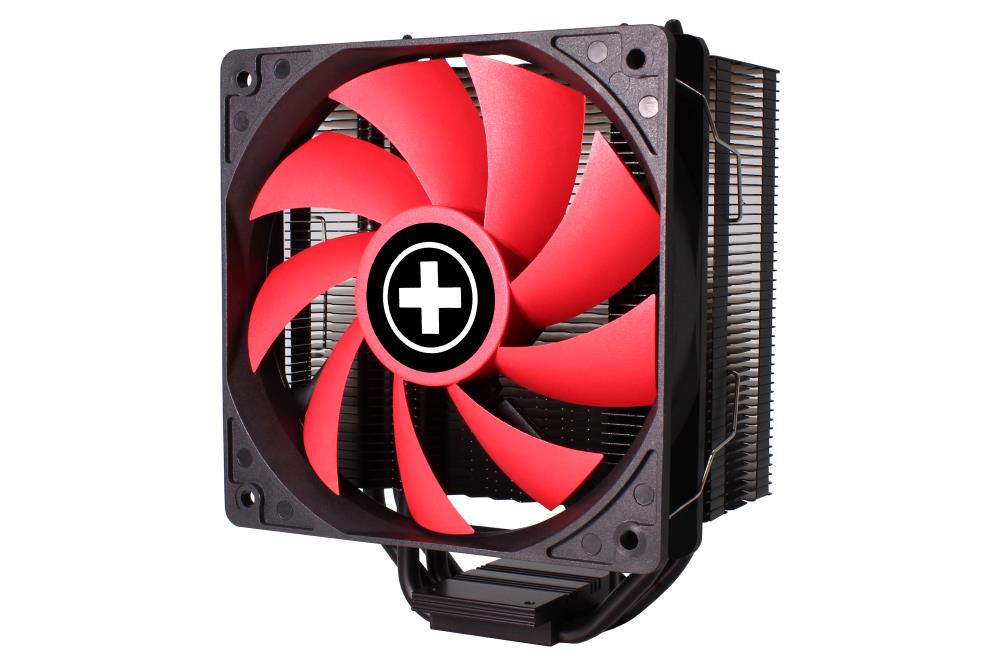

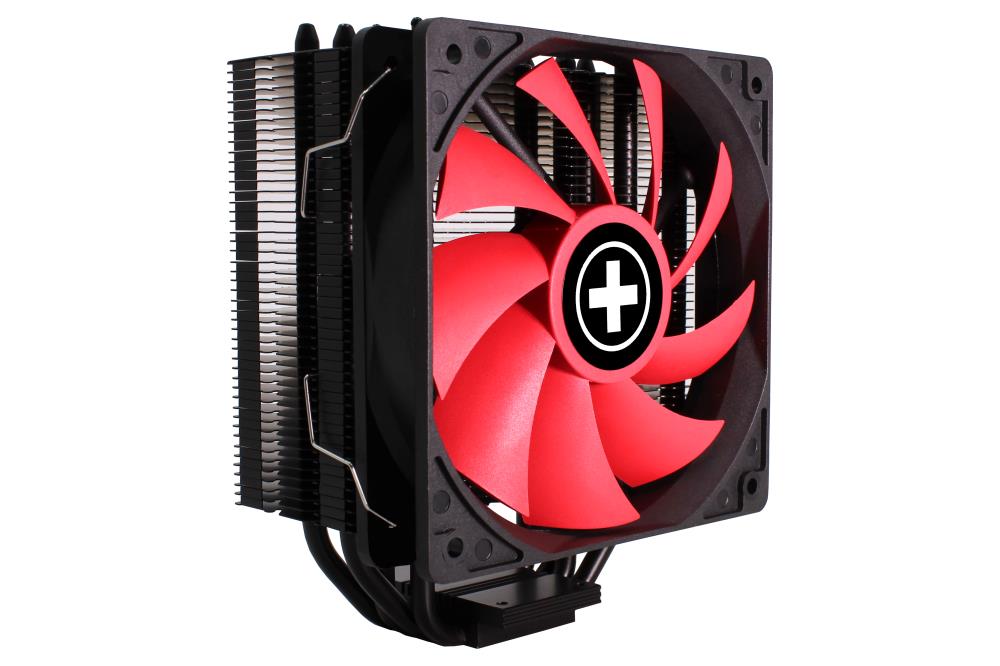

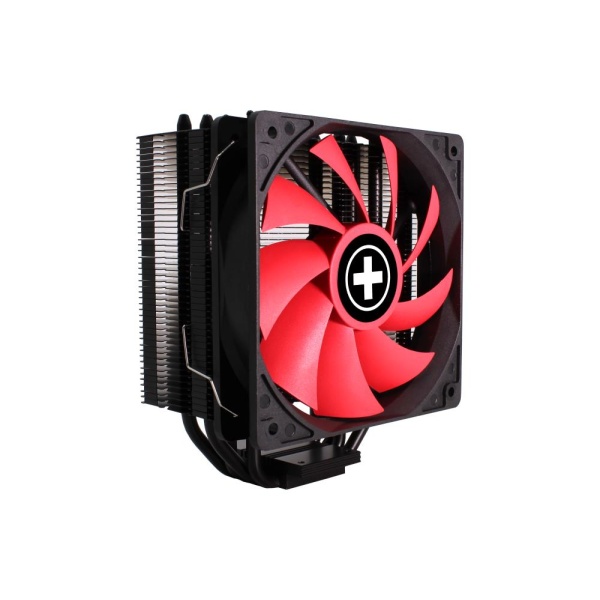

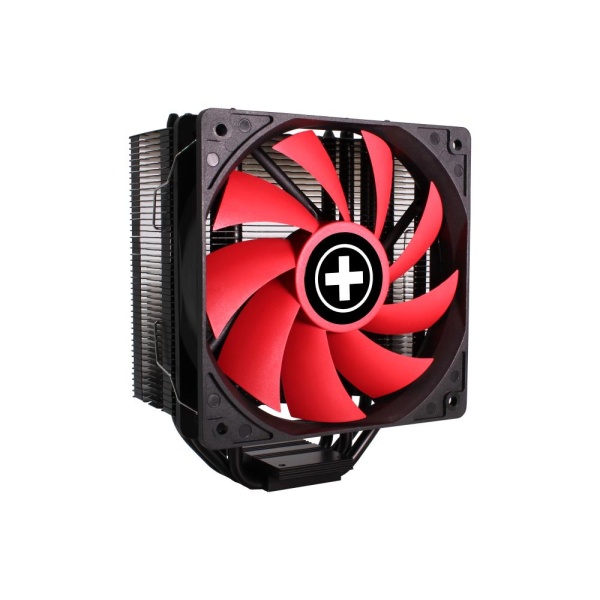

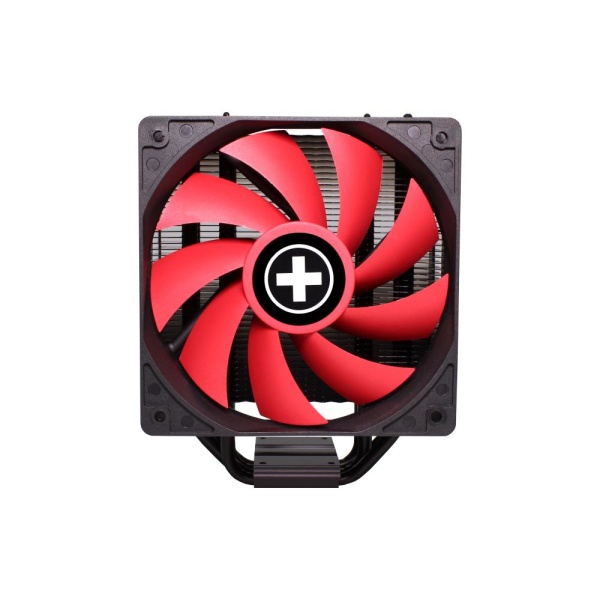

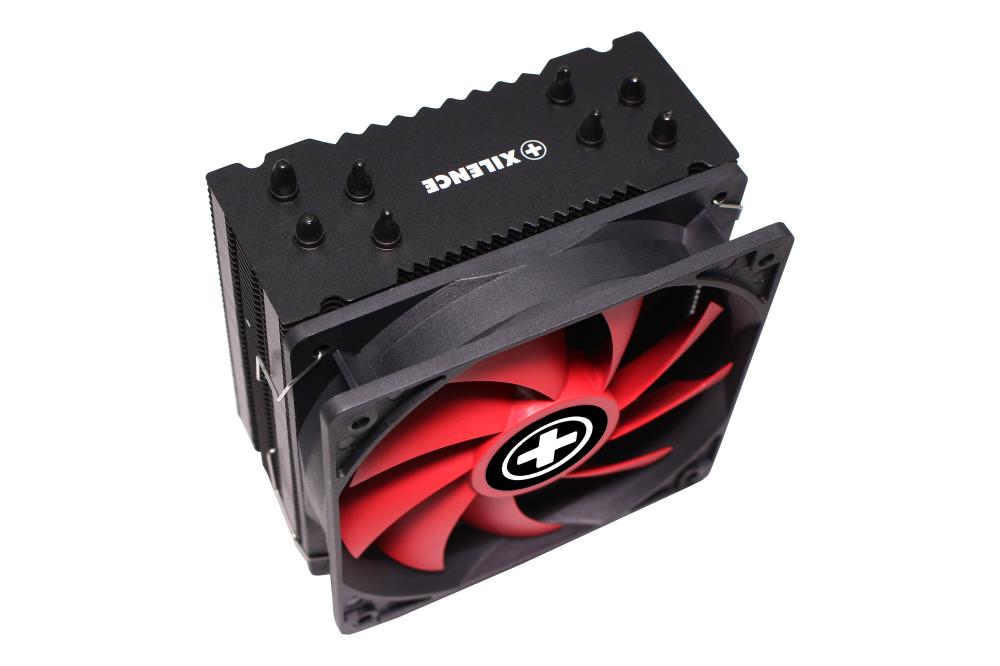

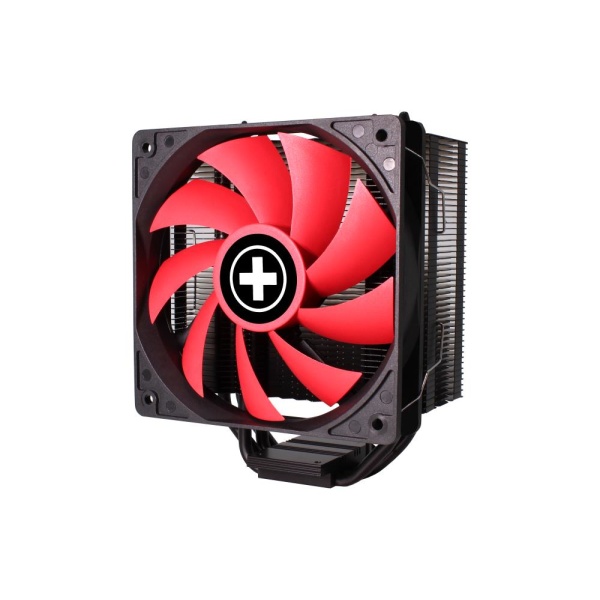

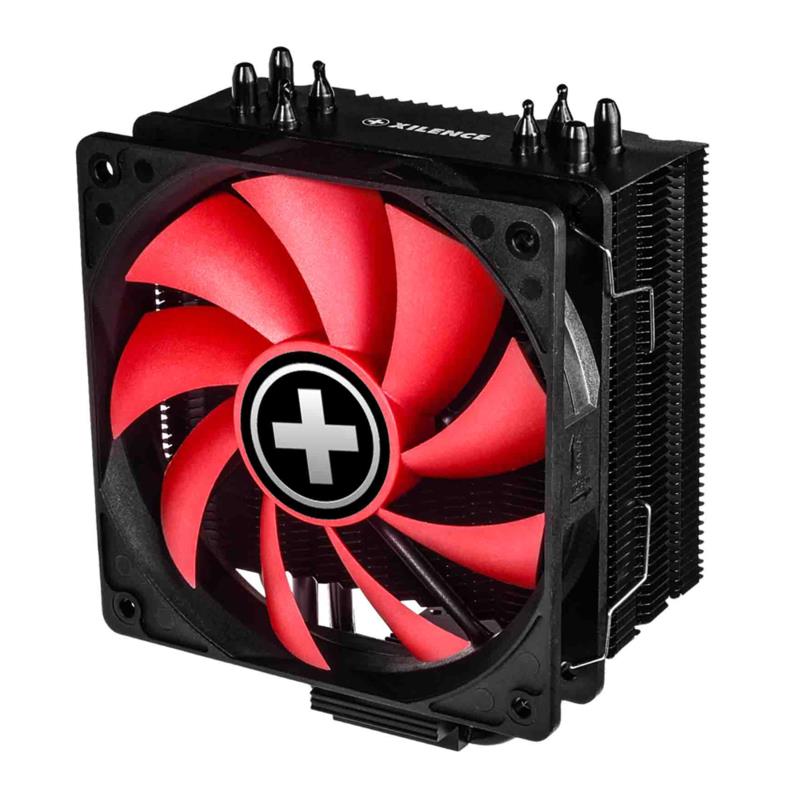

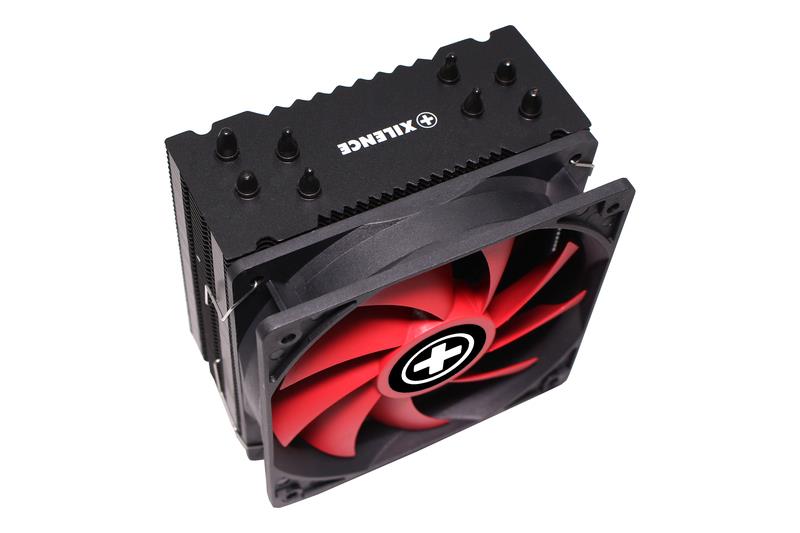

The new M704 is the first CPU cooler to widening the Performance A+ series. Just like the power supplies, this CPU cooler is completely black, with a red fan. The M704 has four equally black, extremely efficient heat pipes, which allow for a cooling capacity of up to 200W.

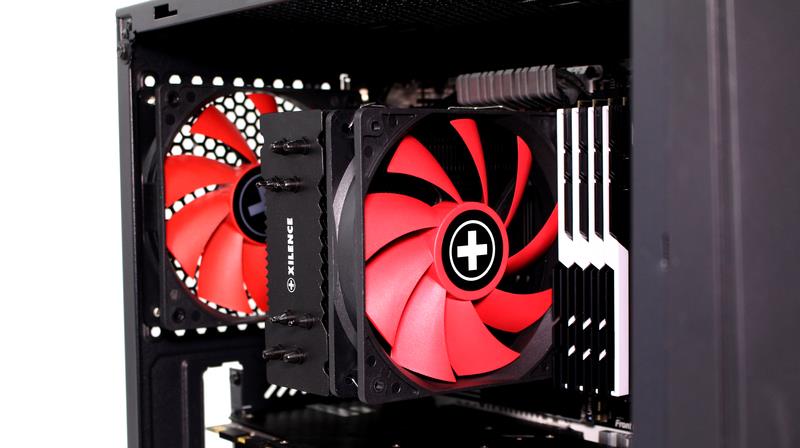

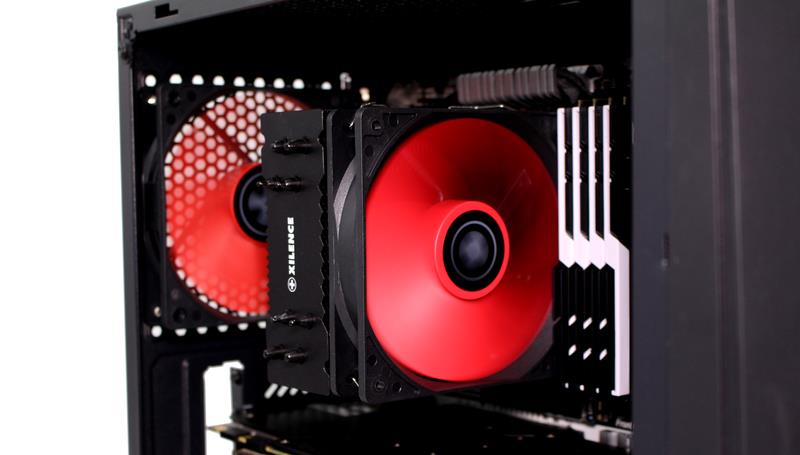

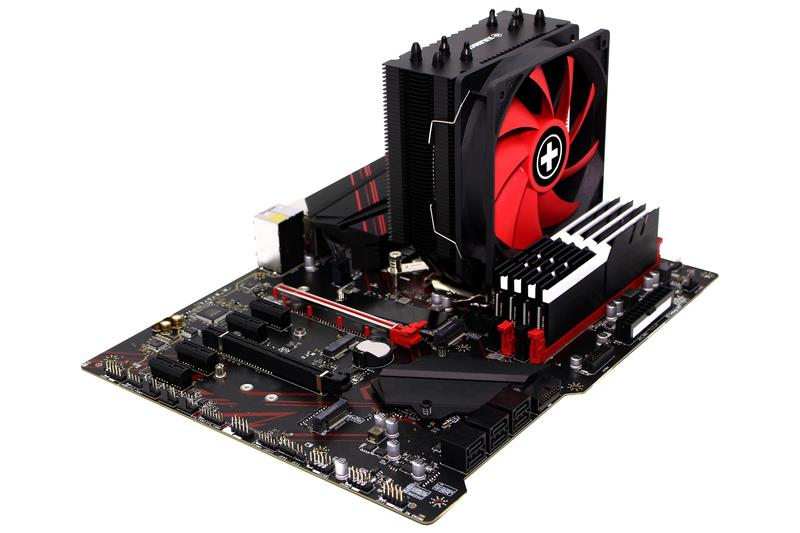

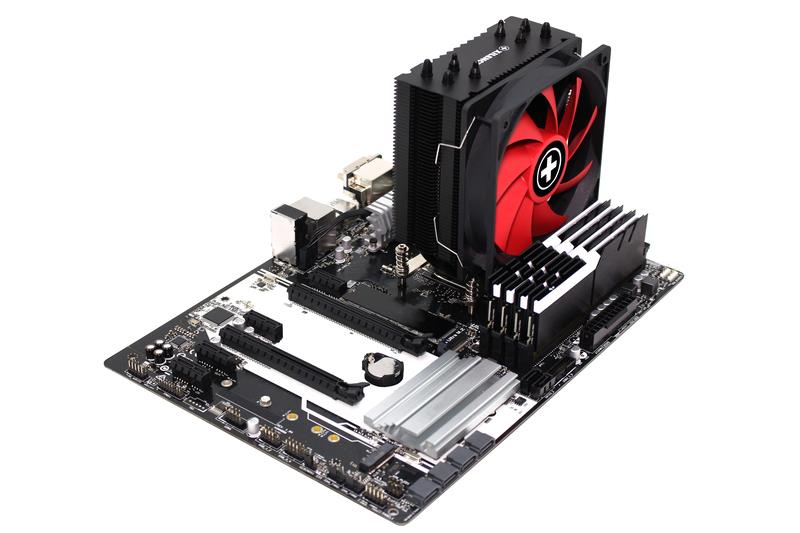

The red 120mm PWM fan completes the CPU cooler, which is especially appropriate for gaming systems with potent multicore processors. Thanks to the multi-socket design, the cooler can be applied on all current AMD and Intel sockets.

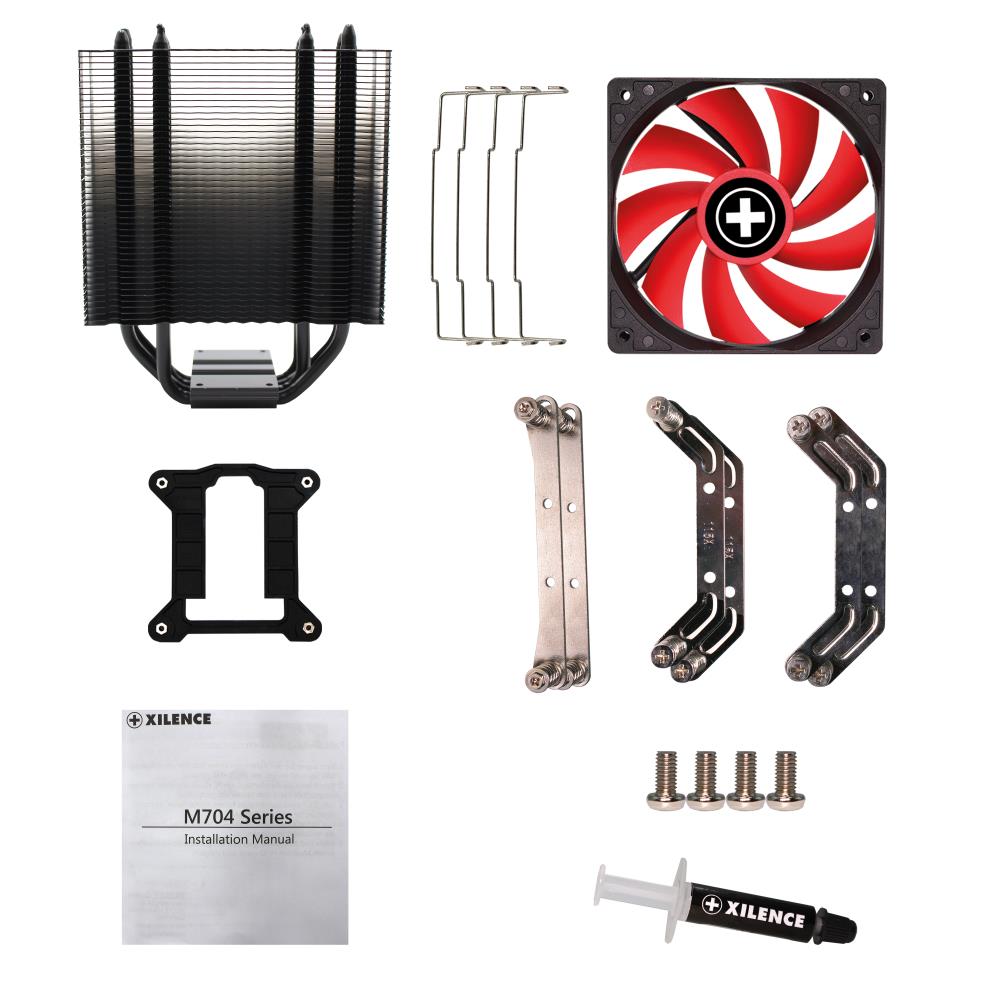

Included in the scope of delivery is – besides heatsink and 120mm PWM fan – mounting material for sockets LGA1700/1954/1151/1150/1155/1851/1156/1200 and AM4 / AM5 illustrated assembly instructions as well as a tube of thermal paste.
- silent, hydro bearing 120mm PWM-fan
- black heat-sink

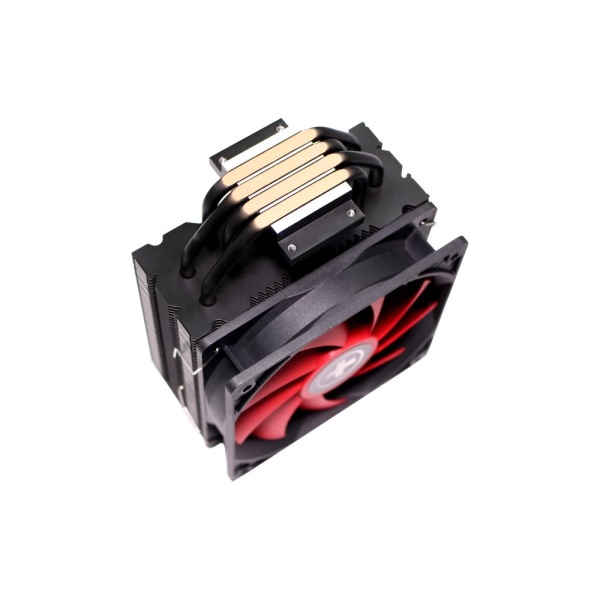

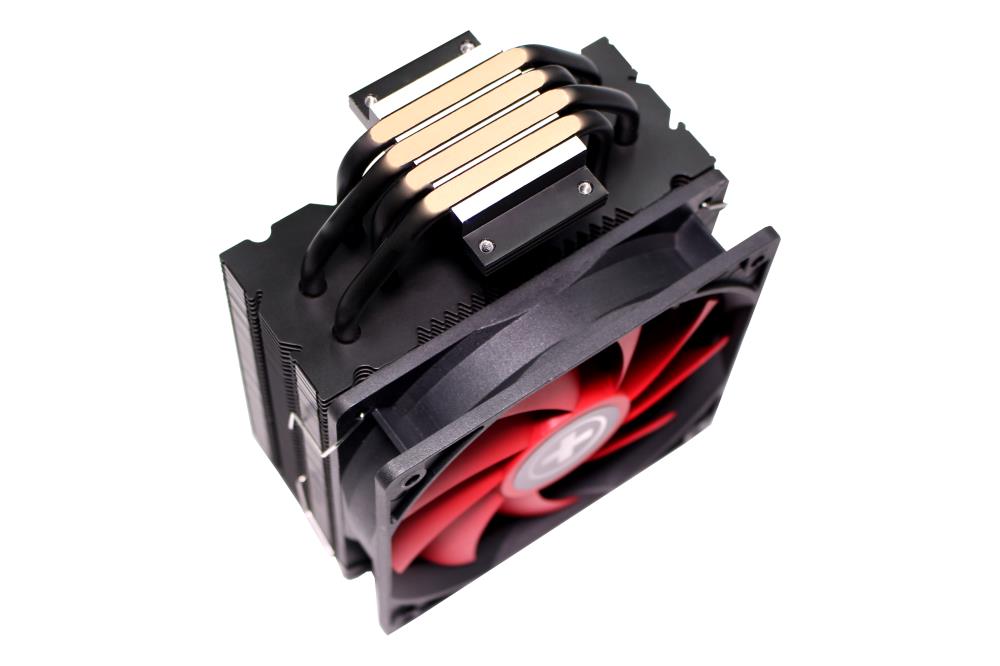

- four black 6mm copper heat pipes for better heat flow
- fin Design for high airflow and efficient cooling of the CPU and surrounding components

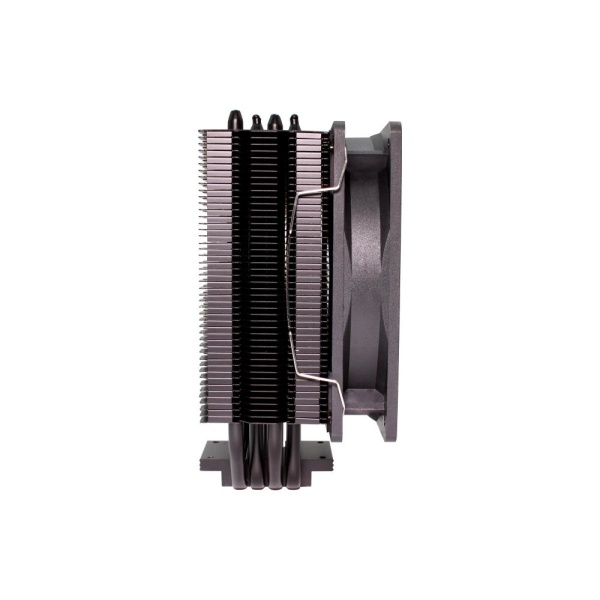

- slight overhang of the fan avoids hotspots
- possible mounting of the fan on both sides of the heat sink
- suitable for all current AMD and INTEL sockets
Xilence M704. Type: Cooler, Fan diameter: 12 cm, Rotational speed (min): 700 RPM, Rotational speed (max): 1600 RPM, Bearing type: Hydraulic. Width: 120 mm, Depth: 75 mm, Height: 160 mm. Product colour: Black, Red
Specifikacijos
| Vendor Homepage | https://www.xilence.net/en/cpu-coolers/113 |
|---|---|
| Category Code | COC |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.157 |
| Unit Box Width | 0.138 |
| Bearing type | Hydraulic |
| Compatible processor series | AMD A/Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Pentium® |
| Fan diameter | 120 mm |
| Maximum airflow | 70 cfm |
| Noise level (high speed) | 32.5 dB |
| Noise level (low speed) | 18 dB |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 1600 RPM |
| Rotational speed (min) | 700 RPM |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/LGA 1954/Socket AM4/Socket AM5 |
| Type | Cooler |
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Material | Aluminium/Cooper |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Number of heat pipes | 4 |
| Product colour | Black/Red |
| Rated voltage | 12 V |
| Depth | 75 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Height | 160 mm |
| Package depth | 147 mm |
| Package height | 110 mm |
| Package weight | 864 g |
| Package width | 205 mm |
| Weight | 426 g |
| Width | 120 mm |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case gross weight | 9800 g |
| Master (outer) case height | 240 mm |
| Master (outer) case length | 580 mm |
| Master (outer) case width | 320 mm |
| Products per master (outer) case | 12 pc(s) |
| Model | XC051 |
| Model name | M704 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0039 cubm |
| Unit Calculated Weight | 0.93 kg |
