- 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- 8-channel AcuPick for analog channels which improves the efficiency of target retrieval
- 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
- 4-channel face recognition for analog channels which supports face comparison
- 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
- 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
- Smart H.265+ and H.265 dual-stream video compression
Dahua Technology XVR5116H-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/4K-Value5MP-Series/XVR5116H-4KL-I3/T |
|---|---|
| Category Code | STD |
| CnCode | 85219000 |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.375 |
| Unit Box Width | 0.115 |

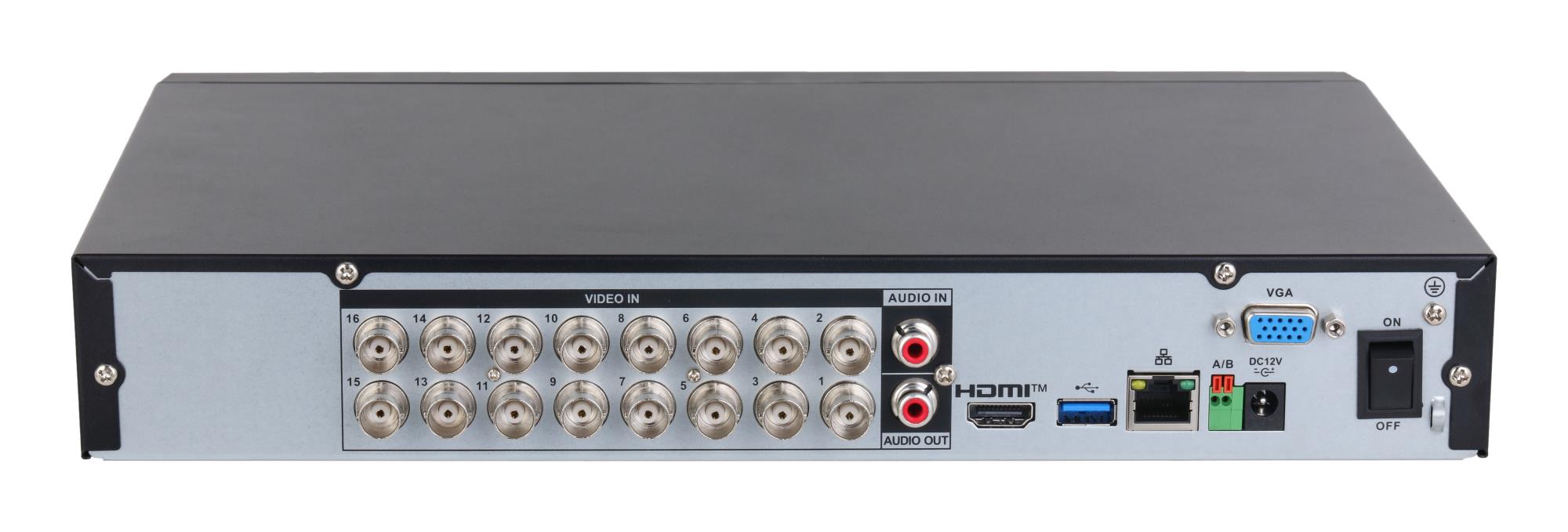

| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Video input channels | 16 channels |
| Video RCA outputs | 1 |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P |
| Maximum HDD capacity | 16000 GB |
| Number of HDDs supported | 1 |
| Audio formats supported | G.711 A-law/G.711u/PCM |
| Audio input channels | 16 channels |
| Audio output channels | 1.0 channels |
| Backup function | Yes |
| Dual stream support | Yes |
| Graphical user interface (GUI) | Yes |
| Maximum video resolution | 3840 x 2160 pixels |
| Multi-display modes | 1/16/25/36/4/8/9 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| Playback modes | Event/General/Instant/Smart/Tag |
| Product colour | Black |
| Rack capacity | 1U |
| USB connectivity | Yes |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Video resolutions | 1280 x 720/1920 x 1080/3840 x 2160 pixels |
| DC voltage | 12 V |
| Power consumption (typical) | 15 W |
| Power supply type | DC |
| Depth | 257.1 mm |
| Height | 55 mm |
| Weight | 1390 g |
| Width | 325 mm |
| Package depth | 119 mm |
| Package height | 311 mm |
| Package weight | 2060 g |
| Package width | 374 mm |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | CE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01337 cubm |
| Unit Calculated Weight | 2.03 kg |
